Sayfa 1-10A - Isuzu EPC

1-10A — RADIATOR (#4288) — 287 parça

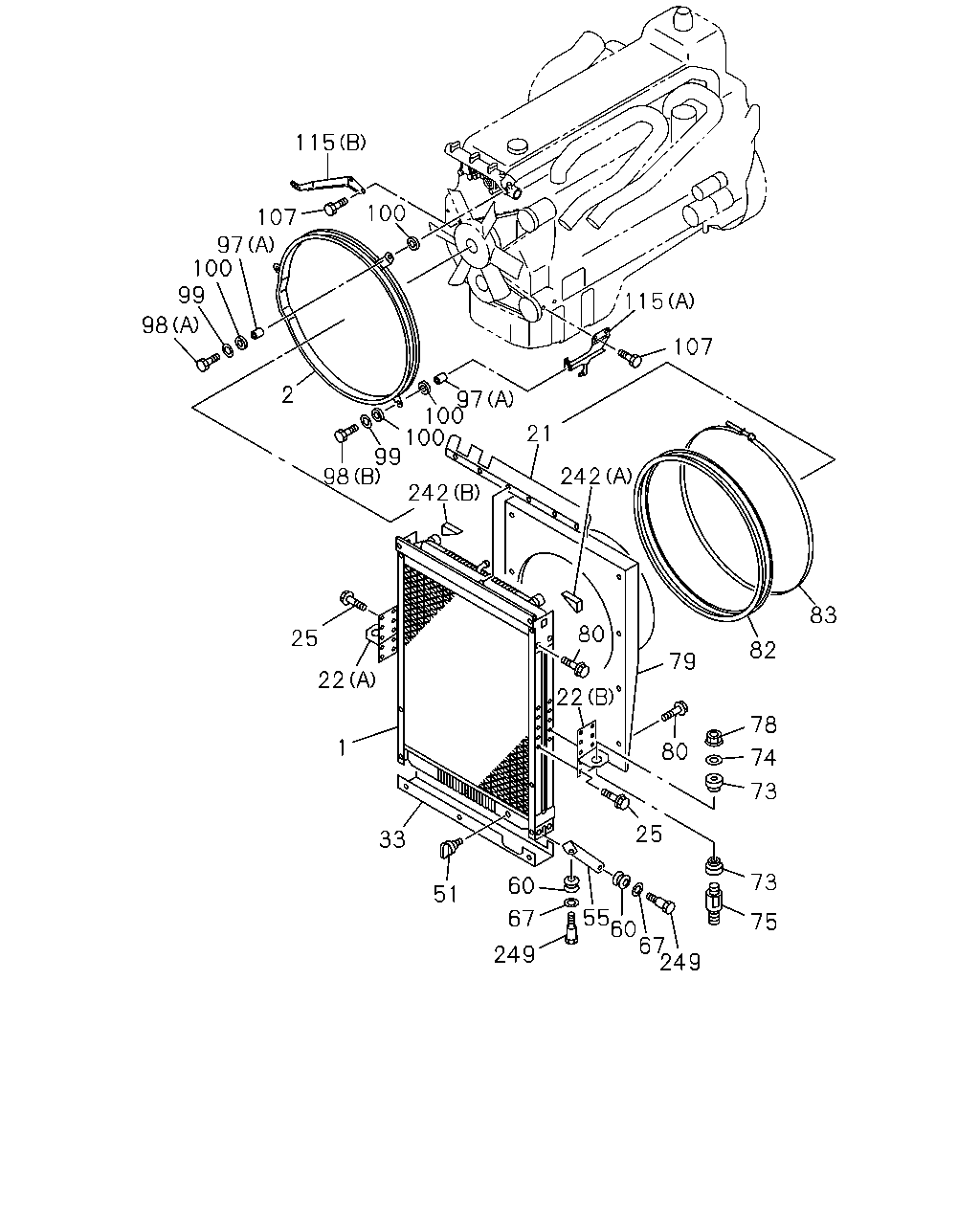

115 100 107 97 100 99 115 98 107 2 97 100 100 99 98 21 242 242 83 80 25 82 79 22 22 78 1 80 74 73 25 33 73 60 51 55 60 67 249 67 75 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	RADIATOR ASM	1-21410-693-0	01	1	9603-9904	●
1	RADIATOR ASM	1-21410-693-0	01	1	9905-9912	●	●
1	RADIATOR ASM ELECTRONIC GOV RED3(KG5)	1-21410-693-0	01	1	9905-9912			●
1	RADIATOR ASM SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5)	1-21410-693-0	01	1	9905-9912			●
1	RADIATOR ASM	1-21410-693-0	01	1	0001-	●	●
1	RADIATOR ASM EXC. CAB UP +110MM<TGG>	1-21410-693-0	01	1	0001-			●
1	RADIATOR ASM	1-21410-729-0	01	1	9707-9904				●
1	RADIATOR ASM	1-21410-730-1	01	1	9905-					●
1	RADIATOR ASM EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21410-729-0	01	1	9905-9912			●
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0001-			●
2	GUIDE; FAN	1-21551-369-0	01	1	9603-9904	●
2	GUIDE; FAN	1-21551-369-0	01	1	9905-	●	●	●
2	GUIDE; FAN	1-21551-420-0	01	1	9707-9904				●
2	GUIDE; FAN	1-21551-420-0	01	1	9905-					●
21	SEAL; RAD	1-21460-097-0	01	1	9707-9904				●
21	SEAL; RAD	1-21460-096-0	01	1	9905-					●
21	SEAL; RAD EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21460-097-0	01	1	9905-9912			●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-097-0	01	1	0001-			●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9603-9706	●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9707-9904	●			●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9905-	●	●	●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9603-9706	●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9707-9904	●			●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9905-	●	●	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	9905-					●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	9905-					●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9603-9706	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9707-9904	●			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9905-9912	●	●
25	BOLT; BRKT ELECTRONIC GOV RED3(KG5) M8X16 FLANGE	0-28080-816-0	14	1	9905-9912			●
25	BOLT; BRKT SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) M8X16 FLANGE	0-28080-816-0	14	1	9905-9912			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	0001-	●	●
25	BOLT; BRKT EXC. CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	14	1	0001-			●
25	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) M8X16 FLANGE	0-28080-816-0	18	1	9905-9912			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	9905-9912					●
25	BOLT; BRKT CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	18	1	0001-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0001-					●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9603-9706	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9707-9904	●			●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9905-	●	●	●		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9603-9706	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9707-9904	●			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9905-	●	●	●		●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9603-9706	●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9707-9904	●			●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9905-9912	●	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T)	1-21464-397-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5)	1-21464-397-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-397-0	01	1	0001-	●	●	●		●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9603-9706	●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9707-9904	●			●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9905-9912	●	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T)	1-21464-396-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5)	1-21464-396-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-396-0	01	1	0001-	●	●	●		●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-638-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21464-638-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-638-0	01	1	0001-			●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-637-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21464-637-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-637-0	01	1	0001-			●
55	STAY; RAD TO UPR MBR EXC. FIRE TRUCK<RA9>	1-21464-499-0	01	1	9905-					●
55	STAY; RAD TO UPR MBR EXC. FIRE TRUCK<RA9>	1-21464-498-0	01	1	9905-					●
60	GROMMET	1-09332-117-0	04	1	9603-9904	●			●
60	GROMMET	1-09332-117-0	04	1	9905-	●	●	●		●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9603-9904	●			●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9905-	●	●	●		●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9603-9904	●			●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9905-	●	●	●		●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9603-9904	●			●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9905-	●	●	●		●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	9603-9904	●			●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	9905-	●	●	●		●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-110-0	02	1	9603-9606	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9607-9904	●			●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●		●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9603-9904	●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9905-9912	●	●
79	GUIDE; FAN,RAD ELECTRONIC GOV RED3(KG5)	1-21551-384-0	01	1	9905-9912			●
79	GUIDE; FAN,RAD SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5)	1-21551-384-0	01	1	9905-9912			●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	0001-	●	●
79	GUIDE; FAN,RAD EXC. CAB UP +110MM<TGG>	1-21551-384-0	01	1	0001-			●
79	GUIDE; FAN,RAD	1-21551-415-0	01	1	9707-9904				●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	9905-					●
79	GUIDE; FAN,RAD EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21551-415-0	01	1	9905-9912			●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-415-0	01	1	0001-			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9603-9904	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9905-9912	●	●
80	BOLT; FAN GUIDE ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	16	1	9905-9912			●
80	BOLT; FAN GUIDE SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	16	1	9905-9912			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	0001-	●	●
80	BOLT; FAN GUIDE EXC. CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	16	1	0001-			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	9707-9904				●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	9905-					●
80	BOLT; FAN GUIDE EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) M8X12 FLANGE	0-28080-812-0	15	1	9905-9912			●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0001-			●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9603-9804	●			●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9805-9904	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9905-	●	●	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	9805-9904				●
82	COVER; FAN,RAD	1-21559-262-1	01	1	9905-					●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9603-9804	●			●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9805-9904	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9905-	●	●	●
83	CLIP; FAN COVER	1-09707-152-0	02	1	9805-9904				●
83	CLIP; FAN COVER	1-09707-152-2	02	1	9905-					●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9603-9904	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9905-	●	●	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9603-9904	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9905-	●	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	9707-9904				●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	9905-					●
98	BOLT; RAD FAN GUIDE (A) M10X40	0-10806-040-0	01	1	9603-9612	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9701-9904	●			●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9905-	●	●	●		●
98	BOLT; RAD FAN GUIDE (B) M10X55	0-10806-055-0	02	1	9603-9612	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9701-9904	●			●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9905-	●	●	●		●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9603-9904	●			●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9905-	●	●	●		●
100	RUBBER; MTG	1-09337-017-0	06	1	9603-9904	●			●
100	RUBBER; MTG	1-09337-017-0	06	1	9905-	●	●	●		●
107	BOLT; BRKT TO STAY M14X30	0-23801-430-0	02	1	9603-9604	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9605-9706	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9707-9904	●			●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9905-	●	●	●		●
115	BRACKET; FAN GUIDE (B)	1-21559-335-1	01	1	9603-9604	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9605-9706	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9707-9904	●			●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9905-	●	●	●		●
115	BRACKET; FAN GUIDE (A)	1-21559-347-0	01	1	9603-9604	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9605-9706	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9707-9904	●			●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9905-	●	●	●		●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	9603-9904	●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	9905-	●	●	●
242	BRACKET; RAD (A)	1-21464-522-0	01	1	9707-9904				●
242	BRACKET; RAD (A)	1-21464-517-0	01	1	9905-					●
242	BRACKET; RAD (B)	1-21464-523-0	01	1	9707-9904				●
242	BRACKET; RAD (B)	1-21464-518-0	01	1	9905-					●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9603-9904	●			●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9905-	●	●	●		●

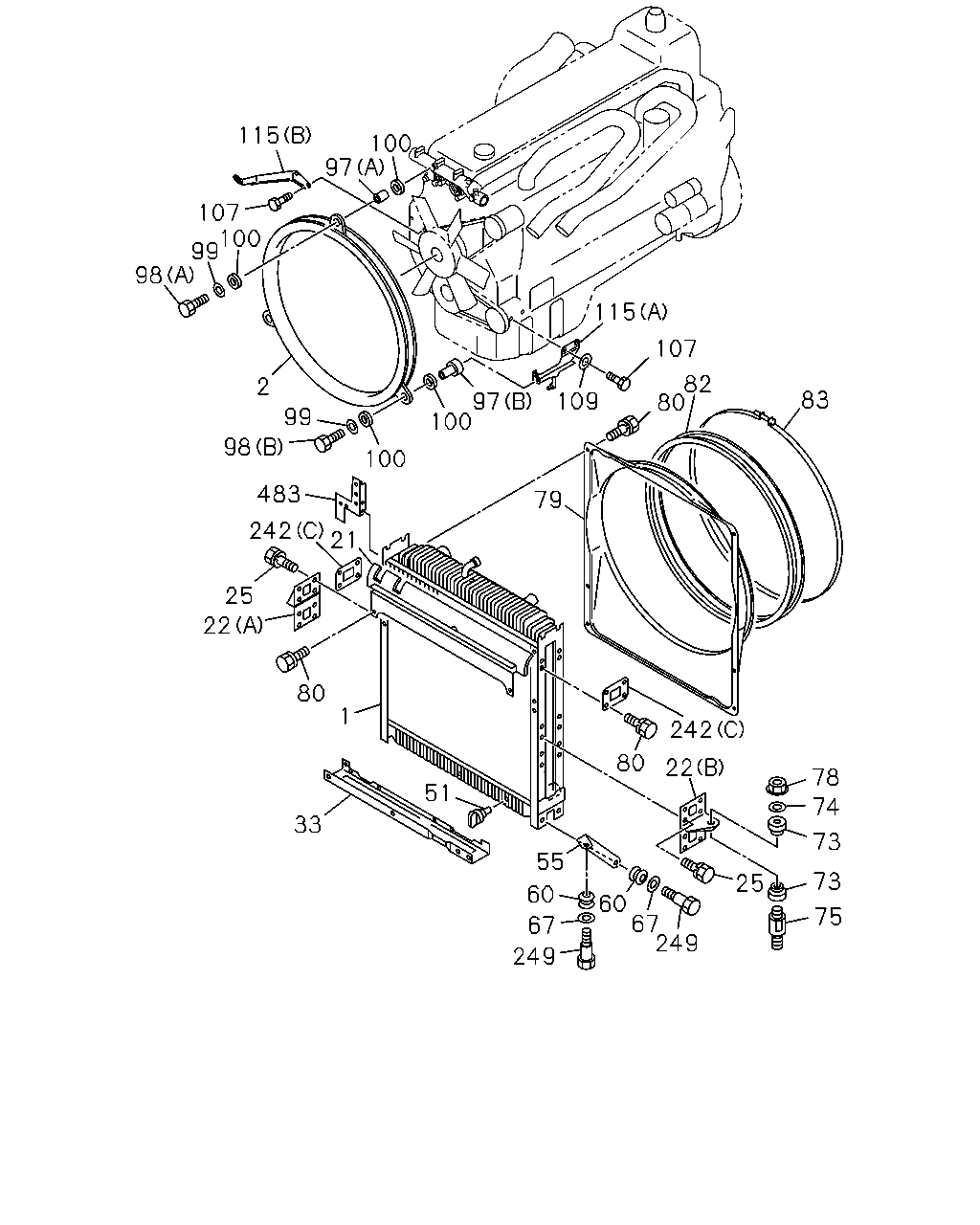

115 100 97 107 100 99 98 115 107 82 80 2 83 109 97 100 99 98 100 79 483 242 21 25 22 80 242 1 80 22 78 51 74 33 73 55 60 67 249 73 25 60 75 67 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	RADIATOR ASM	1-21410-693-0	01	1	9603-9904	●
1	RADIATOR ASM	1-21410-693-0	01	1	9905-9912	●	●
1	RADIATOR ASM ELECTRONIC GOV RED3(KG5)	1-21410-693-0	01	1	9905-9912			●
1	RADIATOR ASM SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5)	1-21410-693-0	01	1	9905-9912			●
1	RADIATOR ASM	1-21410-693-0	01	1	0001-	●	●
1	RADIATOR ASM EXC. CAB UP +110MM<TGG>	1-21410-693-0	01	1	0001-			●
1	RADIATOR ASM	1-21410-729-0	01	1	9707-9904				●
1	RADIATOR ASM	1-21410-730-1	01	1	9905-					●
1	RADIATOR ASM EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21410-729-0	01	1	9905-9912			●
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0001-			●
2	GUIDE; FAN	1-21551-369-0	01	1	9603-9904	●
2	GUIDE; FAN	1-21551-369-0	01	1	9905-	●	●	●
2	GUIDE; FAN	1-21551-420-0	01	1	9707-9904				●
2	GUIDE; FAN	1-21551-420-0	01	1	9905-					●
21	SEAL; RAD	1-21460-097-0	01	1	9707-9904				●
21	SEAL; RAD	1-21460-096-0	01	1	9905-					●
21	SEAL; RAD EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21460-097-0	01	1	9905-9912			●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-097-0	01	1	0001-			●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9603-9706	●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9707-9904	●			●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	9905-	●	●	●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9603-9706	●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9707-9904	●			●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	9905-	●	●	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	9905-					●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	9905-					●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9603-9706	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9707-9904	●			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	9905-9912	●	●
25	BOLT; BRKT ELECTRONIC GOV RED3(KG5) M8X16 FLANGE	0-28080-816-0	14	1	9905-9912			●
25	BOLT; BRKT SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) M8X16 FLANGE	0-28080-816-0	14	1	9905-9912			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	14	1	0001-	●	●
25	BOLT; BRKT EXC. CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	14	1	0001-			●
25	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) M8X16 FLANGE	0-28080-816-0	18	1	9905-9912			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	9905-9912					●
25	BOLT; BRKT CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	18	1	0001-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0001-					●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9603-9706	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9707-9904	●			●
33	PROTECTOR; RAD	1-21419-050-0	01	1	9905-	●	●	●		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9603-9706	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9707-9904	●			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9905-	●	●	●		●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9603-9706	●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9707-9904	●			●
55	STAY; RAD TO UPR MBR	1-21464-397-0	01	1	9905-9912	●	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T)	1-21464-397-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5)	1-21464-397-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-397-0	01	1	0001-	●	●	●		●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9603-9706	●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9707-9904	●			●
55	STAY; RAD TO UPR MBR	1-21464-396-0	01	1	9905-9912	●	●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) EXC. INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATO R(Q3T)	1-21464-396-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5)	1-21464-396-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-396-0	01	1	0001-	●	●	●		●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-638-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21464-638-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-638-0	01	1	0001-			●
55	STAY; RAD TO UPR MBR ELECTRONIC GOV RED3(KG5) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T)	1-21464-637-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21464-637-0	01	1	9905-9912			●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-637-0	01	1	0001-			●
55	STAY; RAD TO UPR MBR EXC. FIRE TRUCK<RA9>	1-21464-499-0	01	1	9905-					●
55	STAY; RAD TO UPR MBR EXC. FIRE TRUCK<RA9>	1-21464-498-0	01	1	9905-					●
60	GROMMET	1-09332-117-0	04	1	9603-9904	●			●
60	GROMMET	1-09332-117-0	04	1	9905-	●	●	●		●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9603-9904	●			●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9905-	●	●	●		●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9603-9904	●			●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9905-	●	●	●		●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9603-9904	●			●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9905-	●	●	●		●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	9603-9904	●			●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	9905-	●	●	●		●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-110-0	02	1	9603-9606	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9607-9904	●			●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●		●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9603-9904	●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	9905-9912	●	●
79	GUIDE; FAN,RAD ELECTRONIC GOV RED3(KG5)	1-21551-384-0	01	1	9905-9912			●
79	GUIDE; FAN,RAD SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5)	1-21551-384-0	01	1	9905-9912			●
79	GUIDE; FAN,RAD	1-21551-384-0	01	1	0001-	●	●
79	GUIDE; FAN,RAD EXC. CAB UP +110MM<TGG>	1-21551-384-0	01	1	0001-			●
79	GUIDE; FAN,RAD	1-21551-415-0	01	1	9707-9904				●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	9905-					●
79	GUIDE; FAN,RAD EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21551-415-0	01	1	9905-9912			●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-415-0	01	1	0001-			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9603-9904	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	9905-9912	●	●
80	BOLT; FAN GUIDE ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	16	1	9905-9912			●
80	BOLT; FAN GUIDE SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) EXC. ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	16	1	9905-9912			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	16	1	0001-	●	●
80	BOLT; FAN GUIDE EXC. CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	16	1	0001-			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	9707-9904				●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	9905-					●
80	BOLT; FAN GUIDE EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) M8X12 FLANGE	0-28080-812-0	15	1	9905-9912			●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0001-			●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9603-9804	●			●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9805-9904	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9905-	●	●	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	9805-9904				●
82	COVER; FAN,RAD	1-21559-262-1	01	1	9905-					●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9603-9804	●			●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9805-9904	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9905-	●	●	●
83	CLIP; FAN COVER	1-09707-152-0	02	1	9805-9904				●
83	CLIP; FAN COVER	1-09707-152-2	02	1	9905-					●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9603-9904	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	9905-	●	●	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9603-9904	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	9905-	●	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	9707-9904				●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	9905-					●
98	BOLT; RAD FAN GUIDE (A) M10X40	0-10806-040-0	01	1	9603-9612	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9701-9904	●			●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	9905-	●	●	●		●
98	BOLT; RAD FAN GUIDE (B) M10X55	0-10806-055-0	02	1	9603-9612	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9701-9904	●			●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	9905-	●	●	●		●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9603-9904	●			●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	9905-	●	●	●		●
100	RUBBER; MTG	1-09337-017-0	06	1	9603-9904	●			●
100	RUBBER; MTG	1-09337-017-0	06	1	9905-	●	●	●		●
107	BOLT; BRKT TO STAY M14X30	0-23801-430-0	02	1	9603-9604	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9605-9706	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9707-9904	●			●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	9905-	●	●	●		●
109	WASHER; LK,BRKT,FAN GUIDE ID=14.2	9-09150-514-0	02	1	9603-9604	●
115	BRACKET; FAN GUIDE (B)	1-21559-335-1	01	1	9603-9604	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9605-9706	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9707-9904	●			●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	9905-	●	●	●		●
115	BRACKET; FAN GUIDE (A)	1-21559-347-0	01	1	9603-9604	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9605-9706	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9707-9904	●			●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	9905-	●	●	●		●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	9603-9904	●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	9905-	●	●	●
242	BRACKET; RAD (A)	1-21464-522-0	01	1	9707-9904				●
242	BRACKET; RAD (A)	1-21464-517-0	01	1	9905-					●
242	BRACKET; RAD (B)	1-21464-523-0	01	1	9707-9904				●
242	BRACKET; RAD (B)	1-21464-518-0	01	1	9905-					●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9603-9904	●			●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9905-	●	●	●		●
483	BRACKET; SEAL EXC. ELECTRONIC GOV RED3(KG5),SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7)	1-21460-092-1	01	1	9905-9912			●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-092-1	01	1	0001-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
