8-10 — WIRING HARNESS AND FUSE (#42879) — 102 parça

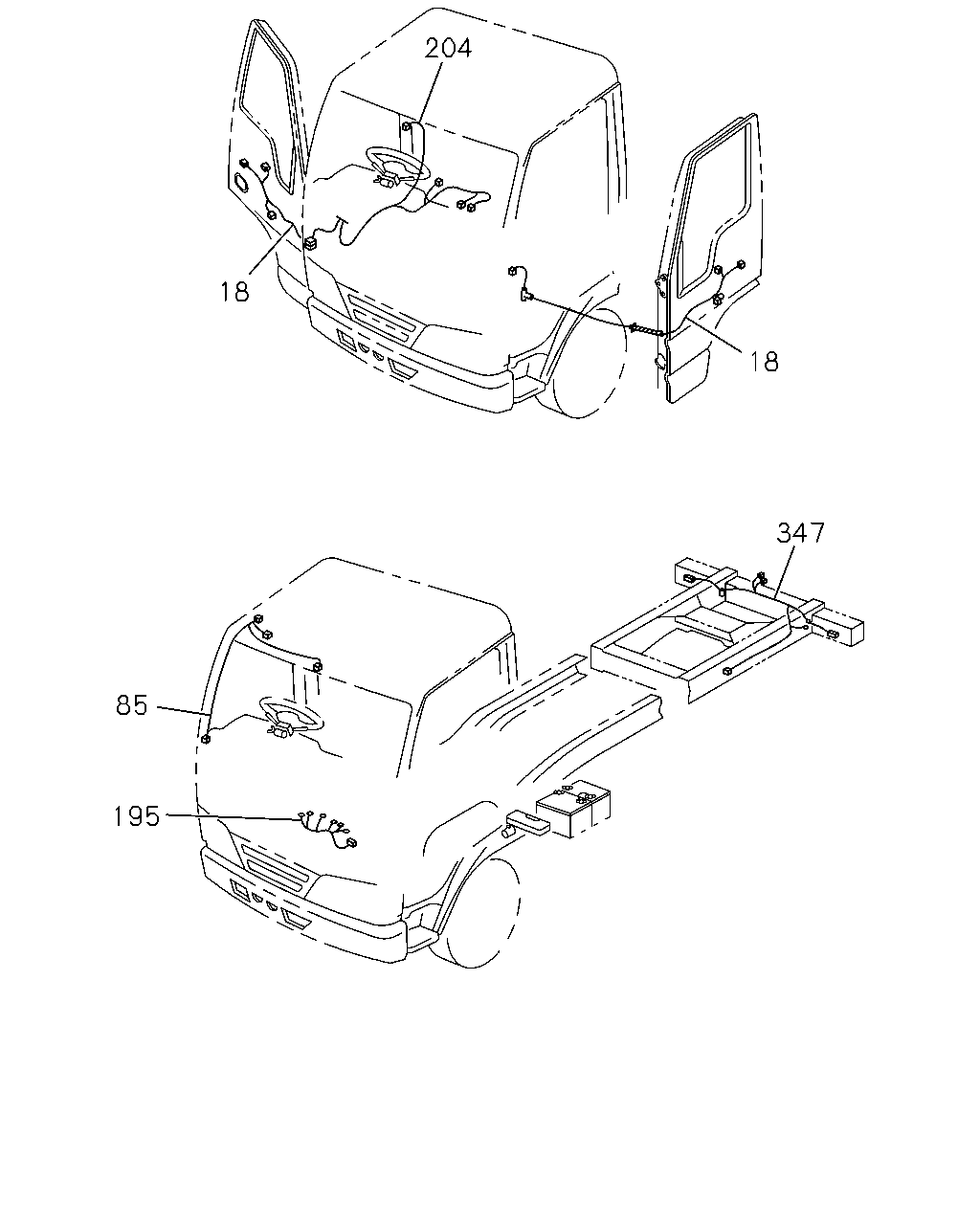

204 18 8 347 85 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> EXC. ENGINE POWER N-SPEC<7QV> THA	8-97922-674-0	01	1	0403-0403	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> EXC. ENGINE POWER N-SPEC<7QV> THA	8-97922-675-0	01	1	0403-0403		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-392-1	01	1	0309-0402	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> THA	8-97922-392-1	01	1	0403-0403	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-392-1	01	1	0404-0407	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-674-0	01	1	0408-	●
8	HARNESS; FRAME,FRT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-379-2	01	1	0309-0403	●		●
8	HARNESS; FRAME,FRT 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-379-2	01	1	0404-	●		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-378-1	01	1	0309-0402		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> THA	8-97922-378-1	01	1	0403-0403		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-378-1	01	1	0404-0407		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-675-0	01	1	0408-		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> THA	8-97917-005-0	02	1	0309-	●	●	●
18	HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FMW/CASSETTE 2 SPEAKERS<6VL> THA	8-97917-005-0	02	1	0309-	●	●	●
18	HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> THA	8-97917-005-0	02	1	0309-	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0309-	●	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0309-	●	●	●
85	HARNESS; ROOM LAMP THA	8-97917-004-0	01	1	0309-	●	●	●
195	HARNESS; EXT 4HE1 ENG<RLY>	8-97172-039-3	01	1	0309-	●	●
204	HARNESS; CABLE,FLOOR THA	8-97917-002-1	01	1	0309-0403	●	●	●
204	HARNESS; CABLE,FLOOR FLOOR REMOTE SHIFT<M11> THA	8-97917-002-1	01	1	0404-	●
204	HARNESS; CABLE,FLOOR THA	8-97917-002-1	01	1	0404-		●	●
347	HARNESS; CABLE,RR BODY THA	8-97916-999-1	01	1	0309-	●	●	●

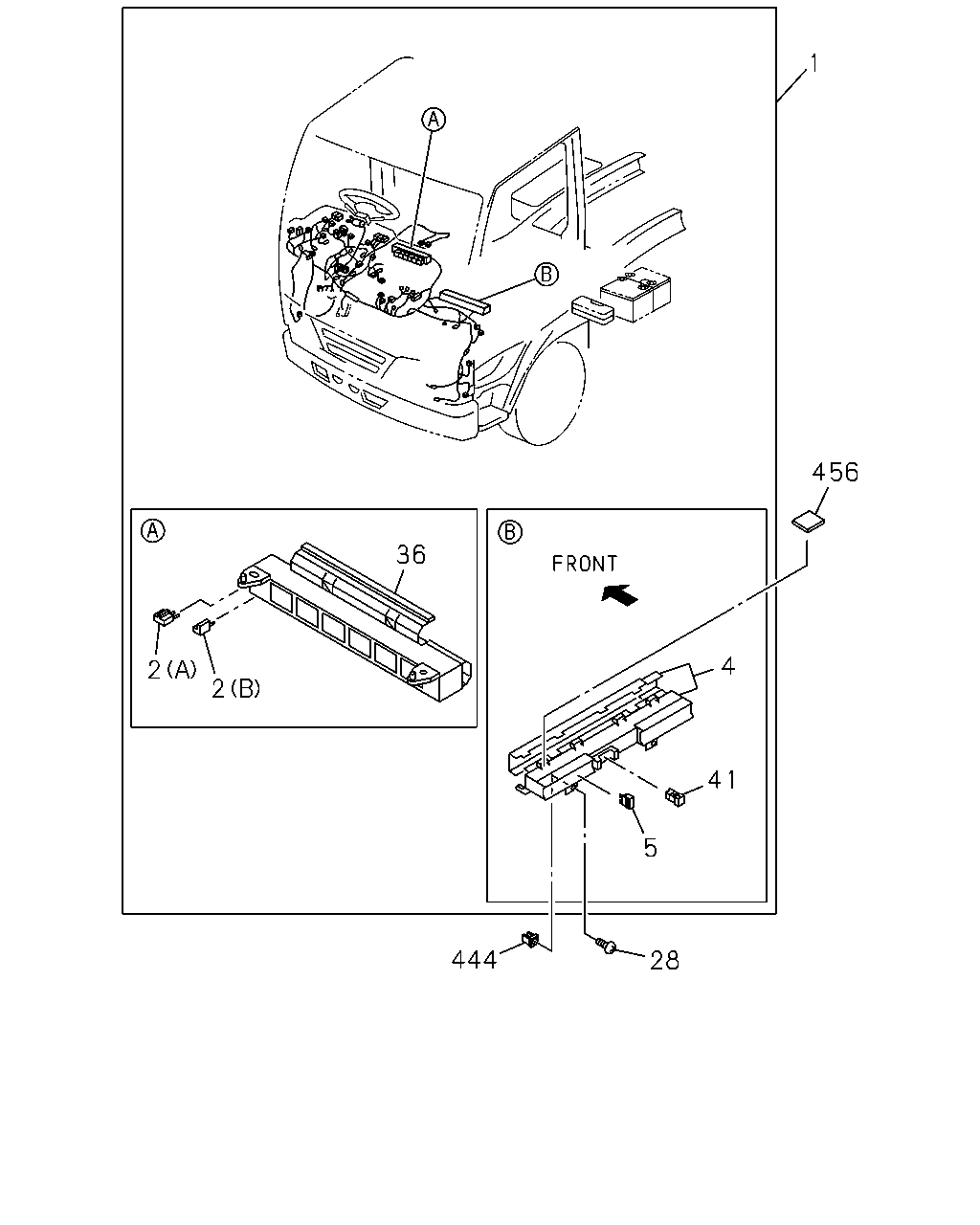

1 456 36 4 2 2 41 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4HE1 ENG<RLY> EXC. ENGINE POWER N-SPEC<7QV> THA	8-97922-673-0	01	1	0403-0403	●	●
1	HARNESS; CAB 4HG1 ENG<RJH> THA	8-97922-375-0	01	1	0309-	●		●
1	HARNESS; CAB 4HE1 ENG<RLY> THA	8-97922-374-0	01	1	0309-0402	●	●
1	HARNESS; CAB 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> THA	8-97922-374-0	01	1	0403-0403	●	●
1	HARNESS; CAB 4HE1 ENG<RLY> THA	8-97922-374-0	01	1	0404-0407	●	●
1	HARNESS; CAB 4HE1 ENG<RLY> THA	8-97922-673-0	01	1	0408-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A THA	8-94422-639-1	AR	1	0309-	●	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A THA	8-94422-640-1	AR	1	0309-	●	●	●
4	BOX ASM; FUSE,HARNESS THA	8-97214-415-0	01	1	0309-	●	●	●
5	FUSE; FACIA HARNESS 10A RED THA	5-82516-002-0	AR	1	0309-	●	●	●
5	FUSE; FACIA HARNESS 15A BLUE THA	5-82516-003-0	AR	1	0309-	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0309-	●	●	●
36	BOX; RELAY THA	8-97087-639-1	01	1	0309-	●	●	●
41	PULLER; FUSE L=25.3 B=11.5 THA	8-94121-482-0	01	1	0309-	●	●	●
444	GROMMET; SCREW,FUSE BOX D=8.5X8.5 L=7.5 THA	8-94279-078-0	02	1	0309-	●	●	●
456	CUSHION; FUSE BOX 15X30 T=5	8-94270-366-2	01	1	0309-	●	●	●

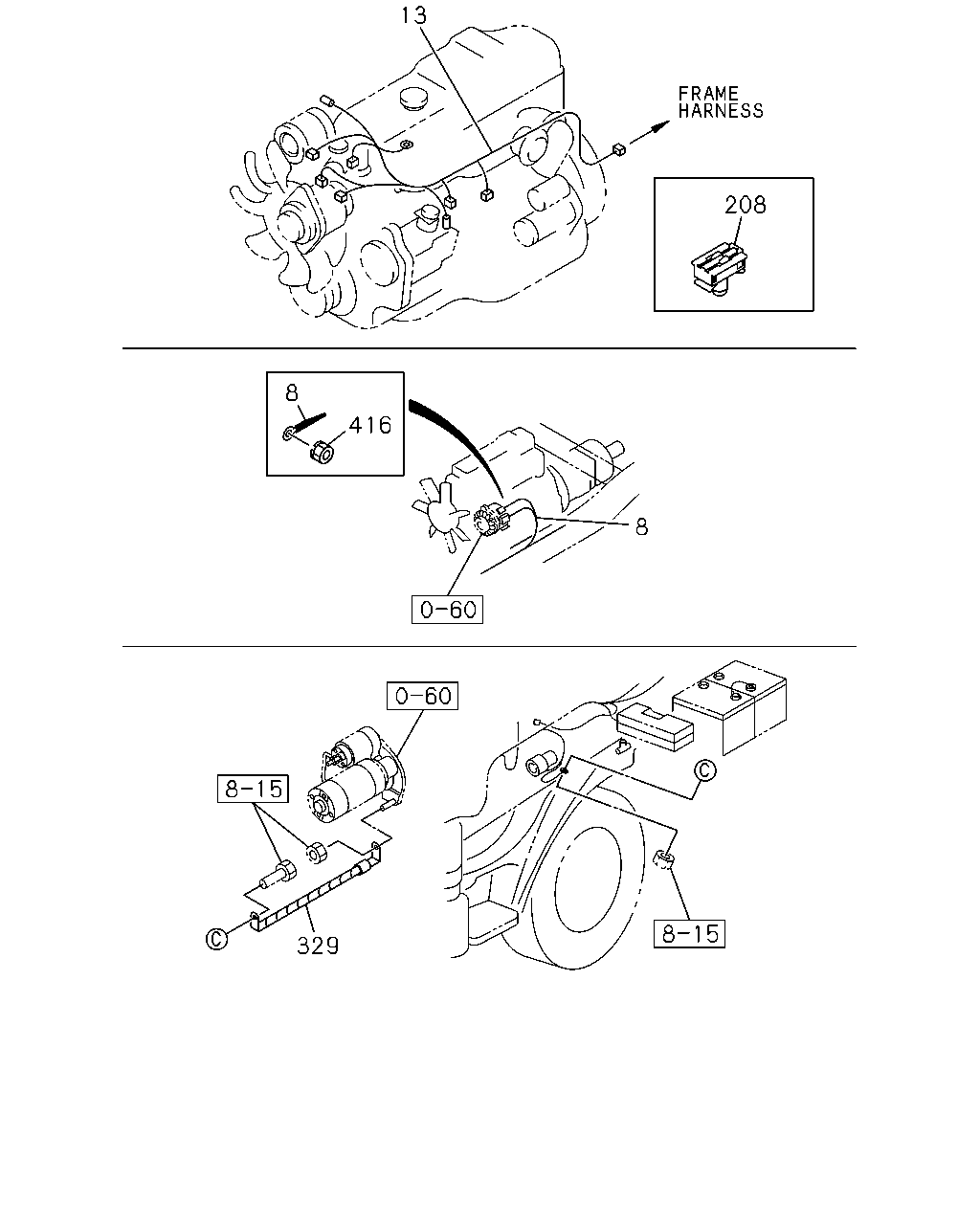

13 208 8 416 8 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> EXC. ENGINE POWER N-SPEC<7QV> THA	8-97922-674-0	01	1	0403-0403	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> EXC. ENGINE POWER N-SPEC<7QV> THA	8-97922-675-0	01	1	0403-0403		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-392-1	01	1	0309-0402	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> THA	8-97922-392-1	01	1	0403-0403	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-392-1	01	1	0404-0407	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-674-0	01	1	0408-	●
8	HARNESS; FRAME,FRT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-379-2	01	1	0309-0403	●		●
8	HARNESS; FRAME,FRT 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-379-2	01	1	0404-	●		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-378-1	01	1	0309-0402		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> THA	8-97922-378-1	01	1	0403-0403		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-378-1	01	1	0404-0407		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-675-0	01	1	0408-		●
13	HARNESS; ENG 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<NT2> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-98000-365-0	01	1	0502-	●	●
13	HARNESS; ENG 4HG1 ENG<RJH>	8-97360-784-0	01	1	0309-0407	●		●
13	HARNESS; ENG	8-97360-784-0	01	1	0408-	●	●	●
13	HARNESS; ENG 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV>	8-97360-785-0	01	1	0309-0403	●	●
13	HARNESS; ENG 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<NT2> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97360-785-0	01	1	0404-0407	●	●
13	HARNESS; ENG 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<NT2> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-98000-365-0	01	1	0412-	●	●
208	HOLDER; CONNECTOR 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<NT2> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-94459-973-1	01	1	0502-	●	●
208	HOLDER; CONNECTOR 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV>	8-94459-973-1	01	1	0309-0403	●	●
208	HOLDER; CONNECTOR 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<NT2> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-94459-973-1	01	1	0404-0407	●	●
208	HOLDER; CONNECTOR 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> EURO2 SPECIFICATION<NT2> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-94459-973-1	01	1	0408-	●	●
329	CABLE; ENG TO FRAME 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-588-0	01	1	0309-	●		●
329	CABLE; ENG TO FRAME 4HE1 ENG<RLY> THA	8-97920-957-0	01	1	0309-	●	●
416	NUT; TERMINAL M6 W/LK WASHER	8-94424-179-0	01	1	0309-	●	●	●

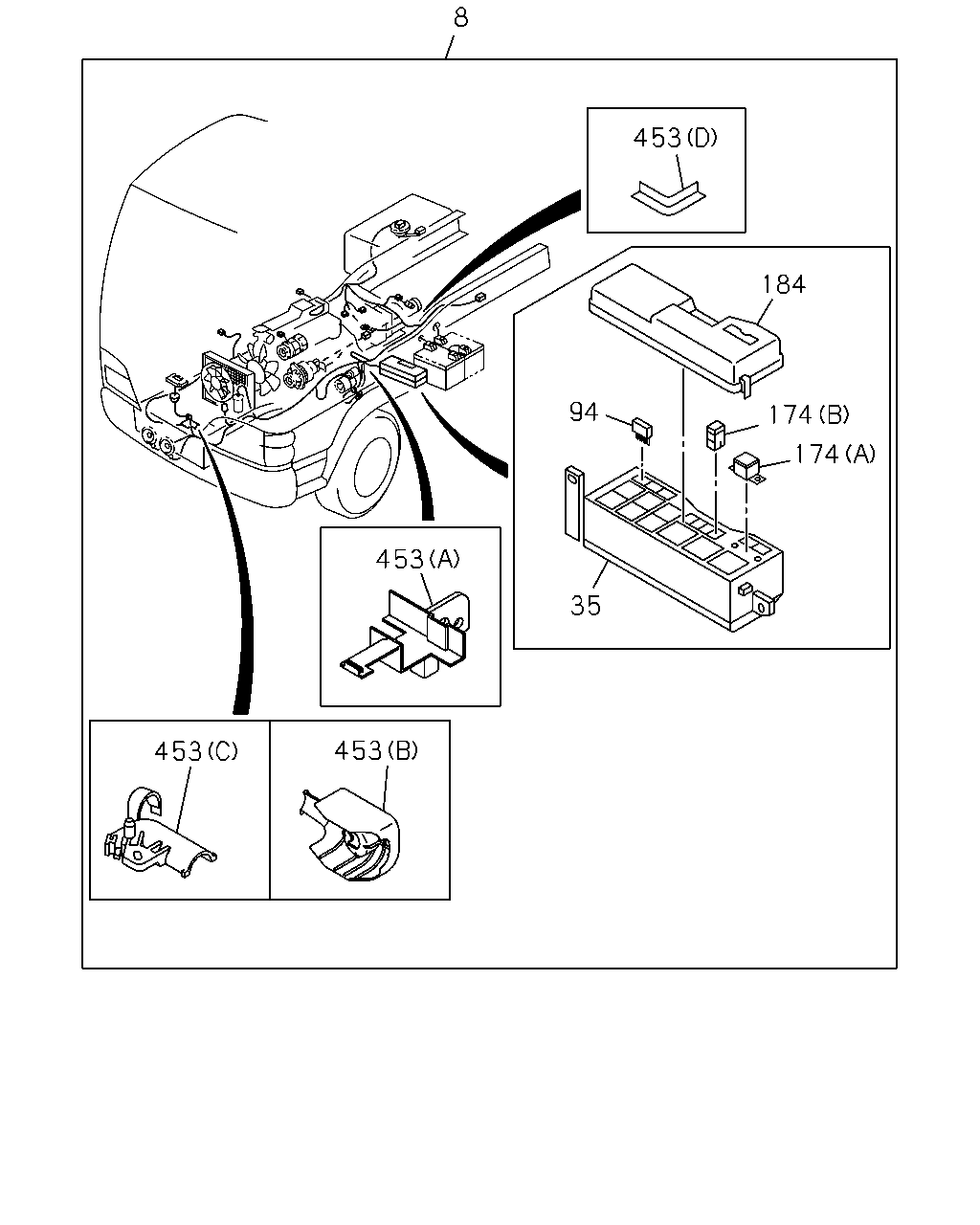

8 453 184 94 174 174 453 35 453 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> EXC. ENGINE POWER N-SPEC<7QV> THA	8-97922-674-0	01	1	0403-0403	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> EXC. ENGINE POWER N-SPEC<7QV> THA	8-97922-675-0	01	1	0403-0403		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-392-1	01	1	0309-0402	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> THA	8-97922-392-1	01	1	0403-0403	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-392-1	01	1	0404-0407	●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-674-0	01	1	0408-	●
8	HARNESS; FRAME,FRT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-379-2	01	1	0309-0403	●		●
8	HARNESS; FRAME,FRT 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97922-379-2	01	1	0404-	●		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-378-1	01	1	0309-0402		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> THA	8-97922-378-1	01	1	0403-0403		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-378-1	01	1	0404-0407		●
8	HARNESS; FRAME,FRT 4HE1 ENG<RLY> THA	8-97922-675-0	01	1	0408-		●
35	BOX; RELAY & FUSE THA	8-97063-150-1	01	1	0309-0403	●	●	●
35	BOX; RELAY & FUSE 4HE1 ENG<RLY> THA	8-97063-150-1	01	1	0404-0407	●	●
35	BOX; RELAY & FUSE 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97063-150-1	01	1	0404-0407	●
35	BOX; RELAY & FUSE 4HG1 ENG<RJH> THA	8-97063-150-1	01	1	0404-0407			●
35	BOX; RELAY & FUSE 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97063-150-1	01	1	0408-	●
35	BOX; RELAY & FUSE 4HG1 ENG<RJH> THA	8-97063-150-1	01	1	0408-			●
94	DIODE; FRAME HARNESS 4HE1 ENG<RLY> BLACK 3P-1.5A THA	8-94422-640-1	01	1	0309-	●	●
174	FUSE; SLOW BLOW (A) 60A YELLOW THA	8-94388-303-0	AR	1	0309-	●	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW THA	8-94468-664-0	AR	1	0309-	●	●	●
184	COVER; RELAY & FUSE BOX THA	8-97063-152-1	01	1	0309-0403	●	●	●
184	COVER; RELAY & FUSE BOX 4HE1 ENG<RLY> THA	8-97063-152-1	01	1	0404-0407	●	●
184	COVER; RELAY & FUSE BOX 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97063-152-1	01	1	0404-0407	●
184	COVER; RELAY & FUSE BOX 4HG1 ENG<RJH> THA	8-97063-152-1	01	1	0404-0407			●
184	COVER; RELAY & FUSE BOX 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97063-152-1	01	1	0408-	●
184	COVER; RELAY & FUSE BOX 4HG1 ENG<RJH> THA	8-97063-152-1	01	1	0408-			●
453	PROTECTOR; HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-94482-169-0	01	1	0309-0403	●		●
453	PROTECTOR; HARNESS 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-94482-169-0	01	1	0404-	●		●
453	PROTECTOR; HARNESS 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA	8-94417-716-0	01	1	0309-0403	●		●
453	PROTECTOR; HARNESS 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA	8-94417-716-0	01	1	0404-	●		●
453	PROTECTOR; HARNESS (D) THA	8-97093-668-1	01	1	0309-0403	●	●	●
453	PROTECTOR; HARNESS 4HE1 ENG<RLY> (D) THA	8-97093-668-1	01	1	0404-0407	●	●
453	PROTECTOR; HARNESS 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (D) THA	8-97093-668-1	01	1	0404-0407	●
453	PROTECTOR; HARNESS 4HG1 ENG<RJH> (D) THA	8-97093-668-1	01	1	0404-0407			●
453	PROTECTOR; HARNESS 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (D) THA	8-97093-668-1	01	1	0408-	●
453	PROTECTOR; HARNESS 4HG1 ENG<RJH> (D) THA	8-97093-668-1	01	1	0408-			●
453	PROTECTOR; HARNESS 4HE1 ENG<RLY> (A) THA	8-97120-591-1	01	1	0309-	●	●
