◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#42875) — 60 parça
çizim 54820
1 18 228 24 2 16 99 17 19 12 13 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97299-777-4 01 1 0309- ● ● ●
1 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> THA 		8-97922-417-0 01 1 0309- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97299-783-2 01 1 0309- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> THA 		8-97922-484-0 01 1 0309- ● ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97299-785-2 01 1 0309- ● ● ●
12 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> THA 		8-97922-418-0 01 1 0309- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97299-791-2 01 1 0309- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> THA 		8-97922-485-0 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
(A) DRIVER 		8-97854-057-2 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (B) PASSENGER BLACK THA 		8-97859-273-3 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (C) PASSENGER CENTER BLACK THA 		8-97859-274-3 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (B) PASSENGER THA 		8-97917-120-0 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (C) PASSENGER CENTER THA 		8-97917-199-0 01 1 0309- ● ● ●
17 BOLT; RECLINING
M8X20 THA 		8-97255-906-0 02 1 0309- ● ● ●
18 COVER; RECLINING
SEAT CLOTH<7FL> DARK GRAY THA 		8-97867-020-0 01 1 0309- ● ● ●
18 COVER; RECLINING
EXC. SEAT CLOTH<7FL> THA 		8-97913-525-0 01 1 0309- ● ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0309- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> DARK GRAY THA 		8-97867-021-0 01 1 0309- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT CLOTH<7FL> THA 		8-97913-535-0 01 1 0309- ● ● ●
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> THA 		8-97854-059-3 01 1 0309- ● ● ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> THA 		8-97916-796-0 01 1 0309- ● ● ●
67 BOLT; FRT SEAT TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0309- ● ● ●
69 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0309- ● ● ●
71 BOLT; ADJ TO SEAT
M8X20 THA 		8-97255-906-0 02 1 0309- ● ● ●
99 BUSHING; SEAT BACK
SEAT CLOTH<7FL> THA 		8-97854-087-0 01 1 0309- ● ● ●
99 BUSHING; SEAT BACK
EXC. SEAT CLOTH<7FL> THA 		8-97916-793-0 01 1 0309- ● ● ●
228 SCREW; KNOB
M4X6 THA 		8-97042-273-0 01 1 0309- ● ● ●
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 01 1 0309- ● ● ●

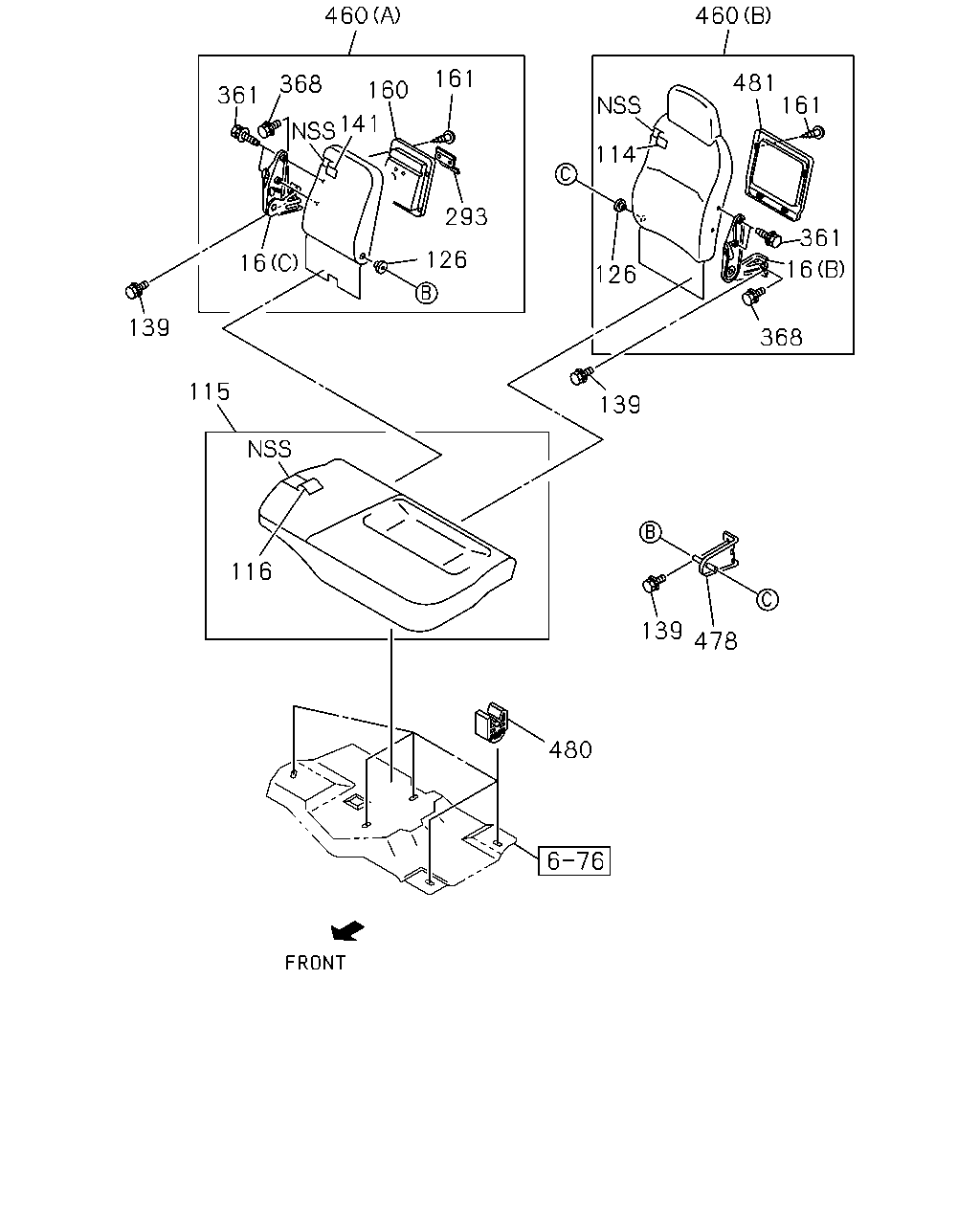

çizim 54996
460 460 161 481 368 160 361 161 141 114 293 361 126 16 16 126 139 368 115 139 116 139 478 480
BalonParca AdiParca NoAdetTipApplied Date A B C
16 ADJUSTER ASM; RECLINING
(A) DRIVER 		8-97854-057-2 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (B) PASSENGER BLACK THA 		8-97859-273-3 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> (C) PASSENGER CENTER BLACK THA 		8-97859-274-3 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (B) PASSENGER THA 		8-97917-120-0 01 1 0309- ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. SEAT CLOTH<7FL> (C) PASSENGER CENTER THA 		8-97917-199-0 01 1 0309- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97393-857-1 01 1 0309- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> THA 		8-97922-422-0 01 1 0309- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97394-579-2 01 1 0309- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> THA 		8-97922-360-0 01 1 0309- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97394-534-2 01 1 0309- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT CLOTH<7FL> THA 		8-97922-425-0 01 1 0309- ● ● ●
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> THA 		8-97854-900-0 02 1 0309- ● ● ●
126 BUSHING; HINGE,RECLINING
EXC. SEAT CLOTH<7FL> THA 		8-97917-184-0 02 1 0309- ● ● ●
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0309- ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97299-798-2 01 1 0309- ● ● ●
141 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> THA 		8-97922-424-0 01 1 0309- ● ● ●
160 CONSOLE; UPR,BACK CENTER
SEAT CLOTH<7FL> DARK GRAY THA 		8-97393-932-0 01 1 0309- ● ● ●
160 CONSOLE; UPR,BACK CENTER
EXC. SEAT CLOTH<7FL> THA 		8-97917-193-0 01 1 0309- ● ● ●
161 SCREW; CONSOLE
SEAT CLOTH<7FL> M4X12 THA 		8-94279-351-0 04 1 0309- ● ● ●
161 SCREW; CONSOLE
EXC. SEAT CLOTH<7FL> THA 		8-97917-195-0 08 1 0309- ● ● ●
293 BINDER; CENTER CONSOLE
EXC. SEAT CLOTH<7FL> THA 		8-97917-194-0 01 1 0309- ● ● ●
361 BOLT; ADJ,RECLINING
M8X18 THA 		8-94279-109-1 04 1 0309- ● ● ●
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0309- ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97394-566-1 01 1 0309-0404 ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97393-833-2 01 1 0405- ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97394-575-1 01 1 0309-0404 ● ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97299-596-3 01 1 0405- ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) THA 		8-97922-358-0 01 1 0309- ● ● ●
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) THA 		8-97922-359-0 01 1 0309- ● ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT
THA 		8-97916-789-0 01 1 0309- ● ● ●
480 CLIP; CUSHION 8-94279-977-0 05 1 0309- ● ● ●
481 TRAY; SEAT BACK
EXC. SEAT CLOTH<7FL> THA 		8-97917-198-0 01 1 0309- ● ● ●
