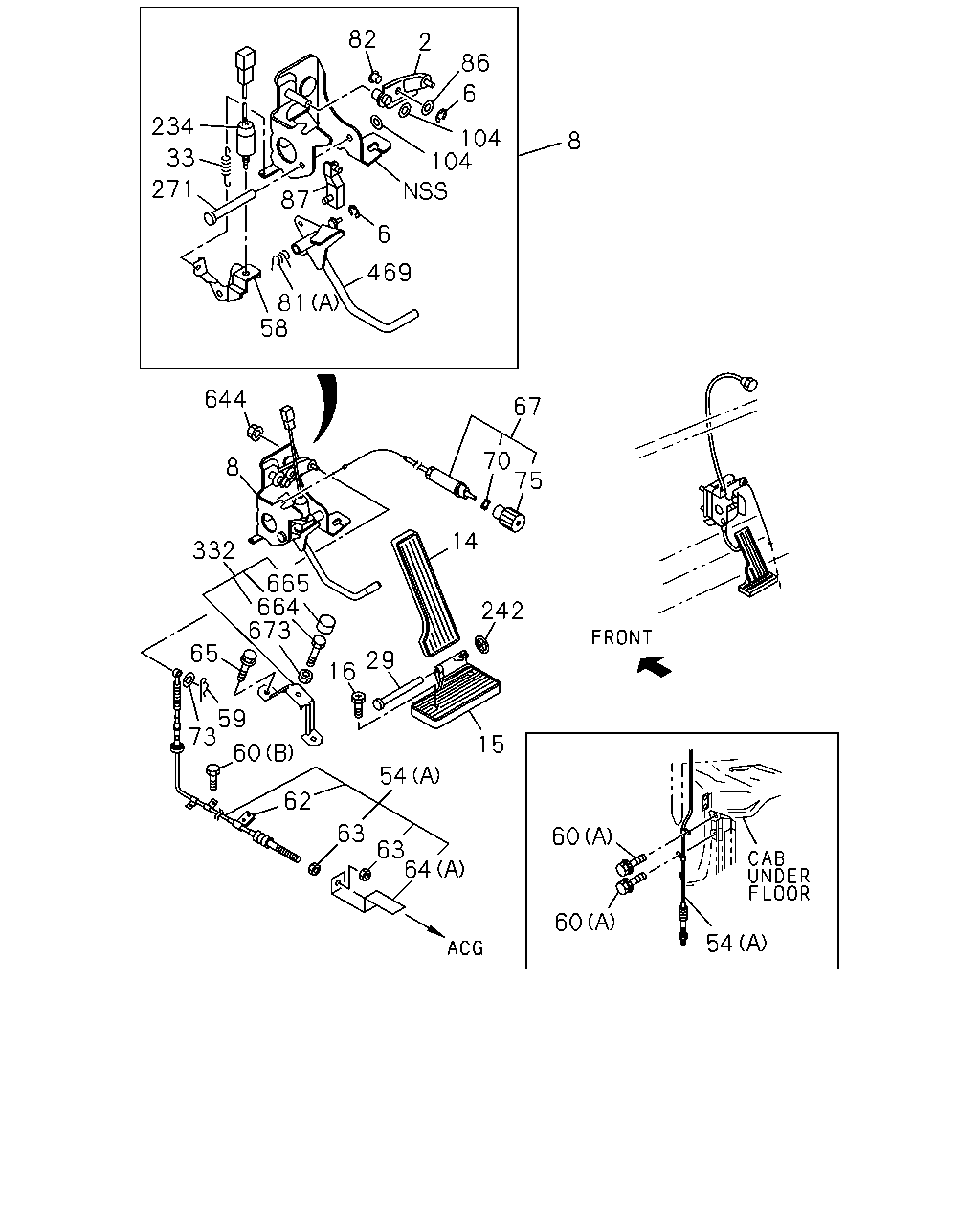

1-01B — ACCELERATOR PEDAL AND CONTROL (#4287) — 184 parça

82 2 86 6 234 104 104 8 33 87 271 6 469 81 58 644 67 70 75 8 14 332 665 664 673 242 65 29 16 59 73 15 60 54 62 63 60 63 64 60 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-210-2	01	1	9603-9609	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9610-9904	●	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9905-	●	●	●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	9603-9609	●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	9610-9904	●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	9905-	●	●	●	●
8	LINK ASM; ENG CONT	1-73996-206-5	01	1	9603-9609	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9610-9904	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9905-	●	●	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9603-9708	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-9904	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9905-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9603-9904	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9905-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9603-9902	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-9904	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9905-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9603-9904	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9905-	●	●	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9603-9609	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9610-9904	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9905-	●	●	●	●
54	CABLE; ENG CONT (A) L=2090	1-73907-478-0	01	1	9603-9908	●
54	CABLE; ENG CONT (A) L=2020	1-73907-631-0	01	1	9909-	●
54	CABLE; ENG CONT (A) L=1950	1-73907-477-0	01	1	9603-9606		●
54	CABLE; ENG CONT EXC. RLD GOVERNOR(SD7) (A) L=1950	1-73907-477-0	01	1	9607-9904		●
54	CABLE; ENG CONT (A) L=1950	1-73907-477-0	01	1	9905-		●		●
54	CABLE; ENG CONT EXC. RLD GOVERNOR(SD7) (A) L=1950	1-73907-477-0	01	1	9905-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=2657	1-73907-316-2	01	1	9607-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=2657	1-73907-316-2	01	1	9905-			●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=1234	1-23230-107-1	01	1	0004-			●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9603-9609	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9610-9904	●	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9905-	●	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9603-9609	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9610-9904	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9905-	●	●	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9609	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9610-9904	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●	●	●
60	BOLT; CABLE RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
60	BOLT; CABLE RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9908	●	●
60	BOLT; CABLE RLD GOVERNOR(SD7) (B) M8X20 FLANGE	0-28680-820-0	01	1	9909-	●	●	●	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28680-820-0	01	1	9909-	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9603-9606	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9607-9904	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9905-	●	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9603-9606	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9607-9904	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9905-	●	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9603-9609	●	●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9607-9701		●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9702-9904		●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9905-			●
64	BRACKET; ENG CONT CABLE (A)	1-09768-018-1	01	1	9603-9606	●	●
64	BRACKET; ENG CONT CABLE (A)	1-09768-018-1	01	1	9607-9904	●
64	BRACKET; ENG CONT CABLE EXC. RLD GOVERNOR(SD7) (A)	1-09768-018-1	01	1	9607-9904		●
64	BRACKET; ENG CONT CABLE (A)	1-09768-018-1	01	1	9905-	●	●		●
64	BRACKET; ENG CONT CABLE EXC. RLD GOVERNOR(SD7) (A)	1-09768-018-1	01	1	9905-			●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9904	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-	●	●	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-2	01	1	9603-9609	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9610-9904	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9905-	●	●	●	●
70	NUT; CONT CABLE	1-73908-045-0	01	1	9603-9609	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9610-9904	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9905-	●	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9603-9609	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9610-9904	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9905-	●	●	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9603-9609	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9610-9904	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9905-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9603-9904	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9905-		●	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9603-9609	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9610-9904	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9905-	●	●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9603-9609	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9610-9904	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9905-	●	●	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9603-9609	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9610-9904	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9905-	●	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9603-9609	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9610-9904	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9905-	●	●	●	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9603-9609	●	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9610-9904	●	●
234	SWITCH; ACCEL	1-82380-114-2	01	1	9905-	●	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9603-9904	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9905-	●	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9603-9609	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9610-9904	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9905-	●	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9603-9904	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9905-	●	●	●	●
469	LEVER ASM	1-71907-209-4	01	1	9603-9609	●	●
469	LEVER ASM	1-71907-209-5	01	1	9610-9904	●	●
469	LEVER ASM	1-71907-209-5	01	1	9905-	●	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9603-9904	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9905-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9603-9904	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9905-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9603-9904	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9905-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9603-9904	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9905-	●	●	●	●

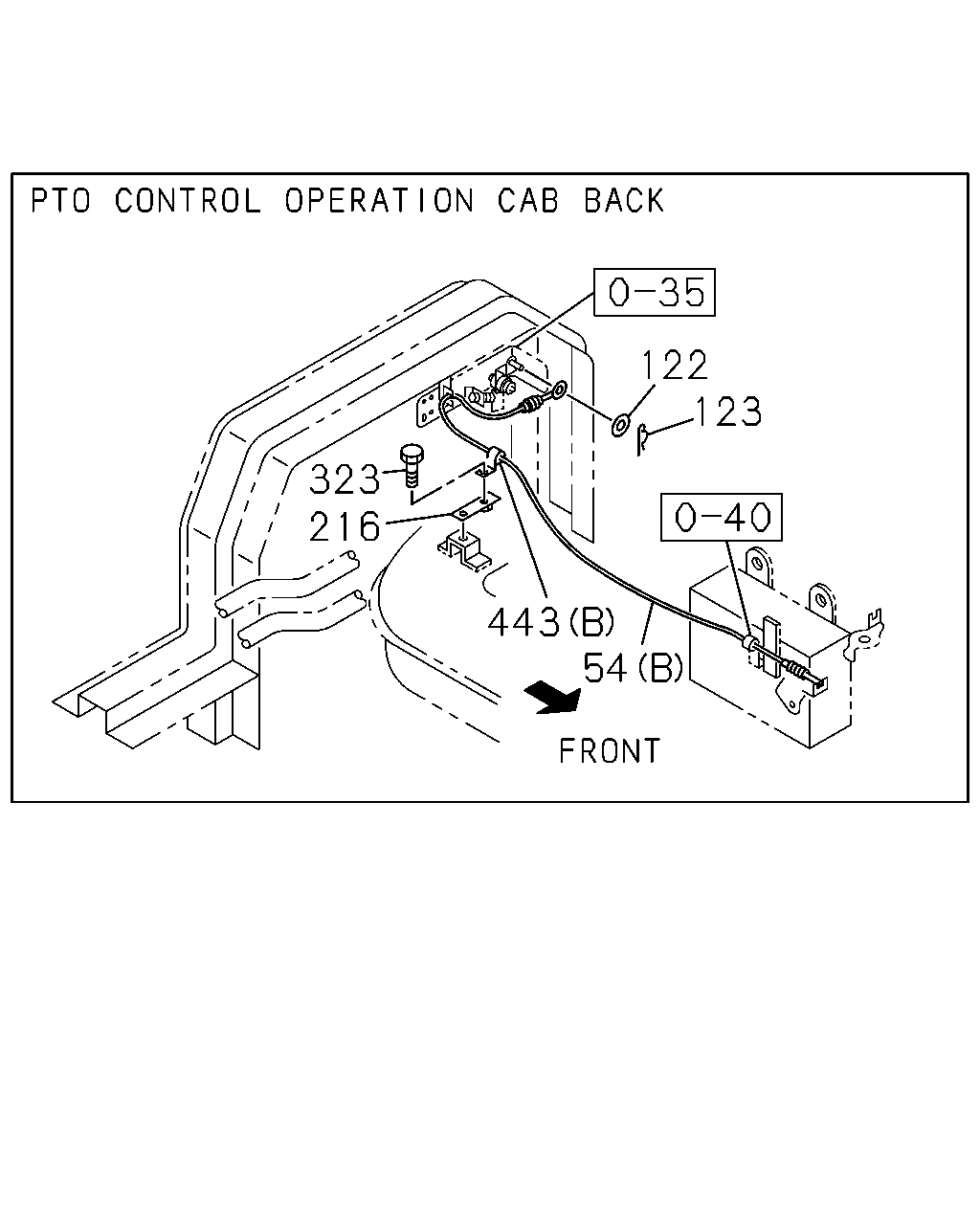

122 123 323 216 443 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT (A) L=2090	1-73907-478-0	01	1	9603-9908	●
54	CABLE; ENG CONT (A) L=2020	1-73907-631-0	01	1	9909-	●
54	CABLE; ENG CONT (A) L=1950	1-73907-477-0	01	1	9603-9606		●
54	CABLE; ENG CONT EXC. RLD GOVERNOR(SD7) (A) L=1950	1-73907-477-0	01	1	9607-9904		●
54	CABLE; ENG CONT (A) L=1950	1-73907-477-0	01	1	9905-		●		●
54	CABLE; ENG CONT EXC. RLD GOVERNOR(SD7) (A) L=1950	1-73907-477-0	01	1	9905-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=2657	1-73907-316-2	01	1	9607-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=2657	1-73907-316-2	01	1	9905-			●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=1234	1-23230-107-1	01	1	0004-			●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.4	9-09160-508-0	01	1	0004-			●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> L=27.7	1-09987-141-0	01	1	0004-			●
216	BRACKET PTO CONTROL OPERATION CAB BACK<TBZ>	1-47476-881-0	01	1	0004-			●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	01	1	0004-			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-			●
443	CLIP; CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9609	●	●
443	CLIP; CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9904	●	●
443	CLIP; CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●	●	●
443	CLIP; CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●	●
443	CLIP; CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9905-	●	●	●	●

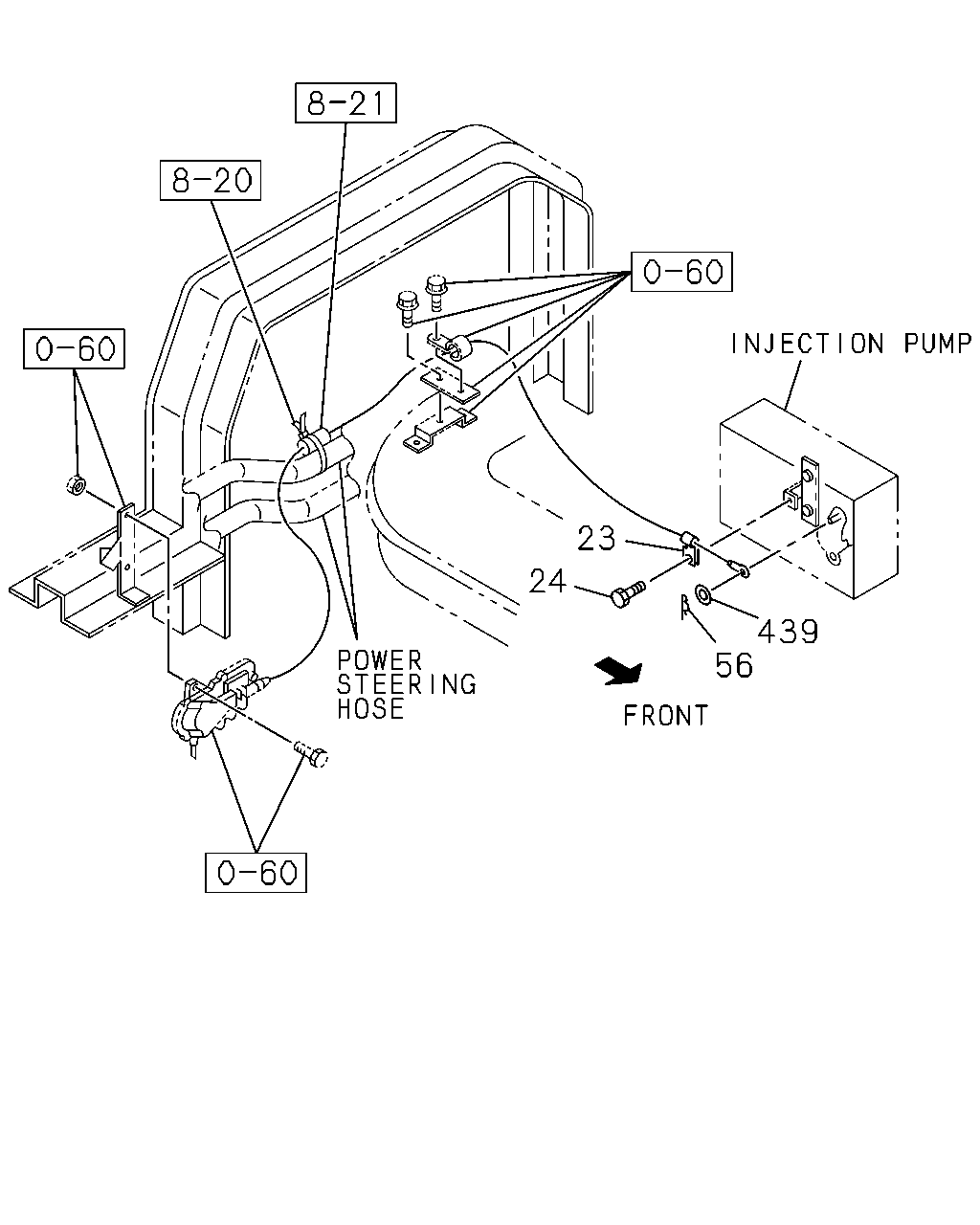

23 24 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9603-9609	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9610-9808	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9809-9904	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	9905-	●	●	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	9603-9606	●	●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9607-9609	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	9610-9904	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	9905-	●	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9603-9904	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9905-	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9603-9904	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9905-	●	●	●	●

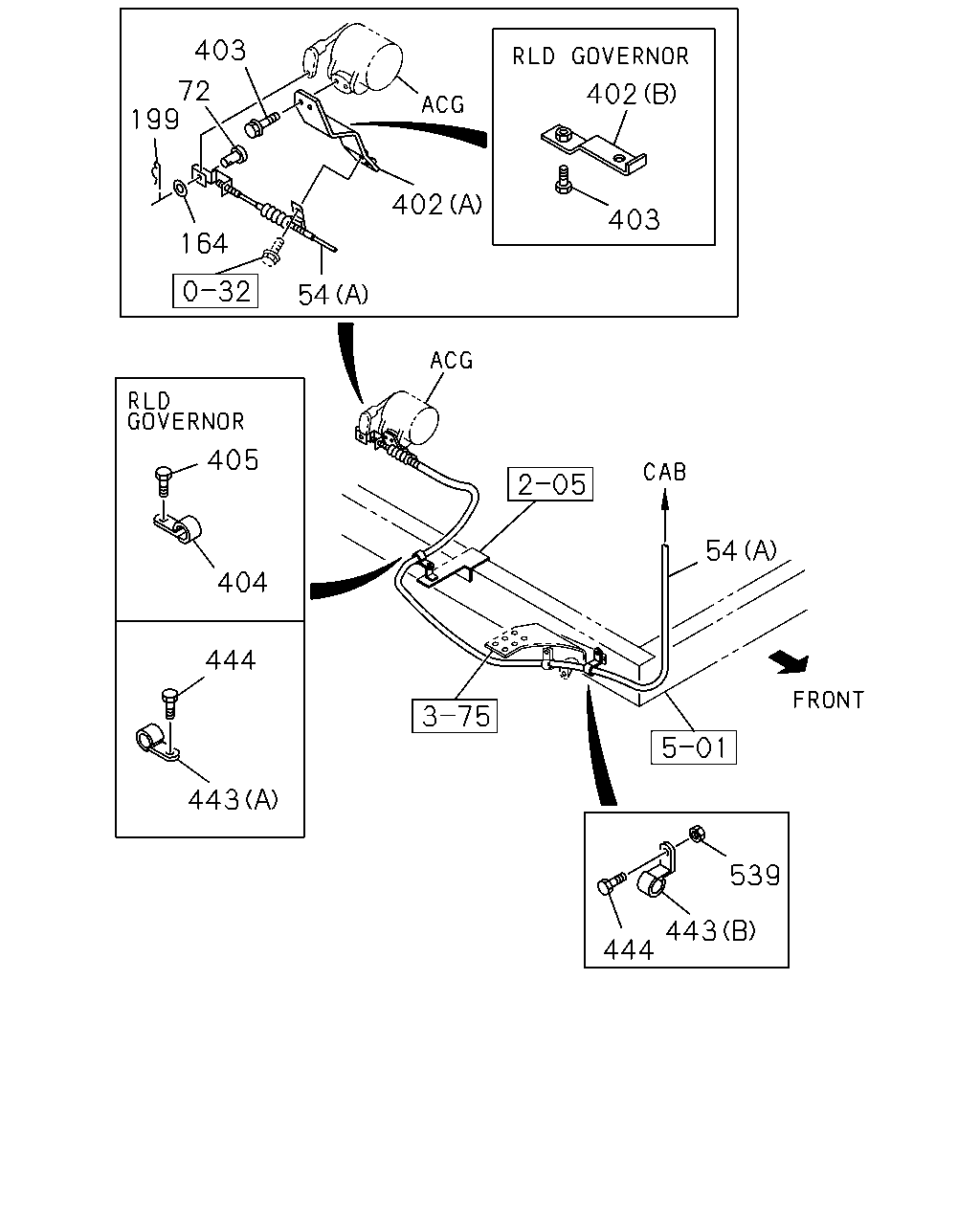

403 72 199 402 402 403 164 54 405 54 404 444 443 539 443 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT (A) L=2090	1-73907-478-0	01	1	9603-9908	●
54	CABLE; ENG CONT (A) L=2020	1-73907-631-0	01	1	9909-	●
54	CABLE; ENG CONT (A) L=1950	1-73907-477-0	01	1	9603-9606		●
54	CABLE; ENG CONT EXC. RLD GOVERNOR(SD7) (A) L=1950	1-73907-477-0	01	1	9607-9904		●
54	CABLE; ENG CONT (A) L=1950	1-73907-477-0	01	1	9905-		●		●
54	CABLE; ENG CONT EXC. RLD GOVERNOR(SD7) (A) L=1950	1-73907-477-0	01	1	9905-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=2657	1-73907-316-2	01	1	9607-9904		●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=2657	1-73907-316-2	01	1	9905-			●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=1234	1-23230-107-1	01	1	0004-			●
72	PIN; JAW JOINT,CABLE END EXC. RLD GOVERNOR(SD7) OD=8 L=17	9-08223-817-0	01	1	9603-9904	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08223-817-0	01	1	9905-	●	●		●
72	PIN; JAW JOINT,CABLE END EXC. RLD GOVERNOR(SD7) OD=8 L=17	9-08223-817-0	01	1	9905-			●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	9603-9904	●	●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	9905-	●	●	●	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	9603-9904	●	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	9905-	●	●	●	●
402	BRACKET; CABLE CLIP EXC. RLD GOVERNOR(SD7) (A)	1-23335-379-0	01	1	9603-9904	●	●
402	BRACKET; CABLE CLIP (A)	1-23335-379-0	01	1	9905-	●	●		●
402	BRACKET; CABLE CLIP EXC. RLD GOVERNOR(SD7) (A)	1-23335-379-0	01	1	9905-			●
402	BRACKET; CABLE CLIP RLD GOVERNOR(SD7) (B)	1-47476-527-0	01	1	9603-9904		●
402	BRACKET; CABLE CLIP RLD GOVERNOR(SD7) (B)	1-47476-527-0	01	1	9905-			●
403	BOLT; BRKT,ACCEL PEDAL EXC. RLD GOVERNOR(SD7) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
403	BOLT; BRKT,ACCEL PEDAL EXC. RLD GOVERNOR(SD7) M8X20 FLANGE	0-28680-820-0	02	1	9607-9709	●	●
403	BOLT; BRKT,ACCEL PEDAL EXC. RLD GOVERNOR(SD7) M8X16 FLANGE	0-28080-816-0	02	1	9710-9904	●	●
403	BOLT; BRKT,ACCEL PEDAL M8X16 FLANGE	0-28080-816-0	02	1	9905-	●	●		●
403	BOLT; BRKT,ACCEL PEDAL EXC. RLD GOVERNOR(SD7) M8X16 FLANGE	0-28080-816-0	02	1	9905-			●
403	BOLT; BRKT,ACCEL PEDAL RLD GOVERNOR(SD7) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
403	BOLT; BRKT,ACCEL PEDAL RLD GOVERNOR(SD7) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904		●
403	BOLT; BRKT,ACCEL PEDAL RLD GOVERNOR(SD7) M8X25 FLANGE	0-28680-825-0	01	1	9905-			●
404	CLIP; CABLE RLD GOVERNOR(SD7) ID=7 L=20	9-09524-635-0	01	1	9603-9904		●
404	CLIP; CABLE RLD GOVERNOR(SD7) ID=7 L=20	9-09524-635-0	01	1	9905-			●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M8X20 FLANGE	0-28680-820-0	01	1	9607-9904		●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M8X20 FLANGE	0-28680-820-0	01	1	9905-			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0004-			●
443	CLIP; CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9609	●	●
443	CLIP; CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9904	●	●
443	CLIP; CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●	●	●
443	CLIP; CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9603-9904	●	●
443	CLIP; CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9905-	●	●	●	●
444	BOLT; CABLE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
444	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
444	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●	●	●
539	NUT; CLIP M8 FLANGE	0-91150-208-0	01	1	9603-9904	●	●
539	NUT; CLIP M8 FLANGE	0-91150-208-0	01	1	9905-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
