7-20 — MIRROR AND MIRROR STAY (#42868) — 73 parça
çizim 55450
14 23 24 25 26 22 96 92 14 23 24 22 26 96 25 92
BalonParca AdiParca NoAdetTipApplied Date A B C
14 MIRROR ASM; OUTSIDE
(A),(B) THA 		8-97917-088-0 01 1 0309- ● ● ●
14 MIRROR ASM; OUTSIDE
UNDER MIRROR<RR9> (A),(B) THA 		8-97917-088-0 01 1 0309- ● ● ●
14 MIRROR ASM; OUTSIDE
EXC. UNDER MIRROR<RR9> (B) THA 		8-94262-543-3 01 1 0309- ● ● ●
22 STAY; OUTSIDE MIRROR
THA 		8-97922-344-0 01 1 0309- ● ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> THA 		8-97922-345-0 01 1 0309- ● ● ●
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97856-557-8 01 1 0309- ● ● ●
23 WASHER; OUTSIDE MIRROR
(A),(B) THA 		8-97918-674-0 01 1 0309- ● ● ●
23 WASHER; OUTSIDE MIRROR
UNDER MIRROR<RR9> (A),(B) THA 		8-97918-674-0 01 1 0309- ● ● ●
23 WASHER; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> (B) T=2.0 THA 		8-94262-545-0 01 1 0309- ● ● ●
24 HOLDER; OUTSIDE MIRROR
(A),(B) THA 		8-97918-675-0 01 1 0309- ● ● ●
24 HOLDER; OUTSIDE MIRROR
UNDER MIRROR<RR9> (A),(B) THA 		8-97918-675-0 01 1 0309- ● ● ●
24 HOLDER; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> (B) T=1.6 THA 		8-94262-546-1 01 1 0309- ● ● ●
25 SCREW; OUTSIDE MIRROR
(A),(B) THA 		8-97918-676-0 01 1 0309- ● ● ●
25 SCREW; OUTSIDE MIRROR
UNDER MIRROR<RR9> (A),(B) THA 		8-97918-676-0 01 1 0309- ● ● ●
25 SCREW; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> (B) M6X30 THA 		8-94279-365-0 01 1 0309- ● ● ●
26 COVER; OUTSIDE MIRROR
(A),(B) THA 		8-97918-677-0 01 1 0309- ● ● ●
26 COVER; OUTSIDE MIRROR
UNDER MIRROR<RR9> (A),(B) THA 		8-97918-677-0 01 1 0309- ● ● ●
26 COVER; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> (B) T=2.3 THA 		8-94262-547-2 01 1 0309- ● ● ●
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 06 1 0309- ● ● ●
96 CAP; MIRROR STAY
(A),(B) THA 		8-97917-112-0 01 1 0309- ● ● ●
96 CAP; MIRROR STAY
UNDER MIRROR<RR9> (A),(B) THA 		8-97917-112-0 01 1 0309- ● ● ●
96 CAP; MIRROR STAY
EXC. UNDER MIRROR<RR9> (B) OD=40 THA 		8-97853-206-2 01 1 0309- ● ● ●
155 STAY ASM; MIRROR 8-97868-237-1 01 1 0408- ● ● ●
183 FINISHER; MIRROR
THA 		8-97917-102-0 01 1 0309- ● ● ●
183 FINISHER; MIRROR
UNDER MIRROR<RR9> THA 		8-97917-102-0 01 1 0309- ● ● ●

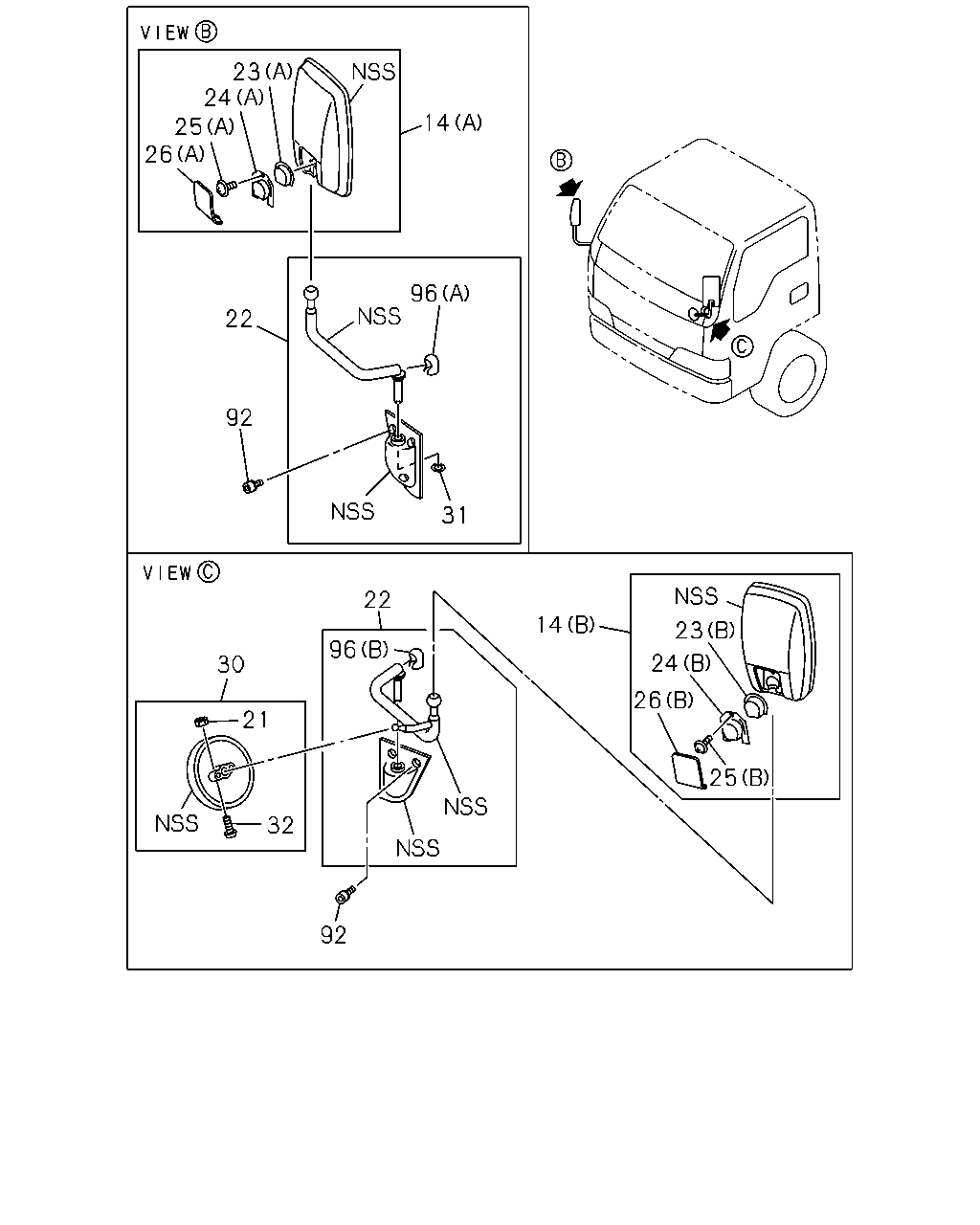

çizim 56571
23 24 25 26 14 96 22 92 31 22 14 23 96 24 30 26 21 25 32 92
BalonParca AdiParca NoAdetTipApplied Date A B C
14 MIRROR ASM; OUTSIDE
(A),(B) THA 		8-97917-088-0 01 1 0309- ● ● ●
14 MIRROR ASM; OUTSIDE
UNDER MIRROR<RR9> (A),(B) THA 		8-97917-088-0 01 1 0309- ● ● ●
14 MIRROR ASM; OUTSIDE
EXC. UNDER MIRROR<RR9> (B) THA 		8-94262-543-3 01 1 0309- ● ● ●
21 NUT; MIRROR
UNDER MIRROR<RR9> THA 		8-97922-499-0 02 1 0309- ● ● ●
22 STAY; OUTSIDE MIRROR
THA 		8-97922-344-0 01 1 0309- ● ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> THA 		8-97922-345-0 01 1 0309- ● ● ●
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97856-557-8 01 1 0309- ● ● ●
23 WASHER; OUTSIDE MIRROR
(A),(B) THA 		8-97918-674-0 01 1 0309- ● ● ●
23 WASHER; OUTSIDE MIRROR
UNDER MIRROR<RR9> (A),(B) THA 		8-97918-674-0 01 1 0309- ● ● ●
23 WASHER; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> (B) T=2.0 THA 		8-94262-545-0 01 1 0309- ● ● ●
24 HOLDER; OUTSIDE MIRROR
(A),(B) THA 		8-97918-675-0 01 1 0309- ● ● ●
24 HOLDER; OUTSIDE MIRROR
UNDER MIRROR<RR9> (A),(B) THA 		8-97918-675-0 01 1 0309- ● ● ●
24 HOLDER; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> (B) T=1.6 THA 		8-94262-546-1 01 1 0309- ● ● ●
25 SCREW; OUTSIDE MIRROR
(A),(B) THA 		8-97918-676-0 01 1 0309- ● ● ●
25 SCREW; OUTSIDE MIRROR
UNDER MIRROR<RR9> (A),(B) THA 		8-97918-676-0 01 1 0309- ● ● ●
25 SCREW; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> (B) M6X30 THA 		8-94279-365-0 01 1 0309- ● ● ●
26 COVER; OUTSIDE MIRROR
(A),(B) THA 		8-97918-677-0 01 1 0309- ● ● ●
26 COVER; OUTSIDE MIRROR
UNDER MIRROR<RR9> (A),(B) THA 		8-97918-677-0 01 1 0309- ● ● ●
26 COVER; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> (B) T=2.3 THA 		8-94262-547-2 01 1 0309- ● ● ●
30 MIRROR; UNDER
UNDER MIRROR<RR9> THA 		8-97922-353-0 01 1 0309- ● ● ●
31 PLATE; MIRROR
THA 		8-97857-597-1 01 1 0309- ● ● ●
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> THA 		8-97922-498-0 02 1 0309- ● ● ●
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 06 1 0309- ● ● ●
96 CAP; MIRROR STAY
(A),(B) THA 		8-97917-112-0 01 1 0309- ● ● ●
96 CAP; MIRROR STAY
UNDER MIRROR<RR9> (A),(B) THA 		8-97917-112-0 01 1 0309- ● ● ●
96 CAP; MIRROR STAY
EXC. UNDER MIRROR<RR9> (B) OD=40 THA 		8-97853-206-2 01 1 0309- ● ● ●
155 STAY ASM; MIRROR 8-97868-237-1 01 1 0408- ● ● ●
183 FINISHER; MIRROR
THA 		8-97917-102-0 01 1 0309- ● ● ●
183 FINISHER; MIRROR
UNDER MIRROR<RR9> THA 		8-97917-102-0 01 1 0309- ● ● ●
çizim 56781
162 2 159 3 158 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> THA 		8-97917-031-0 01 1 0309- ● ● ●
1 MIRROR; ROOM
EXC. TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97868-351-2 01 1 0309- ● ● ●
2 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 		8-94279-341-0 02 1 0406- ● ● ●
2 SCREW; MIRROR TO BODY
M5X20 		5-09981-059-0 02 1 0309-0405 ● ● ●
2 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> M5X20 		5-09981-059-0 02 1 0406- ● ● ●
3 STOPPER; RR VIEW MIRROR
TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35 		8-97867-849-0 01 1 0309- ● ● ●
3 STOPPER; RR VIEW MIRROR
TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26 THA 		8-97916-546-1 01 1 0309- ● ● ●
3 STOPPER; RR VIEW MIRROR
EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31 		8-97859-098-2 01 1 0309- ● ● ●
3 STOPPER; RR VIEW MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40 		8-94273-036-3 01 1 0309- ● ● ●
4 GROMMET; SCREW,ROOM MIRROR
THA 		8-94279-039-0 01 1 0309-0405 ● ● ●
4 GROMMET; SCREW,ROOM MIRROR
TRAY ROOF HEAD<7EJ> THA 		8-94279-039-0 01 1 0406- ● ● ●
155 STAY ASM; MIRROR 8-97868-237-1 01 1 0408- ● ● ●
158 LENS; ROOM LAMP
TRAY ROOF HEAD<7EJ> THA 		8-97917-211-0 01 1 0309- ● ● ●
158 LENS; ROOM LAMP
EXC. TRAY ROOF HEAD<7EJ> THA 		5-73117-108-1 01 1 0309- ● ● ●
159 BULB; ROOM LAMP
TRAY ROOF HEAD<7EJ> 24V 10W THA 		8-97917-213-0 01 1 0309- ● ● ●
159 BULB; ROOM LAMP
EXC. TRAY ROOF HEAD<7EJ> 24V 10W THA 		5-82194-030-0 01 1 0309- ● ● ●
162 SEAL; ROOM LAMP
TRAY ROOF HEAD<7EJ> THA 		8-97856-532-0 01 1 0309- ● ● ●
183 FINISHER; MIRROR
THA 		8-97917-102-0 01 1 0309- ● ● ●
183 FINISHER; MIRROR
UNDER MIRROR<RR9> THA 		8-97917-102-0 01 1 0309- ● ● ●
