2-53 — TRANSMISSION OIL COOLER SYSTEM (#42861) — 53 parça

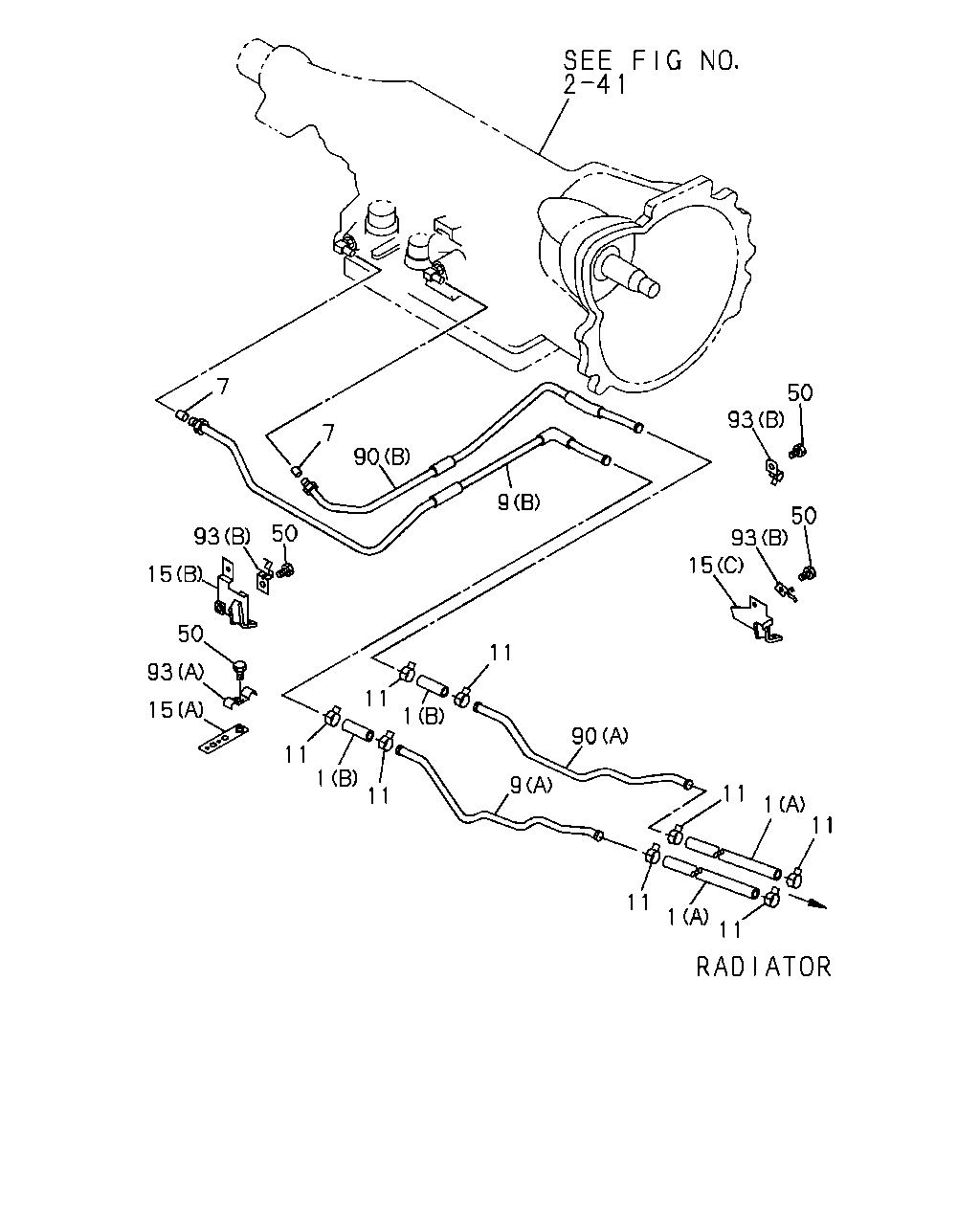

çizim 66663
50 93 50 93 15 7 7 90 9 50 93 15 50 93 15 11 1 11 11 1 11 9 90 11 1 11 11 1 11
BalonParca AdiParca NoAdetTipApplied Date
1 04.128 HOSE; ATF
4JA1 ENG(RLE) (B) L=96 		8-97019-868-1 02 1 9410-
1 04.128 HOSE; ATF
4JA1 ENG(RLE) (A) L=260 		8-97089-703-0 02 1 9410-
1 04.128 HOSE; ATF
4ZE1 ENG(RLJ) 		8-94473-991-2 01 1 9304-9308
1 04.128 HOSE; ATF
4ZE1 ENG(RLJ) 		8-97042-931-0 01 1 9309-
7 04.128 OLIVE; OIL PIPE 5-32568-001-0 02 1 9210-
9 04.128 PIPE; ATF,INL,A/T
4JA1 ENG(RLE) (A) 		8-97065-884-1 01 1 9410-
9 04.128 PIPE; ATF,INL,A/T
4JA1 ENG(RLE) (B) 		8-97117-670-0 01 1 9410-9602
9 04.128 PIPE; ATF,INL,A/T
4JA1 ENG(RLE) (B) 		8-97148-491-0 01 1 9603-
11 04.128 CLIP; PIPE
4JA1 ENG(RLE) 01.166 ID=14 		8-94238-572-0 08 1 9410-
15 04.128 BRACKET; ATF PIPE 8-94158-243-1 01 1 9210-9406
15 04.128 BRACKET; ATF PIPE
4ZE1 ENG(RLJ) 		8-94158-243-1 01 1 9407-9509
15 04.128 BRACKET; ATF PIPE
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) ELECTRIC FUEL INJECTION<6GG> 		8-94158-243-1 01 1 9510-
15 04.128 BRACKET; ATF PIPE
4JA1 ENG(RLE) (A) 		8-97038-932-0 01 1 9410-9411
15 04.128 BRACKET; ATF PIPE
4JA1 ENG(RLE) (B) 		8-97061-685-0 01 1 9410-
15 04.128 BRACKET; ATF PIPE
4JA1 ENG(RLE) (C) 		8-97061-686-0 01 1 9410-
50 04.128 BOLT; CLIP
4JA1 ENG(RLE) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9410-9411
50 04.128 BOLT; CLIP
4JA1 ENG(RLE) 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9412-
50 04.128 BOLT; CLIP
4JA1 ENG(RLE) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9410-
90 04.128 PIPE ASM; ATF
4JA1 ENG(RLE) (A) 		8-97065-885-1 01 1 9410-
90 04.128 PIPE ASM; ATF
4JA1 ENG(RLE) (B) 		8-97117-669-0 01 1 9410-9602
90 04.128 PIPE ASM; ATF
4JA1 ENG(RLE) (B) 		8-97148-490-1 01 1 9603-
93 04.128 CLIP; BRKT
4JA1 ENG(RLE) (A) 		8-94334-345-1 01 1 9410-
93 04.128 CLIP; BRKT
4JA1 ENG(RLE) (B) 		8-97062-040-0 03 1 9410-

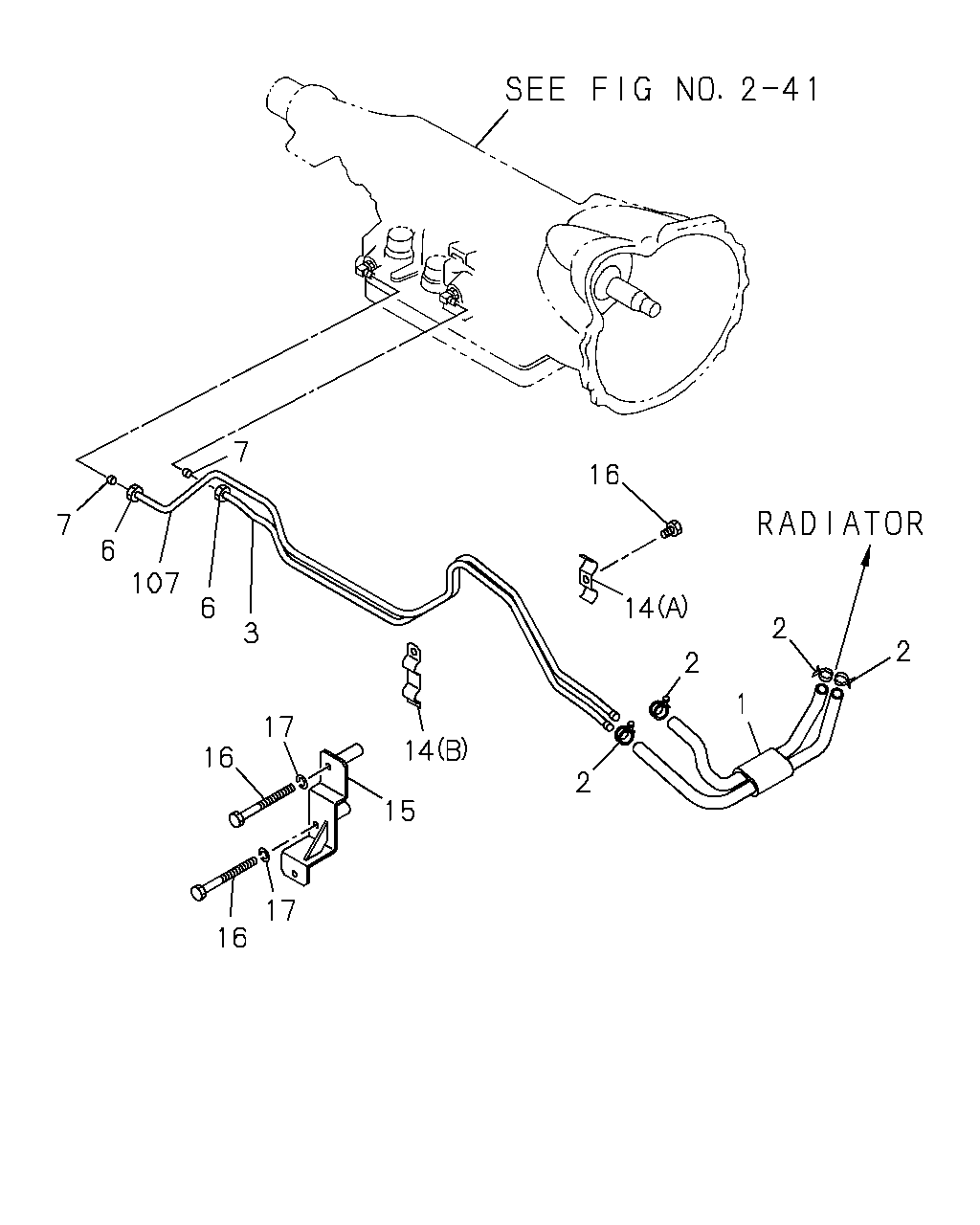

çizim 66667
16 14 2 1 2 2 2 7 7 6 107 6 3 14 15 17 16 17 16
BalonParca AdiParca NoAdetTipApplied Date
1 04.128 HOSE; ATF
4JA1 ENG(RLE) (B) L=96 		8-97019-868-1 02 1 9410-
1 04.128 HOSE; ATF
4JA1 ENG(RLE) (A) L=260 		8-97089-703-0 02 1 9410-
1 04.128 HOSE; ATF
4ZE1 ENG(RLJ) 		8-94473-991-2 01 1 9304-9308
1 04.128 HOSE; ATF
4ZE1 ENG(RLJ) 		8-97042-931-0 01 1 9309-
2 04.128 WIRE; CLAMP,ATF HOSE
4ZE1 ENG(RLJ) ID=15 		8-94140-431-0 04 1 9210-
3 04.128 PIPE; OIL,A/T TO OIL COOLER
4ZE1 ENG(RLJ) 		8-94337-892-1 01 1 9210-
6 04.128 SLEEVE; ATF PIPE
4ZE1 ENG(RLJ) 		5-32567-001-0 02 1 9210-
7 04.128 OLIVE; OIL PIPE 5-32568-001-0 02 1 9210-
14 04.128 CLIP; PIPE TO ENG SIDE
(B) 		8-94338-103-0 01 1 9210-9406
14 04.128 CLIP; PIPE TO ENG SIDE
4ZE1 ENG(RLJ) (B) 		8-94338-103-0 01 1 9407-
14 04.128 CLIP; PIPE TO ENG SIDE
(A) 		8-94417-192-1 01 1 9210-9406
14 04.128 CLIP; PIPE TO ENG SIDE
4ZE1 ENG(RLJ) (A) 		8-94417-192-1 01 1 9407-
15 04.128 BRACKET; ATF PIPE 8-94158-243-1 01 1 9210-9406
15 04.128 BRACKET; ATF PIPE
4ZE1 ENG(RLJ) 		8-94158-243-1 01 1 9407-9509
15 04.128 BRACKET; ATF PIPE
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) ELECTRIC FUEL INJECTION<6GG> 		8-94158-243-1 01 1 9510-
15 04.128 BRACKET; ATF PIPE
4JA1 ENG(RLE) (A) 		8-97038-932-0 01 1 9410-9411
15 04.128 BRACKET; ATF PIPE
4JA1 ENG(RLE) (B) 		8-97061-685-0 01 1 9410-
15 04.128 BRACKET; ATF PIPE
4JA1 ENG(RLE) (C) 		8-97061-686-0 01 1 9410-
16 04.128 BOLT; CLIP,ENG SIDE
03.613 M10X55 		0-10806-055-0 01 1 9210-9406
16 04.128 BOLT; CLIP,ENG SIDE
4ZE1 ENG(RLJ) 03.613 M10X55 		0-10806-055-0 01 1 9407-9509
16 04.128 BOLT; CLIP,ENG SIDE
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) ELECTRIC FUEL INJECTION<6GG> 03.613 M10X55 		0-10806-055-0 01 1 9510-
16 04.128 BOLT; CLIP,ENG SIDE
01.271 M10X75 		0-10806-075-0 01 1 9210-9406
16 04.128 BOLT; CLIP,ENG SIDE
4ZE1 ENG(RLJ) 01.271 M10X75 		0-10806-075-0 01 1 9407-9509
16 04.128 BOLT; CLIP,ENG SIDE
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) ELECTRIC FUEL INJECTION<6GG> 01.271 M10X75 		0-10806-075-0 01 1 9510-
16 04.128 BOLT; CLIP,ENG SIDE
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9210-9406
16 04.128 BOLT; CLIP,ENG SIDE
4ZE1 ENG(RLJ) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9407-
17 04.128 WASHER; LK,ENG & A/T SIDE
00.002 ID=10.2 		9-09150-510-0 02 1 9210-9406
17 04.128 WASHER; LK,ENG & A/T SIDE
4ZE1 ENG(RLJ) 00.002 ID=10.2 		9-09150-510-0 02 1 9407-9509
17 04.128 WASHER; LK,ENG & A/T SIDE
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) ELECTRIC FUEL INJECTION<6GG> 00.002 ID=10.2 		9-09150-510-0 02 1 9510-
107 04.128 PIPE; OIL,COOLER TO FLEX HOSE
4ZE1 ENG(RLJ) 		8-94337-893-1 01 1 9210-
