◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-52 - AUTO TRANS OVERDRIVE GEAR ▶
2-52 — AUTO TRANS OVERDRIVE GEAR (#42860) — 53 parça

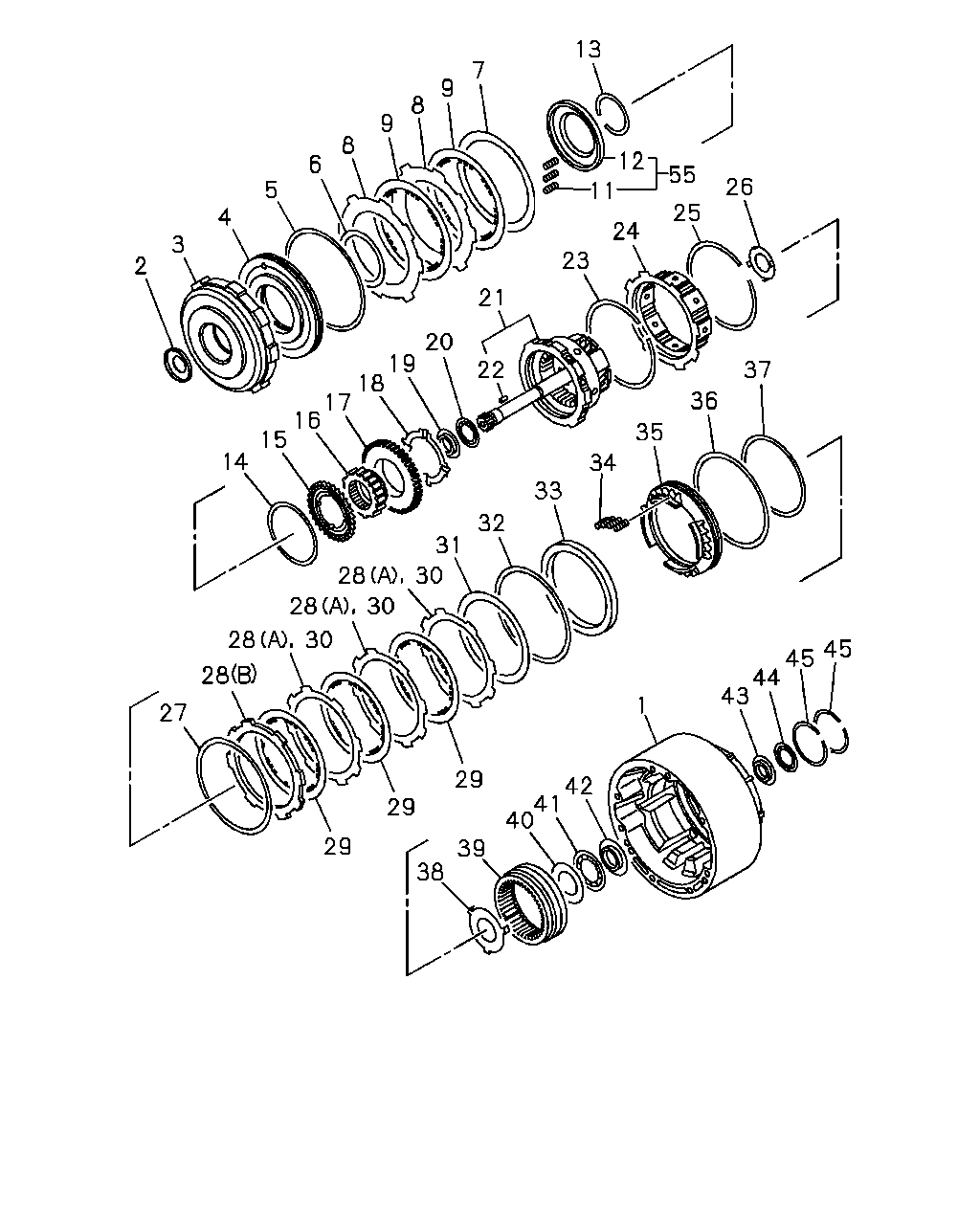

çizim 18142
2 3 4 5 6 8 9 8 9 7 13 12 11 55 26 25 24 23 21 22 20 19 18 17 16 15 14 37 36 35 34 33 32 31 30 28 30 28 30 28 28 27 29 29 29 38 39 40 41 42 1 43 44 45 45
BalonParca AdiParca NoAdetTipApplied Date
1 04.455 CASE ASM; OVERDRIVE,A/T 8-94165-954-0 01 1 9210-
2 04.472 RACE; THRUST BRG,OVERDRIVE,A/T
04.226 		8-94165-958-0 01 1 9210-
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-94165-964-0 01 1 9210-
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-94319-590-0 01 1 9210-
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-94257-064-0 01 1 9210-
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI
04.166 		5-34218-003-0 01 1 9210-
7 04.468 PLATE; CLU CUSHION 8-94473-657-0 01 1 9210-
8 04.455 DISC; CLU,OVERDRIVE,A/T
04.163 T=1.4 		8-94165-986-0 01 1 9210-
8 04.455 DISC; CLU,OVERDRIVE,A/T
04.163 T=1.8 		8-94473-590-0 01 1 9210-
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-94473-602-0 02 1 9210-
11 04.468 SPRING; CLU RETURN,OVERDRIVE,A/T
04.164 		8-94165-965-0 18 1 9210-9406
11 04.468 SPRING; CLU RETURN,OVERDRIVE,A/T
4ZE1 ENG(RLJ) 04.164 		8-94165-965-0 18 1 9407-
12 04.468 RETAINER; RETURN SPR,OVERDRIVE,A 8-94250-337-0 01 1 9210-9406
12 04.468 RETAINER; RETURN SPR,OVERDRIVE,A
4ZE1 ENG(RLJ) 		8-94250-337-0 01 1 9407-
13 04.472 RING; SNAP,OVERDRIVE,A/T 5-34268-006-0 01 1 9210-
14 04.472 RING; RET,OVERDRIVE,A/T 8-94165-963-0 01 1 9210-
15 04.468 WASHER; THRUST,OVERDRIVE,A/T 8-94165-962-0 01 1 9210-
16 04.455 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T 8-94165-961-0 01 1 9210-
17 04.468 RACE; ONEWAY CLU,A/T 8-94165-960-0 01 1 9210-
18 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-94405-304-0 01 1 9210-
19 04.472 RACE; THRUST BEARING 8-94165-968-0 01 1 9210-
20 04.472 BEARING; THRUST 8-94165-969-0 01 1 9210-
21 04.161 SHAFT ASM; INPUT,OVERDRIVE,A/T 8-94405-303-0 01 1 9210-
22 04.162 PLUG; PINION SHAFT,OVERDRIVE,A/T 8-94250-329-0 04 1 9210-9406
22 04.162 PLUG; PINION SHAFT,OVERDRIVE,A/T
4ZE1 ENG(RLJ) 		8-94250-329-0 04 1 9407-
23 04.472 RING; RET,OVERDRIVE,A/T
04.164 		5-34258-001-0 01 1 9210-
24 04.468 HUB; OVERDRIVE BRK,A/T 8-94473-603-0 01 1 9210-
25 04.472 RING; RET,OVERDRIVE,A/T
04.164 		8-94250-342-0 01 1 9210-
26 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-94250-344-0 01 1 9210-
27 04.472 RING; RET,OVERDRIVE,A/T 8-94165-975-0 01 1 9210-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
(A) T=2.0 		8-94165-977-0 03 1 9210-9406
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
4ZE1 ENG(RLJ) (A) T=2.0 		8-94165-977-0 03 1 9407-
28 04.472 PLATE; CLU BACKING,OVERDRIVE,A/T
(B) 		8-94165-979-0 01 1 9210-
29 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-94165-978-0 03 1 9210-
30 04.455 DISC; CLU,OVERDRIVE,A/T
4JA1 ENG(RLE) 04.472 T=2.0 		8-94165-977-0 03 1 9407-
31 04.468 PLATE; CUSHION,OVERDRIVE,A/T 8-94165-976-0 01 1 9210-
32 04.472 RING; RET,OVERDRIVE,A/T 8-94165-975-0 01 1 9210-
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI 8-94165-974-0 01 1 9210-
34 04.467 SPRING; BRK RETURN,OVERDRIVE,A/T 5-34265-002-0 12 1 9210-
35 04.468 PISTON; BRK,OVERDRIVE,A/T 8-94165-971-0 01 1 9210-
36 04.460 GASKET; PISTON,OUTER,A/T 8-94165-973-0 01 1 9210-
37 04.460 GASKET; PISTON,INNER,A/T 8-94165-972-0 01 1 9210-
38 04.472 WASHER; THRUST,OVERDRIVE,A/T 8-94473-601-0 01 1 9210-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T 8-94473-600-0 01 1 9210-9406
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
4ZE1 ENG(RLJ) 		8-94473-600-0 01 1 9407-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
4JA1 ENG(RLE) 		8-94165-970-0 01 1 9407-
40 04.470 RACE; THRUST BRG,OVERDRIVE,A/T 8-94250-346-0 01 1 9210-
41 04.472 BEARING; THRUST,OVERDRIVE,A/T
04.164 		5-34258-004-0 01 1 9210-
42 04.470 RACE; THRUST BRG,OVERDRIVE,A/T 5-34258-005-0 01 1 9210-
43 04.472 RACE; THRUST BRG,OVERDRIVE,A/T
04.226 		5-34218-001-0 01 1 9210-
44 04.472 BEARING; THRUST,OVERDRIVE,A/T
04.226 		5-34218-002-0 01 1 9210-
45 04.472 RING; SEAL,OVERDRIVE,A/T
04.226 		8-94257-061-0 02 1 9210-
55 04.468 SPRING ASM; CLU RETURN,O/D
4JA1 ENG(RLE) 		8-97128-813-0 01 1 9407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
