2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#42857) — 70 parça

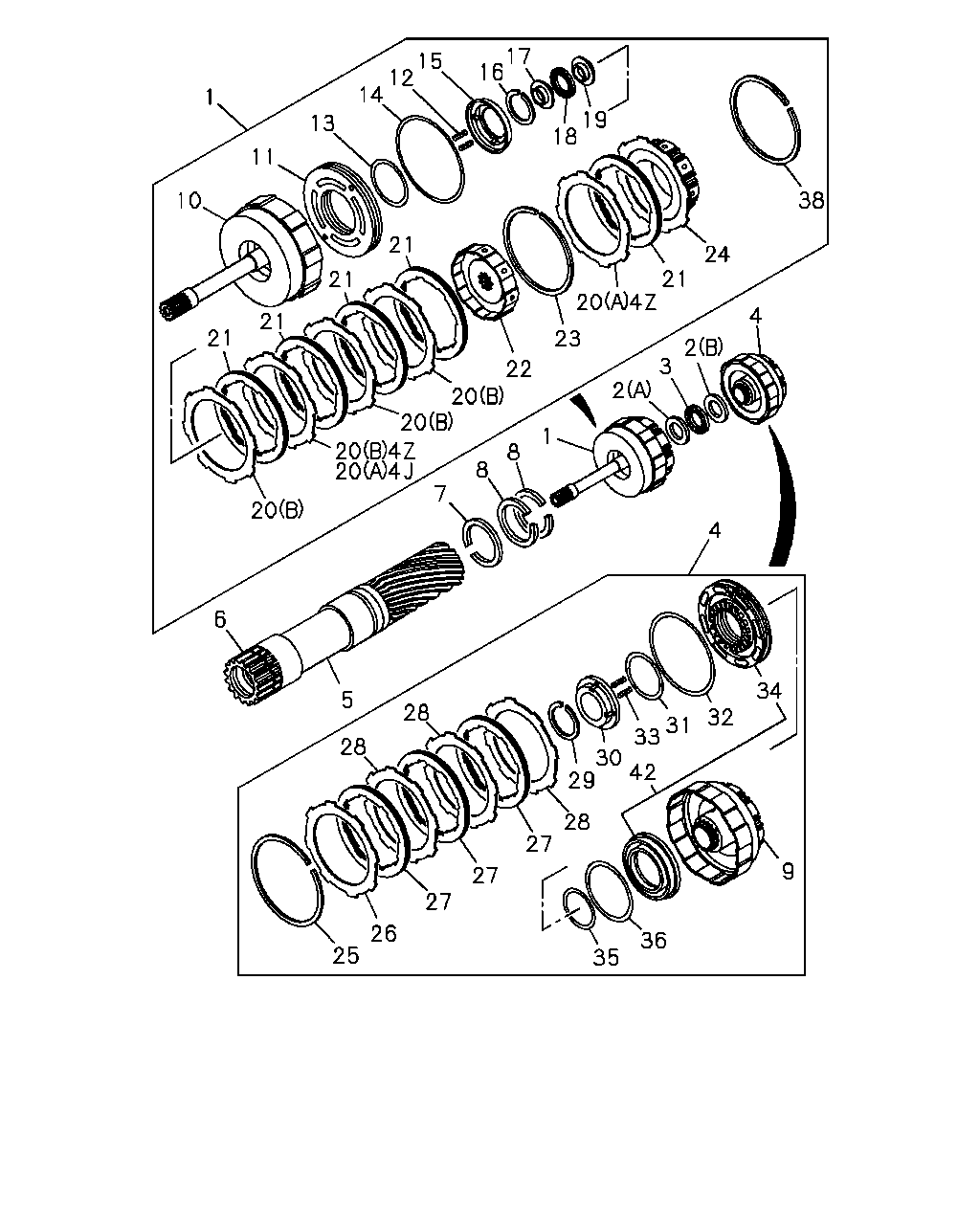

çizim 18468
1 10 11 13 14 12 15 16 17 19 18 21 21 21 21 20 20 20 20 20 22 23 20 21 24 38 4 2 3 2 1 8 8 7 6 5 4 34 32 31 33 30 29 42 9 36 35 28 27 27 27 26 25 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T 8-94165-982-0 01 1 9210-9406
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T
4ZE1 ENG(RLJ) 		8-94165-982-0 01 1 9407-
1 04.164 HUB ASM; CLU,INPUT SHAFT,A/T
4JA1 ENG(RLE) 		8-97128-814-0 01 1 9407-
2 04.164 RACE; THRUST BRG,A/T
04.167 (A) 		5-34258-003-0 01 1 9210-
2 04.164 RACE; THRUST BRG,A/T
04.470 (B) 		5-34258-005-0 01 1 9210-
3 04.164 BEARING; THRUST,A/T 5-34258-004-0 01 1 9210-
4 04.164 HUB ASM; DIRECT CLU & BRK,A/T 8-94405-305-0 01 1 9210-9406
4 04.164 HUB ASM; DIRECT CLU & BRK,A/T
4ZE1 ENG(RLJ) 		8-94405-305-0 01 1 9407-
4 04.164 HUB ASM; DIRECT CLU & BRK,A/T
4JA1 ENG(RLE) 		8-97128-819-0 01 1 9407-
5 04.159 GEAR SUB ASM; PLANETARY,A/T 8-94405-308-0 01 1 9210-
6 04.159 GEAR; PLANETARY SUN,RR A/T 8-94405-309-0 01 1 9210-
7 04.159 RING; RET,PLANETARY GEAR,A/T 8-94166-000-0 01 1 9210-
8 04.169 RING; SEAL,PLANETARY GEAR,A/T 5-34314-001-0 02 1 9210-
9 04.164 HUB SUB ASM; DIRECT CLU & BRK,A/ 8-94165-991-0 01 1 9210-
10 04.166 CYLINDER ASM; INPUT SHAFT & FWD 8-94165-983-0 01 1 9210-9406
10 04.166 CYLINDER ASM; INPUT SHAFT & FWD
4ZE1 ENG(RLJ) 		8-94165-983-0 01 1 9407-
10 04.166 CYLINDER ASM; INPUT SHAFT & FWD
4JA1 ENG(RLE) 		8-97128-815-0 01 1 9407-
11 04.166 PISTON ASM; CLU,A/T 8-94165-984-0 01 1 9210-9406
11 04.166 PISTON ASM; CLU,A/T
4ZE1 ENG(RLJ) 		8-94165-984-0 01 1 9407-
11 04.166 PISTON ASM; CLU,A/T
4JA1 ENG(RLE) 		8-94400-884-0 01 1 9407-
12 04.164 SPRING; CLU RETURN,A/T 8-94165-965-0 20 1 9210-9406
12 04.164 SPRING; CLU RETURN,A/T
4ZE1 ENG(RLJ) 		8-94165-965-0 20 1 9407-
13 04.166 GASKET; INNER,CLU,A/T 5-34218-003-0 01 1 9210-
14 04.166 GASKET; OUTER,CLU,A/T
04.460 		8-94257-064-0 01 1 9210-
15 04.164 RETAINER; CLU RETURN SPR,A/T 8-94257-075-0 01 1 9210-9406
15 04.164 RETAINER; CLU RETURN SPR,A/T
4ZE1 ENG(RLJ) 		8-94257-075-0 01 1 9407-
15 04.164 RETAINER; CLU RETURN SPR,A/T
4JA1 ENG(RLE) 		8-97065-696-0 01 1 9407-
16 04.166 RING; SNAP,CLU,A/T 5-34268-004-0 01 1 9210-
17 04.164 RACE; THRUST BRG,CLU,A/T
04.226 		5-34218-001-0 01 1 9210-
18 04.164 BEARING; THRUST,CLU,A/T
04.226 		5-34218-002-0 01 1 9210-
19 04.164 RACE; THRUST BRG,CLU,A/T
04.167 		5-34218-005-0 01 1 9210-
20 04.163 DISC; CLU,A/T
(A) T=1.4 		8-94165-986-0 01 1 9210-9406
20 04.163 DISC; CLU,A/T
4ZE1 ENG(RLJ) (A) T=1.4 		8-94165-986-0 01 1 9407-
20 04.163 DISC; CLU,A/T
(B) T=1.8 		8-94473-590-0 04 1 9210-9406
20 04.163 DISC; CLU,A/T
4ZE1 ENG(RLJ) (B) T=1.8 		8-94473-590-0 04 1 9407-
20 04.163 DISC; CLU,A/T
4JA1 ENG(RLE) (A) T=2.0 		8-94250-338-0 01 1 9407-
20 04.163 DISC; CLU,A/T
4JA1 ENG(RLE) (B) T=1.8 		8-94473-590-0 03 1 9407-
21 04.163 DISC ASM; CLU & FACING,A/T 8-94165-987-0 05 1 9210-9406
21 04.163 DISC ASM; CLU & FACING,A/T
4ZE1 ENG(RLJ) 		8-94165-987-0 05 1 9407-
21 04.163 DISC ASM; CLU & FACING,A/T
4JA1 ENG(RLE) 		8-97128-816-0 04 1 9407-
22 04.164 HUB; FWD CLU,A/T 8-94165-988-0 01 1 9210-
23 04.164 RING; RET,CLU,A/T 8-94165-989-0 01 1 9210-9406
23 04.164 RING; RET,CLU,A/T
4ZE1 ENG(RLJ) 		8-94165-989-0 01 1 9407-
23 04.164 RING; RET,CLU,A/T
4JA1 ENG(RLE) 		5-34258-001-0 01 1 9407-
24 04.164 HUB; DIRECT CLU INPUT,A/T 8-94239-555-0 01 1 9210-
25 04.164 RING; RET,BACKING PLATE,A/T 5-34258-002-0 01 1 9210-
26 04.163 PLATE; CLU,BACKING,A/T
H=3.95 		5-34256-002-0 01 1 9210-
27 04.163 DISC ASM; CLU & FACING,A/T 8-94165-966-0 03 1 9210-9406
27 04.163 DISC ASM; CLU & FACING,A/T
4ZE1 ENG(RLJ) 		8-94165-966-0 03 1 9407-
27 04.163 DISC ASM; CLU & FACING,A/T
4JA1 ENG(RLE) 		8-97128-816-0 03 1 9407-
28 04.163 DISC; CLU,A/T
T=2.0 		8-94250-338-0 03 1 9210-9406
28 04.163 DISC; CLU,A/T
4ZE1 ENG(RLJ) T=2.0 		8-94250-338-0 03 1 9407-
28 04.163 DISC; CLU,A/T
4JA1 ENG(RLE) T=1.8 		8-94473-590-0 03 1 9407-
29 04.164 RING; SNAP,CLU,A/T
04.166 		5-34268-004-0 01 1 9210-
30 04.164 RETAINER; CLU RETURN SPR,A/T 8-94257-075-0 01 1 9210-9406
30 04.164 RETAINER; CLU RETURN SPR,A/T
4ZE1 ENG(RLJ) 		8-94257-075-0 01 1 9407-
30 04.164 RETAINER; CLU RETURN SPR,A/T
4JA1 ENG(RLE) 		8-97128-820-0 01 1 9407-
31 04.166 GASKET; CLU,INNER,A/T 5-34218-003-0 01 1 9210-
32 04.166 GASKET; CLU,OUTER,A/T
04.460 		8-94257-064-0 01 1 9210-
33 04.164 SPRING; CLU,PISTON,A/T 8-94165-965-0 18 1 9210-9406
33 04.164 SPRING; CLU,PISTON,A/T
4ZE1 ENG(RLJ) 		8-94165-965-0 18 1 9407-
34 04.166 PISTON ASM; CLU,A/T 8-94165-992-0 01 1 9210-9406
34 04.166 PISTON ASM; CLU,A/T
4ZE1 ENG(RLJ) 		8-94165-992-0 01 1 9407-
34 04.166 PISTON ASM; CLU,A/T
4JA1 ENG(RLE) 		8-94257-074-0 01 1 9407-
35 04.166 GASKET; PISTON,INNER,DIRECT CLU, 5-34218-003-0 01 1 9210-
36 04.166 GASKET; PISTON,OUTER,DIRECT CLU, 5-34268-005-0 01 1 9210-
38 04.164 RING; RET,CLU,A/T 5-34258-002-0 01 1 9210-9406
38 04.164 RING; RET,CLU,A/T
4ZE1 ENG(RLJ) 		5-34258-002-0 01 1 9407-
38 04.164 RING; RET,CLU,A/T
4JA1 ENG(RLE) 		8-97128-818-0 01 1 9407-
42 04.166 PISTON ASM; DIRECT CLU
4JA1 ENG(RLE) 04.164 		5-34261-004-0 01 1 9407-
