◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶

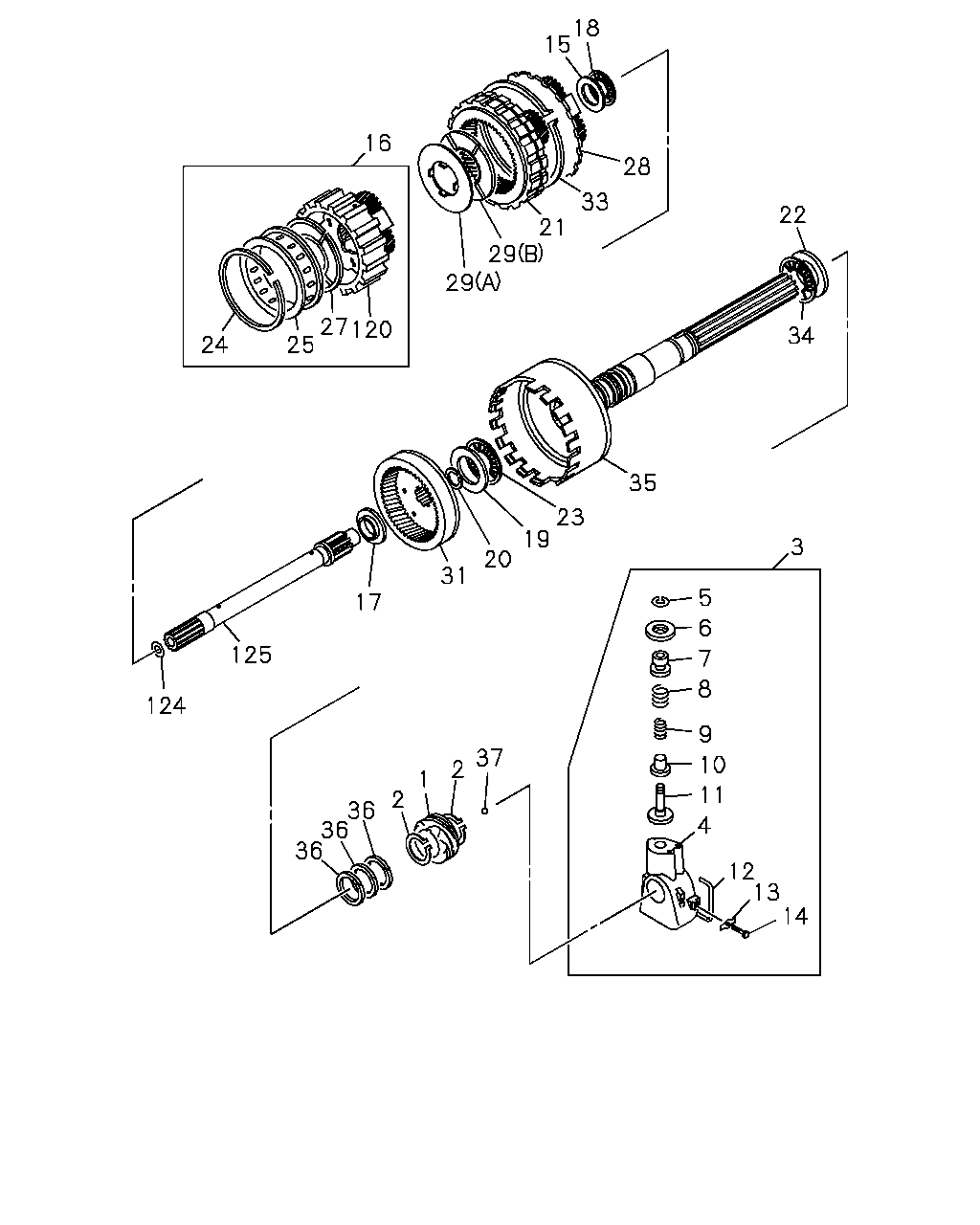

2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#42856) — 49 parça
çizim 17726
18 15 28 33 21 29 29 16 120 27 25 24 22 34 35 23 19 20 31 17 125 124 37 2 1 2 36 36 36 3 5 6 7 8 9 10 11 4 12 13 14
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
FRT 185R14-6 RR 185R14-8 5JX14(9PB), FRT&RR 185R14-8 5JX14(9PC),FRT&RR 185R14-85.5JJX14(9PE),FRT&RR P205/75R14 5.5JJX 14(9PS) Z=6 		8-94474-053-0 01 1 9210-9308
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
Z=6 		8-94474-053-0 01 1 9407-
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
FRT 185R14-6 RR 185R14-8 5JX14(9PB), FRT&RR 185R14-8 5JX14(9PC),FRT&RR 185R14-85.5JJX14(9PE),FRT&RR P205/75R14 5.5JJX 14(9PS) Z=6 		8-94474-053-0 01 1 9309-9406
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW), FRT&RR 6.5-14-8 5JX14(9NY) Z=5 		8-94155-667-1 01 1 9210-9406
2 04.256 RING; SNAP,SPEEDOMETER DRIVE
04.416 ID=27.9 		9-09180-030-0 02 1 9210-
3 04.256 GOVERNOR ASM; A/T 8-94473-658-0 01 1 9210-9406
3 04.256 GOVERNOR ASM; A/T
4ZE1 ENG(RLJ) 		8-94473-658-0 01 1 9407-
3 04.256 GOVERNOR ASM; A/T
4JA1 ENG(RLE) 		8-94473-604-0 01 1 9407-
4 04.256 BODY ASM; GOV,A/T 8-94100-643-0 01 1 9210-
5 04.256 RING; RET,GOV 5-34518-005-0 01 1 9210-
6 04.256 WEIGHT; GOV,CONV 5-34518-004-0 01 1 9210-
7 04.256 VALVE; GOV,A/T 8-94473-660-0 01 1 9210-9406
7 04.256 VALVE; GOV,A/T
4ZE1 ENG(RLJ) 		8-94473-660-0 01 1 9407-
7 04.256 VALVE; GOV,A/T
4JA1 ENG(RLE) 		8-94473-607-0 01 1 9407-
8 04.256 SPRING; GOV VALVE 8-94473-659-0 01 1 9210-9406
8 04.256 SPRING; GOV VALVE
4ZE1 ENG(RLJ) 		8-94473-659-0 01 1 9407-
8 04.256 SPRING; GOV VALVE
4JA1 ENG(RLE) 		8-94473-606-0 01 1 9407-
9 04.256 SPRING; GOV INNER 8-94405-319-0 01 1 9210-9406
9 04.256 SPRING; GOV INNER
4ZE1 ENG(RLJ) 		8-94405-319-0 01 1 9407-
9 04.256 SPRING; GOV INNER
4JA1 ENG(RLE) 		8-94473-605-0 01 1 9407-
10 04.256 WEIGHT; GOV SECONDARY 8-94414-856-0 01 1 9210-
11 04.256 SHAFT; GOV WEIGHT 8-94405-318-0 01 1 9210-
12 04.256 RING; RET & DRIVE 5-34518-006-0 01 1 9210-
13 04.256 WASHER; GOV
04.265 		8-94244-561-0 01 1 9210-
14 04.256 SCREW; CAP,GOV
M5X22 		5-34539-010-0 01 1 9210-
15 04.180 RACE; THRUST BRG,RR PLANETARY GE
4JA1 ENG(RLE) 04.167 		5-34258-003-0 01 1 9407-
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-94405-311-0 01 1 9210-
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94405-315-0 01 1 9210-
18 04.187 BEARING; THRUST,RR PLANETARY GEA
4JA1 ENG(RLE) 04.164 		5-34258-004-0 01 1 9407-
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 5-34258-003-0 01 1 9210-
20 04.164 RING; RET,PLANETARY GEAR,A/T 5-34318-007-0 01 1 9210-
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94166-011-0 01 1 9210-
22 04.167 RACE; THRUST BRG,FRT PLANETARY S 5-34379-003-0 01 1 9210-
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 5-34258-004-0 01 1 9210-
24 04.164 RING; RET,FRT PLANETARY,A/T 5-34368-003-0 01 1 9210-
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 8-94405-368-0 01 1 9210-
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-94405-313-0 01 1 9210-
28 04.187 GEAR ASM; RR PLANETARY,A/T 8-94405-314-0 01 1 9210-
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
(A) 		5-34365-004-0 01 1 9210-
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
04.164 (B) 		8-94405-369-0 01 1 9210-
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94166-014-0 01 1 9210-
33 04.166 RING; RET,PLANETARY GEAR,A/T 5-34368-004-0 01 1 9210-
34 04.164 BEARING; THRUST,FRT PLANETARY SH 5-34379-002-0 01 1 9210-
35 04.175 SHAFT ASM; FRT PLANETARY,A/T 8-94155-666-0 01 1 9210-
36 04.164 RING; SEALING,FRT PLANETARY SHAF 5-34378-001-0 03 1 9210-
37 04.256 BALL; SPD DRIVE
4JA1 ENG(RLE) 		8-94167-674-0 01 1 9407-
120 04.256 GEAR SET; FRT PLANETARY,A/T 8-94405-312-0 01 1 9210-
124 04.164 RING; SLEEVE,OIL SEAL,RR PLANETA 8-94250-373-0 01 1 9210-
125 04.175 SHAFT ASM; INTERMEDIATE,PLANETAR 8-94166-013-0 01 1 9210-
