2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#42855) — 49 parça

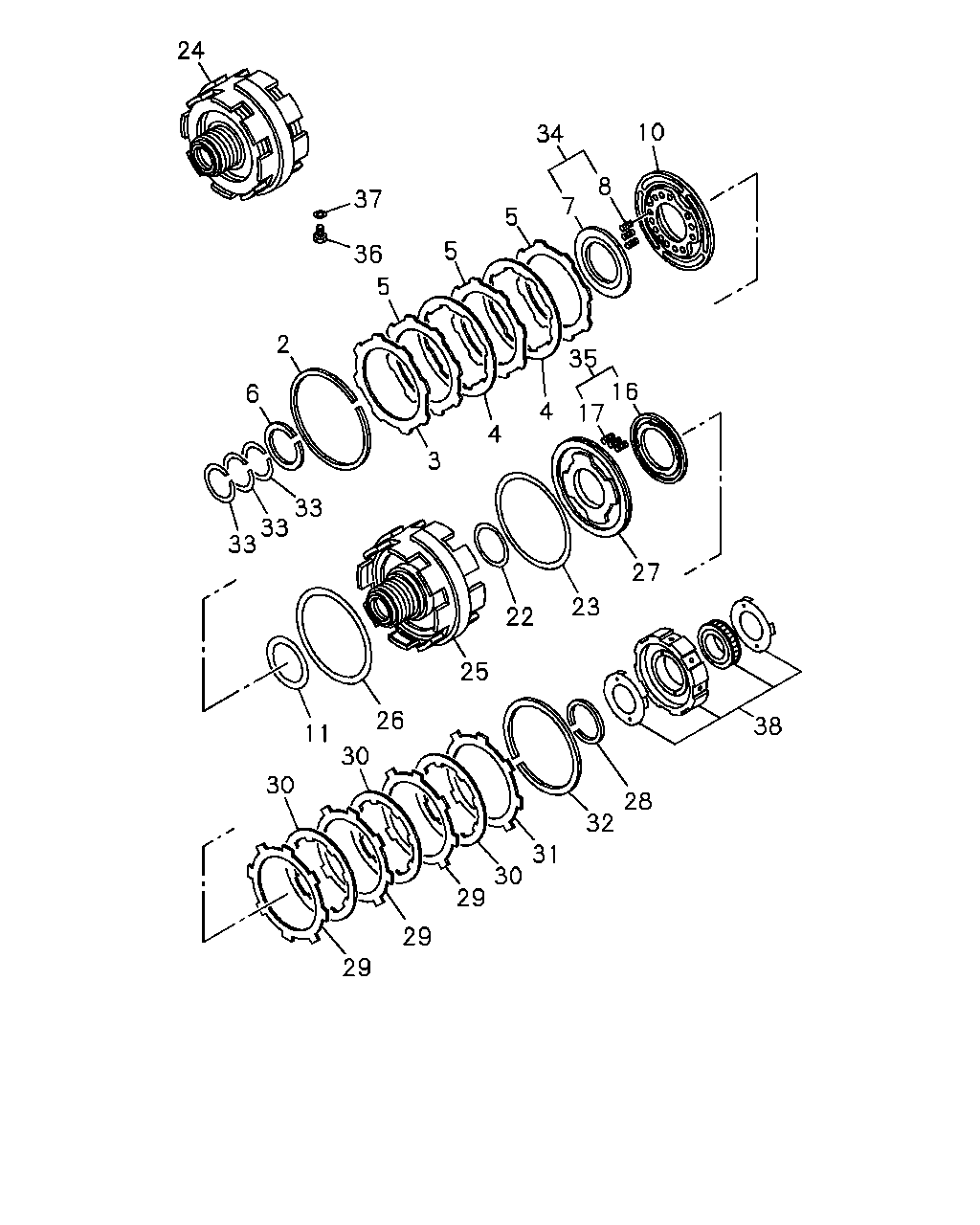

çizim 16931
24 37 36 10 8 34 7 5 5 5 2 6 33 33 33 3 4 4 35 17 16 27 23 22 25 26 30 11 30 38 28 32 31 30 29 29 29
BalonParca AdiParca NoAdetTipApplied Date
2 04.166 RING; RET,FRT BRK,2ND BRK,A/T
04.164 		5-34258-002-0 01 1 9210-
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T 8-94165-995-0 01 1 9210-9406
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T
4ZE1 ENG(RLJ) 		8-94165-995-0 01 1 9407-
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T
4JA1 ENG(RLE) 04.163 H=3.95 		5-34256-002-0 01 1 9407-
4 04.163 DISC ASM; CLU & FACING,2ND BRK,A 8-94473-592-0 02 1 9210-
5 04.163 DISC; CLU,2ND BRK,A/T
T=1.8 		5-34252-003-0 03 1 9210-
6 04.166 RING; SNAP,FRT BRK,A/T
04.472 		5-34268-006-0 01 1 9210-
7 04.163 RETAINER; BRK,RETURN SPR,FRT BRK 5-34266-002-0 01 1 9210-9406
7 04.163 RETAINER; BRK,RETURN SPR,FRT BRK
4ZE1 ENG(RLJ) 		5-34266-002-0 01 1 9407-
8 04.166 SPRING; RETURN,FRT BRK,A/T
04.467 		5-34265-002-0 12 1 9210-9406
8 04.166 SPRING; RETURN,FRT BRK,A/T
4ZE1 ENG(RLJ) 04.467 		5-34265-002-0 12 1 9407-
10 04.166 PISTON; BRK,FRT,2ND BRK,A/T 5-34261-006-1 01 1 9210-
11 04.166 GASKET; BRK PISTON,FRT,INNER,A/T 5-34218-003-0 01 1 9210-
16 04.163 RETAINER; RETURN SPR,RR BRK,A/T 5-34266-002-0 01 1 9210-9406
16 04.163 RETAINER; RETURN SPR,RR BRK,A/T
4ZE1 ENG(RLJ) 		5-34266-002-0 01 1 9407-
17 04.166 SPRING; RETURN,RR BRK,A/T
04.467 		5-34265-002-0 20 1 9210-9406
17 04.166 SPRING; RETURN,RR BRK,A/T
4ZE1 ENG(RLJ) 04.467 		5-34265-002-0 20 1 9407-
22 04.166 GASKET; BRK PISTON,RR,INNER,A/T 5-34218-003-0 01 1 9210-
23 04.166 GASKET; BRK PISTON,RR,OUTER,A/T 8-94250-367-0 01 1 9210-
24 04.162 SUPPORT ASM; CENTER,2ND BRK,A/T 8-94433-415-0 01 1 9210-9406
24 04.162 SUPPORT ASM; CENTER,2ND BRK,A/T
4ZE1 ENG(RLJ) 		8-94433-415-0 01 1 9407-
24 04.162 SUPPORT ASM; CENTER,2ND BRK,A/T
4JA1 ENG(RLE) 		8-94473-594-0 01 1 9407-
25 04.162 SUPPORT; CENTER,2ND BRK,A/T 8-94165-997-0 01 1 9210-9406
25 04.162 SUPPORT; CENTER,2ND BRK,A/T
4ZE1 ENG(RLJ) 		8-94165-997-0 01 1 9407-
25 04.162 SUPPORT; CENTER,2ND BRK,A/T
4JA1 ENG(RLE) 		8-94473-595-0 01 1 9407-
26 04.166 GASKET; BRK PISTON,FRT,OUTER,A/T 5-34218-004-0 01 1 9210-
27 04.166 PISTON; BRK,RR,2ND BRK,A/T 8-94250-366-0 01 1 9210-
28 04.163 RING; SNAP,RR BRK,A/T
04.472 		5-34268-006-0 01 1 9210-
29 04.163 DISC; CLU,RR BRK,2ND BRK,A/T
T=3.0 		8-94405-307-0 02 1 9210-9406
29 04.163 DISC; CLU,RR BRK,2ND BRK,A/T
4ZE1 ENG(RLJ) T=3.0 		8-94405-307-0 02 1 9407-
29 04.163 DISC; CLU,RR BRK,2ND BRK,A/T
T=1.8 		8-94473-593-0 01 1 9210-9406
29 04.163 DISC; CLU,RR BRK,2ND BRK,A/T
4ZE1 ENG(RLJ) T=1.8 		8-94473-593-0 01 1 9407-
29 04.163 DISC; CLU,RR BRK,2ND BRK,A/T
4JA1 ENG(RLE) T=1.8 		8-94473-593-0 03 1 9407-
30 04.163 DISC ASM; CLU & FACING,2ND BRK,A 8-94433-416-0 03 1 9210-9406
30 04.163 DISC ASM; CLU & FACING,2ND BRK,A
4ZE1 ENG(RLJ) 		8-94433-416-0 03 1 9407-
30 04.163 DISC ASM; CLU & FACING,2ND BRK,A
4JA1 ENG(RLE) 		8-94165-999-0 02 1 9407-
31 04.163 PLATE; CLU BACKING,2ND BRK,A/T 8-94250-351-0 01 1 9210-9406
31 04.163 PLATE; CLU BACKING,2ND BRK,A/T
4ZE1 ENG(RLJ) 		8-94250-351-0 01 1 9407-
31 04.163 PLATE; CLU BACKING,2ND BRK,A/T
4JA1 ENG(RLE) H=3.95 		5-34256-002-0 01 1 9407-
32 04.164 RING; RET,RR BRK,2ND BRK,A/T 5-34258-002-0 01 1 9210-
33 04.164 RING; SEALING,2ND BRK,A/T
04.226 		8-94257-061-0 03 1 9210-
34 04.166 SPRING ASM; RETURN,FRT BRK
4JA1 ENG(RLE) 04.163 		8-97065-698-0 01 1 9407-
35 04.166 SPRING ASM; RETURN,RR BRK
4JA1 ENG(RLE) 04.163 		8-97065-698-0 01 1 9407-
36 04.162 BOLT; SHOULDER SUPPORT TO CASE,A
04.226 		5-34259-001-1 02 1 9210-9406
36 04.162 BOLT; SHOULDER SUPPORT TO CASE,A
4ZE1 ENG(RLJ) 04.226 		5-34259-001-1 02 1 9407-
36 04.162 BOLT; SHOULDER SUPPORT TO CASE,A
4JA1 ENG(RLE) 		8-97065-700-0 02 1 9407-
37 04.162 WASHER; LK,SUPPORT TO CASE,A/T
04.226 		5-34149-002-0 02 1 9210-9406
37 04.162 WASHER; LK,SUPPORT TO CASE,A/T
4ZE1 ENG(RLJ) 04.226 		5-34149-002-0 02 1 9407-
38 04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 8-94166-001-0 01 1 9210-
