2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#42854) — 143 parça

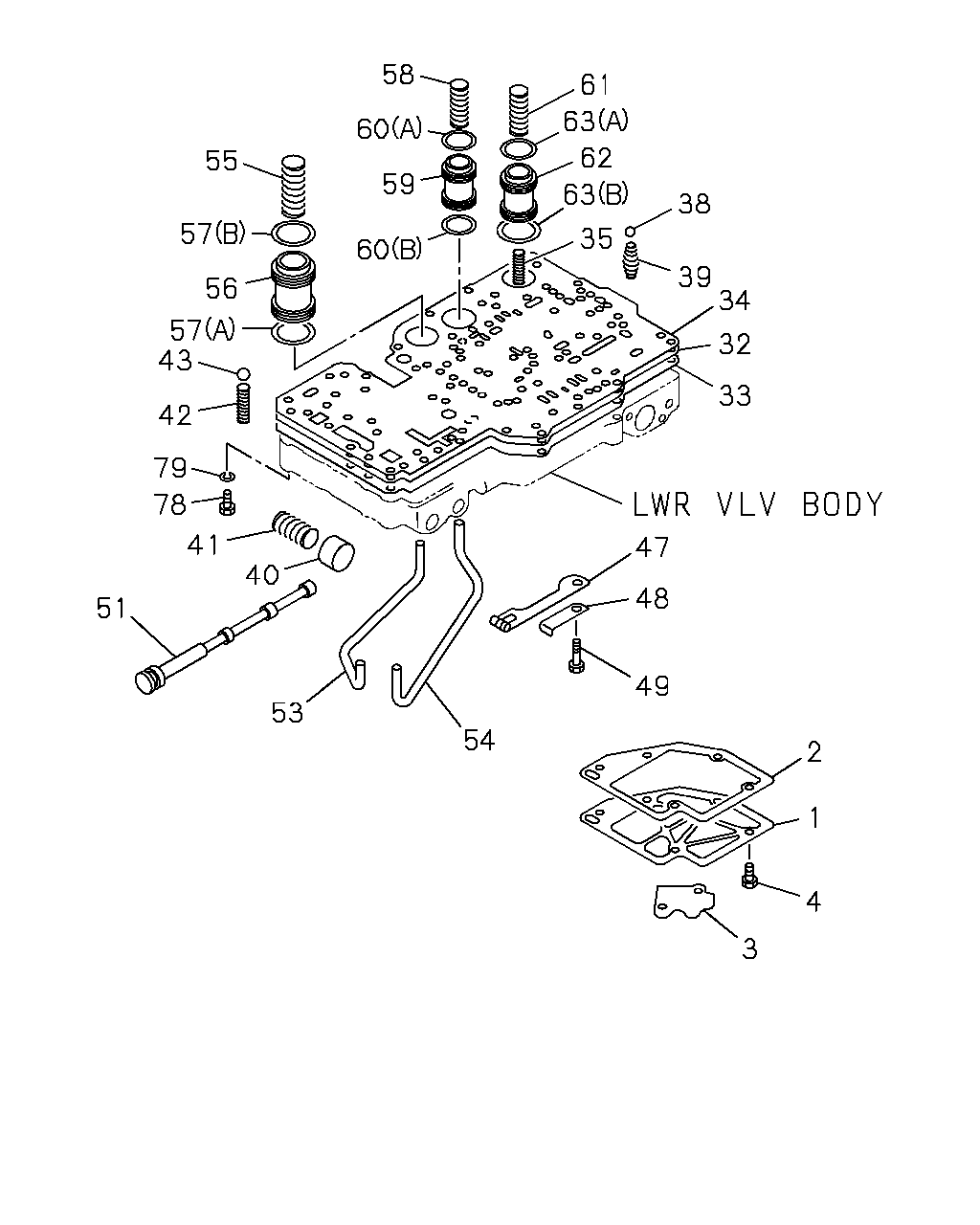

61 63 62 63 35 38 39 34 32 33 47 48 49 2 1 4 3 54 53 51 40 41 78 79 42 43 57 56 57 55 58 60 59 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.197 STRAINER ASM; OIL,A/T	8-94405-362-0	01	1	9210-
2	04.197 GASKET; OIL STRAINER,A/T	8-94405-363-0	01	1	9210-9406
2	04.197 GASKET; OIL STRAINER,A/T 4ZE1 ENG(RLJ)	8-94405-363-0	01	1	9407-
2	04.197 GASKET; OIL STRAINER,A/T 4JA1 ENG(RLE)	8-97032-927-0	01	1	9407-
3	04.197 PLATE; OIL STRAINER	8-94405-361-0	01	1	9210-
4	04.197 BOLT; OIL STRAINER,A/T M5X12	8-94405-335-0	06	1	9210-
32	04.265 PLATE; SEPARATOR,VLV BODY,A/T	8-94319-589-0	01	1	9210-
33	04.265 GASKET; LWR,VLV BODY,A/T	8-94405-349-0	01	1	9210-
34	04.265 GASKET; UPR,VLV BODY,A/T	8-94405-348-0	01	1	9210-
35	04.265 SPRING; LWR VLV BODY	8-94473-637-0	01	1	9210-9406
35	04.265 SPRING; LWR VLV BODY 4ZE1 ENG(RLJ)	8-94473-637-0	01	1	9407-
38	04.265 BALL; BALL VALVE OD=3/8"	8-94405-352-0	01	1	9210-
39	04.265 SPRING; BALL VALVE OD=3/8"	8-94405-353-0	01	1	9210-
40	04.265 VALVE; BYPASS,A/T	5-34531-016-0	01	1	9210-
41	04.265 SPRING; BYPASS VLV,A/T	8-94250-401-0	01	1	9210-9406
41	04.265 SPRING; BYPASS VLV,A/T 4ZE1 ENG(RLJ)	8-94250-401-0	01	1	9407-
41	04.265 SPRING; BYPASS VLV,A/T 4JA1 ENG(RLE)	8-94473-622-0	01	1	9407-
42	04.265 SPRING; PRIMARY,A/T	5-34533-016-0	01	1	9210-
43	04.265 BALL; RUBBER,A/T OD=6.35	5-34535-003-0	01	1	9210-9406
43	04.265 BALL; RUBBER,A/T 4ZE1 ENG(RLJ) OD=6.35	5-34535-003-0	01	1	9407-
43	04.265 BALL; RUBBER,A/T 4JA1 ENG(RLE) OD=6.35	8-94364-913-0	01	1	9407-
47	04.050 SPRING; DETENT,A/T	5-34543-001-0	01	1	9210-
48	04.052 PLATE; DETENT SPR,A/T	5-34548-011-0	01	1	9210-
49	04.052 BOLT; DETENT SPR PLATE,A/T 04.265 M5X40	8-94473-621-0	01	1	9210-
51	04.265 VALVE; MANUAL,A/T	5-34531-017-0	01	1	9210-
53	04.164 TUBE; FWD CLU,A/T	8-94405-356-0	01	1	9210-
54	04.164 TUBE; OVERDRIVE BRK,A/T	8-94405-357-0	01	1	9210-
55	04.246 SPRING; ACCUMLATOR PISTON	8-94473-638-0	01	1	9210-9406
55	04.246 SPRING; ACCUMLATOR PISTON 4ZE1 ENG(RLJ)	8-94473-638-0	01	1	9407-
55	04.246 SPRING; ACCUMLATOR PISTON 4JA1 ENG(RLE)	8-94166-025-0	01	1	9407-
56	04.241 PISTON; ACCUMLATOR	8-94405-358-0	01	1	9210-
57	04.241 GASKET; 2ND SPD PISTON,A/T 04.229 (A)	5-34462-001-0	01	1	9210-
57	04.241 GASKET; 2ND SPD PISTON,A/T 04.167 (B)	5-34462-002-0	01	1	9210-
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A	8-94250-410-0	01	1	9210-
59	04.166 PISTON; DIRECT CLU,A/T	8-94250-411-0	01	1	9210-
60	04.169 GASKET; DIRECT CLU PISTON,A/T (A)	5-34462-003-0	01	1	9210-
60	04.169 GASKET; DIRECT CLU PISTON,A/T 04.167 (B)	5-34462-004-0	01	1	9210-
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T	8-94166-029-0	01	1	9210-
62	04.166 PISTON; FWD CLU,A/T	5-34461-003-0	01	1	9210-
63	04.167 GASKET; FWD CLU,A/T (B)	5-34462-004-0	01	1	9210-
63	04.167 GASKET; FWD CLU,A/T (A)	5-34462-005-0	01	1	9210-
78	04.265 SCREW; VALVE COVER TO CASE M6X64	8-94473-663-0	01	1	9210-
79	04.265 WASHER; LK,VALVE COVER TO CASE 4JA1 ENG(RLE)	8-94473-578-0	01	1	9407-

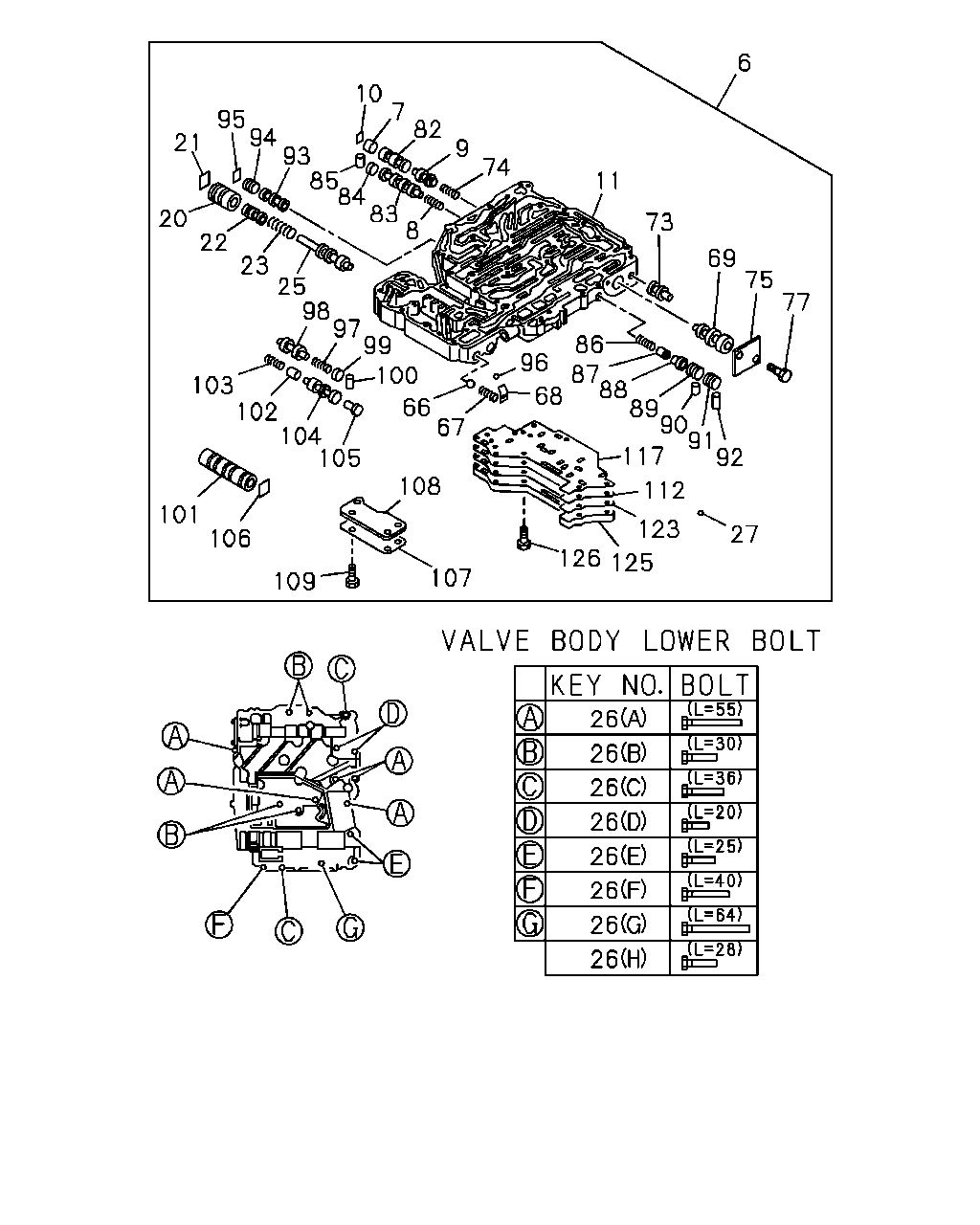

6 77 75 69 73 11 74 9 82 7 10 8 83 84 85 93 94 95 21 20 22 23 25 98 97 99 100 66 67 96 68 86 87 88 89 90 91 92 117 112 123 27 125 126 103 102 104 105 108 107 109 106 101 26 26 26 26 26 26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	04.265 BODY ASM; VLV LWR,A/T	8-94323-520-0	01	1	9210-9406
6	04.265 BODY ASM; VLV LWR,A/T 4ZE1 ENG(RLJ)	8-94323-520-0	01	1	9407-
6	04.265 BODY ASM; VLV LWR,A/T 4JA1 ENG(RLE)	8-94319-585-0	01	1	9407-
7	04.265 PLUG; VLV,1-2 SHIFT,VLV LWR,A/T	5-34538-002-0	01	1	9210-
8	04.265 SPRING; 1ST VALVE	5-34533-004-0	01	1	9210-9406
8	04.265 SPRING; 1ST VALVE 4ZE1 ENG(RLJ)	5-34533-004-0	01	1	9407-
8	04.265 SPRING; 1ST VALVE 4JA1 ENG(RLE)	8-94166-018-0	01	1	9407-
9	04.262 VALVE; 1-2 SHIFT UPR,VLV LWR,A/T 04.265	8-94100-645-0	01	1	9210-
10	04.265 RETAINER; 1-2 SHIFT VLV,VLV LWR,	5-34538-003-0	01	1	9210-
11	04.265 BODY; VLV LWR,A/T	8-94473-643-0	01	1	9210-
20	04.265 SLEEVE; REG VLV,VLV LWR,A/T	8-94105-481-0	01	1	9210-9406
20	04.265 SLEEVE; REG VLV,VLV LWR,A/T 4ZE1 ENG(RLJ)	8-94105-481-0	01	1	9407-
20	04.265 SLEEVE; REG VLV,VLV LWR,A/T 4JA1 ENG(RLE)	8-94473-579-0	01	1	9407-
21	04.265 RETAINER; SLEEVE,VLV LWR,A/T	5-34538-015-0	01	1	9210-9406
21	04.265 RETAINER; SLEEVE,VLV LWR,A/T 4ZE1 ENG(RLJ)	5-34538-015-0	01	1	9407-
21	04.265 RETAINER; SLEEVE,VLV LWR,A/T 4JA1 ENG(RLE)	8-97065-704-0	01	1	9407-
22	04.265 PLUNGER; REG VLV,VLV LWR,A/T	8-94105-480-0	01	1	9210-9406
22	04.265 PLUNGER; REG VLV,VLV LWR,A/T 4ZE1 ENG(RLJ)	8-94105-480-0	01	1	9407-
22	04.265 PLUNGER; REG VLV,VLV LWR,A/T 4JA1 ENG(RLE)	8-94473-580-0	01	1	9407-
23	04.265 SPRING; REG VLV,VLV LWR,A/T	8-94105-479-0	01	1	9210-9406
23	04.265 SPRING; REG VLV,VLV LWR,A/T 4ZE1 ENG(RLJ)	8-94105-479-0	01	1	9407-
23	04.265 SPRING; REG VLV,VLV LWR,A/T 4JA1 ENG(RLE)	8-97065-703-0	01	1	9407-
25	04.265 VALVE; REG,PRIMARY,VLV LWR,A/T	8-94473-661-0	01	1	9210-9406
25	04.265 VALVE; REG,PRIMARY,VLV LWR,A/T 4ZE1 ENG(RLJ)	8-94473-661-0	01	1	9407-
25	04.265 VALVE; REG,PRIMARY,VLV LWR,A/T 4JA1 ENG(RLE)	8-97065-702-0	01	1	9407-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (H) M6X28	8-94473-611-0	01	1	9210-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (B) M6X30	8-94473-623-0	04	1	9210-9406
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4ZE1 ENG(RLJ) (B) M6X30	8-94473-623-0	04	1	9407-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (E) M6X25	8-94473-624-0	02	1	9210-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F) M6X40	8-94473-626-0	01	1	9210-9406
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (D) M6X20	8-94473-629-0	02	1	9210-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (C) M6X36	8-94473-630-0	02	1	9210-9406
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4ZE1 ENG(RLJ) (C) M6X36	8-94473-630-0	02	1	9407-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (G) M6X64	8-94473-663-0	01	1	9210-9406
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4ZE1 ENG(RLJ) (G) M6X64	8-94473-663-0	01	1	9407-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (A) M6X55	8-94473-664-0	05	1	9210-9406
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4ZE1 ENG(RLJ) (A) M6X55	8-94473-664-0	05	1	9407-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JA1 ENG(RLE) (B) M6X30	8-94473-623-0	05	1	9407-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JA1 ENG(RLE) (C) M6X36	8-94473-630-0	03	1	9407-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4JA1 ENG(RLE) (A) M6X55	8-94473-664-0	03	1	9407-
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 4ZE1 ENG(RLJ) (F) M6X40	8-94473-625-0	01	1	9407-9407
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (F) M6X40	8-94473-625-0	01	1	9407-
27	04.265 BALL; STEEL,VLV,A/T 4JA1 ENG(RLE) OD=6.35	8-94364-913-0	01	1	9407-
66	04.265 BALL; STEEL,RELIEF VLV,A/T	5-34538-001-0	01	1	9210-
67	04.265 SPRING; PRESSURE,RELIEF VLV,A/T	5-34533-001-0	01	1	9210-
68	04.265 RETAINER; RELIEF VLV,A/T	5-34534-001-0	01	1	9210-
69	04.265 VALVE; SHIFT,LOW COAST,VLV LWR,A	8-94250-378-0	01	1	9210-
73	04.265 PLUG; REV,VLV LWR,A/T	8-94116-576-0	01	1	9210-
74	04.265 SPRING; VLV REV,VLV LWR,A/T 4JA1 ENG(RLE)	5-34533-004-0	01	1	9407-
75	04.265 COVER; VLV,LWR COAST SHIFT,VLV L	5-34521-001-0	01	1	9210-
77	04.265 BOLT; SHIFT CVR,VLV LWR,A/T 04.197 M5X12	8-94405-335-0	02	1	9210-
82	04.262 VALVE; 1ST 04.265	8-94100-644-0	01	1	9210-
83	04.262 VALVE; 3-4 SHIFT,VLV LWR,A/T	8-94250-379-0	01	1	9210-
84	04.262 PLUG; 3-4 SHIFT VLV,VLV LWR,A/T	8-94250-383-0	01	1	9210-
85	04.262 ROLLER; NEEDLE,3-4 SHIFT VLV,VLV	8-94250-384-0	01	1	9210-
86	04.265 SPRING; 3-4 SHIFT VLV,VLV LWR,A/	8-94473-644-0	01	1	9210-9406
86	04.265 SPRING; 3-4 SHIFT VLV,VLV LWR,A/ 4ZE1 ENG(RLJ)	8-94473-644-0	01	1	9407-
87	04.262 VALVE; 3-4 SHIFT CONT,VLV LWR,A/	8-94250-381-0	01	1	9210-
88	04.262 VALVE; 3RD,COAST SHIFT,VLV LWR,A	8-94250-382-0	01	1	9210-
89	04.262 PLUG; 3RD,COAST SHIFT VLV,VLV LW	8-94250-385-0	01	1	9210-
90	04.262 PIN; LOCATING,PLUG,VLV LWR,A/T	8-94250-386-0	01	1	9210-
91	04.262 PLUG; MANUAL,VLV LWR,A/T	8-94250-387-0	01	1	9210-
92	04.262 PIN; LOCATING,MANUAL PLUG,VLV LW	8-94250-386-0	01	1	9210-
93	04.262 VALVE; D-2 DOWN TIMING,VLV LWR,A	8-94250-389-0	01	1	9210-
94	04.262 PLUG; D-2 DOWN TIMING VLV,VLV LW	8-94250-390-0	01	1	9210-
95	04.262 RETAINER; D-2 DOWN TIMING VLV,VL 04.265	8-94250-391-0	01	1	9210-
96	04.262 BALL; RUBBER,VLV LWR,A/T 04.265 OD=7/32	5-34535-001-0	03	1	9210-9406
96	04.262 BALL; RUBBER,VLV LWR,A/T 4ZE1 ENG(RLJ) 04.265 OD=7/32	5-34535-001-0	03	1	9407-
96	04.262 BALL; RUBBER,VLV LWR,A/T 04.265 OD=6.35	5-34535-003-0	01	1	9210-9406
96	04.262 BALL; RUBBER,VLV LWR,A/T 4ZE1 ENG(RLJ) 04.265 OD=6.35	5-34535-003-0	01	1	9407-
96	04.262 BALL; RUBBER,VLV LWR,A/T 4JA1 ENG(RLE) OD=5.595	8-94473-576-0	03	1	9407-
97	04.265 SPRING; LOCKUP SIGNAL VALVE	8-94405-323-0	01	1	9210-9406
97	04.265 SPRING; LOCKUP SIGNAL VALVE 4ZE1 ENG(RLJ)	8-94405-323-0	01	1	9407-
97	04.265 SPRING; LOCKUP SIGNAL VALVE 4JA1 ENG(RLE)	8-94319-588-0	01	1	9407-
98	04.265 VALVE; LOCKUP SIGNAL	8-94405-324-0	01	1	9210-
99	04.265 PLATE; LOCKUP SIGNAL VALVE	8-94405-325-0	01	1	9210-
100	04.265 PIN; LOCATING	8-94405-326-0	01	1	9210-
101	04.265 SLEEVE; LOCKUP RELAY VALVE	8-94405-327-0	01	1	9210-
102	04.265 VALVE; LOCKUP RELAY VALVE SLEEVE	8-94405-328-0	01	1	9210-
103	04.265 SPRING; LOCKUP RELAY VALVE	8-94405-329-0	01	1	9210-
104	04.265 VALVE ASM; LOCKUP RELAY	8-94405-330-0	01	1	9210-
105	04.265 PLUG; LOCKUP RELAY VALVE	8-94405-331-0	01	1	9210-
106	04.265 RETAINER; LOCKUP RELAY VALVE	8-94405-332-0	01	1	9210-
107	04.265 GASKET; LOCKUP RELAY VALVE	8-94405-333-0	01	1	9210-9406
107	04.265 GASKET; LOCKUP RELAY VALVE 4ZE1 ENG(RLJ)	8-94405-333-0	01	1	9407-
107	04.265 GASKET; LOCKUP RELAY VALVE 4JA1 ENG(RLE)	8-94405-334-0	01	1	9407-
108	04.265 PLATE; LOCKUP RELAY VALVE	8-94405-334-0	01	1	9210-9406
108	04.265 PLATE; LOCKUP RELAY VALVE 4ZE1 ENG(RLJ)	8-94405-334-0	01	1	9407-
108	04.265 PLATE; LOCKUP RELAY VALVE 4JA1 ENG(RLE)	8-94405-333-0	01	1	9407-
109	04.265 SCREW; LOCKUP PLATE 04.197 M5X12	8-94405-335-0	04	1	9210-9406
109	04.265 SCREW; LOCKUP PLATE 4ZE1 ENG(RLJ) 04.197 M5X12	8-94405-335-0	04	1	9407-
109	04.265 SCREW; LOCKUP PLATE 4JA1 ENG(RLE) 04.197 M5X12	8-94405-335-0	01	1	9407-
112	04.265 PLATE; VLV BODY CVR,VLV LWR,A/T	8-94473-645-0	01	1	9210-
117	04.265 GASKET; VLV BODY CVR,UPR,VLV LWR	8-94405-338-0	01	1	9210-
123	04.265 GASKET; VLV BODY CVR,LWR,VLV LWR	8-94405-339-0	01	1	9210-9406
123	04.265 GASKET; VLV BODY CVR,LWR,VLV LWR 4ZE1 ENG(RLJ)	8-94405-339-0	01	1	9407-9509
123	04.265 GASKET; VLV BODY CVR,LWR,VLV LWR	8-94405-339-0	01	1	9510-
123	04.265 GASKET; VLV BODY CVR,LWR,VLV LWR 4JA1 ENG(RLE)	8-94405-329-0	01	1	9407-9509
125	04.265 COVER; VLV LWR BODY,A/T	8-94405-340-0	01	1	9210-
126	04.265 BOLT; CVR,VLV LWR,A/T M5X17.5	8-94473-608-0	07	1	9210-
