2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#42853) — 64 parça

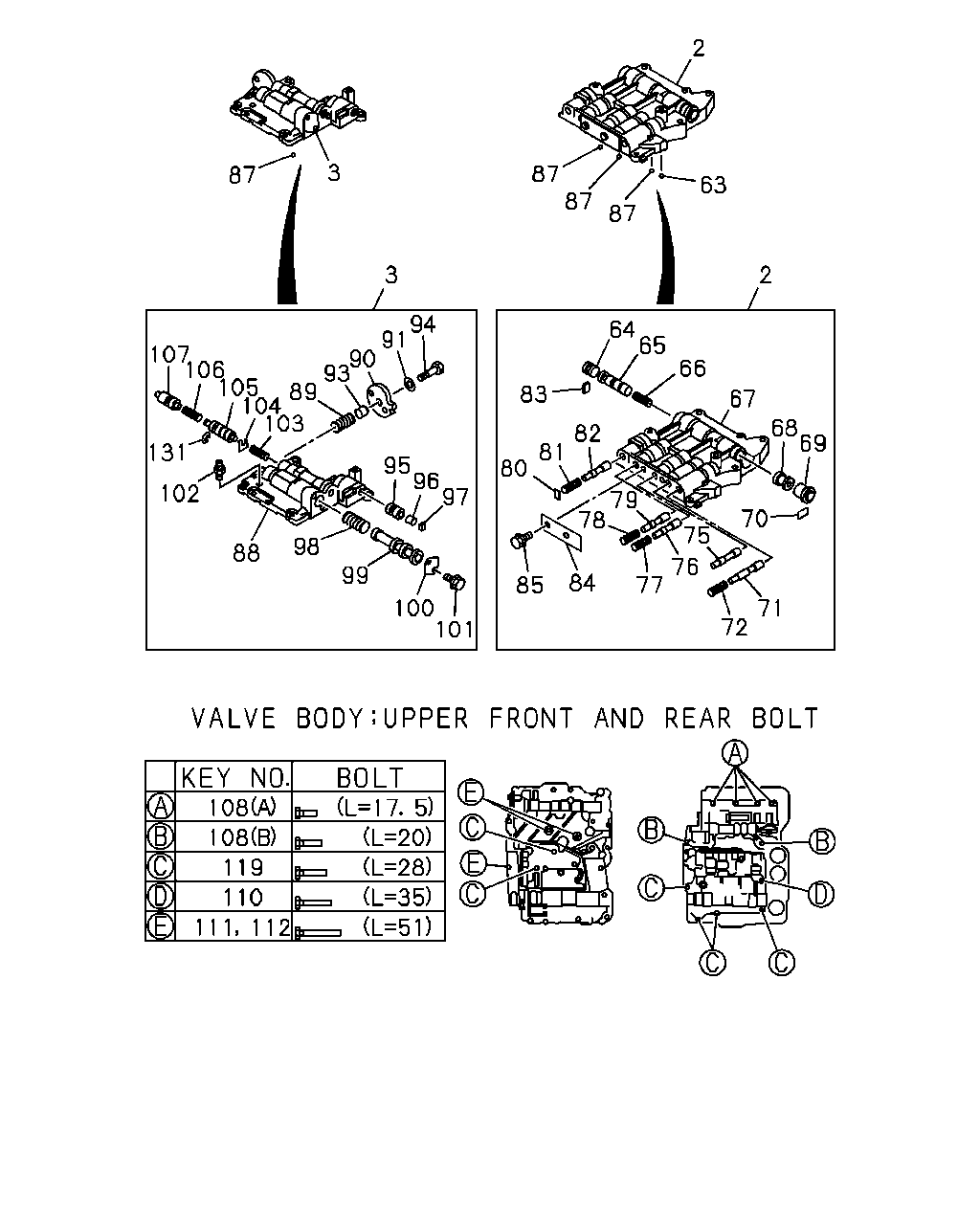

çizim 16975
2 63 2 87 87 87 3 3 87 107 106 105 104 103 89 93 90 91 94 131 102 88 98 99 100 101 95 96 97 64 65 66 67 68 69 70 83 82 81 80 79 78 75 76 77 71 72 84 85 108 108 119 110 111 112
BalonParca AdiParca NoAdetTipApplied Date
2 04.265 BODY ASM; VLV UPR RR,A/T 8-94323-521-0 01 1 9210-9406
2 04.265 BODY ASM; VLV UPR RR,A/T
4ZE1 ENG(RLJ) 		8-94323-521-0 01 1 9407-
2 04.265 BODY ASM; VLV UPR RR,A/T
4JA1 ENG(RLE) 		8-94319-586-0 01 1 9407-
3 04.265 BODY ASM; VLV UPR FRT,A/T 8-94473-650-0 01 1 9210-9406
3 04.265 BODY ASM; VLV UPR FRT,A/T
4ZE1 ENG(RLJ) 		8-94473-650-0 01 1 9407-
3 04.265 BODY ASM; VLV UPR FRT,A/T
4JA1 ENG(RLE) 		8-94319-587-0 01 1 9407-
63 04.265 BALL; STEEL,VLV UPR,A/T
OD=5.56 		5-34535-002-0 01 1 9210-
64 04.265 PLUG; VLV,2-3 SHIFT,VLV UPR RR,A 5-34538-007-0 01 1 9210-
65 04.265 VALVE; 2-3 SHIFT,VLV UPR RR,A/T 5-34531-010-0 01 1 9210-
66 04.265 SPRING; VLV,2-3 SHIFT,VLV UPR RR 5-34533-010-0 01 1 9210-
67 04.265 BODY; VLV UPR RR,A/T 8-94250-397-0 01 1 9210-
68 04.265 VALVE; INTERMEDIATE,VLV UPR RR,A 5-34531-009-0 01 1 9210-
69 04.265 PLUG; INTERMEDIATE,VLV UPR RR,A/ 5-34538-005-0 01 1 9210-
70 04.159 RETAINER; INTERMEDIATE,VLV UPR R
04.265 		5-34538-006-0 01 1 9210-
71 04.265 VALVE; LOW,VLV UPR RR,A/T 5-34531-007-0 01 1 9210-
72 04.265 SPRING; VLV LOW,VLV UPR RR,A/T 5-34533-008-0 01 1 9210-
75 04.265 PLUG; GOV MODULATOR 8-94405-342-0 01 1 9210-
76 04.265 VALVE; REV CLU,A/T 5-34531-018-0 01 1 9210-
77 04.265 SPRING; VLV,REV,A/T 8-94105-482-0 01 1 9210-9406
77 04.265 SPRING; VLV,REV,A/T
4ZE1 ENG(RLJ) 		8-94105-482-0 01 1 9407-
77 04.265 SPRING; VLV,REV,A/T
4JA1 ENG(RLE) 		8-94473-648-0 01 1 9407-
78 04.265 SPRING; INTERMEDIATE,VLV UPR RR, 8-94166-021-0 01 1 9210-
79 04.265 VALVE; INTERMEDIATE,VLV UPR RR,A 5-34531-005-0 01 1 9210-
80 04.265 RETAINER; VLV UPR RR,A/T 5-34538-004-0 01 1 9210-
81 04.265 SPRING; VLV DETENT,VLV UPR RR,A/ 8-94473-649-0 01 1 9210-9406
81 04.265 SPRING; VLV DETENT,VLV UPR RR,A/
4ZE1 ENG(RLJ) 		8-94473-649-0 01 1 9407-
81 04.265 SPRING; VLV DETENT,VLV UPR RR,A/
4JA1 ENG(RLE) 		8-94473-582-0 01 1 9407-
82 04.265 VALVE; DETENT,VLV UPR RR,A/T 5-34531-008-0 01 1 9210-
83 04.265 RETAINER; VLV,VLV UPR RR,A/T 5-34538-008-0 01 1 9210-
84 04.265 COVER; VLV UPR RR,A/T 5-34521-002-0 01 1 9210-
85 04.265 BOLT; COVER TO VLV,A/T
04.197 M5X12 		8-94405-335-0 02 1 9210-
87 04.265 BALL; RUBBER,VLV UPR,A/T
OD=7/32 		5-34535-001-0 04 1 9210-9406
87 04.265 BALL; RUBBER,VLV UPR,A/T
4ZE1 ENG(RLJ) OD=7/32 		5-34535-001-0 04 1 9407-
87 04.265 BALL; RUBBER,VLV UPR,A/T
4JA1 ENG(RLE) 04.262 OD=5.595 		8-94473-576-0 04 1 9407-
88 04.265 BODY; VLV,VLV UPR FRT,A/T 8-94405-344-0 01 1 9210-
89 04.265 SPRING; THROTTLE CAM RETURN,A/T 5-34533-014-0 01 1 9210-
90 04.265 CAM; VLV,KICK DOWN & THROTTLE,A/ 8-94247-526-0 01 1 9210-9406
90 04.265 CAM; VLV,KICK DOWN & THROTTLE,A/
4ZE1 ENG(RLJ) 		8-94247-526-0 01 1 9407-
90 04.265 CAM; VLV,KICK DOWN & THROTTLE,A/
4JA1 ENG(RLE) 		8-94473-584-0 01 1 9407-
91 04.265 COLLAR; CAM,A/T 5-34539-004-0 01 1 9210-
93 04.265 PIECE; DIST,CAM,A/T 5-34538-014-0 01 1 9210-
94 04.265 BOLT; CAM,KICK DOWN,A/T
M6X28 		8-94473-611-0 01 1 9210-
95 04.265 VALVE; CUT BACK,VLV UPR FRT,A/T 5-34531-011-0 01 1 9210-
96 04.265 PLUG; VLV,CUT BACK,VLV UPR FRT,A 5-34538-009-0 01 1 9210-
97 04.265 RETAINER; VLV,VLV UPR FRT,A/T 5-34538-003-0 01 1 9210-
98 04.265 SPRING; SECONDARY,A/T 8-94250-400-0 01 1 9210-
99 04.265 VALVE; SECONDARY,A/T 8-94473-662-0 01 1 9210-
100 04.265 COVER; VLV,FRT END,A/T 5-34521-003-0 01 1 9210-
101 04.265 BOLT; VLV COVER,A/T
04.197 M5X12 		8-94405-335-0 02 1 9210-
102 04.265 VALVE ASM; BALL
4JA1 ENG(RLE) 		8-94410-241-0 01 1 9407-
103 04.265 SPRING; THROTTLE BODY,SECONDARY, 5-34533-012-0 01 1 9210-
104 04.265 PLATE; THROTTLE BODY,A/T 5-34538-010-0 01 1 9210-
105 04.265 VALVE; THROTTLE,A/T 5-34531-013-1 01 1 9210-
106 04.265 SPRING; THROTTLE BODY,PRIMARY,A/ 8-94405-346-0 01 1 9210-9406
106 04.265 SPRING; THROTTLE BODY,PRIMARY,A/
4ZE1 ENG(RLJ) 		8-94405-346-0 01 1 9407-
106 04.265 SPRING; THROTTLE BODY,PRIMARY,A/
4JA1 ENG(RLE) 		8-94473-585-0 01 1 9407-
107 04.265 VALVE ASM; KICK DOWN,A/T 8-94405-347-0 01 1 9210-
108 04.265 BOLT; VLV BODY,UPR FRT TO LWR,A/
(A) M5X17.5 		8-94473-608-0 04 1 9210-
108 04.265 BOLT; VLV BODY,UPR FRT TO LWR,A/
(B) M5X20 		8-94473-620-0 02 1 9210-
110 04.265 BOLT; VLV BODY,UPR TO LWR,A/T
M5X35 		8-94473-617-0 01 1 9210-
111 04.265 BOLT; CVR,LWR VLV BODY,A/T
M5X51 		8-94473-618-0 02 1 9210-
112 04.265 BOLT; LWR VLV TO RR VLV BODY,A/T
M5X51 		8-94473-618-0 01 1 9210-
119 04.265 BOLT; VLV BODY,A/T
M5X28 		8-94473-616-0 06 1 9210-
131 04.265 RING; THROTTLE BODY,A/T 5-34538-011-0 06 1 9210-
