2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#42851) — 57 parça

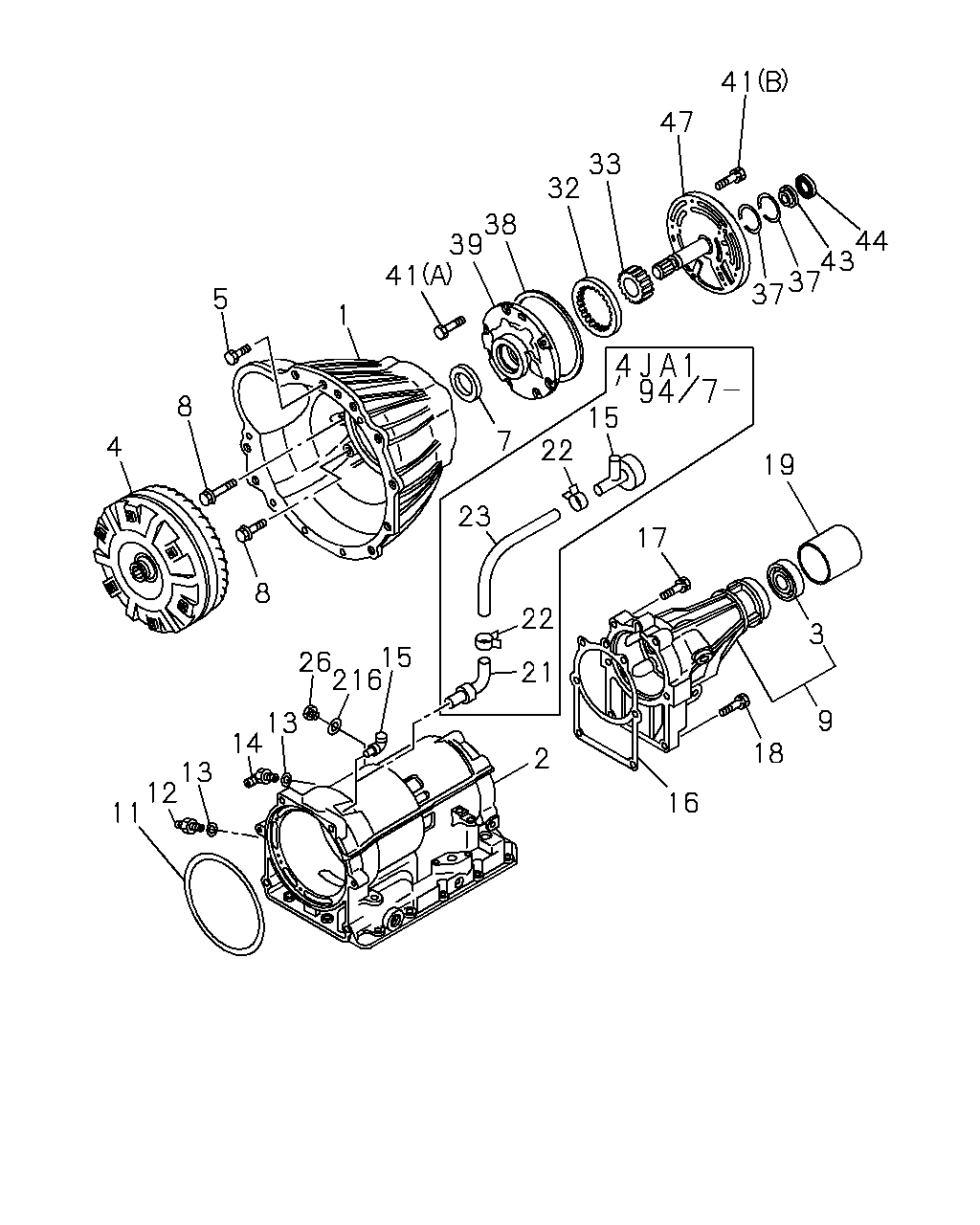

çizim 18066
41 47 33 32 38 39 41 1 5 8 4 8 7 37 37 43 44 15 22 23 22 21 19 17 3 9 18 16 2 15 216 26 13 14 13 12 11
BalonParca AdiParca NoAdetTipApplied Date
1 04.103 HOUSING; CONV,A/T 8-94474-054-0 01 1 9210-9406
1 04.103 HOUSING; CONV,A/T
4ZE1 ENG(RLJ) 		8-94474-054-0 01 1 9407-
1 04.103 HOUSING; CONV,A/T
4JA1 ENG(RLE) 		8-97128-808-0 01 1 9407-
2 04.103 CASE ASM; A/T 8-94235-346-0 01 1 9210-
3 04.241 SEAL; OIL,RR COVER,A/T 8-94473-633-0 01 1 9210-
4 04.115 CONVERTER ASM; TORQUE,A/T 8-94377-149-0 01 1 9210-9406
4 04.115 CONVERTER ASM; TORQUE,A/T
4ZE1 ENG(RLJ) 		8-94377-149-0 01 1 9407-
4 04.115 CONVERTER ASM; TORQUE,A/T
4JA1 ENG(RLE) 		8-94364-918-0 01 1 9407-
5 04.008 BOLT; RR PLATE TO TORQUE CONV
M8X10 		8-94460-742-0 06 1 9210-
7 04.226 SEAL; OIL,LIP,A/T 8-94165-955-0 01 1 9210-
8 04.217 BOLT; HSG TO CASE
M10X118 		8-94473-572-0 04 1 9210-
8 04.217 BOLT; HSG TO CASE
M12X97 		8-94473-573-0 02 1 9210-
9 04.317 COVER ASM; RR,A/T 8-94155-669-0 01 1 9210-
11 04.104 RING; SEALING,TRANS CASE 8-94250-604-0 01 1 9210-
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP 8-94473-569-0 01 1 9210-9406
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
4ZE1 ENG(RLJ) 		8-94473-569-0 01 1 9407-
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
4JA1 ENG(RLE) 04.317 		8-94479-970-0 01 1 9407-
13 04.205 GASKET; OIL COOLER PIPE
04.128 		5-34588-001-0 02 1 9210-
14 04.205 UNION; OIL COOLER RETURN PIPE 8-94473-570-0 01 1 9210-
15 04.104 BREATHER; A/T CASE 5-34128-002-0 01 1 9210-9406
15 04.104 BREATHER; A/T CASE
4ZE1 ENG(RLJ) 		5-34128-002-0 01 1 9407-
15 04.104 BREATHER; A/T CASE
4JA1 ENG(RLE) 		8-94479-729-0 01 1 9407-
16 04.318 GASKET; EXT HSG 5-34378-005-0 01 1 9210-9406
16 04.318 GASKET; EXT HSG
4ZE1 ENG(RLJ) 		5-34378-005-0 01 1 9407-
16 04.318 GASKET; EXT HSG
4JA1 ENG(RLE) 		8-97032-928-0 01 1 9407-
17 04.319 BOLT; REAR COVER TO CASE
04.105 L=45 		8-94257-085-0 03 1 9210-9406
17 04.319 BOLT; REAR COVER TO CASE
4ZE1 ENG(RLJ) 04.105 L=45 		8-94257-085-0 03 1 9407-
17 04.319 BOLT; REAR COVER TO CASE
M10X45 		8-94473-632-0 01 1 9210-9406
17 04.319 BOLT; REAR COVER TO CASE
4ZE1 ENG(RLJ) M10X45 		8-94473-632-0 01 1 9407-
17 04.319 BOLT; REAR COVER TO CASE
4JA1 ENG(RLE) M10X45 		8-94473-632-0 04 1 9407-
18 04.319 BOLT; RR CVR TO CASE,LWR,A/T
04.217 L=32 		8-94257-082-0 02 1 9210-9406
18 04.319 BOLT; RR CVR TO CASE,LWR,A/T
4ZE1 ENG(RLJ) 04.217 L=32 		8-94257-082-0 02 1 9407-
18 04.319 BOLT; RR CVR TO CASE,LWR,A/T
4JA1 ENG(RLE) M10X35 		8-94479-951-0 02 1 9407-
19 04.241 COVER; DUST,REAR COVER
04.318 		5-33138-007-0 01 1 9210-
21 04.104 PLUG; BREATHER,A/T
4JA1 ENG(RLE) 		8-94479-727-0 01 1 9407-
22 04.101 CLIP; BREATHER HOSE,A/T
4JA1 ENG(RLE) 		8-94479-730-0 02 1 9407-
23 04.101 HOSE; BREATHER,A/T
4JA1 ENG(RLE) 		8-97069-455-0 01 1 9407-
26 04.195 PLUG; TRANS CASE
04.103 		5-34119-002-0 02 1 9210-
32 04.210 GEAR; OUTER,OIL PUMP,A/T
04.224 		8-94405-301-0 01 1 9210-9406
32 04.210 GEAR; OUTER,OIL PUMP,A/T
4ZE1 ENG(RLJ) 04.224 		8-94405-301-0 01 1 9407-
32 04.210 GEAR; OUTER,OIL PUMP,A/T
4JA1 ENG(RLE) 		8-97128-811-0 01 1 9407-
33 04.224 GEAR; INNER,OIL PUMP,A/T 8-94405-300-0 01 1 9210-9406
33 04.224 GEAR; INNER,OIL PUMP,A/T
4ZE1 ENG(RLJ) 		8-94405-300-0 01 1 9407-
33 04.224 GEAR; INNER,OIL PUMP,A/T
4JA1 ENG(RLE) 		8-97128-810-0 01 1 9407-
37 04.226 RING; SEAL,OIL PUMP,A/T 8-94257-061-0 02 1 9210-9406
37 04.226 RING; SEAL,OIL PUMP,A/T
4ZE1 ENG(RLJ) 		8-94257-061-0 02 1 9407-
37 04.226 RING; SEAL,OIL PUMP,A/T
4JA1 ENG(RLE) 		8-97128-812-0 02 1 9407-
38 04.226 GASKET; OIL PUMP,A/T 5-34165-003-0 01 1 9210-
39 04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 8-94405-299-0 01 1 9210-
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) 		8-94257-084-0 06 1 9210-9406
41 04.226 BOLT; OIL PUMP HSG,A/T
4ZE1 ENG(RLJ) (B) 		8-94257-084-0 06 1 9407-
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) M8X135 		8-94473-574-0 07 1 9210-
41 04.226 BOLT; OIL PUMP HSG,A/T
4JA1 ENG(RLE) (B) M6X15.5 		8-97019-532-0 06 1 9407-
43 04.226 RACE; THRUST BRG,OIL PUMP,A/T 8-94165-958-0 01 1 9210-
44 04.226 BEARING; THRUST,OIL PUMP,A/T 8-94165-957-0 01 1 9210-
47 04.226 SHAFT; OIL PUMP,A/T 8-94405-302-0 01 1 9210-
216 04.265 GASKET; SOLENOID OUTER
04.103 ID=6 		5-34119-001-0 02 1 9210-
