1 |

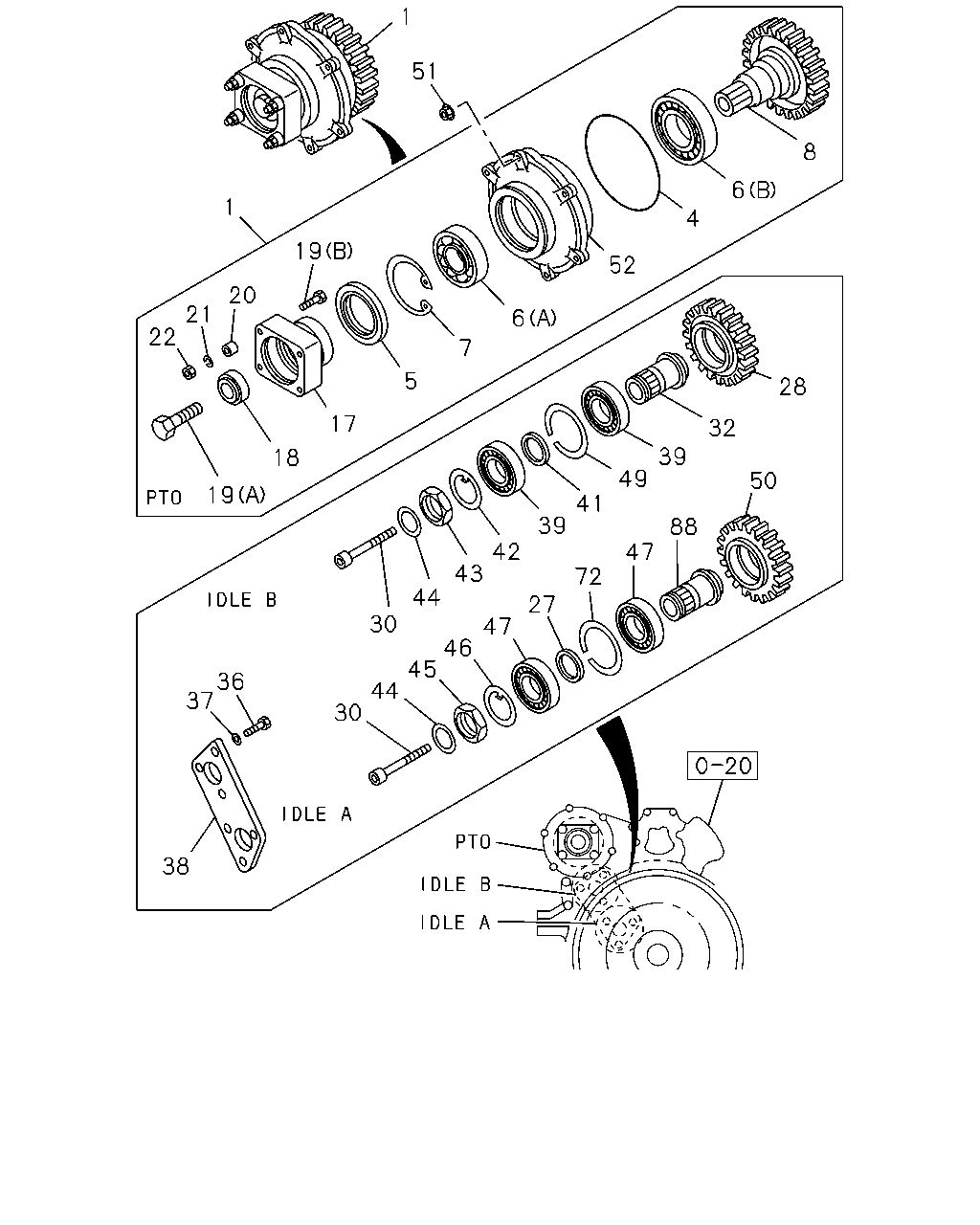

POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1)
|
1-38000-159-2 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
1 |
POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1)
|
1-38000-159-2 |
01 |
1 |
9905-0004 |
● |
● |
● |
● |
| |
1 |
POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1)
|
1-38000-350-0 |
01 |
1 |
0005- |
● |
● |
● |
● |
| |
4 |
GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
1-09623-003-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
4 |
GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
1-09623-003-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
1-09625-062-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
1-09625-062-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
(A)
NSK
|
9-00090-047-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
(A)
NSK
|
9-00090-047-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
(B)
NSK
|
9-00094-107-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
(B)
NSK
|
9-00094-107-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
7 |
RING; SNAP BALL BRG
ENGINE REAR PTO(SV1)
OD=105.5
|
9-09180-100-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
7 |
RING; SNAP BALL BRG
ENGINE REAR PTO(SV1)
OD=105.5
|
9-09180-100-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
8 |
GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
Z=36
|
1-38241-097-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
8 |
GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
Z=36
|
1-38241-097-0 |
01 |
1 |
9905-0004 |
● |
● |
● |
● |
| |
8 |
GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
Z=47
|
1-38240-023-0 |
01 |
1 |
0005- |
● |
● |
● |
● |
| |
17 |
FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-38189-010-0 |
01 |
1 |
9603-9702 |
● |
● |
|
|
| |
17 |
FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-38189-010-0 |
01 |
1 |
9703-9904 |
● |
● |
|
|
| |
17 |
FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-38189-010-1 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
18 |
WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
1-09509-014-0 |
01 |
1 |
9603-9702 |
● |
● |
|
|
| |
18 |
WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
1-09509-014-0 |
01 |
1 |
9703-9904 |
● |
● |
|
|
| |
18 |
WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
1-09509-014-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(A)
M20X60
|
9-92052-060-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(A)
M20X60
|
9-92052-060-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(B)
M12X70
|
9-92621-270-0 |
04 |
1 |
9603-9702 |
● |
● |
|
|
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(B)
M12X70
|
9-92621-270-0 |
04 |
1 |
9703-9904 |
● |
● |
|
|
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(B)
M12X70
|
9-92621-270-0 |
04 |
1 |
9905- |
● |
● |
● |
● |
| |
20 |
SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=13 ID=22.2
|
9-38189-005-0 |
04 |
1 |
9603-9702 |
● |
● |
|
|
| |
20 |
SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=13 ID=22.2
|
9-38189-005-0 |
04 |
1 |
9703-9904 |
● |
● |
|
|
| |
20 |
SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=13 ID=22.2
|
9-38189-005-0 |
04 |
1 |
9905- |
● |
● |
● |
● |
| |
21 |
WASHER; LK,FLANGE
ENGINE REAR PTO(SV1)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
9603-9702 |
● |
● |
|
|
| |
21 |
WASHER; LK,FLANGE
ENGINE REAR PTO(SV1)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
9703-9904 |
● |
● |
|
|
| |
21 |
WASHER; LK,FLANGE
ENGINE REAR PTO(SV1)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
9905- |
● |
● |
● |
● |
| |
22 |
NUT; FLANGE
ENGINE REAR PTO(SV1)
M12
|
9-99110-512-0 |
04 |
1 |
9603-9702 |
● |
● |
|
|
| |
22 |
NUT; FLANGE
ENGINE REAR PTO(SV1)
M12
|
9-99110-512-0 |
04 |
1 |
9703-9904 |
● |
● |
|
|
| |
22 |
NUT; FLANGE
ENGINE REAR PTO(SV1)
M12
|
9-99110-512-0 |
04 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.05
|
1-38226-016-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.05
|
1-38226-016-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.12
|
1-38226-017-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.12
|
1-38226-017-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.19
|
1-38226-018-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.19
|
1-38226-018-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.26
|
1-38226-019-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.26
|
1-38226-019-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.33
|
1-38226-020-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.33
|
1-38226-020-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.40
|
1-38226-021-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.40
|
1-38226-021-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.47
|
1-38226-022-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.47
|
1-38226-022-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.54
|
1-38226-023-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.54
|
1-38226-023-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.61
|
1-38226-024-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.61
|
1-38226-024-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.68
|
1-38226-025-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.68
|
1-38226-025-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.75
|
1-38226-026-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.75
|
1-38226-026-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.82
|
1-38226-027-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.82
|
1-38226-027-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.89
|
1-38226-028-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.89
|
1-38226-028-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.96
|
1-38226-029-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=6.96
|
1-38226-029-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.03
|
1-38226-030-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.03
|
1-38226-030-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.10
|
1-38226-031-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.10
|
1-38226-031-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.17
|
1-38226-032-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.17
|
1-38226-032-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.24
|
1-38226-033-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.24
|
1-38226-033-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.31
|
1-38226-034-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.31
|
1-38226-034-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.38
|
1-38226-035-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.38
|
1-38226-035-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.45
|
1-38226-036-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
27 |
SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=7.45
|
1-38226-036-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
28 |
GEAR; IDLE
ENGINE REAR PTO(SV1)
Z=30
|
1-38261-012-2 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
28 |
GEAR; IDLE
ENGINE REAR PTO(SV1)
Z=30
|
1-38261-012-2 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
30 |
BOLT; SPINDLE
ENGINE REAR PTO(SV1)
|
1-09054-007-1 |
02 |
1 |
9603-9904 |
● |
● |
|
|
| |
30 |
BOLT; SPINDLE
ENGINE REAR PTO(SV1)
|
1-09054-007-1 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
32 |
SPINDLE; IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-12531-003-1 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
32 |
SPINDLE; IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-12531-003-1 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
36 |
BOLT; HOLDER
ENGINE REAR PTO(SV1)
|
1-09009-038-1 |
06 |
1 |
9603-9904 |
● |
● |
|
|
| |
36 |
BOLT; HOLDER
ENGINE REAR PTO(SV1)
|
1-09009-038-1 |
06 |
1 |
9905-0004 |
● |
● |
● |
● |
| |
37 |
WASHER; HOLDER
ENGINE REAR PTO(SV1)
ID=12.2
|
1-09503-008-0 |
06 |
1 |
9603-9904 |
● |
● |
|
|
| |
37 |
WASHER; HOLDER
ENGINE REAR PTO(SV1)
ID=12.2
|
1-09503-008-0 |
06 |
1 |
9905-0004 |
● |
● |
● |
● |
| |
38 |
HOLDER; IDLE GEAR SPINDLE
ENGINE REAR PTO(SV1)
|
1-11349-062-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
38 |
HOLDER; IDLE GEAR SPINDLE
ENGINE REAR PTO(SV1)
|
1-11349-062-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
39 |
BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9603-9904 |
● |
● |
|
|
| |
39 |
BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.05
|
1-38226-016-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.05
|
1-38226-016-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.12
|
1-38226-017-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.12
|
1-38226-017-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.19
|
1-38226-018-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.19
|
1-38226-018-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.26
|
1-38226-019-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.26
|
1-38226-019-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.33
|
1-38226-020-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.33
|
1-38226-020-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.40
|
1-38226-021-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.40
|
1-38226-021-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.47
|
1-38226-022-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.47
|
1-38226-022-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.54
|
1-38226-023-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.54
|
1-38226-023-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.61
|
1-38226-024-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.61
|
1-38226-024-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.68
|
1-38226-025-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.68
|
1-38226-025-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.75
|
1-38226-026-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.75
|
1-38226-026-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.82
|
1-38226-027-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.82
|
1-38226-027-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.89
|
1-38226-028-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.89
|
1-38226-028-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.96
|
1-38226-029-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=6.96
|
1-38226-029-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.03
|
1-38226-030-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.03
|
1-38226-030-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.10
|
1-38226-031-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.10
|
1-38226-031-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.17
|
1-38226-032-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.17
|
1-38226-032-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.24
|
1-38226-033-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.24
|
1-38226-033-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.31
|
1-38226-034-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.31
|
1-38226-034-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.38
|
1-38226-035-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.38
|
1-38226-035-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.45
|
1-38226-036-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
41 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=7.45
|
1-38226-036-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
42 |
WASHER; LK,BRG
ENGINE REAR PTO(SV1)
ID=47
|
1-09533-003-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
42 |
WASHER; LK,BRG
ENGINE REAR PTO(SV1)
ID=47
|
1-09533-003-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
43 |
NUT; BRG IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-09840-005-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
43 |
NUT; BRG IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-09840-005-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
44 |
WASHER; SPINDLE
ENGINE REAR PTO(SV1)
ID=16.2
|
1-09503-022-1 |
02 |
1 |
9603-9904 |
● |
● |
|
|
| |
44 |
WASHER; SPINDLE
ENGINE REAR PTO(SV1)
ID=16.2
|
1-09503-022-1 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
45 |
NUT; BRG,IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-09840-005-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
45 |
NUT; BRG,IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-09840-005-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
46 |
WASHER; LK,BRG
ENGINE REAR PTO(SV1)
ID=47
|
1-09533-003-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
46 |
WASHER; LK,BRG
ENGINE REAR PTO(SV1)
ID=47
|
1-09533-003-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
47 |
BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9603-9904 |
● |
● |
|
|
| |
47 |
BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
9905- |
● |
● |
● |
● |
| |
49 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=3
|
1-38226-015-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
49 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=3
|
1-38226-015-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
50 |
GEAR; IDLE A
ENGINE REAR PTO(SV1)
Z=29
|
1-38261-011-2 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
50 |
GEAR; IDLE A
ENGINE REAR PTO(SV1)
Z=29
|
1-38261-011-2 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
51 |
NUT; PTO
ENGINE REAR PTO(SV1)
M10 FLANGE
|
0-91150-110-0 |
06 |
1 |
9603-9904 |
● |
● |
|
|
| |
51 |
NUT; PTO
ENGINE REAR PTO(SV1)
M10 FLANGE
|
0-91150-110-0 |
06 |
1 |
9905- |
● |
● |
● |
● |
| |
52 |
CASE; BRG,PTO
ENGINE REAR PTO(SV1)
|
1-38181-004-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
52 |
CASE; BRG,PTO
ENGINE REAR PTO(SV1)
|
1-38181-004-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
72 |
SPACER; OUTER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=3
|
1-38226-015-0 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
72 |
SPACER; OUTER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1)
T=3
|
1-38226-015-0 |
01 |
1 |
9905- |
● |
● |
● |
● |
| |
88 |
SPINDLE; IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-12531-003-1 |
01 |
1 |
9603-9904 |
● |
● |
|
|
| |
88 |
SPINDLE; IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-12531-003-1 |
01 |
1 |
9905- |
● |
● |
● |
● |
