Sayfa 2-30 - Isuzu EPC

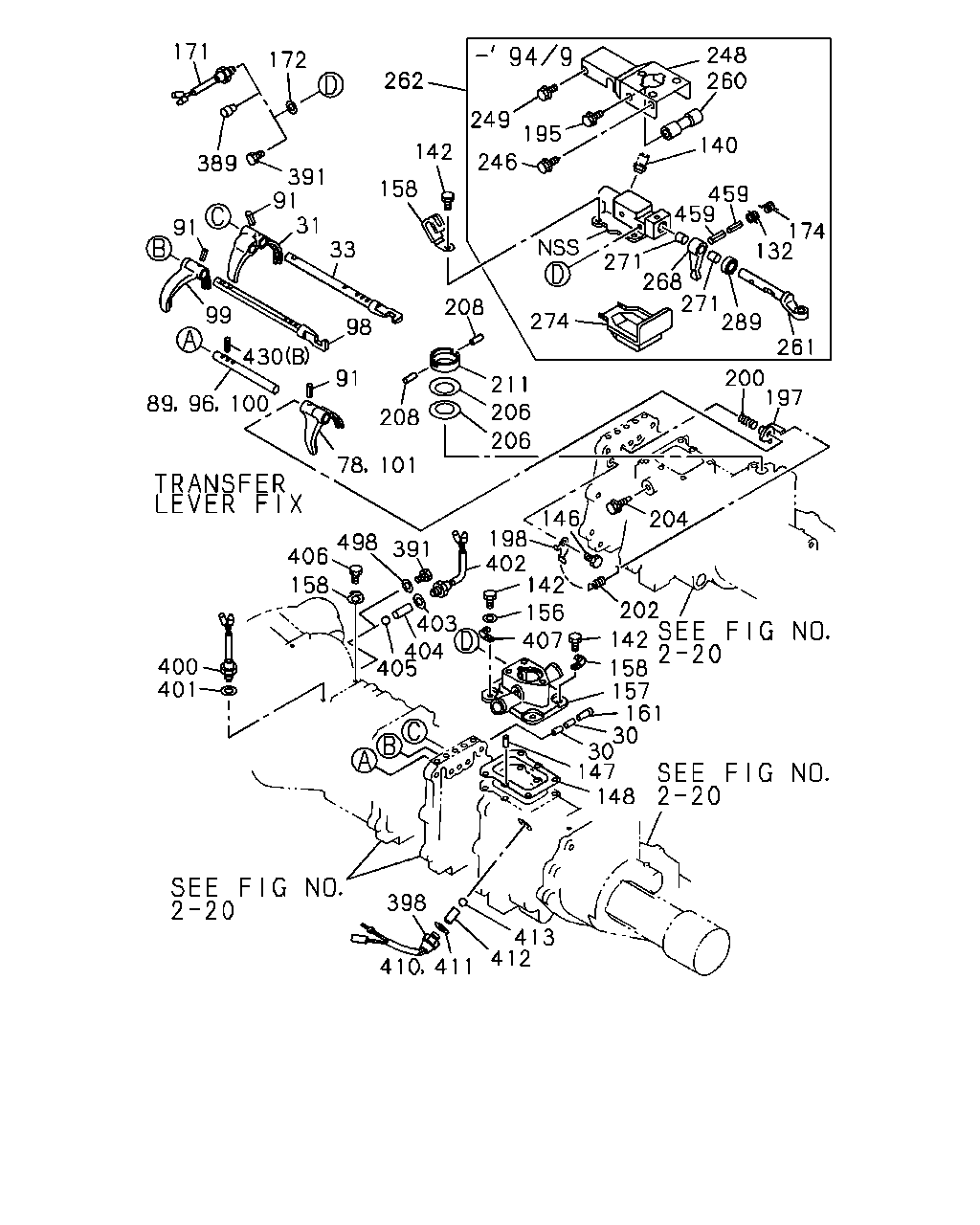

2-30 — GEAR SHIFTER AND QUADRANT BOX (#42848) — 304 parça

248 260 140 459 459 174 132 261 289 271 268 271 274 249 195 246 262 142 158 172 171 389 391 91 31 33 91 99 430 98 208 89 96 100 91 78 101 208 211 206 206 200 197 204 146 198 402 142 156 407 202 142 158 157 161 30 30 147 148 413 412 411 410 398 403 404 405 401 400 158 406 498 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9210-	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	9210-	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9210-			●
33	04.309 ROD; SHIFT,LOW & 2ND C223 ENG(LQ7),4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9210-9410	●	●
33	04.309 ROD; SHIFT,LOW & 2ND C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9411-9411	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9411-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND FLOOR REMOTE SHIFT<M11>	8-94455-849-1	01	1	9412-	●	●
33	04.309 ROD; SHIFT,LOW & 2ND C223 ENG(LQ7),4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9210-9411	●	●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. FLOOR REMOTE SHIFT<M11>	8-94435-156-1	01	1	9412-	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94474-328-1	01	1	9210-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94474-328-1	01	1	9210-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X2(TFB***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94435-157-1	01	1	9210-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND 4X4(TFS***) EXC. FLOOR REMOTE SHIFT<M11>	8-94435-157-1	01	1	9210-9411		●
33	04.309 ROD; SHIFT,LOW & 2ND FLOOR REMOTE SHIFT<M11>	8-97019-061-1	01	1	9210-			●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. FLOOR REMOTE SHIFT<M11>	8-94421-915-3	01	1	9210-			●
78	04.302 ARM; SHIFT,REV 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR REMOTE SHIFT<M11> 04.309	8-94474-332-3	01	1	9210-	●
78	04.302 ARM; SHIFT,REV 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. FLOOR REMOTE SHIFT<M11> 04.309	8-94472-377-3	01	1	9210-	●
89	04.309 ROD; SHIFT,REV C223 ENG(LQ7)	8-94474-331-1	01	1	9210-9308	●
89	04.309 ROD; SHIFT,REV 4ZA1 ENG(L17)	8-94474-330-2	01	1	9210-	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9210-	●	●	●
96	04.309 ROD; SHIFT,5TH FLOOR REMOTE SHIFT<M11>	8-94440-079-0	01	1	9210-9409			●
96	04.309 ROD; SHIFT,5TH	8-94440-079-0	01	1	9410-			●
96	04.309 ROD; SHIFT,5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94421-916-1	01	1	9210-9409			●
98	04.309 ROD; SHIFT,TOP & 3RD FLOOR REMOTE SHIFT<M11>	8-94372-767-0	01	1	9210-	●	●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. FLOOR REMOTE SHIFT<M11>	8-94372-766-0	01	1	9210-	●	●
98	04.309 ROD; SHIFT,TOP & 3RD FLOOR REMOTE SHIFT<M11>	8-97019-060-2	01	1	9210-			●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. FLOOR REMOTE SHIFT<M11>	8-94421-914-3	01	1	9210-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	9210-	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9210-			●
100	04.309 ROD; SHIFT,REV & 5TH 4X2(TFB***)	8-94474-329-2	01	1	9210-		●
100	04.309 ROD; SHIFT,REV & 5TH 4X4(TFS***)	8-94456-016-2	01	1	9210-		●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94455-851-3	01	1	9210-		●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94440-061-3	01	1	9210-		●
101	04.302 ARM; SHIFT,REV & 5TH FLOOR REMOTE SHIFT<M11>	8-94448-755-2	01	1	9210-			●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-94448-754-3	01	1	9210-9409			●
101	04.302 ARM; SHIFT,REV & 5TH EXC. FLOOR REMOTE SHIFT<M11>	8-97109-504-1	01	1	9410-			●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11> 04.042	8-94473-790-1	01	1	9210-9406	●	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11>	8-97103-106-0	01	1	9407-	●	●	●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=32	8-94407-774-1	01	1	9210-	●	●
140	04.104 BREATHER; AIR,TRANS EXC. FLOOR REMOTE SHIFT<M11> 03.417	8-94450-556-0	01	1	9210-	●	●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=39	8-97035-693-2	01	1	9210-9409			●
142	04.012 BOLT; QUAD BOX M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	04	1	9210-	●	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9210-			●
146	04.032 BOLT; REV INHIBITOR 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9210-9605			●
146	04.032 BOLT; REV INHIBITOR 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. EAST MALAYSIA EQUIPMENT(PM6) 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9606-9607			●
146	04.032 BOLT; REV INHIBITOR 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9608-9609			●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9610-			●
146	04.032 BOLT; REV INHIBITOR 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9606-9607			●
147	04.020 PIN; KNOCK 4X2(TFB***) 04.510 OD=6 L=12	9-08150-612-0	02	1	9210-			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 04.109	8-94462-112-0	01	1	9210-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 04.109	8-94462-112-0	01	1	9210-		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 04.012	8-94462-113-0	01	1	9210-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.012	8-94462-113-0	01	1	9210-		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94473-945-0	01	1	9210-9308			●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9309-			●
156	00.349 WASHER; PL,HARNESS CLIP 4ZD1 ENG(LW3) 16.674 ID=8.4	9-09160-508-0	01	1	9210-		●
157	04.105 BOX; QUAD,TRANS 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-4	01	1	9210-	●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-4	01	1	9210-		●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-113-4	01	1	9210-		●
157	04.105 BOX; QUAD,TRANS 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4ZA1 ENG(L17) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-3	01	1	9210-9410	●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-3	01	1	9210-9410		●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) UNITED KINGDOM EQUIPMENT(EK3) EXC. FLOOR REMOTE SHIFT<M11>	8-94161-146-4	01	1	9411-		●
157	04.105 BOX; QUAD,TRANS 4X2(TFB***) 4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3), FLOOR REMOTE SHIFT<M11>	8-94161-110-4	01	1	9210-		●
157	04.105 BOX; QUAD,TRANS 4X4(TFS***) 4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3), FLOOR REMOTE SHIFT<M11>	8-94161-143-4	01	1	9210-		●
157	04.105 BOX; QUAD,TRANS EXC. FLOOR REMOTE SHIFT<M11>	8-94379-321-2	01	1	9210-9407			●
157	04.105 BOX; QUAD,TRANS EXC. FLOOR REMOTE SHIFT<M11>	8-97113-441-1	01	1	9408-			●
158	04.105 CLIP; HARNESS 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9210-9410	●
158	04.105 CLIP; HARNESS 4X2(TFB***) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9210-9410		●
158	04.105 CLIP; HARNESS 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9411-9505			●
158	04.105 CLIP; HARNESS 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9506-	●
158	04.105 CLIP; HARNESS 4X2(TFB***) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9506-		●
158	04.105 CLIP; HARNESS 4X4(TFS***) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	02	1	9210-		●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9210-	●	●	●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-82440-004-1	01	1	9210-9402		●
171	04.054 SWITCH; NEUTRAL 4ZE1 ENG(RLJ) AUTO CRUISE CONT<K30>	5-82440-004-1	01	1	9210-9402			●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3)	5-82440-004-1	01	1	9210-9402			●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-82440-004-1	01	1	9403-		●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3)	5-82440-004-1	01	1	9403-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9509		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2	8-94462-114-0	01	1	9210-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4ZD1 ENG(LW3). 04.075 ID=14.2	8-94462-114-0	01	1	9510-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF). 04.075 ID=14.2	8-94462-114-0	01	1	9510-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9510-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). EXC. FLOOR REMOTE SHIFT<M11> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9407			●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11> 04.042	8-94473-791-1	01	1	9210-9406	●	●	●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11>	8-97103-105-0	01	1	9407-	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 04.012 M8X12 FLANGE	8-97049-142-0	01	1	9604-9604	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9605-	●	●	●
197	04.309 INHIBITOR; REV SHIFT FLOOR REMOTE SHIFT<M11>	8-94448-753-0	01	1	9210-			●
197	04.309 INHIBITOR; REV SHIFT EXC. FLOOR REMOTE SHIFT<M11>	8-94448-201-1	01	1	9210-			●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9210-			●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9210-			●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9210-			●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9210-			●
206	04.307 SPRING; BALL SEAT 4X4(TFS***) 04.570	9-33619-632-0	02	1	9210-			●
208	04.307 PIN; BALL SEAT 4X4(TFS***)	8-94204-186-0	02	1	9210-			●
211	04.307 SEAT; BALL 4X4(TFS***) 04.570	5-33619-042-0	01	1	9210-			●
246	04.105 SCREW; DUST COVER FLOOR REMOTE SHIFT<M11> M4X10 FLANGE	8-94328-359-1	04	1	9210-9409	●	●	●
248	04.105 RETAINER; CONT BOX 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR REMOTE SHIFT<M11>	8-94328-360-2	01	1	9210-9406	●
248	04.105 RETAINER; CONT BOX 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-94328-360-2	01	1	9210-9406		●
248	04.105 RETAINER; CONT BOX FLOOR REMOTE SHIFT<M11>	8-94328-360-2	01	1	9210-9406			●
248	04.105 RETAINER; CONT BOX FLOOR REMOTE SHIFT<M11>	8-94328-360-2	01	1	9407-9409	●		●
248	04.105 RETAINER; CONT BOX 4X2(TFB***) FLOOR REMOTE SHIFT<M11>	8-94328-360-2	01	1	9407-9409		●
248	04.105 RETAINER; CONT BOX 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FLOOR REMOTE SHIFT<M11>	8-94473-784-2	01	1	9210-9406	●
248	04.105 RETAINER; CONT BOX 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94473-784-2	01	1	9210-9406		●
248	04.105 RETAINER; CONT BOX 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94473-784-2	01	1	9407-9409		●
249	04.012 BOLT; RET,CONT BOX FLOOR REMOTE SHIFT<M11> M8X12 FLANGE	8-97049-142-0	03	1	9210-9409	●	●	●
260	04.309 SHAFT; SPRING SET,CONT BOX FLOOR REMOTE SHIFT<M11>	8-94473-789-0	01	1	9210-9409	●	●	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9406-9409	●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9410-9410	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9410-9410		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9411-9505	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9411-9505		●
261	04.309 ROD; GEAR CONT LONG(TF***F) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97103-092-0	01	1	9411-9505		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9506-	●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9506-		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97103-092-1	01	1	9506-		●
261	04.309 ROD; GEAR CONT C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9210-9402	●	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9210-9402		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9403-9405	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9403-9405		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9406-9406		●
261	04.309 ROD; GEAR CONT 4X4 LONG(TFS**F) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94328-366-3	01	1	9407-9409		●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94473-788-3	01	1	9210-9402		●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9210-9402			●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9403-9405		●
261	04.309 ROD; GEAR CONT	8-94473-788-3	01	1	9403-9405			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT	8-94473-788-3	01	1	9406-9409			●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97103-090-0	01	1	9406-9509		●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9510-		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97103-090-1	01	1	9510-		●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9510-			●
262	04.105 BOX ASM; SHIFT CONT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17)	8-94462-343-5	01	1	9210-9308	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9210-9308		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9210-9308		●
262	04.105 BOX ASM; SHIFT CONT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9309-9405	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(EK3)	8-94462-343-5	01	1	9309-9405		●
262	04.105 BOX ASM; SHIFT CONT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97104-339-0	01	1	9406-9505	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(EK3)	8-97104-339-0	01	1	9406-9505		●
262	04.105 BOX ASM; SHIFT CONT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97104-339-1	01	1	9506-	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-339-1	01	1	9506-		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94462-342-5	01	1	9210-9405		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97104-338-1	01	1	9407-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94474-401-5	01	1	9210-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97103-081-2	01	1	9410-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(EK3)	8-94474-402-5	01	1	9210-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(EK3)	8-97104-409-2	01	1	9410-		●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97033-096-3	01	1	9210-9409			●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-3	01	1	9410-			●
268	04.302 LEVER; CONT,INTERNAL 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97104-410-0	01	1	9406-	●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-97104-410-0	01	1	9406-		●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9210-9406	●	●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9407-9409		●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-94473-786-1	01	1	9210-9409			●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-97103-089-0	01	1	9410-			●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11>	8-94151-447-0	02	1	9210-9310	●	●	●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11> ID=14 L=15	8-94478-119-0	02	1	9311-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-94473-785-2	01	1	9210-9406	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-97103-093-2	01	1	9407-	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94221-533-1	01	1	9210-9310	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94478-118-0	01	1	9311-	●	●	●
389	04.075 PLUG; QUAD BOX,NEUTRAL SW EXC. FLOOR REMOTE SHIFT<M11> 04.042	8-94205-805-2	01	1	9210-9511	●	●
391	04.104 PLUG; SW HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. AUTO CRUISE CONT<K30> 08.971 M14X9	9-99202-314-0	01	1	9210-9312			●
391	04.104 PLUG; SW HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. AUTO CRUISE CONT<K30> M14X11	8-94252-142-0	01	1	9401-9509			●
391	04.104 PLUG; SW HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X11	8-94252-142-0	01	1	9510-9605			●
391	04.104 PLUG; SW HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X11	8-94252-142-0	02	1	9606-			●
391	04.104 PLUG; SW HOLE 4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X11	8-94252-142-0	01	1	9606-			●
398	02.698 SWITCH; REV LAMP 04.439	8-94411-366-1	01	1	9210-	●	●
398	02.698 SWITCH; REV LAMP	8-94464-566-0	01	1	9210-9609			●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9610-			●
400	02.698 SWITCH; SHIFT,TOP 3RD 4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) 04.439	8-94411-366-1	01	1	9210-9402	●	●
401	04.075 GASKET; SWITCH,TOP & 3RD 4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) ID=14.2	8-94462-114-0	01	1	9210-9402	●	●
402	02.698 SWITCH; SHIFT,2ND 4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) 04.439	8-94411-366-1	01	1	9210-9402	●	●
403	04.075 GASKET; SWITCH,2ND 4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) ID=14.2	8-94462-114-0	01	1	9210-9402	●	●
404	04.075 PLUNGER; SWITCH,2ND 4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) D=5.5 L=20.7	8-94225-228-0	01	1	9210-9402	●	●
405	04.307 BALL; SWITCH,2ND 4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y)	9-00097-517-0	01	1	9210-9402	●	●
406	02.559 BOLT; HARNESS CLIP 01.428 M8X16 W/LK WASHER	8-94200-833-0	01	1	9210-9406	●	●
406	02.559 BOLT; HARNESS CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9407-	●	●
406	02.559 BOLT; HARNESS CLIP 4ZD1 ENG(LW3) 00.206 M8X12 W/LK WASHER	0-50040-812-0	01	1	9210-		●
407	02.698 CLIP; SWITCH HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9210-	●	●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-			●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9210-	●	●
412	02.698 PLUNGER; REV LAMP SW 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) C223 ENG(LQ7) 04.302 REV SW D=5.5 L=26.7	8-94161-122-0	01	1	9210-9308	●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE) 04.302 REV SW D=5.5 L=26.7	8-94161-122-0	01	1	9210-9308		●
412	02.698 PLUNGER; REV LAMP SW 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 04.302 REV SW D=5.5 L=26.7	8-94161-122-0	01	1	9309-		●
412	02.698 PLUNGER; REV LAMP SW 4ZD1 ENG(LW3),4JA1 ENG(RLE) 04.075 LOW SW D=5.5 L=20.7	8-94225-228-0	01	1	9210-9411		●
413	04.307 BALL; BACK SW 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) C223 ENG(LQ7)	9-00097-517-0	01	1	9210-9411	●
413	04.307 BALL; BACK SW 4X2(TFB***) 4ZD1 ENG(LW3),4JA1 ENG(RLE)	9-00097-517-0	01	1	9210-9411		●
413	04.307 BALL; BACK SW 4X4(TFS***) C223 ENG(LQ7),4ZD1 ENG(LW3),4JA1 ENG(RLE)	9-00097-517-0	01	1	9210-9411		●
413	04.307 BALL; BACK SW 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE)	9-00097-517-0	01	1	9412-		●
430	04.307 PIN; SPR,SHIFT ROD 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9406-9409	●
430	04.307 PIN; SPR,SHIFT ROD 4X2(TFB***) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9406-9409		●
430	04.307 PIN; SPR,SHIFT ROD 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9410-9505	●
430	04.307 PIN; SPR,SHIFT ROD FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9410-9505		●
430	04.307 PIN; SPR,SHIFT ROD 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9506-	●
430	04.307 PIN; SPR,SHIFT ROD FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9506-		●
430	04.307 PIN; SPR,SHIFT ROD 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) 04.303 (B) D=4.2 L=25	8-94171-541-0	01	1	9210-	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4	9-09678-510-0	01	1	9210-	●	●	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3	9-09678-519-0	01	1	9311-	●	●	●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9309-			●

22 174 479 271 268 459 459 261 289 271 274 430 166 172 171 195 186 140 479 132 22 262 262 22 132 479 511 186 195 172 171 166 430 274 289 271 261 459 459 268 271 479 174 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK FLOOR REMOTE SHIFT<M11>	8-97103-102-0	02	1	9407-9409	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK FLOOR REMOTE SHIFT<M11>	8-97103-102-0	02	1	9410-	●	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11> 04.042	8-94473-790-1	01	1	9210-9406	●	●	●
132	04.027 SPRING; SELECT STOP FLOOR REMOTE SHIFT<M11>	8-97103-106-0	01	1	9407-	●	●	●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=32	8-94407-774-1	01	1	9210-	●	●
140	04.104 BREATHER; AIR,TRANS EXC. FLOOR REMOTE SHIFT<M11> 03.417	8-94450-556-0	01	1	9210-	●	●
140	04.104 BREATHER; AIR,TRANS FLOOR REMOTE SHIFT<M11> L=39	8-97035-693-2	01	1	9210-9409			●
166	04.302 PIN; SPR,SELECT LEVER FLOOR REMOTE SHIFT<M11> 04.307 D=4.2 L=25	8-97103-142-0	02	1	9410-			●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-82440-004-1	01	1	9210-9402		●
171	04.054 SWITCH; NEUTRAL 4ZE1 ENG(RLJ) AUTO CRUISE CONT<K30>	5-82440-004-1	01	1	9210-9402			●
171	04.054 SWITCH; NEUTRAL 4X4(TFS***) 4ZD1 ENG(LW3)	5-82440-004-1	01	1	9210-9402			●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-82440-004-1	01	1	9403-		●
171	04.054 SWITCH; NEUTRAL 4ZD1 ENG(LW3)	5-82440-004-1	01	1	9403-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4ZD1 ENG(LW3) EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9509		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.075 ID=14.2	8-94462-114-0	01	1	9210-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2	8-94462-114-0	01	1	9210-9509			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4ZD1 ENG(LW3). 04.075 ID=14.2	8-94462-114-0	01	1	9510-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF). 04.075 ID=14.2	8-94462-114-0	01	1	9510-		●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9510-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). EXC. FLOOR REMOTE SHIFT<M11> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9210-9407			●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11> 04.042	8-94473-791-1	01	1	9210-9406	●	●	●
174	04.307 SPRING; REV FLOOR REMOTE SHIFT<M11>	8-97103-105-0	01	1	9407-	●	●	●
186	04.105 PLUG; SHIFTER ROD FLOOR REMOTE SHIFT<M11> 00.253 OD=16	9-11129-081-0	01	1	9406-9409	●	●
186	04.105 PLUG; SHIFTER ROD FLOOR REMOTE SHIFT<M11> 00.253 OD=16	9-11129-081-0	01	1	9410-	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 04.012 M8X12 FLANGE	8-97049-142-0	01	1	9604-9604	●	●	●
195	04.105 BOLT FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE	8-94479-696-1	01	1	9605-	●	●	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9406-9409	●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9410-9410	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9410-9410		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9411-9505	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-0	01	1	9411-9505		●
261	04.309 ROD; GEAR CONT LONG(TF***F) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97103-092-0	01	1	9411-9505		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9506-	●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97103-092-1	01	1	9506-		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97103-092-1	01	1	9506-		●
261	04.309 ROD; GEAR CONT C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9210-9402	●	●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9210-9402		●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9403-9405	●
261	04.309 ROD; GEAR CONT 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9403-9405		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94328-366-3	01	1	9406-9406		●
261	04.309 ROD; GEAR CONT 4X4 LONG(TFS**F) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-94328-366-3	01	1	9407-9409		●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94473-788-3	01	1	9210-9402		●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9210-9402			●
261	04.309 ROD; GEAR CONT 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9403-9405		●
261	04.309 ROD; GEAR CONT	8-94473-788-3	01	1	9403-9405			●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-94473-788-3	01	1	9406-9409		●
261	04.309 ROD; GEAR CONT	8-94473-788-3	01	1	9406-9409			●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97103-090-0	01	1	9406-9509		●
261	04.309 ROD; GEAR CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9510-		●
261	04.309 ROD; GEAR CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97103-090-1	01	1	9510-		●
261	04.309 ROD; GEAR CONT FLOOR REMOTE SHIFT<M11>	8-97103-090-1	01	1	9510-			●
262	04.105 BOX ASM; SHIFT CONT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17)	8-94462-343-5	01	1	9210-9308	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) C223 ENG(LQ7),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9210-9308		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) UNITED KINGDOM EQUIPMENT(EK3) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9210-9308		●
262	04.105 BOX ASM; SHIFT CONT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-94462-343-5	01	1	9309-9405	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(EK3)	8-94462-343-5	01	1	9309-9405		●
262	04.105 BOX ASM; SHIFT CONT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97104-339-0	01	1	9406-9505	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(EK3)	8-97104-339-0	01	1	9406-9505		●
262	04.105 BOX ASM; SHIFT CONT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97104-339-1	01	1	9506-	●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZA1 ENG(L17),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11>	8-97104-339-1	01	1	9506-		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94462-342-5	01	1	9210-9405		●
262	04.105 BOX ASM; SHIFT CONT 4X2(TFB***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97104-338-1	01	1	9407-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94474-401-5	01	1	9210-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3) FLOOR REMOTE SHIFT<M11> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97103-081-2	01	1	9410-		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(EK3)	8-94474-402-5	01	1	9210-9409		●
262	04.105 BOX ASM; SHIFT CONT 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> UNITED KINGDOM EQUIPMENT(EK3)	8-97104-409-2	01	1	9410-		●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97033-096-3	01	1	9210-9409			●
262	04.105 BOX ASM; SHIFT CONT FLOOR REMOTE SHIFT<M11>	8-97100-878-3	01	1	9410-			●
268	04.302 LEVER; CONT,INTERNAL 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11>	8-97104-410-0	01	1	9406-	●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-97104-410-0	01	1	9406-		●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9210-9406	●	●
268	04.302 LEVER; CONT,INTERNAL 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-94473-787-1	01	1	9407-9409		●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-94473-786-1	01	1	9210-9409			●
268	04.302 LEVER; CONT,INTERNAL FLOOR REMOTE SHIFT<M11>	8-97103-089-0	01	1	9410-			●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11>	8-94151-447-0	02	1	9210-9310	●	●	●
271	04.105 BUSHING; QUAD BOX FLOOR REMOTE SHIFT<M11> ID=14 L=15	8-94478-119-0	02	1	9311-	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-94473-785-2	01	1	9210-9406	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX FLOOR REMOTE SHIFT<M11>	8-97103-093-2	01	1	9407-	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94221-533-1	01	1	9210-9310	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11>	8-94478-118-0	01	1	9311-	●	●	●
430	04.307 PIN; SPR,SHIFT ROD 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9406-9409	●
430	04.307 PIN; SPR,SHIFT ROD 4X2(TFB***) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9406-9409		●
430	04.307 PIN; SPR,SHIFT ROD 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9410-9505	●
430	04.307 PIN; SPR,SHIFT ROD FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9410-9505		●
430	04.307 PIN; SPR,SHIFT ROD 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9506-	●
430	04.307 PIN; SPR,SHIFT ROD FLOOR REMOTE SHIFT<M11> (A) D=4.2 L=25	8-97103-142-0	02	1	9506-		●
430	04.307 PIN; SPR,SHIFT ROD 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4ZA1 ENG(L17) 04.303 (B) D=4.2 L=25	8-94171-541-0	01	1	9210-	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4	9-09678-510-0	01	1	9210-	●	●	●
459	04.302 PIN; SPR,ROD TO ARM FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3	9-09678-519-0	01	1	9311-	●	●	●
479	04.307 PLATE; SELECT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR REMOTE SHIFT<M11> D=13	8-97103-110-0	02	1	9406-9409	●
479	04.307 PLATE; SELECT 4X2(TFB***) FLOOR REMOTE SHIFT<M11> D=13	8-97103-110-0	02	1	9406-9409		●
479	04.307 PLATE; SELECT FLOOR REMOTE SHIFT<M11> D=13	8-97103-110-0	02	1	9410-	●	●	●
511	04.302 PIPE; AIR 4X4(TFS***) FLOOR REMOTE SHIFT<M11>	8-97104-725-0	01	1	9410-9509		●
511	04.302 PIPE; AIR FLOOR REMOTE SHIFT<M11>	8-97104-725-0	01	1	9410-9509			●
511	04.302 PIPE; AIR 4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF)	8-97104-725-0	01	1	9510-		●
511	04.302 PIPE; AIR FLOOR REMOTE SHIFT<M11>	8-97104-725-0	01	1	9510-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
