◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#42844) — 22 parça

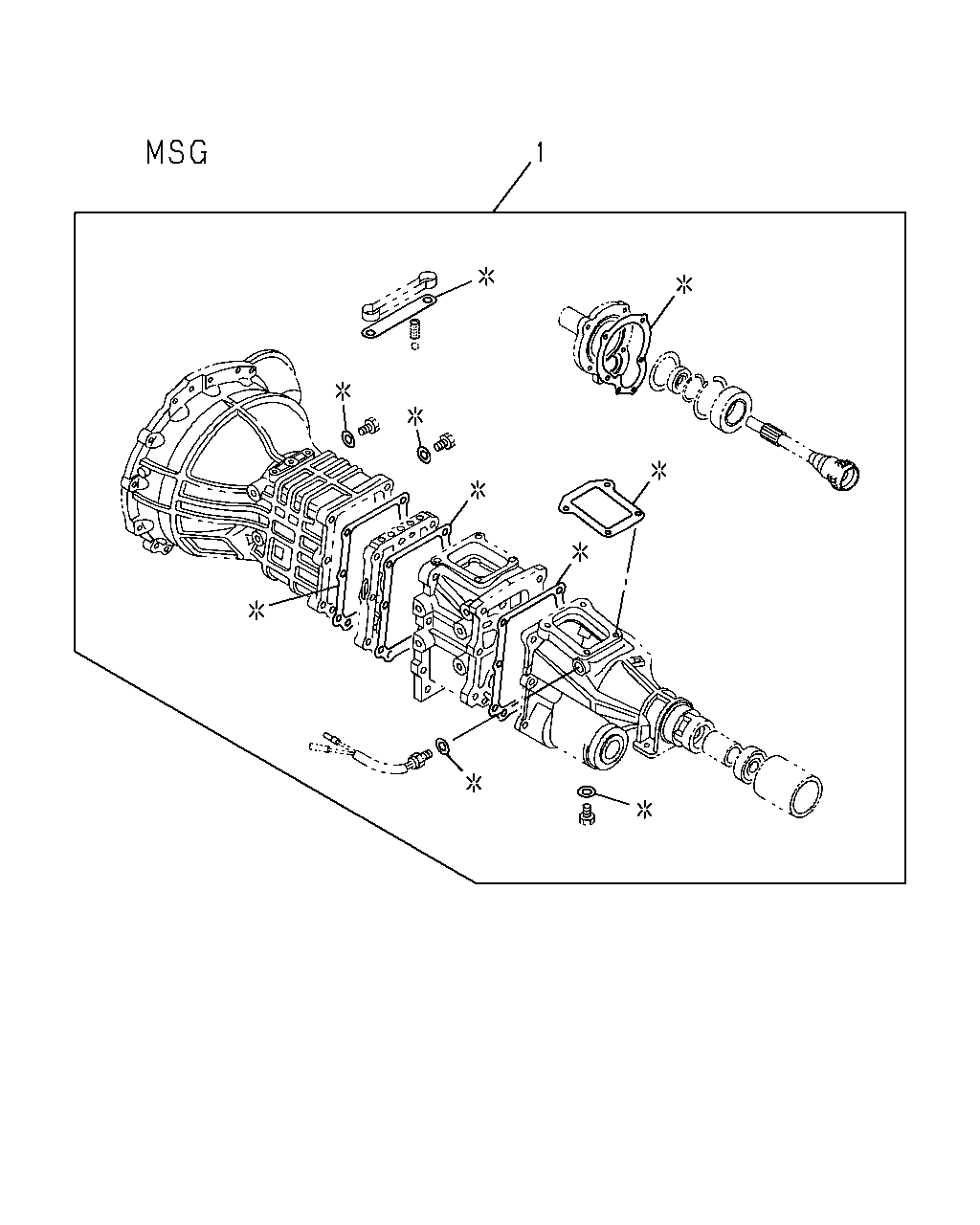

çizim 68049
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		5-87831-401-1 01 1 9210-9410 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		5-87831-512-0 01 1 9411- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87830-934-2 01 1 9210-9411 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87831-513-0 01 1 9411- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87830-939-2 01 1 9210-9411 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87831-514-0 01 1 9412- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87831-307-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87831-416-0 01 1 9308-9309 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87831-455-1 01 1 9310- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 		5-87831-308-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 00.010 		5-87831-456-1 01 1 9308- ●

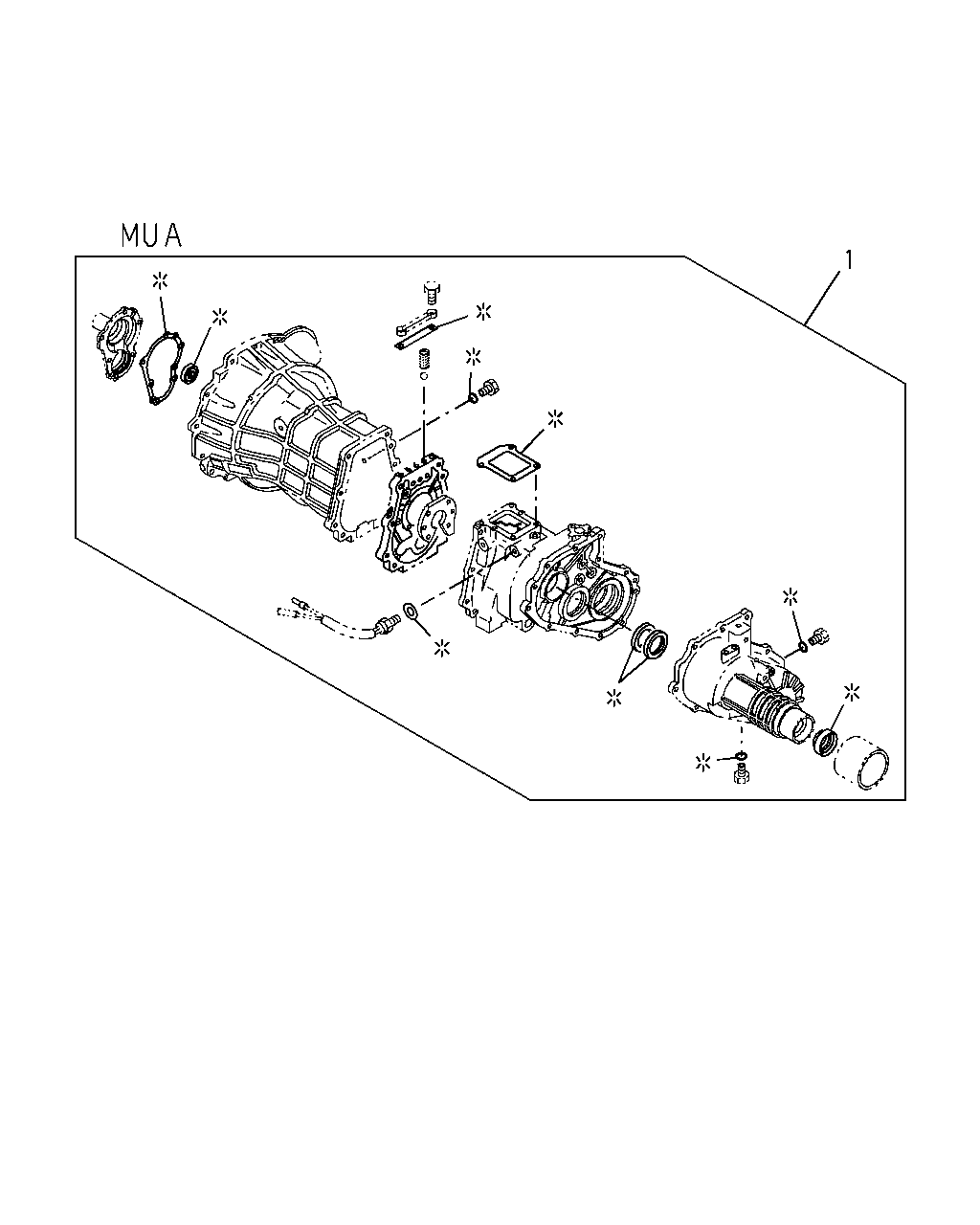

çizim 68331
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		5-87831-401-1 01 1 9210-9410 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 		5-87831-512-0 01 1 9411- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87830-934-2 01 1 9210-9411 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87831-513-0 01 1 9411- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87830-939-2 01 1 9210-9411 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 4ZD1 ENG(LW3),4JA1 ENG(RLE) 		5-87831-514-0 01 1 9412- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87831-307-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87831-416-0 01 1 9308-9309 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X2(TFB***) 		5-87831-455-1 01 1 9310- ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 		5-87831-308-0 01 1 9210-9307 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4X4(TFS***) 00.010 		5-87831-456-1 01 1 9308- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
