2-08 — CLUTCH MASTER CYLINDER (#42843) — 17 parça

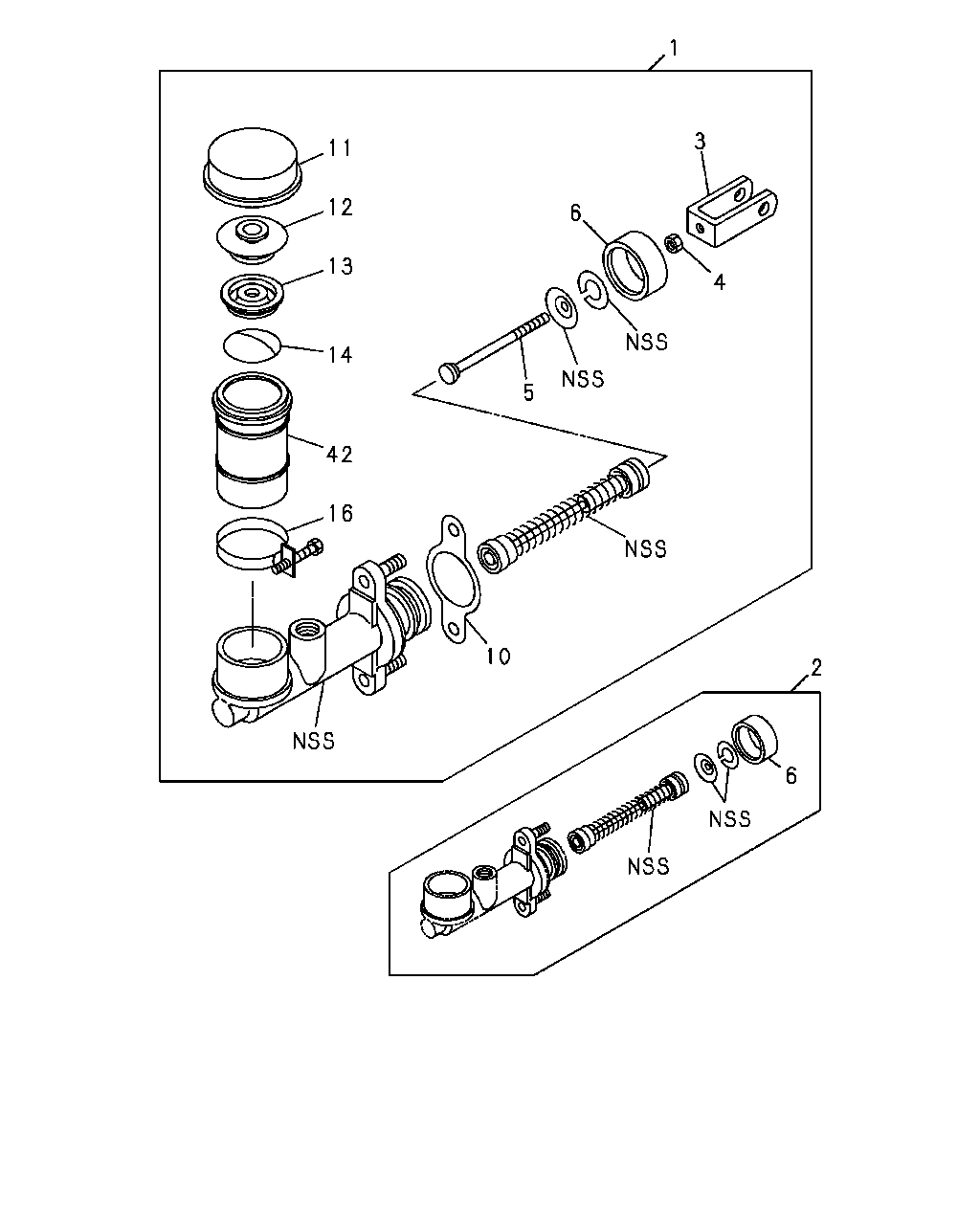

çizim 68429
1 3 4 6 5 11 12 13 14 42 16 10 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97022-614-2 01 1 9210-9402 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97110-222-0 01 1 9403-9507 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97136-445-0 01 1 9508- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		5-87831-187-0 01 1 9210-9402 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		5-87831-486-1 01 1 9403- ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-201-0 01 1 9210- ● ●
4 00.777 NUT; JAW JOINT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.915 M8 		9-09111-508-0 01 1 9210-9406 ● ●
4 00.777 NUT; JAW JOINT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.787 		9-09111-408-0 01 1 9407- ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-197-2 01 1 9210- ● ●
6 00.775 BOOT; CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-200-0 01 1 9210- ● ●
10 00.777 GASKET; CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94427-298-0 01 1 9210- ● ●
11 00.777 CAP; OUTER,CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-207-0 01 1 9210- ● ●
12 00.775 CAP; INNER,OIL TANK,CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-206-0 01 1 9210- ● ●
13 00.777 GASKET; OIL TANK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-205-0 01 1 9210- ● ●
14 00.775 FLOAT; OIL TANK,CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-204-0 01 1 9210-9407 ● ●
16 00.775 CLIP; OIL TANK,CLU M/CYL
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94412-202-0 01 1 9210- ● ●
42 00.777 TANK; OIL,CLU
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97037-335-0 01 1 9210- ● ●
