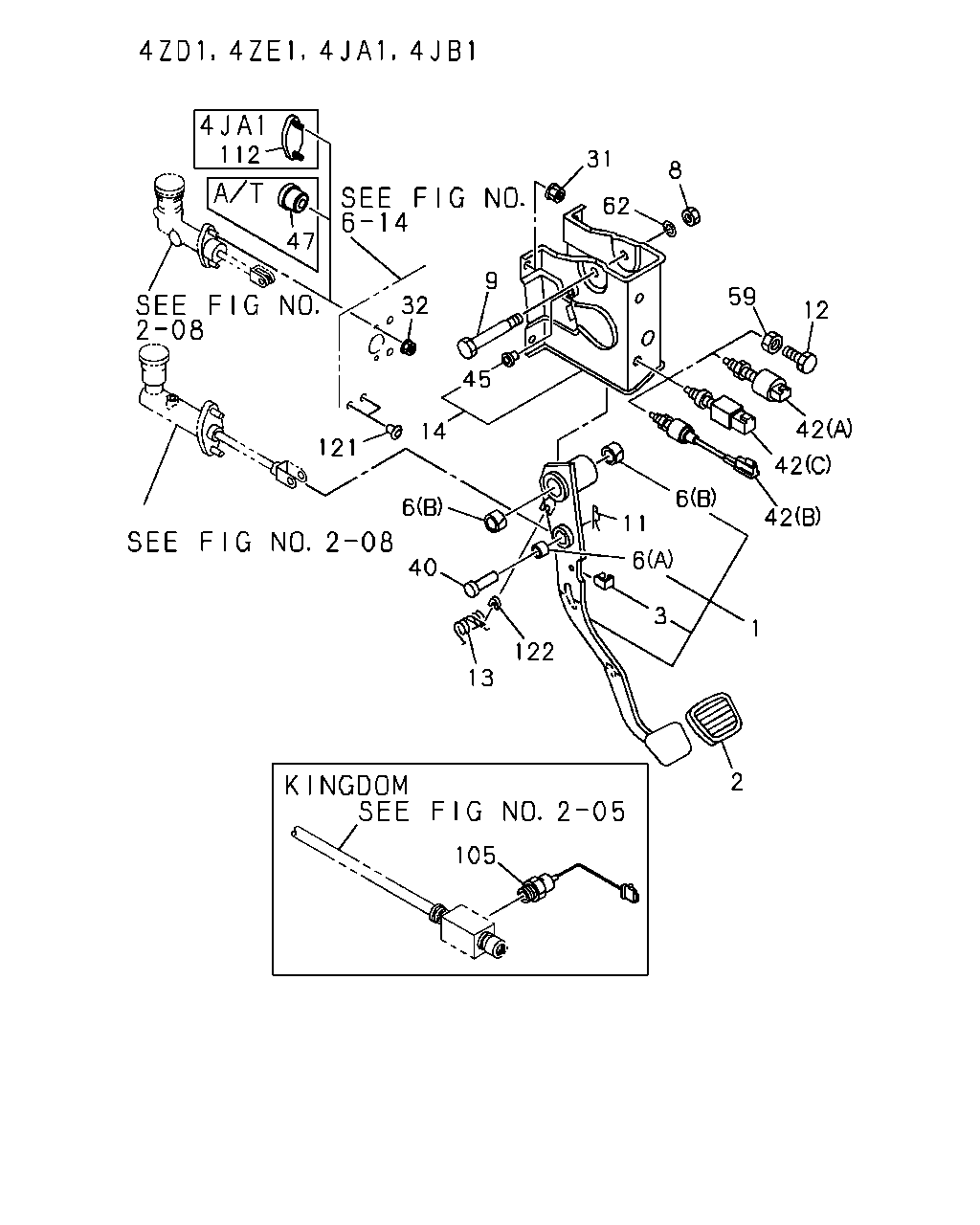

2-03 — CLUTCH PEDAL AND CONTROL (#42840) — 87 parça

31 62 8 59 12 42 42 42 6 11 6 3 1 2 105 122 13 40 6 121 14 45 9 32 47 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-97071-836-0	01	1	9210-	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU C223 ENG(LQ7),4ZA1 ENG(L17) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75)	8-94454-760-0	01	1	9210-		●	●	●		●	●	●
2	04.630 COVER; CLU PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94222-524-1	01	1	9210-	●	●	●	●	●	●	●	●
3	00.785 RUBBER; STOPPER,CLU PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94463-258-0	01	1	9210-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.833 (B)	8-94244-439-0	02	1	9210-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.833 (A)	8-97035-885-0	01	1	9210-9509	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.002 M10	9-09110-510-0	01	1	9210-9406	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 09.011	9-09110-410-0	01	1	9407-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94455-308-0	01	1	9210-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL C223 ENG(LQ7),4ZA1 ENG(L17)	8-94478-011-0	01	1	9210-		●	●	●		●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.662 L=27.7	1-09747-005-0	01	1	9210-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 00.805 M10X35	0-20801-035-0	01	1	9210-9408	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ C223 ENG(LQ7),4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 00.805 M10X35	0-20801-035-0	01	1	9210-9408		●	●	●		●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.805 M10X35	0-20801-035-0	01	1	9409-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.805 M10X35	0-20801-035-0	01	1	9409-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 00.805 M10X35	0-20801-035-0	01	1	9409-		●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.837	8-97036-041-0	01	1	9210-	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94329-888-1	01	1	9210-	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG C223 ENG(LQ7),4ZA1 ENG(L17)	8-94454-758-3	01	1	9210-		●	●	●		●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-	●	●	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 07.633 M8 FLANGE	0-91150-108-0	02	1	9210-	●	●	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94432-133-1	01	1	9210-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 02.447 (C) 12V 12A	8-94362-930-0	01	1	9210-9408	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 02.447 (C) 12V 12A	8-94362-930-0	01	1	9210-9408	●		●	●	●		●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 02.447 (A)	8-94109-863-0	01	1	9408-9409	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) (A)	8-94310-272-0	01	1	9410-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.447 (A)	8-94109-863-0	01	1	9210-9407	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> (B)	8-94368-343-0	01	1	9210-9402	●		●	●	●		●	●
42	04.054 SWITCH; CLU 4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) (B)	8-94368-343-0	01	1	9210-9402			●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94175-433-0	02	1	9210-	●	●	●	●	●	●	●	●
47	00.785 GROMMET; CLU PEDAL BRKT HOLE A/T AISIN(RMD) 00.855	8-94203-258-0	01	1	9210-9407	●		●	●
47	00.785 GROMMET; CLU PEDAL BRKT HOLE 4ZE1 ENG(RLJ) A/T AISIN(RMD) 00.855	8-94203-258-0	01	1	9407-	●		●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 00.002 M10	9-09110-510-0	01	1	9210-9406	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C223 ENG(LQ7),4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 00.002 M10	9-09110-510-0	01	1	9210-9406		●	●	●		●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 09.011	9-09110-410-0	01	1	9407-9408	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C223 ENG(LQ7),4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 09.011	9-09110-410-0	01	1	9407-9408		●	●	●		●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 09.011 M10	9-09110-410-0	01	1	9409-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 09.011 M10	9-09110-410-0	01	1	9409-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 09.011 M10	9-09110-410-0	01	1	9409-		●	●	●
62	00.833 WASHER; LK,PIN TO PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.002 ID=10.2	9-09150-510-0	01	1	9210-	●	●	●	●	●	●	●	●
105	04.075 SWITCH ASM; BIMETAL,CLU FLUID 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3)	8-94480-870-0	01	1	9210-9405	●		●	●			●	●
112	00.785 PLUG; METAL,M/CYL 4JA1 ENG(RLE) A/T AISIN(RMD)	8-94325-869-0	01	1	9407-	●		●	●
121	00.855 GROMMET; CLU PIPE HOLE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 16.550 OD=12	9-09956-122-0	02	1	9210-	●	●	●	●	●	●	●	●
122	00.831 BUSHING; ASSIST PEDAL,CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94175-434-0	01	1	9210-	●	●	●	●	●	●	●	●

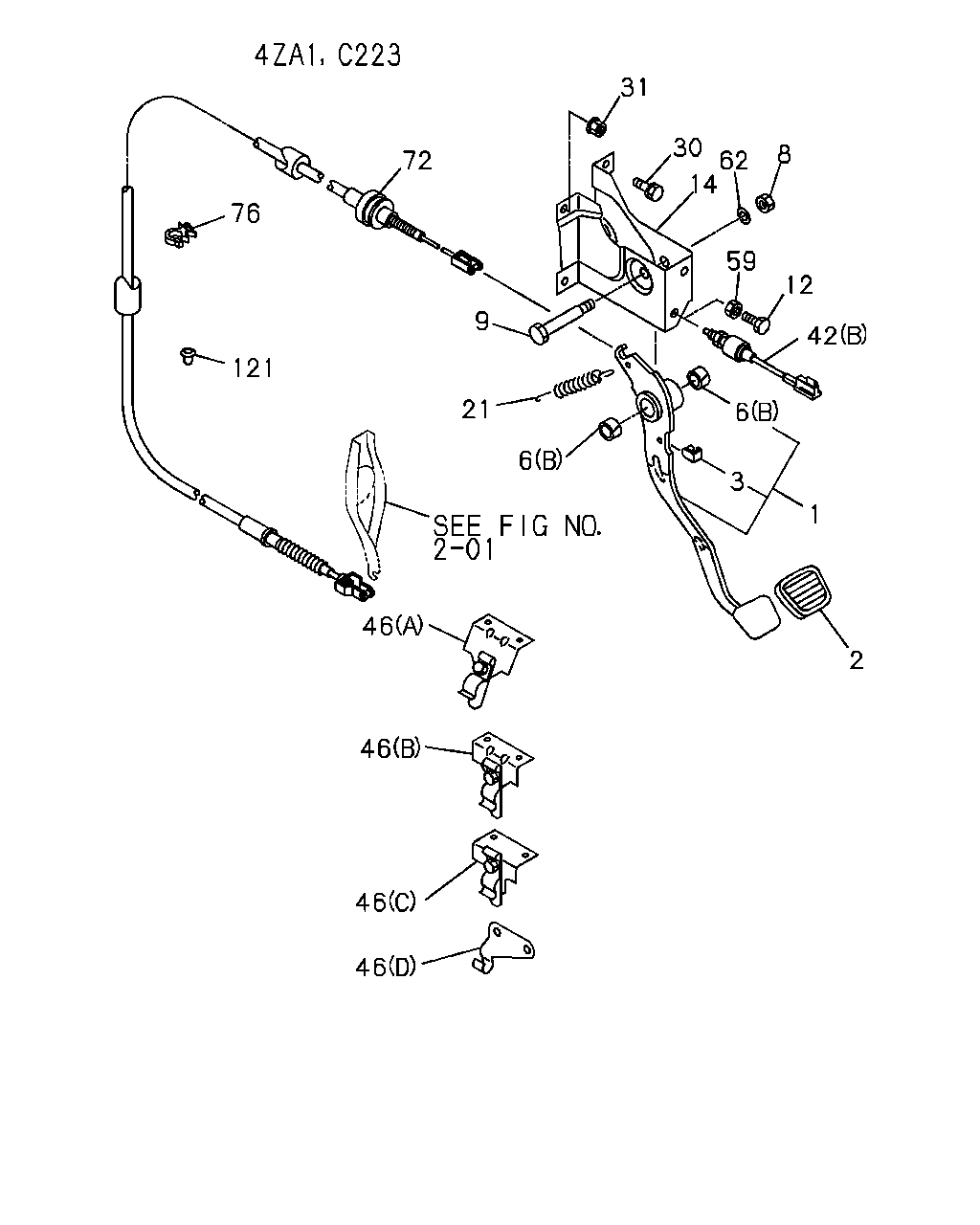

31 30 14 62 8 59 12 42 6 3 1 2 72 9 21 6 76 121 46 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.830 PEDAL; CLU 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-97071-836-0	01	1	9210-	●	●	●	●	●	●	●	●
1	00.830 PEDAL; CLU C223 ENG(LQ7),4ZA1 ENG(L17) M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75)	8-94454-760-0	01	1	9210-		●	●	●		●	●	●
2	04.630 COVER; CLU PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94222-524-1	01	1	9210-	●	●	●	●	●	●	●	●
3	00.785 RUBBER; STOPPER,CLU PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94463-258-0	01	1	9210-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.833 (B)	8-94244-439-0	02	1	9210-	●	●	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.833 (A)	8-97035-885-0	01	1	9210-9509	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.002 M10	9-09110-510-0	01	1	9210-9406	●	●	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 09.011	9-09110-410-0	01	1	9407-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94455-308-0	01	1	9210-	●	●	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL C223 ENG(LQ7),4ZA1 ENG(L17)	8-94478-011-0	01	1	9210-		●	●	●		●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 00.805 M10X35	0-20801-035-0	01	1	9210-9408	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ C223 ENG(LQ7),4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 00.805 M10X35	0-20801-035-0	01	1	9210-9408		●	●	●		●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.805 M10X35	0-20801-035-0	01	1	9409-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 00.805 M10X35	0-20801-035-0	01	1	9409-	●	●	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ 4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 00.805 M10X35	0-20801-035-0	01	1	9409-		●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN)	8-94329-888-1	01	1	9210-	●	●	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG C223 ENG(LQ7),4ZA1 ENG(L17)	8-94454-758-3	01	1	9210-		●	●	●		●	●	●
21	00.793 SPRING; RETURN,CLU PEDAL C223 ENG(LQ7),4ZA1 ENG(L17) 00.844	8-94222-475-0	01	1	9210-		●	●	●		●	●	●
30	00.829 BOLT; CLU MTG BRKT C223 ENG(LQ7) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9210-9308		●	●	●		●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.854 M8 FLANGE	5-09440-005-0	04	1	9210-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 02.447 (C) 12V 12A	8-94362-930-0	01	1	9210-9408	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) UNITED KINGDOM EQUIPMENT(EK3) 02.447 (C) 12V 12A	8-94362-930-0	01	1	9210-9408	●		●	●	●		●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) 02.447 (A)	8-94109-863-0	01	1	9408-9409	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) (A)	8-94310-272-0	01	1	9410-	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU 4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.447 (A)	8-94109-863-0	01	1	9210-9407	●	●	●	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> (B)	8-94368-343-0	01	1	9210-9402	●		●	●	●		●	●
42	04.054 SWITCH; CLU 4ZA1 ENG(L17) SINGAPORE EQUIPMENT(S9Y) (B)	8-94368-343-0	01	1	9210-9402			●
46	00.785 BRACKET; CLU CABLE C223 ENG(LQ7) (A)	8-94462-836-0	01	1	9210-9308		●	●	●
46	00.785 BRACKET; CLU CABLE C223 ENG(LQ7) (D)	8-94323-206-0	01	1	9210-9308		●	●	●		●	●	●
46	00.785 BRACKET; CLU CABLE C223 ENG(LQ7) (B)	8-94462-837-0	01	1	9210-9308						●	●	●
46	00.785 BRACKET; CLU CABLE C223 ENG(LQ7) (C)	8-94462-838-0	01	1	9210-9308						●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 00.002 M10	9-09110-510-0	01	1	9210-9406	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C223 ENG(LQ7),4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 00.002 M10	9-09110-510-0	01	1	9210-9406		●	●	●		●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 09.011	9-09110-410-0	01	1	9407-9408	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ C223 ENG(LQ7),4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 09.011	9-09110-410-0	01	1	9407-9408		●	●	●		●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 09.011 M10	9-09110-410-0	01	1	9409-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 09.011 M10	9-09110-410-0	01	1	9409-	●	●	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ 4ZA1 ENG(L17) EXC. SINGAPORE EQUIPMENT(S9Y) 09.011 M10	9-09110-410-0	01	1	9409-		●	●	●
62	00.833 WASHER; LK,PIN TO PEDAL M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.002 ID=10.2	9-09150-510-0	01	1	9210-	●	●	●	●	●	●	●	●
72	00.785 CABLE; CLU CONT 4ZA1 ENG(L17)	8-97012-154-1	01	1	9210-		●	●	●
72	00.785 CABLE; CLU CONT C223 ENG(LQ7) 09.645	8-94334-615-4	01	1	9210-9308		●	●	●		●	●	●
76	00.785 CLIP; CLU CONT CABLE C223 ENG(LQ7)	8-94297-486-0	01	1	9210-9308		●	●	●		●	●	●
121	00.855 GROMMET; CLU PIPE HOLE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4ZE1 ENG(RLJ) 16.550 OD=12	9-09956-122-0	02	1	9210-	●	●	●	●	●	●	●	●
