Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#42835) — 418 parça

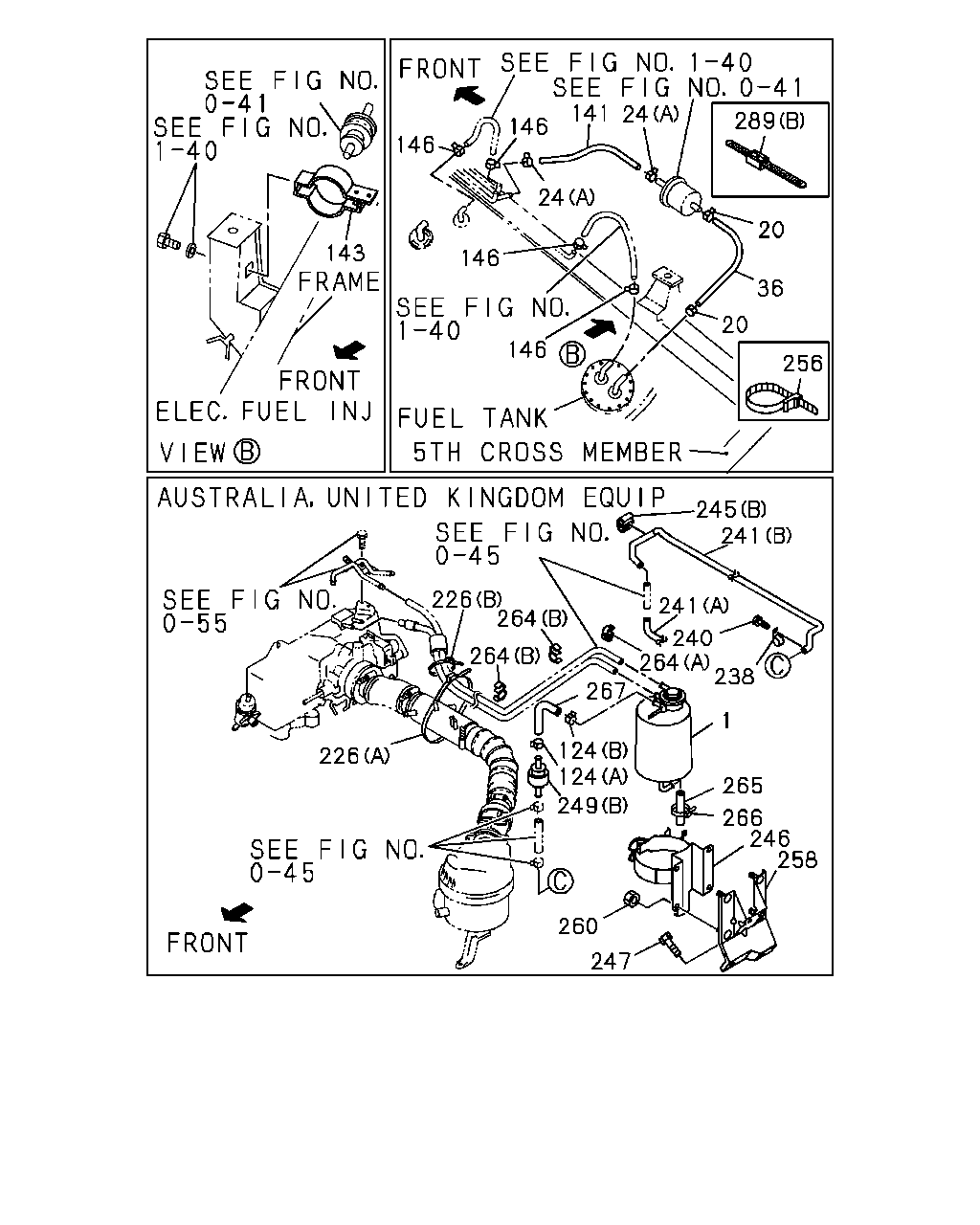

289 24 141 146 146 24 146 20 36 20 146 256 143 245 241 241 240 264 238 1 267 124 124 249 265 266 246 258 260 247 264 264 226 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.130 CANISTER; FUEL UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94224-892-0	01	1	9210-9308	●
1	03.130 CANISTER; FUEL UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-17090-119-0	01	1	9309-9406	●
1	03.130 CANISTER; FUEL AUSTRALIA EQUIPMENT(RR3)	8-94146-906-0	01	1	9210-9308		●
1	03.130 CANISTER; FUEL AUSTRALIA EQUIPMENT(RR3)	8-17090-120-0	01	1	9309-		●
20	03.162 CLIP; HOSE,FUEL TANK EXC. AUSTRALIA EQUIPMENT(RR3) 01.166 ID=14	8-94238-572-0	02	1	9210-	●	●	●
20	03.162 CLIP; HOSE,FUEL TANK AUSTRALIA EQUIPMENT(RR3) 00.034 ID=12 WO/PVC COATING	8-94123-526-0	02	1	9210-		●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9210-	●		●	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. AUSTRALIA EQUIPMENT(RR3) 01.166 (A) ID=14	8-94238-572-0	02	1	9210-		●
24	03.162 CLIP; FUEL HOSE AUSTRALIA EQUIPMENT(RR3) 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-0	04	1	9210-		●
24	03.162 CLIP; FUEL HOSE EXC. TURBOCHARGER<K51> 03.163 (B) ID=11	8-94238-570-0	02	1	9210-					●
24	03.162 CLIP; FUEL HOSE 03.163 (B) ID=11	8-94238-570-0	02	1	9210-						●
36	03.163 HOSE; FUEL,FILTER TO TANK 4X2 SINGLE CAB LONG(TFB*SF) 08.962 L=380 SERVICED BY L=3000	0-01258-300-0	01	1	9210-			●
36	03.163 HOSE; FUEL,FILTER TO TANK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 L=380 SERVICED BY L=3000	0-01258-300-0	01	1	9210-	●
36	03.163 HOSE; FUEL,FILTER TO TANK 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 L=380 SERVICED BY L=3000	0-01258-300-0	01	1	9210-		●
36	03.163 HOSE; FUEL,FILTER TO TANK 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 08.962 L=300 SERVICED BY L=3000	0-01258-300-0	01	1	9210-			●
36	03.163 HOSE; FUEL,FILTER TO TANK 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 L=300 SERVICED BY L=3000	0-01258-300-0	01	1	9210-	●
36	03.163 HOSE; FUEL,FILTER TO TANK 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 L=300 SERVICED BY L=3000	0-01258-300-0	01	1	9210-		●
36	03.163 HOSE; FUEL,FILTER TO TANK AUSTRALIA EQUIPMENT(RR3) 03.901 L=300 SERVICED BY L=3000	0-01458-300-0	01	1	9210-		●
124	03.162 CLIP; HOSE AUSTRALIA EQUIPMENT(RR3) 03.163 (A) ID=11	8-94238-570-0	01	1	9407-		●
124	03.162 CLIP; HOSE AUSTRALIA EQUIPMENT(RR3) 01.219 (B) ID=12	8-94238-610-0	01	1	9407-		●
141	03.163 HOSE; FUEL FILTER TO PIPE 4X2 SHORT(TFB**C) 08.962 L=170 SERVICED BY L=3000	0-01258-300-0	01	1	9210-			●
141	03.163 HOSE; FUEL FILTER TO PIPE SHORT(TF***C) 08.962 L=170 SERVICED BY L=3000	0-01258-300-0	01	1	9210-	●	●
141	03.163 HOSE; FUEL FILTER TO PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 08.962 L=250 SERVICED BY L=3000	0-01258-300-0	01	1	9210-			●
141	03.163 HOSE; FUEL FILTER TO PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 08.962 L=250 SERVICED BY L=3000	0-01258-300-0	01	1	9210-	●
141	03.163 HOSE; FUEL FILTER TO PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 L=250 SERVICED BY L=3000	0-01258-300-0	01	1	9210-		●
141	03.163 HOSE; FUEL FILTER TO PIPE 4X2 SPACE CAB(TFBC) 08.962 L=240 SERVICED BY L=3000	0-01258-300-0	01	1	9210-	●
141	03.163 HOSE; FUEL FILTER TO PIPE SPACE CAB(TF*C) EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 L=240 SERVICED BY L=3000	0-01258-300-0	01	1	9210-		●
141	03.163 HOSE; FUEL FILTER TO PIPE AUSTRALIA EQUIPMENT(RR3) 03.901 L=240 SERVICED BY L=3000	0-01458-300-0	01	1	9210-		●
143	03.162 CLAMP; FUEL FILTER AUSTRALIA EQUIPMENT(RR3)	8-94446-739-1	01	1	9210-9505		●
143	03.162 CLAMP; FUEL FILTER AUSTRALIA EQUIPMENT(RR3)	8-97049-810-1	01	1	9506-		●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE ID=11	8-94238-570-0	02	1	9210-9406	●			●	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=11	8-94238-570-0	02	1	9210-9406		●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=11	8-94238-570-0	02	1	9407-	●	●	●			●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE EXC. TURBOCHARGER<K51> ID=11	8-94238-570-0	02	1	9407-					●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE AUSTRALIA EQUIPMENT(RR3) 01.219 ID=13	8-94238-571-0	02	1	9210-9403		●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE AUSTRALIA EQUIPMENT(RR3) 01.219 ID=13	8-94238-571-0	02	1	9404-9406	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE AUSTRALIA EQUIPMENT(RR3) 01.219 ID=13	8-94238-571-0	02	1	9407-	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.219 ID=13	8-94238-571-0	02	1	9407-					●
226	03.890 CLIP; BAND UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.483 (A) L=450	1-09707-142-0	01	1	9210-9406	●
226	03.890 CLIP; BAND UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140	5-09707-031-0	01	1	9210-9406	●
238	03.145 CLIP; FUEL EVAP PIPE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 04.686 ID=7 L=20	9-09524-632-0	01	1	9210-	●	●
240	03.145 BOLT; EVAP PIPE CLIP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9210-	●	●
241	03.163 PIPE; EVAP SINGAPORE EQUIPMENT(S9Y) (A)	8-94435-224-2	01	1	9210-9406			●
241	03.163 PIPE; EVAP 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-224-2	01	1	9210-9406	●	●			●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) (A)	8-94435-224-2	01	1	9407-	●	●	●
241	03.163 PIPE; EVAP 4X2 SPACE CAB(TFBC) AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-224-2	01	1	9407-	●	●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94435-224-2	01	1	9407-						●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) AUSTRALIA EQUIPMENT(RR3) (A)	8-94450-578-3	01	1	9210-9401	●	●	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (A)	8-94450-578-3	01	1	9402-	●	●	●
241	03.163 PIPE; EVAP M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B)	8-97084-634-0	01	1	9210-	●	●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) AUSTRALIA EQUIPMENT(RR3) (A)	8-94450-579-3	01	1	9210-	●	●
241	03.163 PIPE; EVAP 4X4 LONG(TFS**F) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-223-2	01	1	9210-	●	●			●	●
241	03.163 PIPE; EVAP A/T AISIN(RMD) (B)	8-94338-334-0	01	1	9210-		●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97070-763-1	01	1	9407-					●
241	03.163 PIPE; EVAP 4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A)	8-97070-762-2	01	1	9407-					●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A)	8-97070-765-2	01	1	9407-					●
245	03.162 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.163 (A) ID=11	8-94238-570-0	02	1	9210-9308			●
245	03.162 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.163 (A) ID=11	8-94238-570-0	02	1	9210-9308					●
245	03.162 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.163 (A) ID=11	8-94238-570-0	02	1	9309-	●
245	03.162 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.163 (A) ID=11	8-94238-570-0	02	1	9309-					●
245	03.162 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) ID=6.35 & 6.35	8-94474-113-0	01	1	9210-	●	●
246	03.130 BRACKET; CANISTER UNITED KINGDOM EQUIPMENT(EK3)	8-94364-941-2	01	1	9210-9308	●
246	03.130 BRACKET; CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97088-704-0	01	1	9309-9406	●	●
246	03.130 BRACKET; CANISTER AUSTRALIA EQUIPMENT(RR3)	8-97088-704-0	01	1	9407-		●
247	03.130 BOLT; CANISTER BRKT UNITED KINGDOM EQUIPMENT(EK3) 00.206 M6X14 W/LK WASHER	0-50040-614-0	03	1	9210-9308	●
247	03.130 BOLT; CANISTER BRKT UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 00.206 M6X14 W/LK WASHER	0-50040-614-0	03	1	9309-9406	●	●
247	03.130 BOLT; CANISTER BRKT AUSTRALIA EQUIPMENT(RR3) 00.206 M6X14 W/LK WASHER	0-50040-614-0	03	1	9407-		●
249	03.120 VALVE; CONT,EVAP SINGAPORE EQUIPMENT(S9Y) 03.164 (A)	8-94222-045-0	01	1	9210-9406			●
249	03.120 VALVE; CONT,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.164 (A)	8-94222-045-0	01	1	9210-9406					●
249	03.120 VALVE; CONT,EVAP SINGAPORE EQUIPMENT(S9Y) 03.164 (A)	8-94222-045-0	01	1	9407-	●
249	03.120 VALVE; CONT,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.164 (A)	8-94222-045-0	01	1	9407-					●
249	03.120 VALVE; CONT,EVAP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.164 (B)	8-94151-559-1	01	1	9210-9308	●	●
249	03.120 VALVE; CONT,EVAP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.162 (B)	8-97076-391-0	01	1	9309-	●	●
256	03.162 CLIP; BAND,FUEL HOSE CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) L=140	5-09707-031-0	01	1	9210-	●	●
258	03.130 STAY; CANISTER BRKT UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94340-062-0	01	1	9210-	●	●
260	03.130 NUT; CANISTER BRKT UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 00.854 M8 FLANGE	5-09440-005-0	02	1	9210-	●	●
264	01.166 CLIP; HOSE,CANISTER AUSTRALIA EQUIPMENT(RR3) 03.675 (B)	8-94152-396-0	03	1	9210-		●
264	01.166 CLIP; HOSE,CANISTER AUTO CRUISE CONT<K30> AUSTRALIA EQUIPMENT(RR3) 01.240 (A)	8-94183-979-0	01	1	9210-9406		●
265	03.145 HOSE; DRAIN,CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-94377-651-0	01	1	9210-9308	●	●
265	03.145 HOSE; DRAIN,CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) L=540	8-97088-858-1	01	1	9309-	●	●
266	03.162 CLIP; DRAIN HOSE,CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 02.587 L=112	8-94232-618-0	02	1	9210-	●	●
267	03.145 HOSE; CONT VALVE TO CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9308	●	●
267	03.145 HOSE; CONT VALVE TO CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9309-9309	●
267	03.145 HOSE; CONT VALVE TO CANISTER AUSTRALIA EQUIPMENT(RR3) L=150	8-94401-303-0	01	1	9309-9309		●
267	03.145 HOSE; CONT VALVE TO CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) L=150	8-94401-303-0	01	1	9310-9608	●	●
267	03.145 HOSE; CONT VALVE TO CANISTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) L=115 ID=5.4 & 7.0	8-94335-689-1	01	1	9609-	●	●
289	03.008 CLIP; BAND,HOSE (B) L=330	5-09709-118-0	02	1	9210-	●	●	●	●	●	●
289	03.008 CLIP; BAND,HOSE AUSTRALIA EQUIPMENT(RR3) 02.559 (A) L=250	5-09707-030-0	01	1	9210-		●

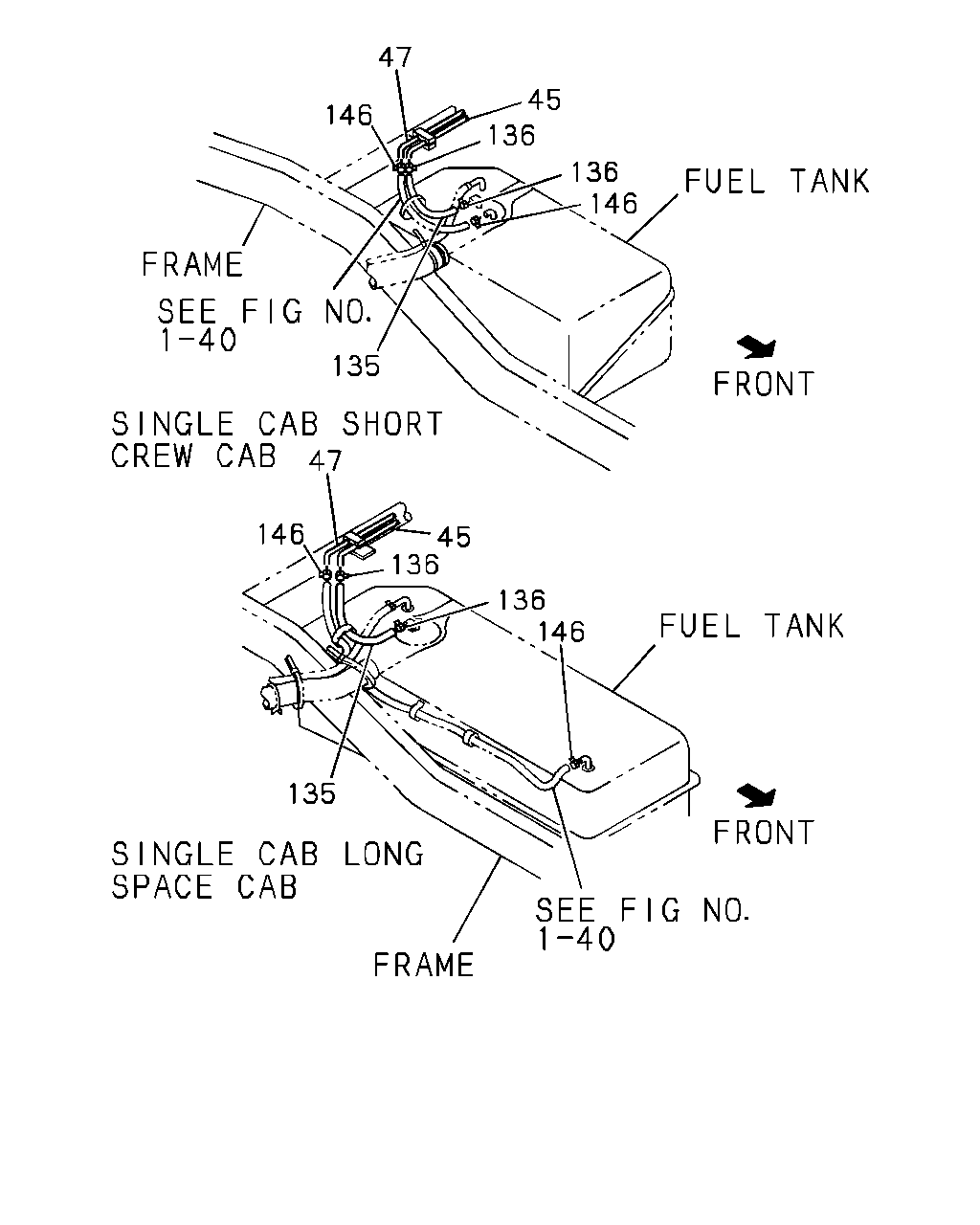

47 146 45 136 136 146 135 47 45 146 136 136 146 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
45	03.163 PIPE; FUEL,DELIVERY 4X2 SHORT(TFB**C)	8-94435-218-1	01	1	9210-	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF)	8-94435-253-2	01	1	9210-	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SPACE CAB(TFBC)	8-94473-556-2	01	1	9210-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SHORT(TFS**C)	8-94435-217-1	01	1	9210-	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94435-254-1	01	1	9210-	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SPACE CAB(TFSC)	8-94473-557-2	01	1	9210-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-444-0	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-758-1	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-759-3	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SHORT(TFB**C)	8-94450-582-4	01	1	9210-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F)	8-94450-581-3	01	1	9210-9406					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94450-581-4	01	1	9407-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SHORT(TFS**C)	8-94450-584-3	01	1	9210-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 LONG(TFS**F)	8-94450-583-3	01	1	9210-9406					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 LONG(TFS**F) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94450-583-3	01	1	9407-					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB*SF)	8-94435-221-2	01	1	9210-			●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF)	8-94435-221-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94435-221-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SHORT(TFB**C)	8-94462-635-1	01	1	9210-	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW)	8-94450-576-1	01	1	9210-	●		●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94450-576-1	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB(TFSS)	8-94435-219-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94435-219-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 CREW CAB(TFSW)	8-94450-577-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X4 CREW CAB(TFSW) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94450-577-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFBC) AUSTRALIA EQUIPMENT(RR3)	8-94473-558-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) AUSTRALIA EQUIPMENT(RR3)	8-94435-255-1	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SPACE CAB(TFSC) AUSTRALIA EQUIPMENT(RR3)	8-94473-559-3	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) AUSTRALIA EQUIPMENT(RR3)	8-94439-080-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-445-0	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-760-2	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-761-2	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 SHORT(TFB**C)	8-97085-678-1	01	1	9210-					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F)	8-97085-598-0	01	1	9210-9406					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9)	8-97085-598-1	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97085-598-1	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F)	8-97085-598-1	01	1	9407-						●
47	03.163 PIPE; FUEL,RETURN 4X4 SHORT(TFS**C)	8-97085-680-0	01	1	9210-					●	●
47	03.163 PIPE; FUEL,RETURN 4X4 LONG(TFS**F)	8-97085-679-0	01	1	9210-					●	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE SHORT(TF***C) 08.962 L=500 SERVICED BY L=3000	0-01158-300-0	01	1	9210-9307				●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE SHORT(TF***C) 08.962 L=500 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9308				●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE SINGLE CAB LONG(TF**SF) 08.962 L=600 SERVICED BY L=3000	0-01158-300-0	01	1	9210-9307				●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE SINGLE CAB LONG(TF**SF) 08.962 L=600 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9308				●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE CREW CAB(TF*W) 08.962 L=660 SERVICED BY L=3000	0-01158-300-0	01	1	9210-9307				●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE CREW CAB(TF*W) 08.962 L=660 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9308				●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 L=560 SERVICED BY L=3000	0-01158-300-0	01	1	9210-9307					●	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 L=560 SERVICED BY L=3000	0-01258-300-0	01	1	9308-					●	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 L=400 SERVICED BY L=3000	0-01158-300-0	01	1	9210-9307					●	●
135	03.163 HOSE; FUEL TANK TO FUEL PIPE 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 L=400 SERVICED BY L=3000	0-01258-300-0	01	1	9308-					●	●
136	03.162 CLIP; HOSE,FUEL TANK 01.166 ID=14	8-94238-572-0	02	1	9210-				●	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE ID=11	8-94238-570-0	02	1	9210-9406	●			●	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=11	8-94238-570-0	02	1	9210-9406		●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE EXC. AUSTRALIA EQUIPMENT(RR3) ID=11	8-94238-570-0	02	1	9407-	●	●	●			●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE EXC. TURBOCHARGER<K51> ID=11	8-94238-570-0	02	1	9407-					●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE AUSTRALIA EQUIPMENT(RR3) 01.219 ID=13	8-94238-571-0	02	1	9210-9403		●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE AUSTRALIA EQUIPMENT(RR3) 01.219 ID=13	8-94238-571-0	02	1	9404-9406	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE AUSTRALIA EQUIPMENT(RR3) 01.219 ID=13	8-94238-571-0	02	1	9407-	●	●
146	03.163 CLIP; HOSE,FUEL RETURN PIPE UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.219 ID=13	8-94238-571-0	02	1	9407-					●

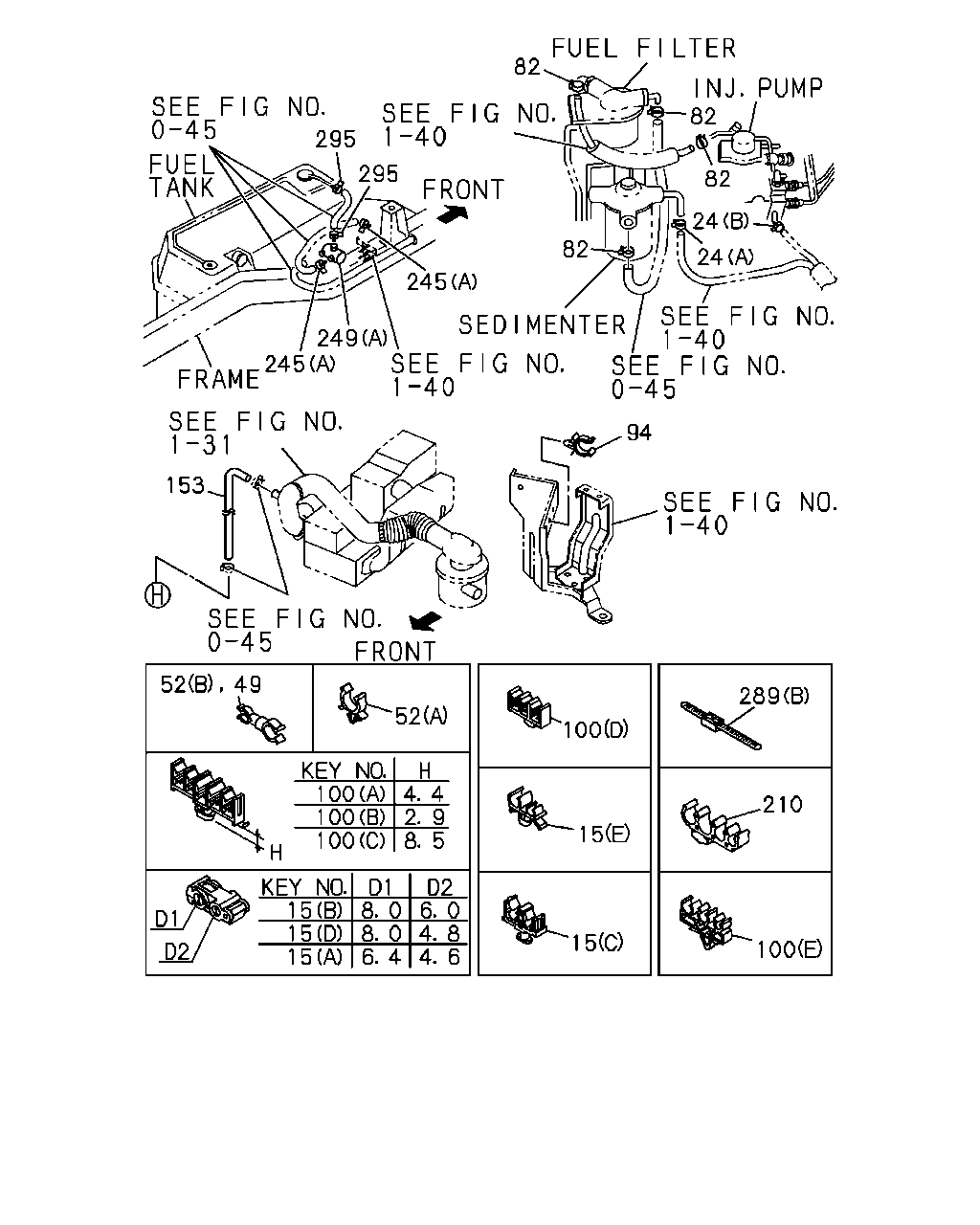

82 82 82 24 24 82 295 295 245 249 245 94 153 49 52 52 100 100 100 15 15 15 100 15 15 289 210 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
15	03.162 CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9210-9406			●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9210-9406	●	●		●	●	●
15	03.162 CLIP; FUEL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9407-			●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9407-	●	●			●	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9407-					●
15	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (B) BLUE	8-94455-380-1	01	1	9210-	●	●	●	●	●	●
15	03.162 CLIP; FUEL PIPE (B) BLUE	8-94455-380-1	01	1	9210-			●
15	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) BLUE	8-94455-380-1	01	1	9210-	●			●
15	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) (B) BLUE	8-94455-380-1	01	1	9210-		●
15	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) BLUE	8-94455-380-1	02	1	9210-	●	●
15	03.162 CLIP; FUEL PIPE 4X2 LONG(TFB**F) UNITED KINGDOM EQUIPMENT(EK3) (A) ID=4.76 & 6.35	8-94176-073-0	02	1	9210-	●				●
15	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (B) BLUE	8-94455-380-1	04	1	9407-					●
15	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) (B) BLUE	8-94455-380-1	05	1	9407-					●
15	03.162 CLIP; FUEL PIPE LONG(TF***F) (D) BLACK	8-94222-876-0	05	1	9210-9406					●	●
15	03.162 CLIP; FUEL PIPE 4X4 SHORT(TFS**C) (D) BLACK	8-94222-876-0	04	1	9407-9509					●	●
15	03.162 CLIP; FUEL PIPE 4X2 LONG(TFB**F) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (D) BLACK	8-94222-876-0	04	1	9407-9509					●
15	03.162 CLIP; FUEL PIPE 4X4 SHORT(TFS**C) (D) BLACK	8-94222-876-0	04	1	9510-					●	●
15	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (D) BLACK	8-94222-876-0	04	1	9510-					●
15	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (D) BLACK	8-94222-876-0	07	1	9210-					●	●
15	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) BLUE	8-94328-836-0	01	1	9210-					●	●
15	03.162 CLIP; FUEL PIPE 4X4(TFS***) (E)	8-94466-385-0	01	1	9210-					●	●
15	03.162 CLIP; FUEL PIPE 4X4 SHORT(TFS**C) (D) BLACK	8-94222-876-0	04	1	9210-9406					●	●
15	03.162 CLIP; FUEL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) (D) BLACK	8-94222-876-0	05	1	9407-					●	●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9210-	●		●	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. AUSTRALIA EQUIPMENT(RR3) 01.166 (A) ID=14	8-94238-572-0	02	1	9210-		●
24	03.162 CLIP; FUEL HOSE AUSTRALIA EQUIPMENT(RR3) 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-0	04	1	9210-		●
24	03.162 CLIP; FUEL HOSE EXC. TURBOCHARGER<K51> 03.163 (B) ID=11	8-94238-570-0	02	1	9210-					●
24	03.162 CLIP; FUEL HOSE 03.163 (B) ID=11	8-94238-570-0	02	1	9210-						●
49	03.162 CLIP; PIPE TO FRAME TURBOCHARGER<K51> 03.430 D=6.35 & 8.0	8-94168-480-0	01	1	9407-					●
49	03.162 CLIP; PIPE TO FRAME 04.686 ID=8 & 4.8	8-94430-297-0	01	1	9210-9406					●	●
49	03.162 CLIP; PIPE TO FRAME EXC. TURBOCHARGER<K51> 04.686 ID=8 & 4.8	8-94430-297-0	01	1	9407-					●
49	03.162 CLIP; PIPE TO FRAME 04.686 ID=8 & 4.8	8-94430-297-0	01	1	9407-						●
52	03.145 CLIP; EVAP PIPE UNITED KINGDOM EQUIPMENT(EK3) 06.672 (A) ID=17	8-94382-792-1	01	1	9407-					●
52	03.145 CLIP; EVAP PIPE UNITED KINGDOM EQUIPMENT(EK3) 04.104 (B) ID=12 & 16.5	8-94400-865-0	01	1	9407-					●
82	03.163 CLIP; FUEL HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=14	8-94238-572-0	02	1	9210-					●	●
82	03.163 CLIP; FUEL HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=14	8-94238-572-0	02	1	9210-					●	●
94	03.890 CLIP; HOSE,FILTER POWER STEERING<N40> 01.166 ID=21 BLACK	8-94422-733-0	01	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	05	1	9210-9509	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	05	1	9210-9509					●	●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	04	1	9510-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4	8-94435-550-0	06	1	9210-	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) L=7.4	8-94435-550-0	04	1	9210-9509	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	04	1	9210-9509					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	05	1	9510-			●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) (B) L=7.4	8-94435-550-0	05	1	9510-	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	05	1	9510-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (A) L=8.9	8-94435-551-1	01	1	9210-9509	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (A) L=8.9	8-94435-551-1	03	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	02	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	03	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (D)	8-97061-372-0	01	1	9407-					●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=7.4	8-94435-550-0	12	1	9407-9509					●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (B) L=7.4	8-94435-550-0	12	1	9510-					●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97061-373-0	01	1	9407-					●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	08	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) L=7.4	8-94435-550-0	10	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4	8-94435-550-0	11	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (A) L=8.9	8-94435-551-1	04	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (C) L=8.5	8-97014-423-0	01	1	9210-					●	●
153	03.162 HOSE; RUBBER,PIPE TO ACL UNITED KINGDOM EQUIPMENT(EK3) 08.962 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9406					●
153	03.162 HOSE; RUBBER,PIPE TO ACL UNITED KINGDOM EQUIPMENT(EK3)	8-97109-401-1	01	1	9407-					●
210	03.162 CLIP; FEED PIPE UNITED KINGDOM EQUIPMENT(EK3)	8-97069-378-0	01	1	9407-					●
245	03.162 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.163 (A) ID=11	8-94238-570-0	02	1	9210-9308			●
245	03.162 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.163 (A) ID=11	8-94238-570-0	02	1	9210-9308					●
245	03.162 CLIP; EVAP HOSE SINGAPORE EQUIPMENT(S9Y) 03.163 (A) ID=11	8-94238-570-0	02	1	9309-	●
245	03.162 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.163 (A) ID=11	8-94238-570-0	02	1	9309-					●
245	03.162 CLIP; EVAP HOSE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) ID=6.35 & 6.35	8-94474-113-0	01	1	9210-	●	●
249	03.120 VALVE; CONT,EVAP SINGAPORE EQUIPMENT(S9Y) 03.164 (A)	8-94222-045-0	01	1	9210-9406			●
249	03.120 VALVE; CONT,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.164 (A)	8-94222-045-0	01	1	9210-9406					●
249	03.120 VALVE; CONT,EVAP SINGAPORE EQUIPMENT(S9Y) 03.164 (A)	8-94222-045-0	01	1	9407-	●
249	03.120 VALVE; CONT,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.164 (A)	8-94222-045-0	01	1	9407-					●
249	03.120 VALVE; CONT,EVAP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.164 (B)	8-94151-559-1	01	1	9210-9308	●	●
249	03.120 VALVE; CONT,EVAP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.162 (B)	8-97076-391-0	01	1	9309-	●	●
289	03.008 CLIP; BAND,HOSE (B) L=330	5-09709-118-0	02	1	9210-	●	●	●	●	●	●
289	03.008 CLIP; BAND,HOSE AUSTRALIA EQUIPMENT(RR3) 02.559 (A) L=250	5-09707-030-0	01	1	9210-		●
295	03.003 CLIP; HOSE,EVAP SINGAPORE EQUIPMENT(S9Y) 03.163 ID=11	8-94238-570-0	02	1	9210-9406			●
295	03.003 CLIP; HOSE,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11	8-94238-570-0	02	1	9210-9406					●
295	03.003 CLIP; HOSE,EVAP SINGAPORE EQUIPMENT(S9Y) 03.163 ID=11	8-94238-570-0	02	1	9407-	●
295	03.003 CLIP; HOSE,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11	8-94238-570-0	02	1	9407-					●

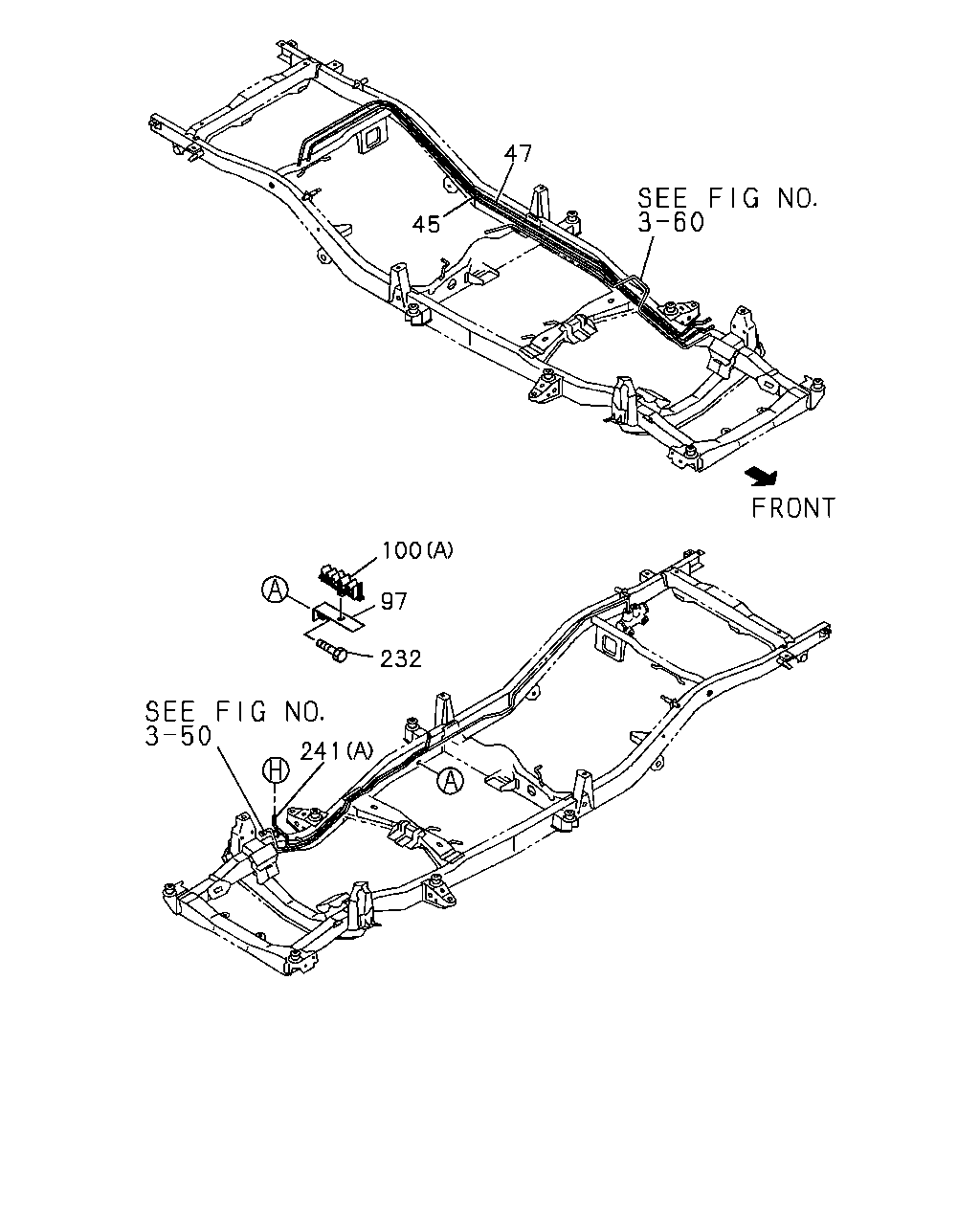

47 45 100 97 232 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
45	03.163 PIPE; FUEL,DELIVERY 4X2 SHORT(TFB**C)	8-94435-218-1	01	1	9210-	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF)	8-94435-253-2	01	1	9210-	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SPACE CAB(TFBC)	8-94473-556-2	01	1	9210-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SHORT(TFS**C)	8-94435-217-1	01	1	9210-	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94435-254-1	01	1	9210-	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SPACE CAB(TFSC)	8-94473-557-2	01	1	9210-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-444-0	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-758-1	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-759-3	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SHORT(TFB**C)	8-94450-582-4	01	1	9210-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F)	8-94450-581-3	01	1	9210-9406					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94450-581-4	01	1	9407-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SHORT(TFS**C)	8-94450-584-3	01	1	9210-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 LONG(TFS**F)	8-94450-583-3	01	1	9210-9406					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 LONG(TFS**F) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94450-583-3	01	1	9407-					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB*SF)	8-94435-221-2	01	1	9210-			●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF)	8-94435-221-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94435-221-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SHORT(TFB**C)	8-94462-635-1	01	1	9210-	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW)	8-94450-576-1	01	1	9210-	●		●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94450-576-1	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB(TFSS)	8-94435-219-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94435-219-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 CREW CAB(TFSW)	8-94450-577-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X4 CREW CAB(TFSW) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94450-577-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFBC) AUSTRALIA EQUIPMENT(RR3)	8-94473-558-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) AUSTRALIA EQUIPMENT(RR3)	8-94435-255-1	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SPACE CAB(TFSC) AUSTRALIA EQUIPMENT(RR3)	8-94473-559-3	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) AUSTRALIA EQUIPMENT(RR3)	8-94439-080-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-445-0	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-760-2	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-761-2	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 SHORT(TFB**C)	8-97085-678-1	01	1	9210-					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F)	8-97085-598-0	01	1	9210-9406					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9)	8-97085-598-1	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97085-598-1	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F)	8-97085-598-1	01	1	9407-						●
47	03.163 PIPE; FUEL,RETURN 4X4 SHORT(TFS**C)	8-97085-680-0	01	1	9210-					●	●
47	03.163 PIPE; FUEL,RETURN 4X4 LONG(TFS**F)	8-97085-679-0	01	1	9210-					●	●
97	03.162 BRACKET; CLIP	8-94461-011-0	01	1	9210-	●	●	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	05	1	9210-9509	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	05	1	9210-9509					●	●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	04	1	9510-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4	8-94435-550-0	06	1	9210-	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) L=7.4	8-94435-550-0	04	1	9210-9509	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	04	1	9210-9509					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	05	1	9510-			●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) (B) L=7.4	8-94435-550-0	05	1	9510-	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	05	1	9510-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (A) L=8.9	8-94435-551-1	01	1	9210-9509	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (A) L=8.9	8-94435-551-1	03	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	02	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	03	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (D)	8-97061-372-0	01	1	9407-					●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=7.4	8-94435-550-0	12	1	9407-9509					●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (B) L=7.4	8-94435-550-0	12	1	9510-					●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97061-373-0	01	1	9407-					●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	08	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) L=7.4	8-94435-550-0	10	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4	8-94435-550-0	11	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (A) L=8.9	8-94435-551-1	04	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (C) L=8.5	8-97014-423-0	01	1	9210-					●	●
232	03.162 BOLT; CLIP,PIPE	0-51040-616-0	01	1	9210-	●	●	●	●	●	●
241	03.163 PIPE; EVAP SINGAPORE EQUIPMENT(S9Y) (A)	8-94435-224-2	01	1	9210-9406			●
241	03.163 PIPE; EVAP 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-224-2	01	1	9210-9406	●	●			●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) (A)	8-94435-224-2	01	1	9407-	●	●	●
241	03.163 PIPE; EVAP 4X2 SPACE CAB(TFBC) AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-224-2	01	1	9407-	●	●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94435-224-2	01	1	9407-						●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) AUSTRALIA EQUIPMENT(RR3) (A)	8-94450-578-3	01	1	9210-9401	●	●	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (A)	8-94450-578-3	01	1	9402-	●	●	●
241	03.163 PIPE; EVAP M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B)	8-97084-634-0	01	1	9210-	●	●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) AUSTRALIA EQUIPMENT(RR3) (A)	8-94450-579-3	01	1	9210-	●	●
241	03.163 PIPE; EVAP 4X4 LONG(TFS**F) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-223-2	01	1	9210-	●	●			●	●
241	03.163 PIPE; EVAP A/T AISIN(RMD) (B)	8-94338-334-0	01	1	9210-		●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97070-763-1	01	1	9407-					●
241	03.163 PIPE; EVAP 4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A)	8-97070-762-2	01	1	9407-					●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A)	8-97070-765-2	01	1	9407-					●

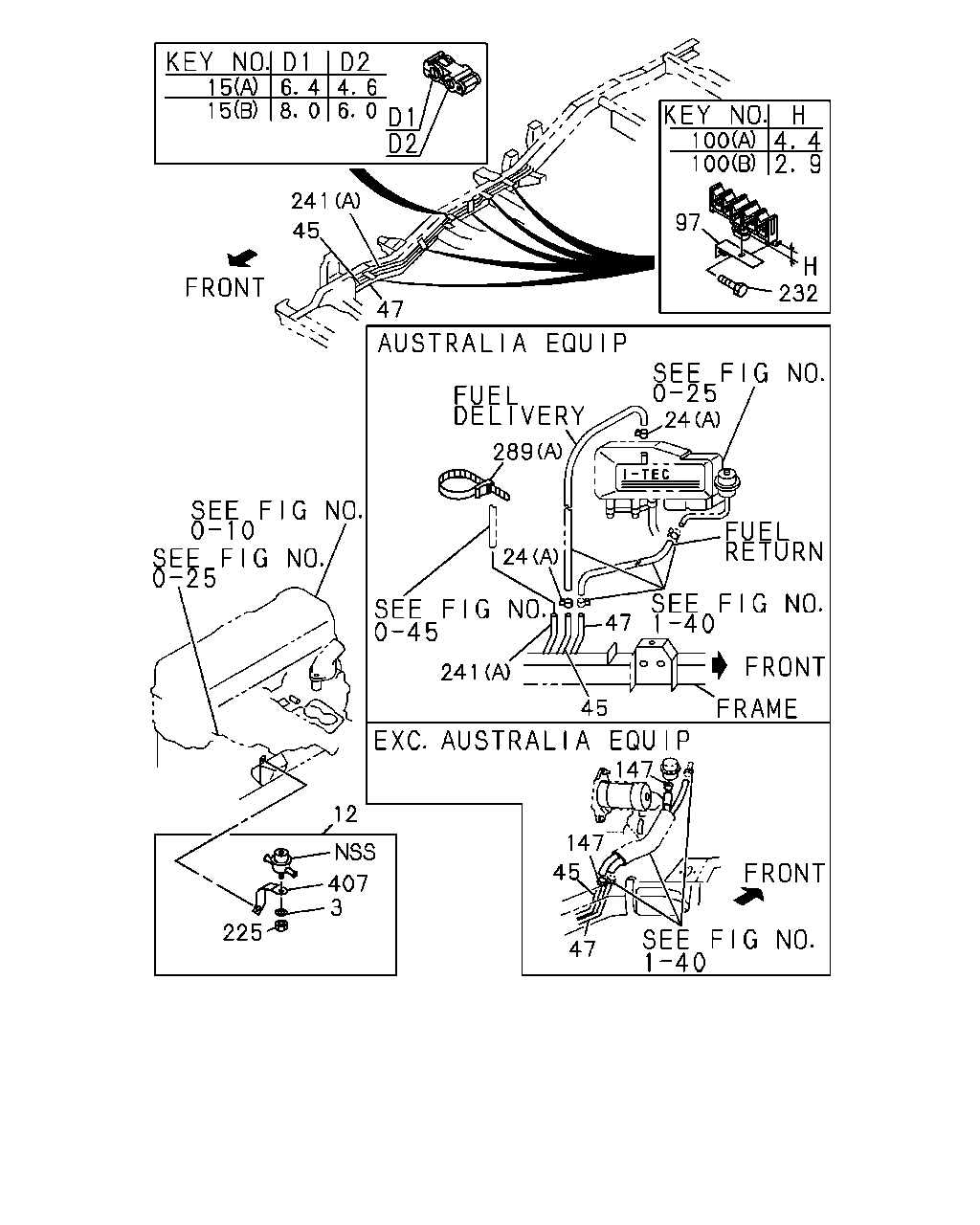

15 15 241 45 47 100 100 97 232 24 289 24 47 45 241 147 147 45 47 12 407 3 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	03.162 WASHER; LK,BRKT GENERATOR 55A(K96) 00.002 ID=8.2	9-09150-608-0	01	1	9510-	●	●	●
12	03.163 DAMPER ASM; FUEL	8-94453-352-0	01	1	9210-			●
12	03.163 DAMPER ASM; FUEL	8-94407-633-0	01	1	9210-	●
12	03.163 DAMPER ASM; FUEL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94407-633-0	01	1	9210-		●
15	03.162 CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9210-9406			●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9210-9406	●	●		●	●	●
15	03.162 CLIP; FUEL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9407-			●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9407-	●	●			●	●
15	03.162 CLIP; FUEL PIPE 4X2(TFB***) M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9) (A) ID=4.76 & 6.35	8-94176-073-0	01	1	9407-					●
15	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (B) BLUE	8-94455-380-1	01	1	9210-	●	●	●	●	●	●
15	03.162 CLIP; FUEL PIPE (B) BLUE	8-94455-380-1	01	1	9210-			●
15	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) BLUE	8-94455-380-1	01	1	9210-	●			●
15	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) (B) BLUE	8-94455-380-1	01	1	9210-		●
15	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) BLUE	8-94455-380-1	02	1	9210-	●	●
15	03.162 CLIP; FUEL PIPE 4X2 LONG(TFB**F) UNITED KINGDOM EQUIPMENT(EK3) (A) ID=4.76 & 6.35	8-94176-073-0	02	1	9210-	●				●
15	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (B) BLUE	8-94455-380-1	04	1	9407-					●
15	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) (B) BLUE	8-94455-380-1	05	1	9407-					●
15	03.162 CLIP; FUEL PIPE LONG(TF***F) (D) BLACK	8-94222-876-0	05	1	9210-9406					●	●
15	03.162 CLIP; FUEL PIPE 4X4 SHORT(TFS**C) (D) BLACK	8-94222-876-0	04	1	9407-9509					●	●
15	03.162 CLIP; FUEL PIPE 4X2 LONG(TFB**F) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (D) BLACK	8-94222-876-0	04	1	9407-9509					●
15	03.162 CLIP; FUEL PIPE 4X4 SHORT(TFS**C) (D) BLACK	8-94222-876-0	04	1	9510-					●	●
15	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (D) BLACK	8-94222-876-0	04	1	9510-					●
15	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (D) BLACK	8-94222-876-0	07	1	9210-					●	●
15	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (C) BLUE	8-94328-836-0	01	1	9210-					●	●
15	03.162 CLIP; FUEL PIPE 4X4(TFS***) (E)	8-94466-385-0	01	1	9210-					●	●
15	03.162 CLIP; FUEL PIPE 4X4 SHORT(TFS**C) (D) BLACK	8-94222-876-0	04	1	9210-9406					●	●
15	03.162 CLIP; FUEL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) (D) BLACK	8-94222-876-0	05	1	9407-					●	●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9210-	●		●	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. AUSTRALIA EQUIPMENT(RR3) 01.166 (A) ID=14	8-94238-572-0	02	1	9210-		●
24	03.162 CLIP; FUEL HOSE AUSTRALIA EQUIPMENT(RR3) 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-0	04	1	9210-		●
24	03.162 CLIP; FUEL HOSE EXC. TURBOCHARGER<K51> 03.163 (B) ID=11	8-94238-570-0	02	1	9210-					●
24	03.162 CLIP; FUEL HOSE 03.163 (B) ID=11	8-94238-570-0	02	1	9210-						●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SHORT(TFB**C)	8-94435-218-1	01	1	9210-	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF)	8-94435-253-2	01	1	9210-	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SPACE CAB(TFBC)	8-94473-556-2	01	1	9210-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SHORT(TFS**C)	8-94435-217-1	01	1	9210-	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF)	8-94435-254-1	01	1	9210-	●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SPACE CAB(TFSC)	8-94473-557-2	01	1	9210-		●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-444-0	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-758-1	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-759-3	01	1	9407-					●
45	03.163 PIPE; FUEL,DELIVERY 4X2 SHORT(TFB**C)	8-94450-582-4	01	1	9210-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F)	8-94450-581-3	01	1	9210-9406					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X2 LONG(TFB**F) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94450-581-4	01	1	9407-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 SHORT(TFS**C)	8-94450-584-3	01	1	9210-					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 LONG(TFS**F)	8-94450-583-3	01	1	9210-9406					●	●
45	03.163 PIPE; FUEL,DELIVERY 4X4 LONG(TFS**F) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94450-583-3	01	1	9407-					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB*SF)	8-94435-221-2	01	1	9210-			●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF)	8-94435-221-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94435-221-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SHORT(TFB**C)	8-94462-635-1	01	1	9210-	●	●	●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW)	8-94450-576-1	01	1	9210-	●		●	●
47	03.163 PIPE; FUEL,RETURN 4X2 CREW CAB(TFBW) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94450-576-1	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB(TFSS)	8-94435-219-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94435-219-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 CREW CAB(TFSW)	8-94450-577-2	01	1	9210-	●			●
47	03.163 PIPE; FUEL,RETURN 4X4 CREW CAB(TFSW) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94450-577-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SPACE CAB(TFBC) AUSTRALIA EQUIPMENT(RR3)	8-94473-558-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) AUSTRALIA EQUIPMENT(RR3)	8-94435-255-1	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SPACE CAB(TFSC) AUSTRALIA EQUIPMENT(RR3)	8-94473-559-3	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) AUSTRALIA EQUIPMENT(RR3)	8-94439-080-2	01	1	9210-		●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9)	8-97117-445-0	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-760-2	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3)	8-97070-761-2	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 SHORT(TFB**C)	8-97085-678-1	01	1	9210-					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F)	8-97085-598-0	01	1	9210-9406					●	●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9)	8-97085-598-1	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F) EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9)	8-97085-598-1	01	1	9407-					●
47	03.163 PIPE; FUEL,RETURN 4X2 LONG(TFB**F)	8-97085-598-1	01	1	9407-						●
47	03.163 PIPE; FUEL,RETURN 4X4 SHORT(TFS**C)	8-97085-680-0	01	1	9210-					●	●
47	03.163 PIPE; FUEL,RETURN 4X4 LONG(TFS**F)	8-97085-679-0	01	1	9210-					●	●
97	03.162 BRACKET; CLIP	8-94461-011-0	01	1	9210-	●	●	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	05	1	9210-9509	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	05	1	9210-9509					●	●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	04	1	9510-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4	8-94435-550-0	06	1	9210-	●	●	●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) L=7.4	8-94435-550-0	04	1	9210-9509	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	04	1	9210-9509					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	05	1	9510-			●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) (B) L=7.4	8-94435-550-0	05	1	9510-	●	●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	05	1	9510-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (A) L=8.9	8-94435-551-1	01	1	9210-9509	●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (A) L=8.9	8-94435-551-1	03	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) (B) L=7.4	8-94435-550-0	02	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) (B) L=7.4	8-94435-550-0	03	1	9210-	●	●		●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (D)	8-97061-372-0	01	1	9407-					●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=7.4	8-94435-550-0	12	1	9407-9509					●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (B) L=7.4	8-94435-550-0	12	1	9510-					●
100	03.162 CLIP; FUEL PIPE 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97061-373-0	01	1	9407-					●
100	03.162 CLIP; FUEL PIPE 4X2 SHORT(TFB**C) (B) L=7.4	8-94435-550-0	08	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SPACE CAB(TFBC) (B) L=7.4	8-94435-550-0	10	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) (B) L=7.4	8-94435-550-0	11	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (A) L=8.9	8-94435-551-1	04	1	9210-					●	●
100	03.162 CLIP; FUEL PIPE 4X4(TFS***) (C) L=8.5	8-97014-423-0	01	1	9210-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. AUSTRALIA EQUIPMENT(RR3) 01.166 ID=14	8-94238-572-0	02	1	9210-	●	●	●
225	03.162 NUT; FUEL DAMPER GENERATOR 55A(K96) 00.002 M8	9-09110-508-0	01	1	9510-	●	●	●
232	03.162 BOLT; CLIP,PIPE	0-51040-616-0	01	1	9210-	●	●	●	●	●	●
241	03.163 PIPE; EVAP SINGAPORE EQUIPMENT(S9Y) (A)	8-94435-224-2	01	1	9210-9406			●
241	03.163 PIPE; EVAP 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-224-2	01	1	9210-9406	●	●			●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) (A)	8-94435-224-2	01	1	9407-	●	●	●
241	03.163 PIPE; EVAP 4X2 SPACE CAB(TFBC) AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-224-2	01	1	9407-	●	●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94435-224-2	01	1	9407-						●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) AUSTRALIA EQUIPMENT(RR3) (A)	8-94450-578-3	01	1	9210-9401	●	●	●
241	03.163 PIPE; EVAP 4X2 CREW CAB(TFBW) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (A)	8-94450-578-3	01	1	9402-	●	●	●
241	03.163 PIPE; EVAP M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B)	8-97084-634-0	01	1	9210-	●	●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) AUSTRALIA EQUIPMENT(RR3) (A)	8-94450-579-3	01	1	9210-	●	●
241	03.163 PIPE; EVAP 4X4 LONG(TFS**F) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A)	8-94435-223-2	01	1	9210-	●	●			●	●
241	03.163 PIPE; EVAP A/T AISIN(RMD) (B)	8-94338-334-0	01	1	9210-		●
241	03.163 PIPE; EVAP 4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97070-763-1	01	1	9407-					●
241	03.163 PIPE; EVAP 4X4 SINGLE CAB LONG(TFS*SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A)	8-97070-762-2	01	1	9407-					●
241	03.163 PIPE; EVAP 4X4 CREW CAB(TFSW) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (A)	8-97070-765-2	01	1	9407-					●
289	03.008 CLIP; BAND,HOSE (B) L=330	5-09709-118-0	02	1	9210-	●	●	●	●	●	●
289	03.008 CLIP; BAND,HOSE AUSTRALIA EQUIPMENT(RR3) 02.559 (A) L=250	5-09707-030-0	01	1	9210-		●
407	03.162 BRACKET; FUEL DAMPER 03.163	8-94453-353-0	01	1	9510-			●
407	03.162 BRACKET; FUEL DAMPER 03.163	8-94407-343-0	01	1	9510-	●
407	03.162 BRACKET; FUEL DAMPER EXC. AUSTRALIA EQUIPMENT(RR3) 03.163	8-94407-343-0	01	1	9510-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
