1-40 — FUEL TANK (#42834) — 382 parça

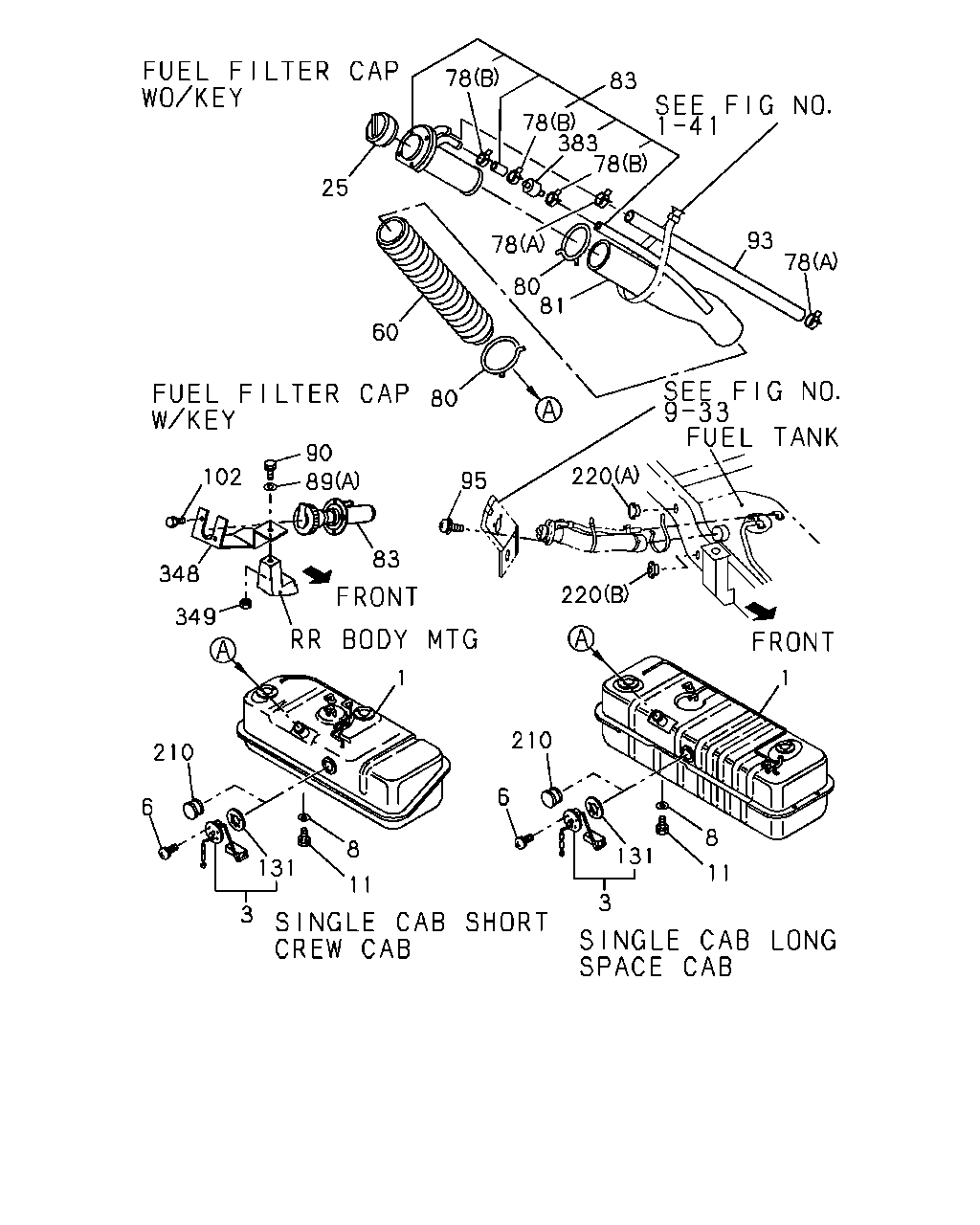

çizim 16875
83 78 25 78 383 78 93 78 78 80 81 60 80 102 348 349 90 89 83 95 220 220 1 8 11 131 3 6 210 1 210 6 3 131 11 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.001 TANK; FUEL
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94328-158-6 01 1 9210-9308 ●
1 03.001 TANK; FUEL
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94328-158-6 01 1 9210-9308 ● ● ●
1 03.001 TANK; FUEL
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) 		8-94328-158-6 01 1 9309-9403 ● ● ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB*C*) AUSTRALIA EQUIPMENT(RR3) 		8-94328-158-6 01 1 9309-9403 ●
1 03.001 TANK; FUEL
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) 		8-94328-158-6 01 1 9404-9406 ●
1 03.001 TANK; FUEL
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) 		8-94328-158-6 01 1 9404-9406 ● ● ● ●
1 03.001 TANK; FUEL
SPACE CAB(TF**C*) AUSTRALIA EQUIPMENT(RR3) 		8-94328-158-6 01 1 9404-9406 ●
1 03.001 TANK; FUEL
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) 		8-94328-158-7 01 1 9407- ●
1 03.001 TANK; FUEL
SPACE CAB(TF**C*) AUSTRALIA EQUIPMENT(RR3) 		8-94328-158-7 01 1 9407- ●
1 03.001 TANK; FUEL
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) 		8-94328-158-7 01 1 9407- ●
1 03.001 TANK; FUEL
4X2 SINGLE CAB LONG(TFB*SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUI PMENT(S9Y) 		8-94328-157-4 01 1 9210-9505 ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUI PMENT(S9Y) 		8-94328-157-4 01 1 9210-9505 ● ● ● ● ●
1 03.001 TANK; FUEL
SPACE CAB(TF**C*) 		8-94328-157-4 01 1 9210-9505 ● ●
1 03.001 TANK; FUEL
4X2 SINGLE CAB LONG(TFB*SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUI PMENT(S9Y),ELECTRIC FUEL INJECTION<6GG> 		8-94328-157-5 01 1 9506- ● ● ●
1 03.001 TANK; FUEL
SPACE CAB(TF**C*) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> 		8-94328-157-5 01 1 9506- ● ●
1 03.001 TANK; FUEL
4X4 SINGLE CAB LONG(TFS*SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJECTION<6GG> 		8-94328-157-5 01 1 9506- ● ●
1 03.001 TANK; FUEL
SPACE CAB(TF**C*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94328-157-5 01 1 9506- ● ●
1 03.001 TANK; FUEL
SINGLE CAB LONG(TF**SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), ELECTRIC FUEL INJECTION<6GG> 		8-94328-157-5 01 1 9506- ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3) 		8-94460-723-5 01 1 9210-9401 ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) AUSTRALIA EQUIPMENT(RR3) 		8-94460-723-5 01 1 9210-9401 ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		8-94460-723-5 01 1 9402-9403 ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) 		8-94460-723-5 01 1 9402-9403 ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94460-723-5 01 1 9404-9406 ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94460-723-5 01 1 9404-9406 ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		8-94460-723-7 01 1 9407- ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) 		8-94460-723-7 01 1 9407- ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJEC TION<6GG> 		8-94460-722-3 01 1 9210-9308 ● ● ● ● ● ●
1 03.001 TANK; FUEL
4X2 SHORT(TFB**C) 		8-94460-722-3 01 1 9210-9308 ●
1 03.001 TANK; FUEL
SHORT(TF***C) 		8-94460-722-3 01 1 9210-9308 ● ● ● ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9210-9308 ● ● ● ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94460-722-3 01 1 9210-9308 ● ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) 		8-94460-722-3 01 1 9210-9308 ● ● ●
1 03.001 TANK; FUEL
4X2 SHORT(TFB**C) 		8-94460-722-3 01 1 9309-9401 ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94460-722-3 01 1 9309-9401 ●
1 03.001 TANK; FUEL
SHORT(TF***C) 		8-94460-722-3 01 1 9309-9401 ● ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94460-722-3 01 1 9309-9401 ● ●
1 03.001 TANK; FUEL
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 		8-94460-722-3 01 1 9309-9401 ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y),ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9402-9406 ● ● ●
1 03.001 TANK; FUEL
4X2 SHORT(TFB**C) 		8-94460-722-3 01 1 9402-9406 ●
1 03.001 TANK; FUEL
SHORT(TF***C) 		8-94460-722-3 01 1 9402-9406 ● ● ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9402-9406 ● ● ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94460-722-3 01 1 9402-9406 ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) 		8-94460-722-3 01 1 9402-9406 ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJEC TION<6GG> 		8-94460-722-3 01 1 9402-9406 ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y),ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9407-9407 ● ● ●
1 03.001 TANK; FUEL
4X2 SHORT(TFB**C) 		8-94460-722-3 01 1 9407-9407 ●
1 03.001 TANK; FUEL
SHORT(TF***C) 		8-94460-722-3 01 1 9407-9407 ● ● ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9407-9407 ● ● ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94460-722-3 01 1 9407-9407 ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) AUSTRALIA EQUIPMENT(RR3) 		8-94460-722-3 01 1 9407-9407 ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJEC TION<6GG> 		8-94460-722-3 01 1 9407-9407 ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y),ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9408-9505 ● ● ●
1 03.001 TANK; FUEL
4X2 SHORT(TFB**C) 		8-94460-722-3 01 1 9408-9505 ●
1 03.001 TANK; FUEL
SHORT(TF***C) 		8-94460-722-3 01 1 9408-9505 ● ● ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9408-9505 ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9408-9505 ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-3 01 1 9408-9505 ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y),ELECTRIC FUEL INJEC TION<6GG> 		8-94460-722-4 01 1 9506- ● ● ●
1 03.001 TANK; FUEL
4X2 SHORT(TFB**C) 		8-94460-722-4 01 1 9506- ●
1 03.001 TANK; FUEL
SHORT(TF***C) 		8-94460-722-4 01 1 9506- ● ● ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-4 01 1 9506- ● ●
1 03.001 TANK; FUEL
4X2 CREW CAB(TFB*W*) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-4 01 1 9506- ● ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), ELECTRIC FUEL INJECTION<6GG> 		8-94460-722-4 01 1 9506- ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) AUSTRALIA EQUIPMENT(RR3) 		8-94334-506-4 01 1 9210-9403 ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) AUSTRALIA EQUIPMENT(RR3) 		8-94334-506-4 01 1 9404-9406 ● ●
1 03.001 TANK; FUEL
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94334-506-4 01 1 9407- ● ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) 		8-94334-505-5 01 1 9210-9403 ●
1 03.001 TANK; FUEL
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94334-505-6 01 1 9404- ● ●
1 03.001 TANK; FUEL
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97061-427-1 01 1 9407- ●
1 03.001 TANK; FUEL
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) 		8-97061-429-2 01 1 9407- ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3),SINGAPORE EQUIPMENT(S9Y) 03.001 		8-94318-398-0 01 1 9210-9505 ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3),SINGAPORE EQUIPMENT(S9Y) 03.001 		8-94318-398-0 01 1 9210-9505 ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SINGLE CAB LONG(TFB*SF) 03.001 		8-94318-398-0 01 1 9506- ●
3 03.107 UNIT; FUEL TANK,SUB
SPACE CAB(TF**C*) EXC. ELECTRIC FUEL INJECTION<6GG> 03.001 		8-94318-398-0 01 1 9506- ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
SINGLE CAB LONG(TF**SF) 03.001 		8-94318-398-0 01 1 9506- ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SINGLE CAB LONG(TFB*SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUI PMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 03.001 		8-94318-399-0 01 1 9210-9407 ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUI PMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 03.001 		8-94318-399-0 01 1 9210-9407 ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3) 03.001 		8-94318-396-0 01 1 9210-9401 ●
3 03.107 UNIT; FUEL TANK,SUB
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3) 03.001 		8-94318-396-0 01 1 9210-9401 ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 CREW CAB(TFB*W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 03.001 		8-94318-396-0 01 1 9402-9505 ●
3 03.107 UNIT; FUEL TANK,SUB
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3) 03.001 		8-94318-396-0 01 1 9402-9505 ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 03.001 		8-94318-396-0 01 1 9506- ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 03.001 		8-94318-396-0 01 1 9506- ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 CREW CAB(TFB*W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJEC TION<6GG> 03.001 		8-94318-397-0 01 1 9210-9308 ● ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SHORT(TFB**C) 03.001 		8-94318-397-0 01 1 9210-9308 ●
3 03.107 UNIT; FUEL TANK,SUB
SHORT(TF***C) 03.001 		8-94318-397-0 01 1 9210-9308 ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X4 CREW CAB(TFS*W*) EXC. AUSTRALIA EQUIPMENT(RR3), ELECTRIC FUEL INJECTION<6GG> 03.001 		8-94318-397-0 01 1 9210-9308 ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SHORT(TFB**C) 03.001 		8-94318-397-0 01 1 9309-9401 ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 CREW CAB(TFB*W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUI PMENT(RR3) 03.001 		8-94318-397-0 01 1 9309-9401 ●
3 03.107 UNIT; FUEL TANK,SUB
SHORT(TF***C) 03.001 		8-94318-397-0 01 1 9309-9401 ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUI PMENT(RR3) 03.001 		8-94318-397-0 01 1 9309-9401 ● ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 SHORT(TFB**C) 03.001 		8-94318-397-0 01 1 9402-9407 ●
3 03.107 UNIT; FUEL TANK,SUB
4X2 CREW CAB(TFB*W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) 03.001 		8-94318-397-0 01 1 9402-9407 ●
3 03.107 UNIT; FUEL TANK,SUB
SHORT(TF***C) 03.001 		8-94318-397-0 01 1 9402-9407 ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
CREW CAB(TF**W*) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) 03.001 		8-94318-397-0 01 1 9402-9407 ● ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 9210- ● ● ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 9210-9404 ● ● ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 9405-9407 ● ● ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 9408- ● ● ● ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
03.001 M14X14 		8-94152-613-0 01 1 9210-9404 ● ● ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3) 03.001 M14X14 		8-94152-613-0 01 1 9210-9404 ●
11 03.890 PLUG; DRAIN,FUEL TANK
AUSTRALIA EQUIPMENT(RR3) M14X14.5 		8-94316-800-0 01 1 9210-9404 ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9405- ● ● ● ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94310-199-4 01 1 9210- ● ● ● ● ● ●
60 03.008 PROTECTOR; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94318-424-0 01 1 9210-9505 ●
60 03.008 PROTECTOR; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94318-424-0 01 1 9210-9505 ● ● ●
60 03.008 PROTECTOR; FUEL FILLER
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94318-424-0 01 1 9506- ● ● ●
60 03.008 PROTECTOR; FUEL FILLER
SPACE CAB(TF**C*) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94318-424-0 01 1 9506- ● ●
78 03.003 CLIP; BREATHER HOSE
01.166 (A) ID=14 		8-94238-572-0 02 1 9603-9605 ●
78 03.003 CLIP; BREATHER HOSE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.166 (A) ID=14 		8-94238-572-0 02 1 9603-9605 ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
SHORT(TF***C) 01.166 (A) ID=14 		8-94238-572-0 02 1 9603-9605 ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.166 (A) ID=14 		8-94238-572-0 02 1 9606- ● ● ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
03.162 (B) ID=8.5 		8-94166-071-0 03 1 9210- ● ● ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
04.930 (A) ID=16 		8-94238-568-0 02 1 9210-9602 ● ● ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 04.930 (A) ID=16 		8-94238-568-0 02 1 9603-9605 ● ● ● ●
78 03.003 CLIP; BREATHER HOSE
UNITED KINGDOM EQUIPMENT(EK3) 04.930 (A) ID=16 		8-94238-568-0 02 1 9606- ●
80 03.008 CLIP; FILLER HOSE
4X2 SINGLE CAB(TFB*S*) 03.003 ID=59 		8-94435-876-0 02 1 9210- ●
80 03.008 CLIP; FILLER HOSE
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 03.003 ID=59 		8-94435-876-0 02 1 9210- ● ● ● ● ●
80 03.008 CLIP; FILLER HOSE
4X2 CREW CAB(TFB*W*) 03.003 ID=59 		8-94435-876-0 01 1 9210- ●
80 03.008 CLIP; FILLER HOSE
CREW CAB(TF**W*) 03.003 ID=59 		8-94435-876-0 01 1 9210- ● ● ● ● ●
80 03.008 CLIP; FILLER HOSE
4X2 CREW CAB(TFB*W*) 01.166 ID=54 		9-09915-412-1 01 1 9210- ●
80 03.008 CLIP; FILLER HOSE
CREW CAB(TF**W*) 01.166 ID=54 		9-09915-412-1 01 1 9210- ● ● ● ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SINGLE CAB(TFB*S*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-94434-721-1 01 1 9210-9505 ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-94434-721-1 01 1 9210-9505 ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-721-1 01 1 9210-9505 ● ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SHORT(TFB**C) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-721-1 01 1 9506-9606 ●
81 03.003 HOSE; FUEL FILLER
4X2 SINGLE CAB LONG(TFB*SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94434-721-1 01 1 9506-9606 ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94434-721-1 01 1 9506-9606 ● ●
81 03.003 HOSE; FUEL FILLER
SHORT(TF***C) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-721-1 01 1 9506-9606 ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-721-1 01 1 9506-9606 ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SINGLE CAB(TFB*S*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94434-721-1 01 1 9607-9608 ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94434-721-1 01 1 9607-9608 ● ● ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SINGLE CAB(TFB*S*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-94434-721-1 01 1 9609- ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-94434-721-1 01 1 9609- ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-721-1 01 1 9609- ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SINGLE CAB(TFB*S*) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94468-249-1 01 1 9210- ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94468-249-1 01 1 9210- ● ● ● ● ●
81 03.003 HOSE; FUEL FILLER
4X2 CREW CAB(TFB*W*) 		8-94450-620-1 01 1 9210-9306 ●
81 03.003 HOSE; FUEL FILLER
CREW CAB(TF**W*) 		8-94450-620-1 01 1 9210-9306 ● ● ● ● ●
81 03.003 HOSE; FUEL FILLER
4X2 CREW CAB(TFB*W*) 		8-97100-784-0 01 1 9307- ●
81 03.003 HOSE; FUEL FILLER
CREW CAB(TF**W*) 		8-97100-784-0 01 1 9307- ● ● ● ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94478-176-1 01 1 9210-9606 ● ●
81 03.003 HOSE; FUEL FILLER
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94478-176-1 01 1 9607-9608 ● ● ●
81 03.003 HOSE; FUEL FILLER
SPACE CAB(TF**C*) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94478-176-1 01 1 9607-9608 ● ●
81 03.003 HOSE; FUEL FILLER
4X2 SINGLE CAB LONG(TFB*SF) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94478-176-1 01 1 9609- ●
81 03.003 HOSE; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94478-176-1 01 1 9609- ● ●
83 03.003 NECK; FUEL FILLER
4X2 SINGLE CAB(TFB*S*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUI PMENT(S9Y) 		8-97081-011-0 01 1 9210-9411 ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUI PMENT(S9Y) 		8-97081-011-0 01 1 9210-9411 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97081-011-0 01 1 9210-9411 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SINGLE CAB(TFB*S*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUI PMENT(S9Y) 		8-97122-701-1 01 1 9412- ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUI PMENT(S9Y) 		8-97122-701-1 01 1 9412- ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97122-701-1 01 1 9412- ● ●
83 03.003 NECK; FUEL FILLER
4X2 SINGLE CAB(TFB*S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUI PMENT(RR3),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SI DE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97081-013-1 01 1 9210- ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUI PMENT(RR3),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SI DE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97081-013-1 01 1 9210- ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTERHOOK(S7S),RR BODY DOUBLE WALL CTR PU LL W/GUARD FRAME(6MW) 		8-97081-013-1 01 1 9210- ● ●
83 03.003 NECK; FUEL FILLER
4X2 CREW CAB(TFB*W*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97081-012-0 01 1 9210-9403 ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97081-012-0 01 1 9210-9403 ● ● ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 CREW CAB(TFB*W*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97081-012-1 01 1 9404- ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-97081-012-1 01 1 9404- ● ● ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 CREW CAB(TFB*W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DO UBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DOUBLE WALL CTR PULL W/GUARD F RAME(6MW) 		8-97081-010-1 01 1 9210- ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DO UBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DOUBLE WALL CTR PULL W/GUARD F RAME(6MW) 		8-97081-010-1 01 1 9210- ● ● ● ● ●
83 03.003 NECK; FUEL FILLER
4X2 SINGLE CAB LONG(TFB*SF) SINGAPORE EQUIPMENT(S9Y) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-210-4 01 1 9210-9401 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-210-4 01 1 9210-9401 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-210-4 01 1 9402-9411 ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97122-699-0 01 1 9412- ●
83 03.003 NECK; FUEL FILLER
SPACE CAB(TF**C*) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97122-698-0 01 1 9606- ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97122-698-0 01 1 9606- ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94460-705-5 01 1 9210-9505 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94460-705-5 01 1 9506-9509 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94452-417-4 01 1 9210-9509 ● ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94452-417-4 01 1 9606- ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT (S9Y) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-209-4 01 1 9210-9406 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94434-209-4 01 1 9407-9411 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT (S9Y) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97122-698-0 01 1 9412-9505 ● ●
83 03.003 NECK; FUEL FILLER
SPACE CAB(TF**C*) AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97122-698-0 01 1 9506-9509 ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97122-698-0 01 1 9506-9509 ● ●
83 03.003 NECK; FUEL FILLER
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94460-705-5 01 1 9606- ● ●
83 03.003 NECK; FUEL FILLER
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-94460-704-4 01 1 9210- ●
83 03.003 NECK; FUEL FILLER
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3) 		8-94450-619-4 01 1 9407- ●
89 03.028 WASHER; PL,FILLER NECK
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9210-9602 ● ● ●
89 03.028 WASHER; PL,FILLER NECK
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9603- ● ● ● ● ●
89 03.028 WASHER; PL,FILLER NECK
AUSTRALIA EQUIPMENT(RR3) 02.334 (B) ID=6.4 OD=22 		9-09164-806-0 01 1 9210-9505 ●
90 03.008 BOLT; FILLER TO BODY
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9210-9411 ● ● ●
90 03.008 BOLT; FILLER TO BODY
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9412-9602 ● ● ●
90 03.008 BOLT; FILLER TO BODY
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9603- ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SINGLE CAB(TFB*S*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9210-9602 ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 CREW CAB(TFB*W*) L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9210-9602 ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9210-9602 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB(TF**W*) L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9210-9602 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9603-9605 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FR AME(6MW) L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9606-9606 ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9606-9606 ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) '960624- L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9606- ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) '960624- L=660 SERVICED BY L=3000 		0-01259-300-0 01 1 9606- ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SINGLE CAB(TFB*S*) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 03.163 L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9210- ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 CREW CAB(TFB*W*) 03.163 L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9210- ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUT ER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 03.163 L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9210- ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
CREW CAB(TF**W*) 03.163 L=380 SERVICED BY L=3000 		8-94128-826-0 01 1 9210- ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SINGLE CAB(TFB*S*) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=560 SERVICED BY L=3000 		0-01259-300-0 01 1 9210-9602 ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=560 SERVICED BY L=3000 		0-01259-300-0 01 1 9210-9602 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) L=560 SERVICED BY L=3000 		0-01259-300-0 01 1 9603-9605 ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) L=560 SERVICED BY L=3000 		0-01259-300-0 01 1 9606-9606 ●
93 03.003 HOSE; BREATHER,FUEL TANK
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY DOUBLE WALL CTR PULL HAN DLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) '960624- L=560 SERVICED BY L=3000 		0-01259-300-0 01 1 9606- ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SINGLE CAB(TFB*S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUI PMENT(RR3),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SI DE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 03.163 L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9210- ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUI PMENT(RR3),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SI DE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 03.163 L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9210- ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTERHOOK(S7S),RR BODY DOUBLE WALL CTR PU LL W/GUARD FRAME(6MW) 03.163 L=300 SERVICED BY L=3000 		8-94128-826-0 01 1 9210- ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 01 1 9210- ● ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 9603-9605 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FR AME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 9606-9606 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 '960624- L=660 SERVICED BY L=3000 		0-04790-300-0 01 1 9606- ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLEWALL CTR PULL HANDLE(S7R),RR BODY DO UBLE WALL SIDE LOCK OUTER HOOK(S7S), RR BODY DOUBLE WALL CTR PULL W/GUARD F RAME(6MW) 08.962 L=560 SERVICED BY L=3000 		0-04790-300-0 01 1 9603-9605 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY FLAT BED<RS6>,RR BODY DOUBLE WA LL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR B ODY DOUBLE WALL CTR PULL W/GUARD FRAM E(6MW) 08.962 L=560 SERVICED BY L=3000 		0-04790-300-0 01 1 9606-9606 ● ● ● ● ●
93 03.003 HOSE; BREATHER,FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTERHOOK(S7S),RR BODY DOUBLE WALL CTR PU LL W/GUARD FRAME(6MW) 08.962 '960624- L=560 SERVICED BY L=3000 		0-04790-300-0 01 1 9606- ● ● ● ● ●
95 03.028 SCREW; FILLER NECK
12.182 M6X16 		8-94381-646-0 03 1 9210- ● ● ● ● ● ●
102 03.008 SCREW; FUEL FILLER
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 12.182 M6X16 		8-94381-646-0 02 1 9210-9602 ● ● ●
102 03.008 SCREW; FUEL FILLER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 12.182 M6X16 		8-94381-646-0 02 1 9603- ● ● ● ● ●
131 03.164 GASKET; SAFETY VENT
03.112 ID=42 OD=71 		5-83148-001-0 01 1 9210- ● ● ● ● ● ●
210 03.023 CAP; FUEL TANK
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDL E(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97034-131-0 01 1 9210-9505 ● ● ●
210 03.023 CAP; FUEL TANK
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 		8-97034-131-0 01 1 9210-9505 ● ● ●
210 03.023 CAP; FUEL TANK
EXC. AUSTRALIA EQUIPMENT(RR3),RR BODYFLAT BED<RS6>,RR BODY DOUBLE WALL CT R PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY D OUBLE WALL CTR PULL W/GUARD FRAME(6MW) 		8-97034-131-0 01 1 9506- ● ● ●
210 03.023 CAP; FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3), RRBODY FLAT BED<RS6>,RR BODY DOUBLE WA LL CTR PULL HANDLE(S7R),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR B ODY DOUBLE WALL CTR PULL W/GUARD FRAM E(6MW) 		8-97034-131-0 01 1 9506- ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (B) 		8-94482-493-1 01 1 9210- ● ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94482-493-1 01 1 9210- ● ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3), HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (A) 		8-94482-494-1 01 1 9210- ● ● ●
220 03.120 GROMMET; BREATHER HOSE,FUEL TANK
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94482-494-1 01 1 9210- ● ● ●
348 03.028 BRACKET; FUEL FILLER
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 		8-94313-471-1 01 1 9210-9602 ● ● ●
348 03.028 BRACKET; FUEL FILLER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 		8-94313-471-1 01 1 9603- ● ● ● ● ●
349 03.023 NUT; FUEL FILLER
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 00.002 M8 		9-09110-508-0 01 1 9210-9406 ● ● ●
349 03.023 NUT; FUEL FILLER
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 02.559 		9-09110-408-0 01 1 9407-9602 ● ● ●
349 03.023 NUT; FUEL FILLER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 02.559 M8 		9-09110-408-0 01 1 9603- ● ● ● ● ●
383 03.162 VALVE; 2 WAY
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		8-97076-391-0 01 1 9210- ● ● ● ● ● ●

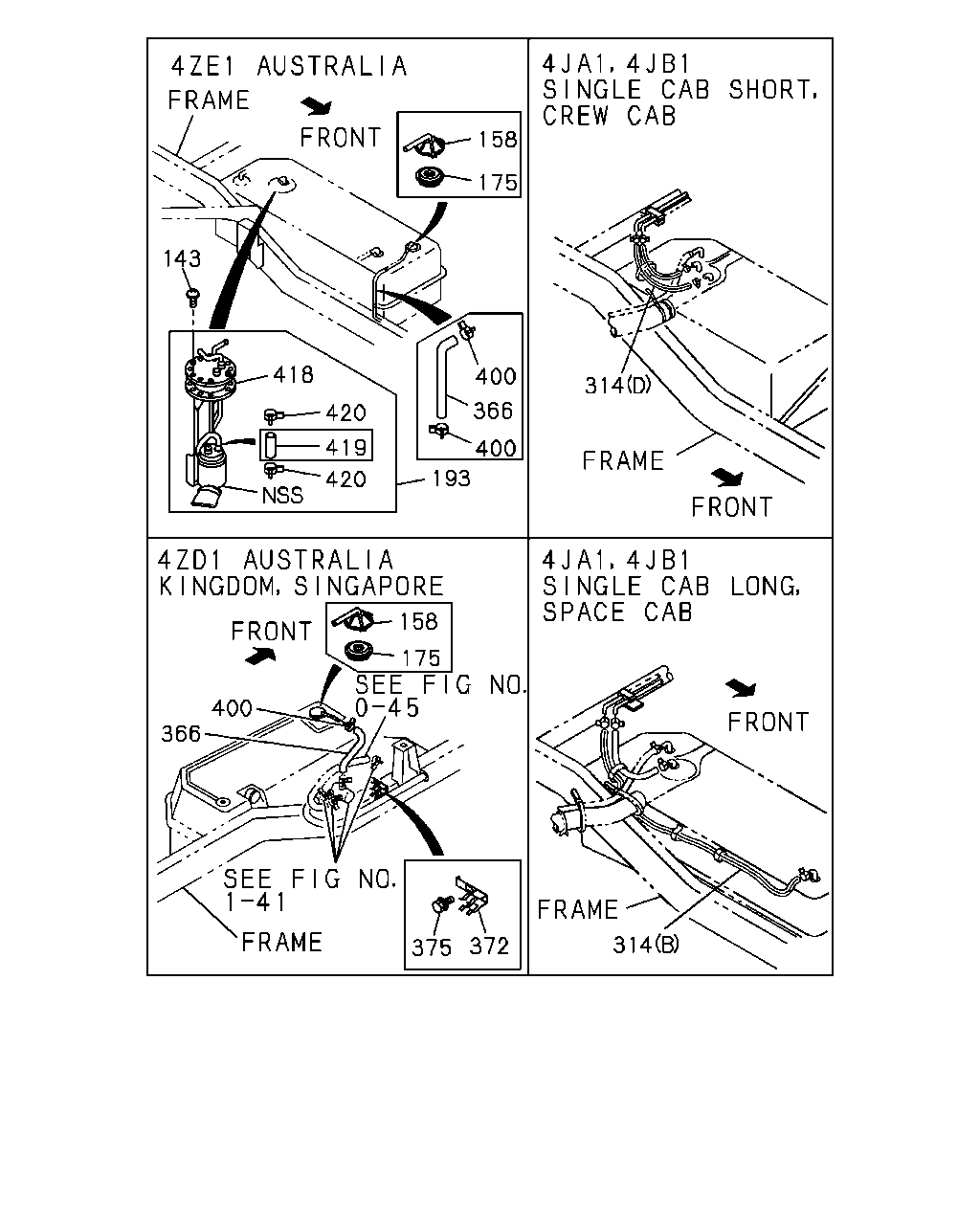

çizim 65188
158 175 143 418 420 419 420 400 366 400 193 314 158 175 400 366 375 372 314
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
143 03.107 SCREW; FUEL PUMP
AUSTRALIA EQUIPMENT(RR3) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 08 1 9210- ●
158 03.164 VALVE; ROLL OVER & FLOAT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 03.130 		8-94173-276-0 02 1 9210- ● ● ● ●
175 03.675 SEAL; VALVE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 03.163 		8-94246-338-2 02 1 9210- ● ● ● ●
193 03.107 PUMP; FUEL
AUSTRALIA EQUIPMENT(RR3) 		8-97019-186-1 01 1 9210-9401 ●
193 03.107 PUMP; FUEL
AUSTRALIA EQUIPMENT(RR3) 		8-97065-370-2 01 1 9402- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SHORT(TFB**C) 08.962 (C) L=630 SERVICED BY L=3000 		0-01254-300-0 01 1 9210-9307 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SHORT(TF***C) 08.962 (C) L=630 SERVICED BY L=3000 		0-01254-300-0 01 1 9210-9307 ● ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SHORT(TFB**C) 08.962 (C) L=620 SERVICED BY L=3000 		0-01254-300-0 01 1 9308- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SHORT(TF***C) 08.962 (C) L=620 SERVICED BY L=3000 		0-01254-300-0 01 1 9308- ● ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB LONG(TFB*SF) 08.962 (A) L=230 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (A) L=230 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 (A) L=230 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 CREW CAB(TFB*W*) 08.962 (C) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) 08.962 (C) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 (C) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SPACE CAB(TF**C*) AUSTRALIA EQUIPMENT(RR3) (C) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SINGLE CAB LONG(TF**SF) AUSTRALIA EQUIPMENT(RR3) (C) L=400 SERVICED BY L=3000 		0-01256-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) AUSTRALIA EQUIPMENT(RR3) (C) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=1060 SERVICED BY L=3000 		0-01256-300-0 01 1 9407- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (D) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9407- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (B) L=1060 SERVICED BY L=3000 		0-01154-300-0 01 1 9210-9307 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (B) L=1060 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9406 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=1060 SERVICED BY L=3000 		0-01254-300-0 01 1 9407- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 (D) L=440 SERVICED BY L=3000 		0-01154-300-0 01 1 9210-9307 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 (D) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9406 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 (D) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9407- ● ●
366 03.145 HOSE; EVAP
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3),SINGAPORE EQUIPMENT(S9Y) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9210-9605 ●
366 03.145 HOSE; EVAP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3),SINGAPORE EQUIPMENT(S9Y) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9210-9605 ● ● ● ●
366 03.145 HOSE; EVAP
SINGAPORE EQUIPMENT(S9Y) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9606- ●
366 03.145 HOSE; EVAP
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 L=90 SERVICED BY L=3000 		8-94128-826-0 02 1 9606- ● ●
366 03.145 HOSE; EVAP
4X2 CREW CAB(TFB*W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 02 1 9210-9401 ●
366 03.145 HOSE; EVAP
CREW CAB(TF**W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 02 1 9210-9401 ● ●
366 03.145 HOSE; EVAP
4X2 CREW CAB(TFB*W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 02 1 9402-9406 ●
366 03.145 HOSE; EVAP
CREW CAB(TF**W*) HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 02 1 9402-9406 ● ●
366 03.145 HOSE; EVAP
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 02 1 9407-9605 ● ● ●
366 03.145 HOSE; EVAP
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 02 1 9407-9605 ● ● ●
366 03.145 HOSE; EVAP
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.163 L=60 SERVICED BY L=3000 		8-94128-826-0 02 1 9606- ● ●
372 03.164 CLIP; CONT VALVE
SINGAPORE EQUIPMENT(S9Y) 		8-94413-704-0 01 1 9210- ●
372 03.164 CLIP; CONT VALVE
UNITED KINGDOM EQUIPMENT(EK3) 		8-94413-704-0 01 1 9210- ●
375 03.164 BOLT; CONT VALVE
SINGAPORE EQUIPMENT(S9Y) 04.710 M8X14 		0-50140-814-0 01 1 9210-9409 ●
375 03.164 BOLT; CONT VALVE
UNITED KINGDOM EQUIPMENT(EK3) 04.710 M8X14 		0-50140-814-0 01 1 9210-9409 ●
375 03.164 BOLT; CONT VALVE
SINGAPORE EQUIPMENT(S9Y) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9410- ●
375 03.164 BOLT; CONT VALVE
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9410- ●
400 03.162 CLIP; HOSE,EVAP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) ID=8.5 		8-94166-071-0 04 1 9210- ● ● ● ●
418 03.107 GASKET; FUEL PUMP
AUSTRALIA EQUIPMENT(RR3) 		8-94382-906-0 01 1 9210- ●
419 03.107 HOSE; FUEL PUMP
AUSTRALIA EQUIPMENT(RR3) 		8-97028-981-0 01 1 9210- ●
420 03.107 CLIP; FUEL PUMP
AUSTRALIA EQUIPMENT(RR3) 01.097 ID=12 PLATED 		8-94121-566-0 02 1 9210- ●

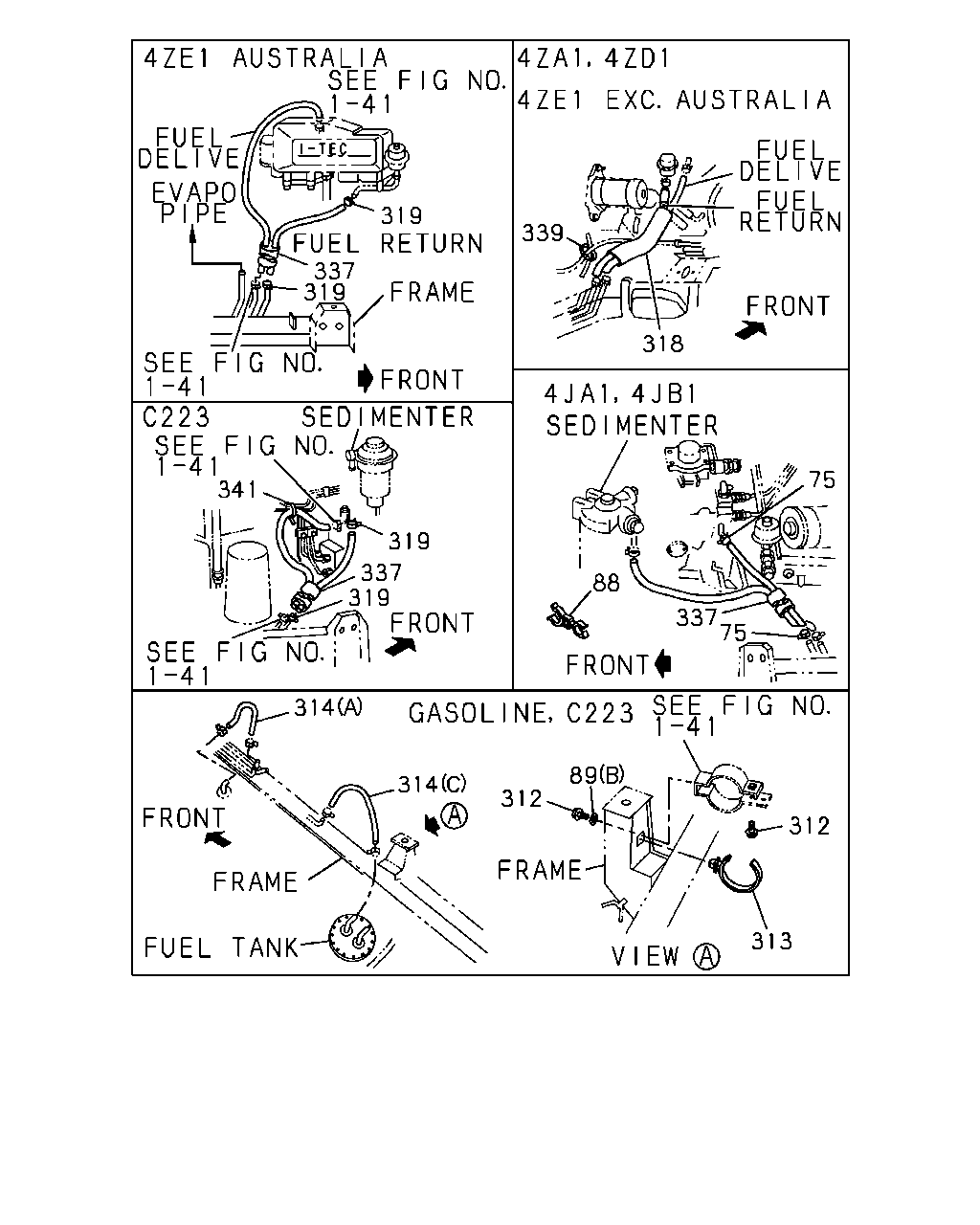

çizim 68433
319 337 319 339 318 341 319 337 319 88 75 337 75 314 314 312 89 312 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
75 03.162 CLIP; RUB HOSE
UNITED KINGDOM EQUIPMENT(EK3) 01.166 ID=14 		8-94238-572-0 02 1 9210- ●
88 03.162 CLIP; FUEL HOSE
04.661 ID=14.5 & 6 		8-94312-791-0 01 1 9306- ● ●
89 03.028 WASHER; PL,FILLER NECK
AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9210-9602 ● ● ●
89 03.028 WASHER; PL,FILLER NECK
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),RR BOD Y DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DOUBLE WALL CTR PULL W/GUA RD FRAME(6MW) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 9603- ● ● ● ● ●
89 03.028 WASHER; PL,FILLER NECK
AUSTRALIA EQUIPMENT(RR3) 02.334 (B) ID=6.4 OD=22 		9-09164-806-0 01 1 9210-9505 ●
312 03.704 BOLT; FUEL FILTER CLAMP
AUSTRALIA EQUIPMENT(RR3) 00.206 M6X14 W/LK WASHER 		0-50040-614-0 02 1 9210-9211 ●
312 03.704 BOLT; FUEL FILTER CLAMP
AUSTRALIA EQUIPMENT(RR3) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9212-9308 ●
312 03.704 BOLT; FUEL FILTER CLAMP
AUSTRALIA EQUIPMENT(RR3) 00.206 M6X14 W/LK WASHER 		0-50040-614-0 02 1 9309-9309 ●
312 03.704 BOLT; FUEL FILTER CLAMP
AUSTRALIA EQUIPMENT(RR3) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9310-9505 ●
312 03.704 BOLT; FUEL FILTER CLAMP
AUSTRALIA EQUIPMENT(RR3) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 9506- ●
312 03.704 BOLT; FUEL FILTER CLAMP
AUSTRALIA EQUIPMENT(RR3) 08.143 M6X14 W/PL WASHER 		8-94174-953-0 01 1 9506- ●
313 03.890 CLIP; FUEL FILTER
ID=40 NYLON 		8-94223-523-0 01 1 9210-9406 ● ●
313 03.890 CLIP; FUEL FILTER
EXC. AUSTRALIA EQUIPMENT(RR3) ID=40 NYLON 		8-94223-523-0 01 1 9210-9406 ●
313 03.890 CLIP; FUEL FILTER
EXC. AUSTRALIA EQUIPMENT(RR3) ID=40 NYLON 		8-94223-523-0 01 1 9407- ● ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SHORT(TFB**C) 08.962 (C) L=630 SERVICED BY L=3000 		0-01254-300-0 01 1 9210-9307 ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SHORT(TF***C) 08.962 (C) L=630 SERVICED BY L=3000 		0-01254-300-0 01 1 9210-9307 ● ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SHORT(TFB**C) 08.962 (C) L=620 SERVICED BY L=3000 		0-01254-300-0 01 1 9308- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SHORT(TF***C) 08.962 (C) L=620 SERVICED BY L=3000 		0-01254-300-0 01 1 9308- ● ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB LONG(TFB*SF) 08.962 (A) L=230 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (A) L=230 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 (A) L=230 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 CREW CAB(TFB*W*) 08.962 (C) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) 08.962 (C) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 (C) L=500 SERVICED BY L=3000 		0-01254-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SPACE CAB(TF**C*) AUSTRALIA EQUIPMENT(RR3) (C) L=420 SERVICED BY L=3000 		0-01256-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SINGLE CAB LONG(TF**SF) AUSTRALIA EQUIPMENT(RR3) (C) L=400 SERVICED BY L=3000 		0-01256-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
CREW CAB(TF**W*) AUSTRALIA EQUIPMENT(RR3) (C) L=500 SERVICED BY L=3000 		0-01256-300-0 01 1 9210- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) L=1060 SERVICED BY L=3000 		0-01256-300-0 01 1 9407- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (D) L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 9407- ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (B) L=1060 SERVICED BY L=3000 		0-01154-300-0 01 1 9210-9307 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 08.962 (B) L=1060 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9406 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=1060 SERVICED BY L=3000 		0-01254-300-0 01 1 9407- ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 (D) L=440 SERVICED BY L=3000 		0-01154-300-0 01 1 9210-9307 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 08.962 (D) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9308-9406 ● ●
314 03.163 HOSE; RUBBER,FUEL RETURN
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 (D) L=440 SERVICED BY L=3000 		0-01254-300-0 01 1 9407- ● ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 		8-94328-120-0 01 1 9210-9406 ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94328-120-0 01 1 9210-9406 ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94328-120-0 01 1 9210-9406 ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN 8-94328-120-0 01 1 9407-9511 ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94328-120-0 01 1 9407-9511 ● ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN 8-97139-312-1 01 1 9512- ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97139-312-1 01 1 9512- ● ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) 		8-94342-393-0 01 1 9210-9406 ●
318 03.163 HOSE ASM; FUEL,DELIVERY,RETURN
4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) 		8-94342-393-0 01 1 9407- ● ●
319 03.163 CLIP; RUBBER HOSE
EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 		8-94238-570-0 02 1 9210- ● ● ●
319 03.163 CLIP; RUBBER HOSE
LONG(TF***F) ELECTRIC FUEL INJECTION<6GG> 01.219 ID=13 		8-94238-571-0 02 1 9407- ● ●
319 03.163 CLIP; RUBBER HOSE
4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.219 ID=13 		8-94238-571-0 02 1 9407- ●
319 03.163 CLIP; RUBBER HOSE
AUSTRALIA EQUIPMENT(RR3) 01.219 ID=13 		8-94238-571-0 02 1 9210-9406 ●
337 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
AUSTRALIA EQUIPMENT(RR3) 		8-94318-977-2 02 1 9210- ●
337 03.163 HOSE ASM; FUEL,DELIVERY & RETURN 8-94339-804-0 02 1 9210-9308 ●
337 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
UNITED KINGDOM EQUIPMENT(EK3) 		8-94389-334-1 02 1 9210-9406 ●
337 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
UNITED KINGDOM EQUIPMENT(EK3) 		8-97109-425-1 01 1 9407- ●
337 03.163 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94389-333-2 02 1 9210- ● ●
339 03.162 CLIP; BAND,FUEL HOSE
L=140 		5-09707-031-0 01 1 9210-9406 ●
341 03.162 CLIP; BAND,RUBBER HOSE
L=140 		5-09707-031-0 01 1 9210-9308 ●

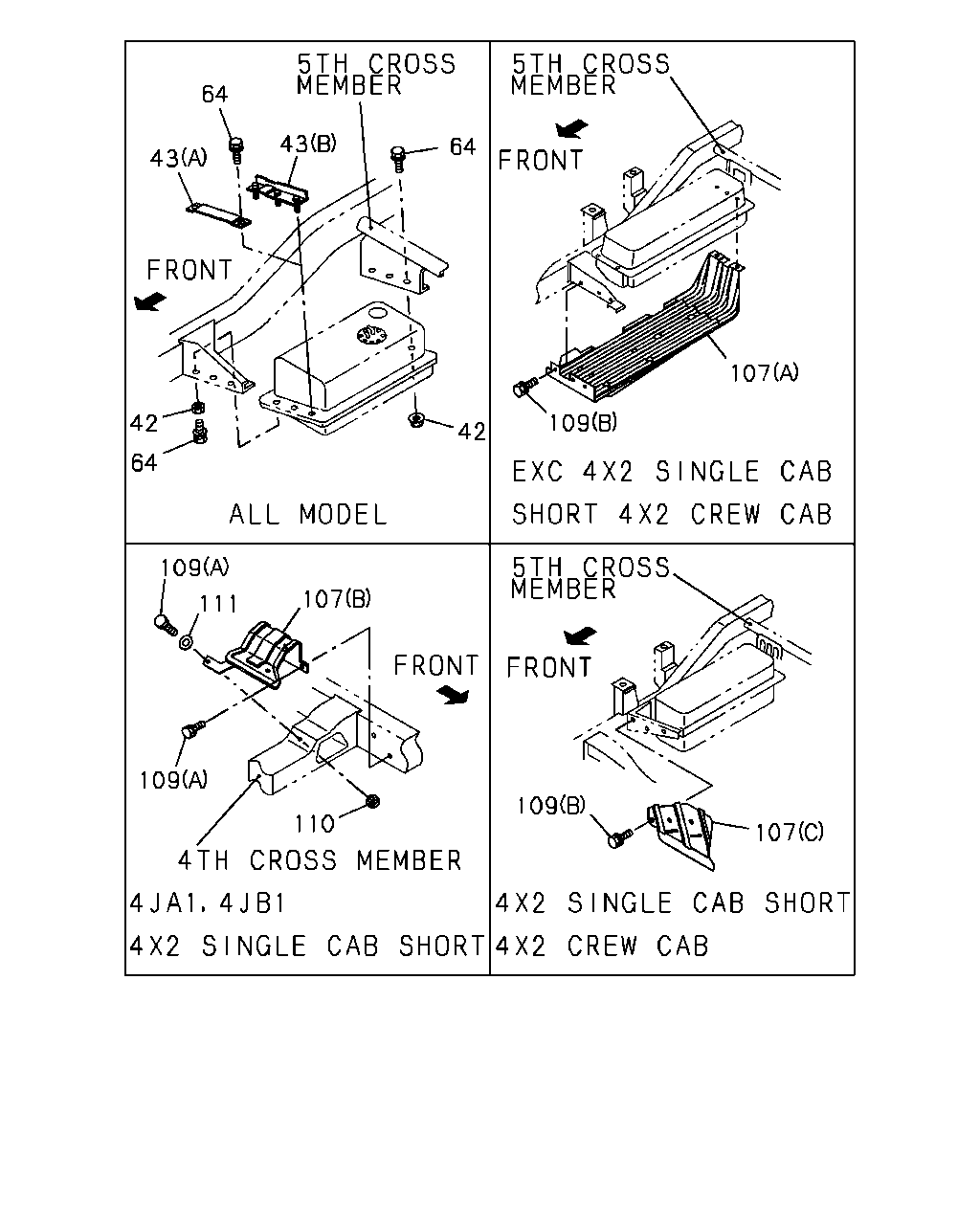

çizim 68657
64 42 43 64 43 42 64 107 109 109 111 107 109 110 109 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
42 03.023 NUT; SUPPORT BELT
4X2 SINGLE CAB LONG(TFB*SF) M8 FLANGE 		8-94328-243-0 05 1 9210- ●
42 03.023 NUT; SUPPORT BELT
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) M8 FLANGE 		8-94328-243-0 05 1 9210- ● ● ● ● ●
42 03.023 NUT; SUPPORT BELT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) M8 FLANGE 		8-94328-243-0 06 1 9210- ●
42 03.023 NUT; SUPPORT BELT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) M8 FLANGE 		8-94328-243-0 06 1 9210- ● ● ● ● ●
43 03.015 BRACKET; FUEL TANK
4X2 SINGLE CAB LONG(TFB*SF) (A) 		8-94328-269-0 01 1 9210- ●
43 03.015 BRACKET; FUEL TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) (A) 		8-94328-269-0 01 1 9210- ● ● ● ● ●
43 03.015 BRACKET; FUEL TANK
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) (B) 		8-94318-376-1 01 1 9210- ● ● ● ● ● ●
64 03.023 BOLT; FUEL TANK
4X2 SINGLE CAB LONG(TFB*SF) 01.276 M8X24 		8-97034-130-0 05 1 9210- ●
64 03.023 BOLT; FUEL TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 01.276 M8X24 		8-97034-130-0 05 1 9210- ● ● ● ● ●
64 03.023 BOLT; FUEL TANK
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) 01.276 M8X24 		8-97034-130-0 03 1 9210- ● ● ● ● ● ●
64 03.023 BOLT; FUEL TANK
4X4 SINGLE CAB SHORT(TFS5SC) 4X4 CREW CAB(TFS5WF) 01.276 M8X24 		8-97034-130-0 06 1 9210- ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X2 SINGLE CAB LONG(TFB*SF) FUEL TANK GUARD<6LM> (A) 		8-94434-723-1 01 1 9210- ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) FUEL TANK GUARD<6LM> (A) 		8-94434-723-1 01 1 9210- ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3) EXC. UNDER GUARD<ES7> (A) 		8-94434-723-1 01 1 9210- ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNDER GUARD<ES7> (A) 		8-94434-723-1 01 1 9210- ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) (C) 		8-94313-765-0 01 1 9210- ● ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 SHORT(TFS**C) UNDER GUARD<ES7> (A) 		8-94434-724-1 01 1 9210- ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X4 CREW CAB(TFS*W*) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-94458-532-1 01 1 9210- ● ● ● ● ●
107 03.602 PROTECTOR; HEAT,FUEL TANK
4X2 SHORT(TFB**C) (B) 		8-94331-703-0 01 1 9210- ● ●
109 03.015 BOLT; HEAT PROTECTOR
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 CREW CAB(TFB5WF) (B) M8X18 		0-28480-818-0 03 1 9210- ● ● ● ● ● ●
109 03.015 BOLT; HEAT PROTECTOR
4X4(TFS***) UNITED KINGDOM EQUIPMENT(EK3),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT (RR3) EXC. UNDER GUARD<ES7> (B) M8X18 		0-28480-818-0 03 1 9210- ● ● ● ● ●
109 03.015 BOLT; HEAT PROTECTOR
4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNDER GUARD<ES7>,FUEL TANK GUARD<6LM> (B) M8X18 		0-28480-818-0 03 1 9210- ● ● ● ● ●
109 03.015 BOLT; HEAT PROTECTOR
4X2 SHORT(TFB**C) 04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 03 1 9210- ● ●
110 03.602 NUT; PROTECTOR
4X2 SHORT(TFB**C) 00.413 M6 		9-09110-506-0 01 1 9210-9406 ● ●
110 03.602 NUT; PROTECTOR
4X2 SHORT(TFB**C) 16.176 		9-09110-406-0 01 1 9407- ● ●
111 03.015 WASHER; PL,HEAT PROTECTOR
4X2 SHORT(TFB**C) 02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9210- ● ●

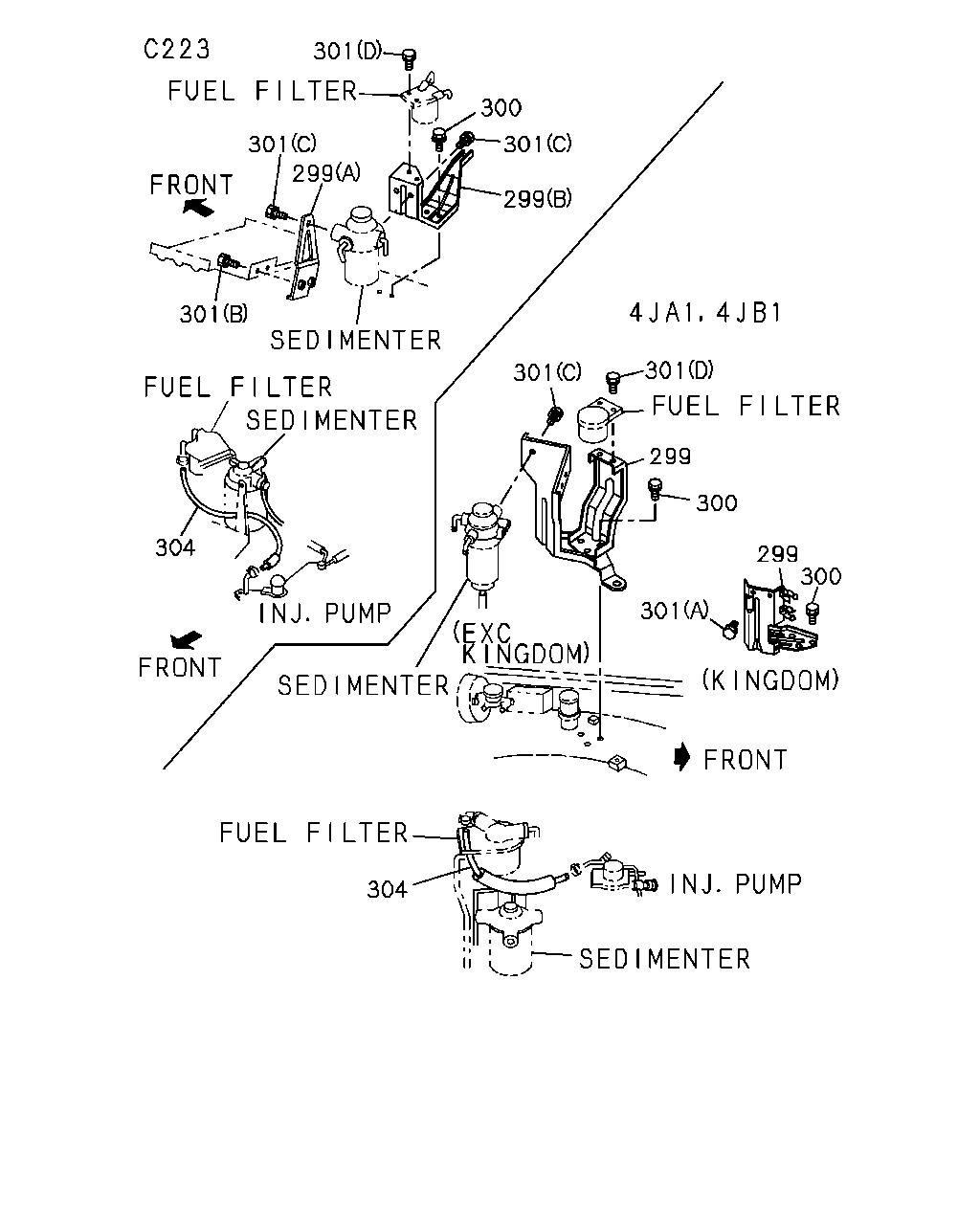

çizim 68731
301 300 301 299 299 301 301 304 301 301 299 300 299 300 301 304
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
299 03.162 BRACKET; FUEL FILTER
(A) 		8-94319-619-0 01 1 9210-9308 ●
299 03.162 BRACKET; FUEL FILTER
(B) 		8-94454-885-2 01 1 9210-9308 ●
299 03.162 BRACKET; FUEL FILTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-97021-149-2 01 1 9210- ●
299 03.162 BRACKET; FUEL FILTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94320-730-0 01 1 9210- ●
299 03.162 BRACKET; FUEL FILTER 8-94320-730-0 01 1 9210- ●
300 03.162 BOLT; BRKT TO BODY
03.417 M6X16 		8-94239-621-0 03 1 9210-9308 ●
300 03.162 BOLT; BRKT TO BODY
03.704 M8X16 W/LK WASHER 		0-50040-816-0 03 1 9210-9411 ● ●
300 03.162 BOLT; BRKT TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9412- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.685 (B) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9210-9308 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.785 (C) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9210-9308 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.785 (C) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9309-9411 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
04.785 (C) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9309-9411 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.664 (C) M8X20 FLANGE 		0-28680-820-0 03 1 9412- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
02.664 (C) M8X20 FLANGE 		0-28680-820-0 03 1 9412- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.525 (D) M10X32 W/LK WASHER 		0-50041-032-0 02 1 9210-9308 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.525 (D) M10X32 W/LK WASHER 		0-50041-032-0 02 1 9309-9409 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
06.525 (D) M10X32 W/LK WASHER 		0-50041-032-0 02 1 9309-9409 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) (D) M10X35 FLANGE 		0-28681-035-0 02 1 9410- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(D) M10X35 FLANGE 		0-28681-035-0 02 1 9410- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
UNITED KINGDOM EQUIPMENT(EK3) 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9210-9411 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
UNITED KINGDOM EQUIPMENT(EK3) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 9412- ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ 8-94328-914-0 01 1 9210-9308 ●
304 03.163 HOSE; RUBBER,FUEL FILTER TO INJ
L=440 		8-94133-604-2 01 1 9210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
