Sayfa 0-87A - Isuzu EPC

0-87A — COUPLING; INJECTION PUMP (#4283) — 167 parça

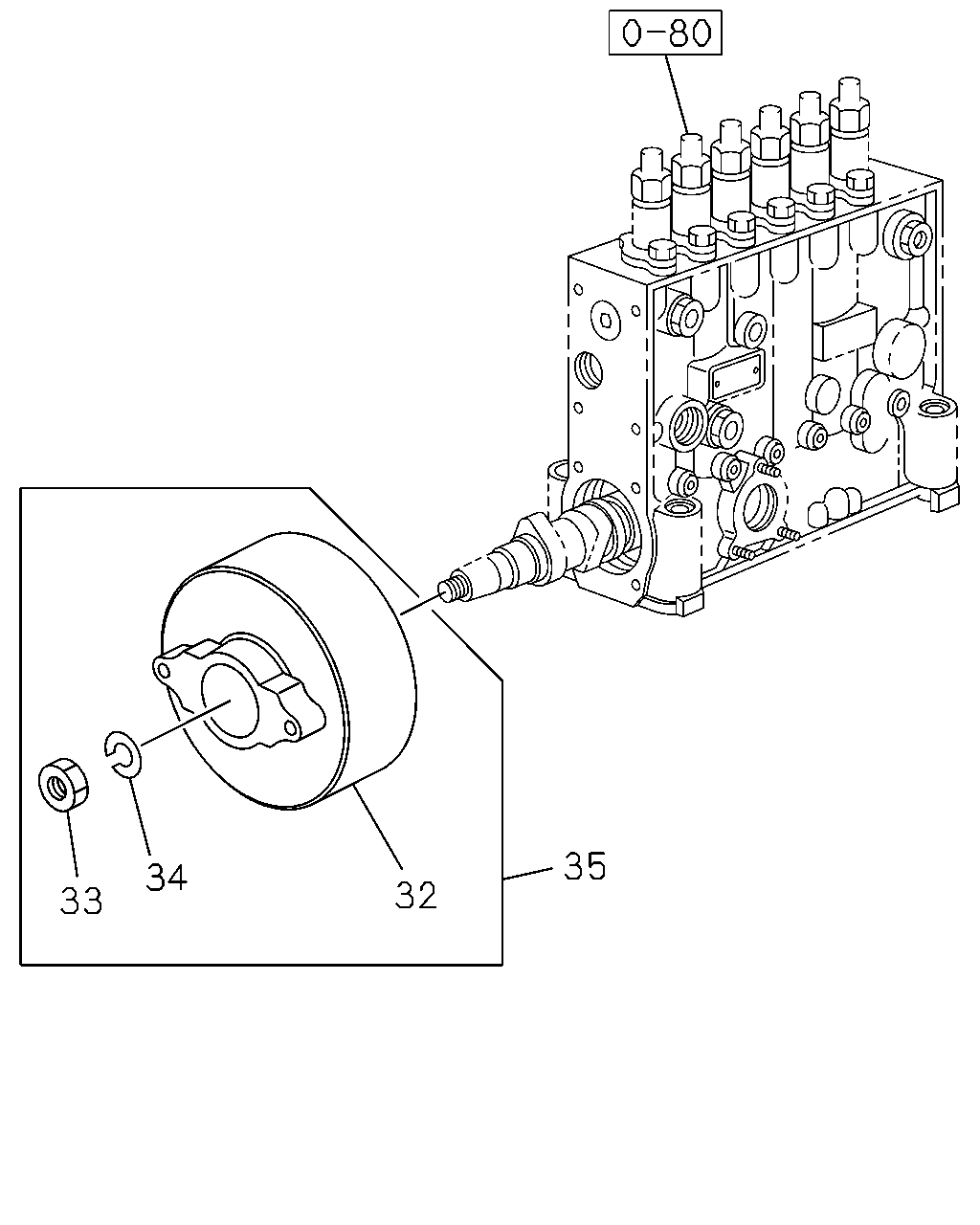

35 34 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	DAMPER; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-005-1	01	1	9610-9706	●
32	DAMPER; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-005-1	01	1	9707-9904	●
32	DAMPER; INJ PUMP	1-15744-005-1	01	1	9707-9904		●
33	NUT; DAMPER EURO2 SPECIFICATION<THN>	1-19179-020-0	01	1	9610-9706	●
33	NUT; DAMPER EURO2 SPECIFICATION<THN>	1-19179-020-0	01	1	9707-9904	●
33	NUT; DAMPER	1-19179-020-0	01	1	9707-9904		●
33	NUT; DAMPER	1-19179-020-0	01	1	9905-			●	●
34	WASHER; DAMPER EURO2 SPECIFICATION<THN>	1-19179-002-0	01	1	9610-9706	●
34	WASHER; DAMPER EURO2 SPECIFICATION<THN>	1-19179-002-0	01	1	9707-9904	●
34	WASHER; DAMPER	1-19179-002-0	01	1	9707-9904		●
34	WASHER; DAMPER	1-19179-002-0	01	1	9905-			●	●
35	DAMPER ASM; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-007-1	01	1	9610-9706	●
35	DAMPER ASM; INJ PUMP EURO2 SPECIFICATION<THN>	1-15744-007-1	01	1	9707-9904	●
35	DAMPER ASM; INJ PUMP	1-15744-007-1	01	1	9707-9904		●
35	DAMPER ASM; INJ PUMP	1-15744-007-1	01	1	9905-			●	●

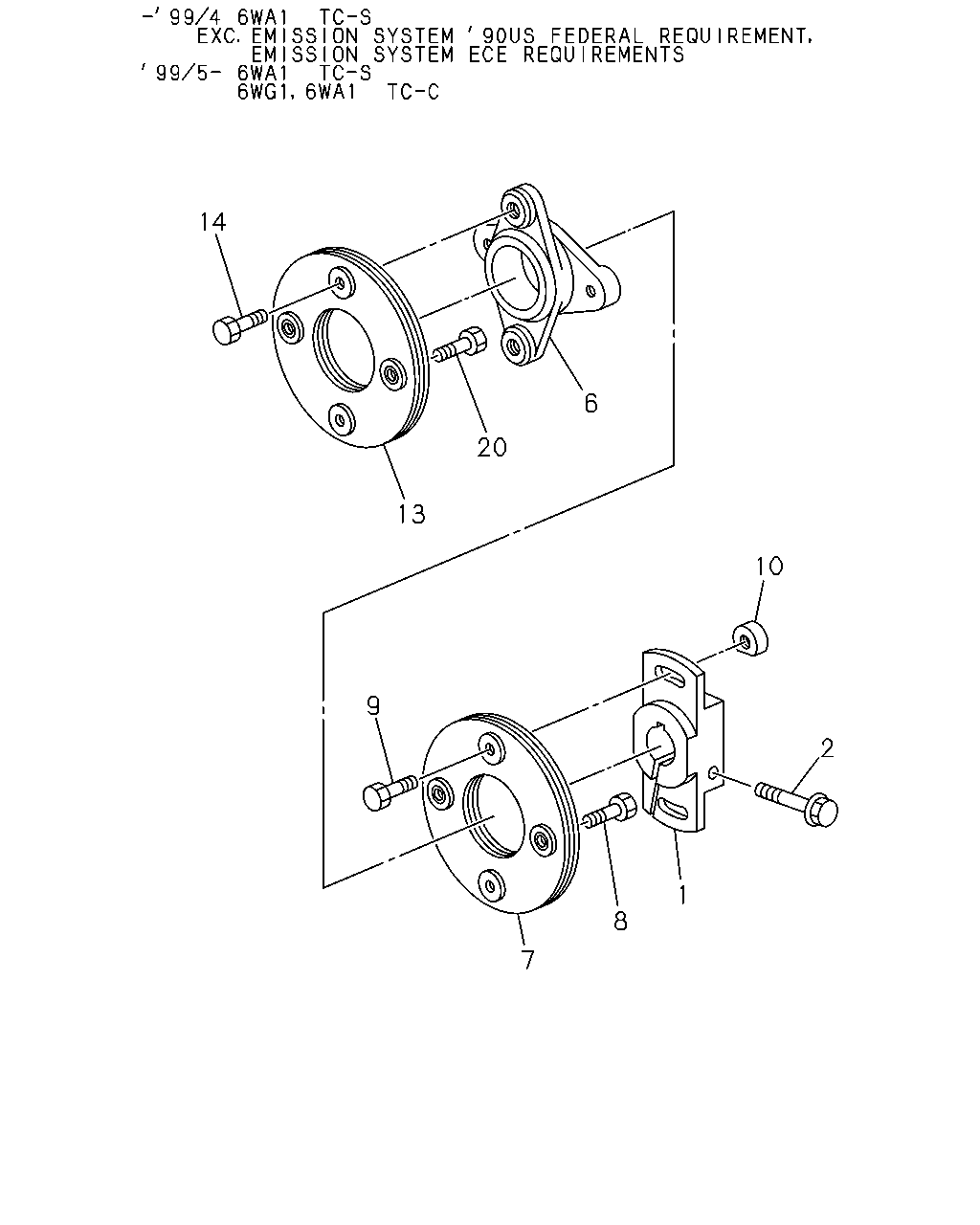

14 6 20 13 10 9 2 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15782-021-0	01	1	9603-9904	●
1	COUPLING; INJ PUMP DRIVE	1-15782-021-0	01	1	9905-9905					●
1	COUPLING; INJ PUMP DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15782-021-0	01	1	9906-					●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15782-020-0	01	1	9603-9706	●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15782-020-0	01	1	9707-9904	●
1	COUPLING; INJ PUMP DRIVE	1-15782-020-0	01	1	9707-9904		●
1	COUPLING; INJ PUMP DRIVE	1-15782-020-0	01	1	9905-	●		●	●
1	COUPLING; INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15781-029-0	01	1	9906-					●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-162-0	01	1	9603-9904	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9905-9905					●
2	BOLT; COUPLING FIX,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-162-0	01	1	9906-					●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-177-0	01	1	9603-9706	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-177-0	01	1	9707-9904	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-177-0	01	1	9707-9904		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-177-0	01	1	9905-	●		●	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-079-0	01	1	9906-					●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-223-0	01	1	9905-9905					●
6	COUPLING; CROSS,INJ PUMP DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-223-0	01	1	9906-					●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-180-0	01	1	9603-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-176-0	01	1	9603-9706	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-176-0	01	1	9707-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-176-0	01	1	9707-9904		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-176-0	01	1	9905-	●		●	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-171-0	01	1	9906-					●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15619-181-0	01	1	9603-9904	●
7	PLATE; COUPLING,COUPLING SIDE	1-15619-181-0	01	1	9905-9905					●
7	PLATE; COUPLING,COUPLING SIDE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15619-181-0	01	1	9906-					●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-173-0	01	1	9603-9706	●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-173-0	01	1	9707-9904	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-173-0	01	1	9707-9904		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-173-0	01	1	9905-	●		●	●
7	PLATE; COUPLING,COUPLING SIDE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-096-0	01	1	9906-					●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15619-183-0	02	1	9603-9904	●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9905-9905					●
8	BOLT; PLATE TO CROSS COUPLING AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15619-183-0	02	1	9906-					●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9603-9706	●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9707-9904	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-175-0	02	1	9707-9904		●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-175-0	02	1	9905-	●		●	●
8	BOLT; PLATE TO CROSS COUPLING EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-098-0	02	1	9906-					●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-163-0	02	1	9603-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9905-9905					●
9	BOLT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-163-0	02	1	9906-					●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-172-0	02	1	9603-9706	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-172-0	02	1	9707-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-172-0	02	1	9707-9904		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-172-0	02	1	9905-	●		●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-075-0	02	1	9906-					●
10	NUT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-179-0	02	1	9603-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-179-0	02	1	9905-9905					●
10	NUT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-179-0	02	1	9906-					●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-174-0	02	1	9603-9706	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-174-0	02	1	9707-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-174-0	02	1	9707-9904		●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-174-0	02	1	9905-	●		●	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-073-0	02	1	9906-					●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-096-0	01	1	9603-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-096-0	01	1	9905-					●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-173-0	01	1	9603-9706	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-173-0	01	1	9707-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-173-0	01	1	9707-9904		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-173-0	01	1	9905-	●		●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-098-0	02	1	9603-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	9905-					●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9603-9706	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9707-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-175-0	02	1	9707-9904		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-175-0	02	1	9905-	●		●	●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-043-0	02	1	9603-9904	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-043-0	02	1	9905-					●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9603-9706	●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9707-9904	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-175-0	02	1	9707-9904		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-175-0	02	1	9905-	●		●	●

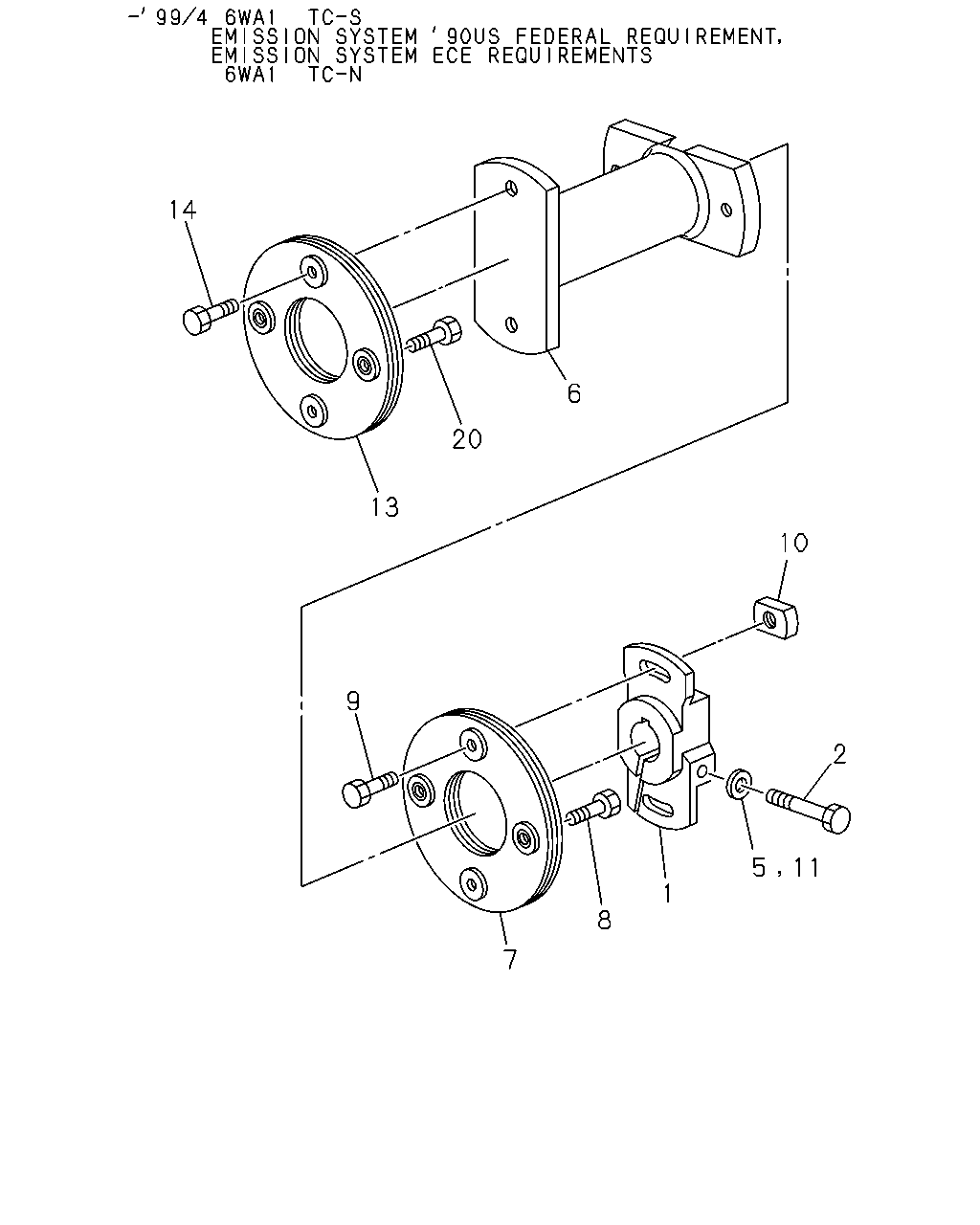

14 6 20 13 10 9 2 5 11 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COUPLING; INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15782-021-0	01	1	9603-9904	●
1	COUPLING; INJ PUMP DRIVE	1-15782-021-0	01	1	9905-9905					●
1	COUPLING; INJ PUMP DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15782-021-0	01	1	9906-					●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15782-020-0	01	1	9603-9706	●
1	COUPLING; INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15782-020-0	01	1	9707-9904	●
1	COUPLING; INJ PUMP DRIVE	1-15782-020-0	01	1	9707-9904		●
1	COUPLING; INJ PUMP DRIVE	1-15782-020-0	01	1	9905-	●		●	●
1	COUPLING; INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15781-029-0	01	1	9906-					●
2	BOLT; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-162-0	01	1	9603-9904	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-162-0	01	1	9905-9905					●
2	BOLT; COUPLING FIX,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-162-0	01	1	9906-					●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-177-0	01	1	9603-9706	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-177-0	01	1	9707-9904	●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-177-0	01	1	9707-9904		●
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-177-0	01	1	9905-	●		●	●
2	BOLT; COUPLING FIX,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-079-0	01	1	9906-					●
5	WASHER; COUPLING FIX,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-021-0	01	1	9603-9904	●
5	WASHER; COUPLING FIX,INJ PUMP	1-15789-021-0	01	1	9905-9905					●
5	WASHER; COUPLING FIX,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-021-0	01	1	9906-					●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-223-0	01	1	9905-9905					●
6	COUPLING; CROSS,INJ PUMP DRIVE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-223-0	01	1	9906-					●
6	COUPLING; CROSS,INJ PUMP DRIVE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-180-0	01	1	9603-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-176-0	01	1	9603-9706	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-176-0	01	1	9707-9904	●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-176-0	01	1	9707-9904		●
6	COUPLING; CROSS,INJ PUMP DRIVE	1-15789-176-0	01	1	9905-	●		●	●
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-171-0	01	1	9906-					●
7	PLATE; COUPLING,COUPLING SIDE EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15619-181-0	01	1	9603-9904	●
7	PLATE; COUPLING,COUPLING SIDE	1-15619-181-0	01	1	9905-9905					●
7	PLATE; COUPLING,COUPLING SIDE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15619-181-0	01	1	9906-					●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-173-0	01	1	9603-9706	●
7	PLATE; COUPLING,COUPLING SIDE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-173-0	01	1	9707-9904	●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-173-0	01	1	9707-9904		●
7	PLATE; COUPLING,COUPLING SIDE	1-15789-173-0	01	1	9905-	●		●	●
7	PLATE; COUPLING,COUPLING SIDE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-096-0	01	1	9906-					●
8	BOLT; PLATE TO CROSS COUPLING EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15619-183-0	02	1	9603-9904	●
8	BOLT; PLATE TO CROSS COUPLING	1-15619-183-0	02	1	9905-9905					●
8	BOLT; PLATE TO CROSS COUPLING AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15619-183-0	02	1	9906-					●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9603-9706	●
8	BOLT; PLATE TO CROSS COUPLING EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9707-9904	●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-175-0	02	1	9707-9904		●
8	BOLT; PLATE TO CROSS COUPLING	1-15789-175-0	02	1	9905-	●		●	●
8	BOLT; PLATE TO CROSS COUPLING EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-098-0	02	1	9906-					●
9	BOLT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-163-0	02	1	9603-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-163-0	02	1	9905-9905					●
9	BOLT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-163-0	02	1	9906-					●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-172-0	02	1	9603-9706	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-172-0	02	1	9707-9904	●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-172-0	02	1	9707-9904		●
9	BOLT; PLATE TO COUPLING,INJ PUMP	1-15789-172-0	02	1	9905-	●		●	●
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-075-0	02	1	9906-					●
10	NUT; PLATE TO COUPLING,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-179-0	02	1	9603-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-179-0	02	1	9905-9905					●
10	NUT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-179-0	02	1	9906-					●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-174-0	02	1	9603-9706	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-174-0	02	1	9707-9904	●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-174-0	02	1	9707-9904		●
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-174-0	02	1	9905-	●		●	●
10	NUT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-073-0	02	1	9906-					●
11	WASHER; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-15789-076-0	02	1	9906-					●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-096-0	01	1	9603-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-096-0	01	1	9905-					●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-173-0	01	1	9603-9706	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-173-0	01	1	9707-9904	●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-173-0	01	1	9707-9904		●
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP	1-15789-173-0	01	1	9905-	●		●	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-098-0	02	1	9603-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-098-0	02	1	9905-					●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9603-9706	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9707-9904	●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-175-0	02	1	9707-9904		●
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI	1-15789-175-0	02	1	9905-	●		●	●
20	BOLT; COUPLING TO INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-043-0	02	1	9603-9904	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-043-0	02	1	9905-					●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9603-9706	●
20	BOLT; COUPLING TO INJ PUMP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15789-175-0	02	1	9707-9904	●
20	BOLT; COUPLING TO INJ PUMP	1-15789-175-0	02	1	9707-9904		●
20	BOLT; COUPLING TO INJ PUMP	1-15789-175-0	02	1	9905-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
