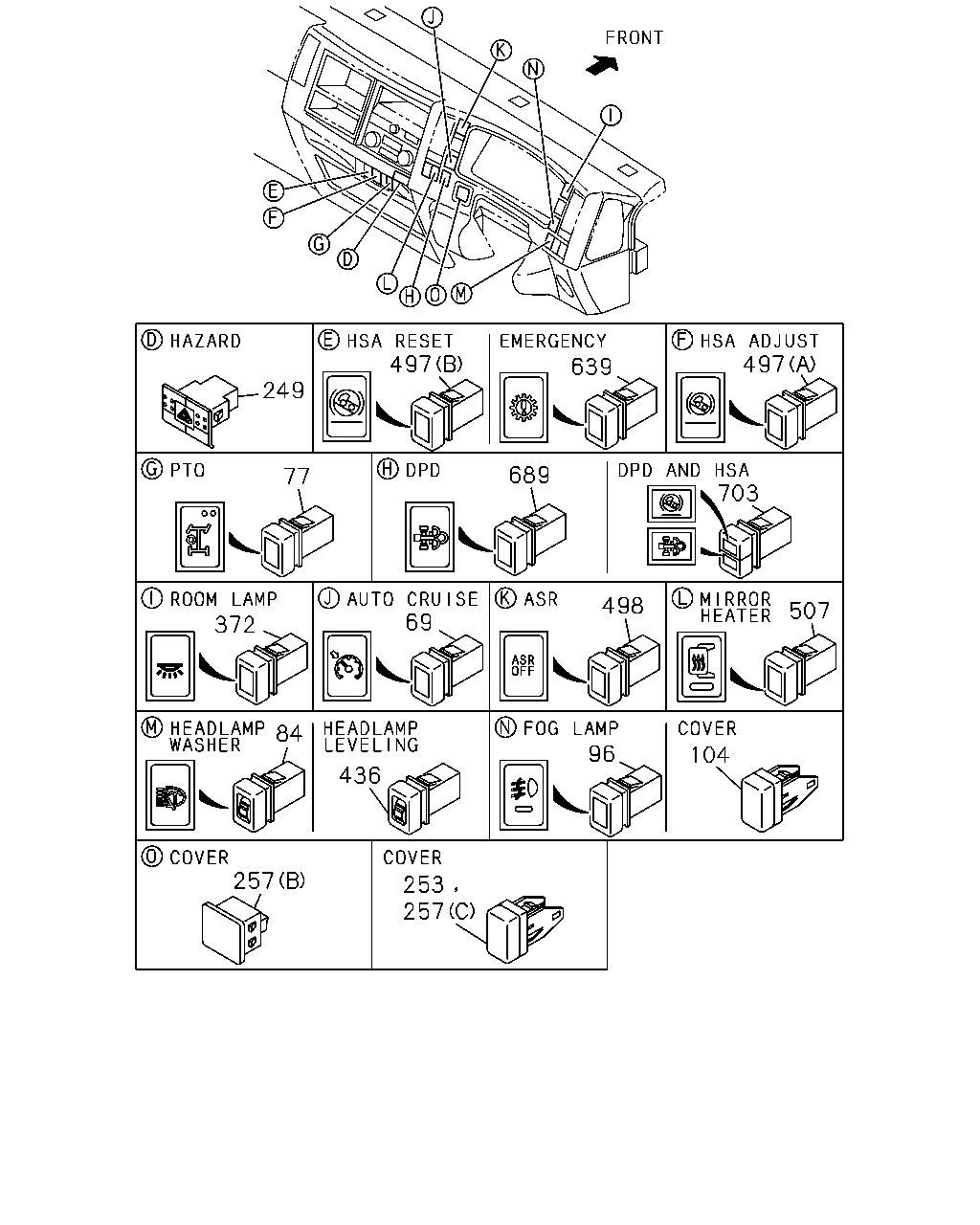

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#42818) — 90 parça

497 639 497 249 703 689 77 372 69 498 507 96 104 84 436 257 253 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	SWITCH; AUTO CRUISE AUTO CRUISE<K30>	8-98011-344-1	01	1	0710-	●	●
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97615-488-2	01	1	0710-	●	●
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	0710-	●	●
84	SWITCH; WASHER,HEADLAMP HEAD LAMP WASHER<CE4>	8-97614-052-0	01	1	0710-1003	●
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0710-	●	●
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	0710-	●	●
249	SWITCH; HAZARD	8-97386-922-1	01	1	0710-	●	●
253	COVER; SW HOLE	8-98025-954-1	02	1	0710-	●	●
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	0710-	●	●
253	COVER; SW HOLE EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW (A) GRAY	8-97409-339-0	01	1	0710-0710	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0710-	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0710-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0710-	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0710-		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0710-	●	●
372	SWITCH; ROOM LAMP	8-97386-917-2	01	1	0710-	●	●
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-97386-981-2	01	1	0710-		●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-97386-967-2	01	1	0710-0806	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-1	01	1	0807-	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET	8-97386-985-1	01	1	0710-0806	●	●
497	SWITCH; HSA H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET	8-98119-946-0	01	1	0807-	●	●
498	SWITCH; ASR THROTTLE CONTROL SYSTEM(6XH)	8-97386-920-2	01	1	0710-	●	●
507	SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	0710-	●	●
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-000-2	01	1	0710-0806	●	●
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	0807-	●	●
689	SWITCH; DPD EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0710-	●	●
703	SWITCH; DPD & HSA H.S.A SYSTEM<6EP>	8-98011-346-2	01	1	0710-	●	●

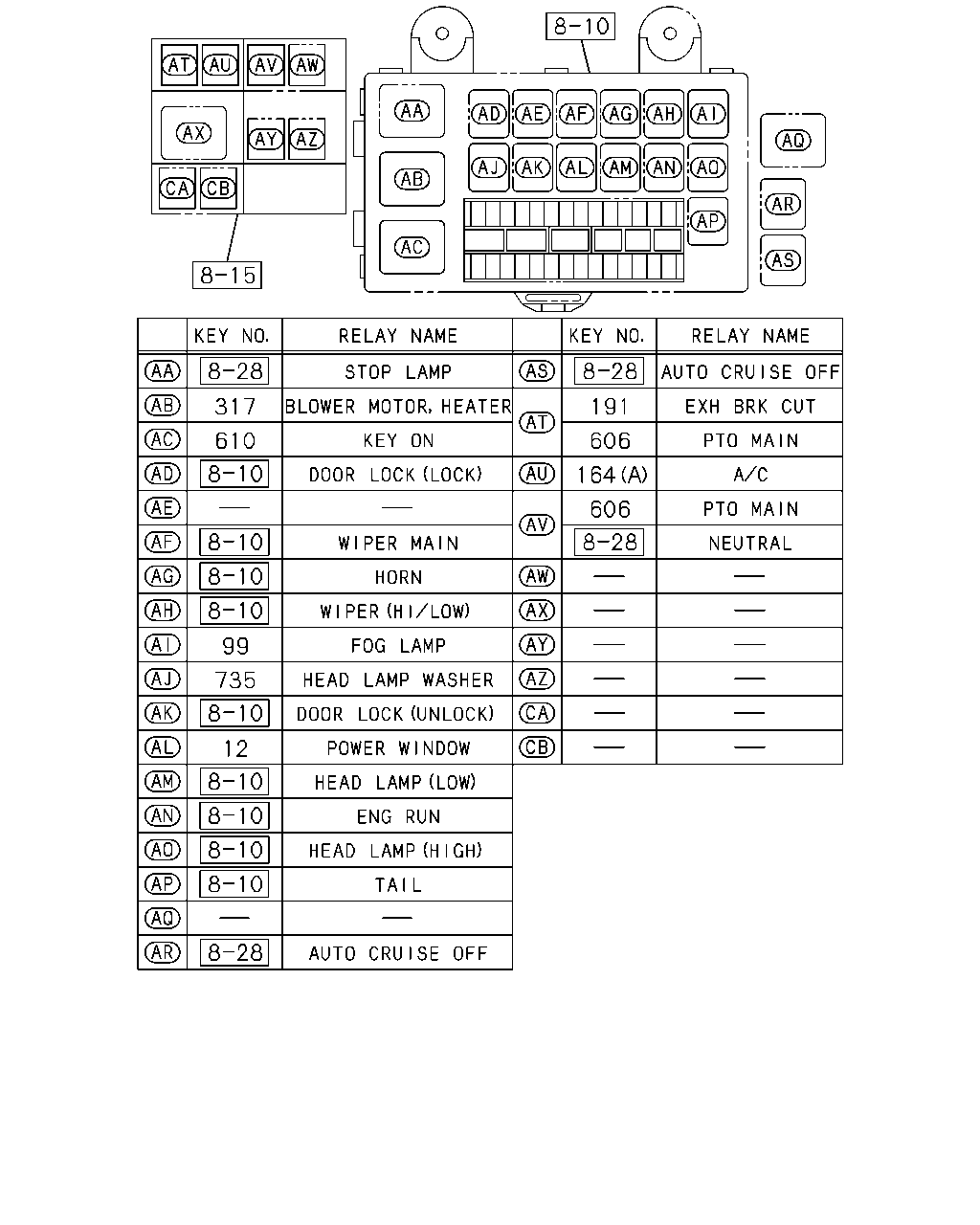

317 191 610 606 164 606 99 735 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
99	RELAY; FOG LAMP 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0710	●	●
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
191	RELAY; EXH BRK CUT LCT2000 A/T ALLISON(Y4F) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0710		●
191	RELAY; EXH BRK CUT A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	01	1	0710-		●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0806	●	●
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	02	1	0710-0710	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0805	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0805	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0805		●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	0806-	●	●
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) MANUAL TRANSMISSION<X9C> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC	8-97173-035-1	01	1	0806-	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●
735	RELAY; HEAD LAMP WASHER HEAD LAMP WASHER<CE4> 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1003	●

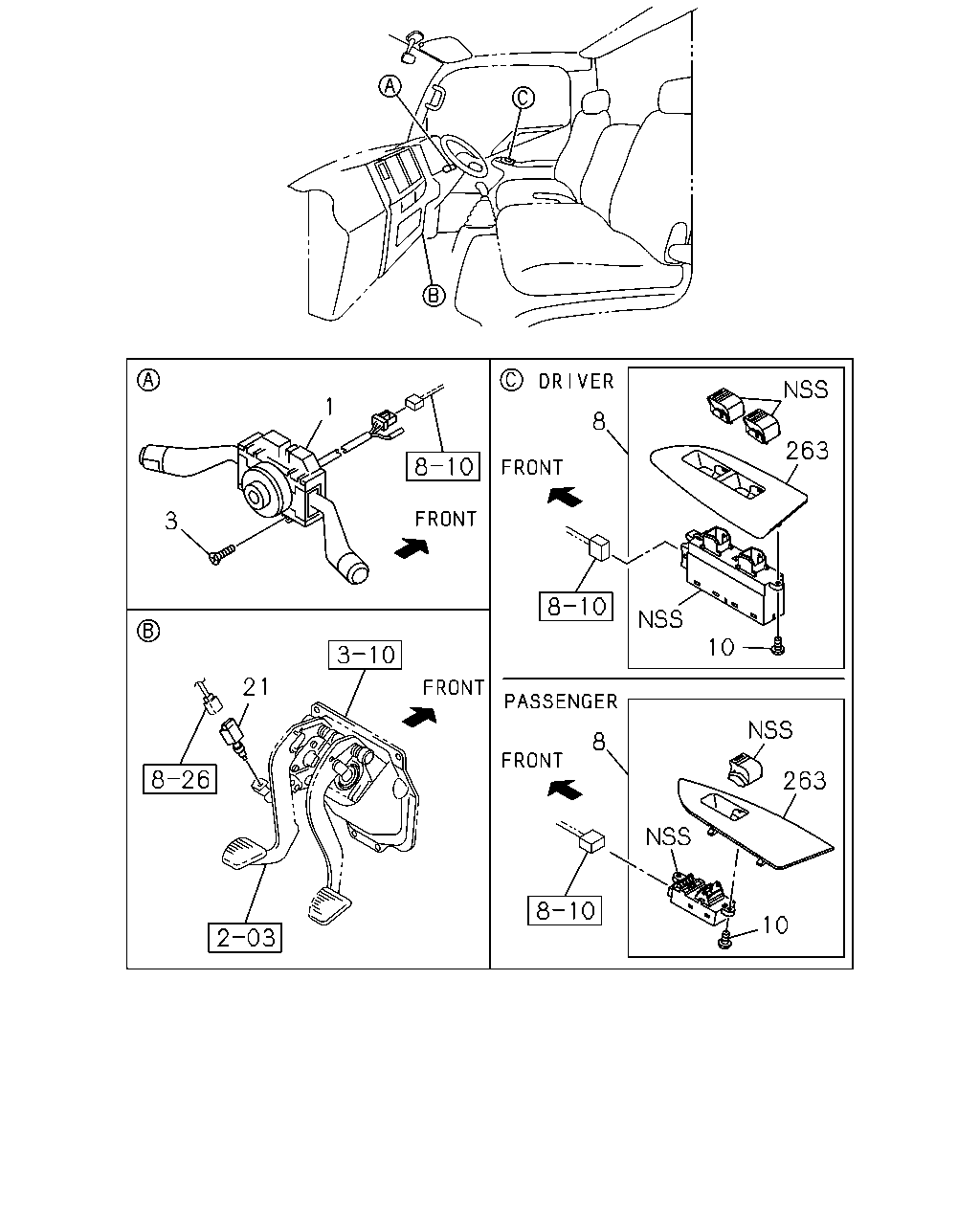

1 8 263 3 10 21 8 263 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98064-763-1	01	1	0710-0905	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98146-619-0	01	1	0906-1210	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0710-0905	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0906-1210	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-	●	●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98060-302-1	01	1	0710-1310	●	●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>	8-98243-704-0	01	1	1311-	●	●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98024-269-1	01	1	0710-1310	●	●
1	SWITCH; COMB AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98243-705-0	01	1	1311-	●	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0710-	●	●
8	SWITCH; POWER WINDOW PASSENGER	8-97387-034-2	01	1	0710-	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98003-785-1	01	1	0710-0809	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98129-844-0	01	1	0810-1001	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98159-543-0	01	1	1002-	●	●
10	SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0710-	●	●
21	SWITCH; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97358-248-0	01	1	0710-	●	●
21	SWITCH; CLU TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94337-761-0	01	1	0710-	●	●
263	COVER; SW DRIVER	8-98153-836-0	01	1	0710-	●	●
263	COVER; SW PASSENGER	8-98153-841-0	01	1	0710-	●	●

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-	●	●

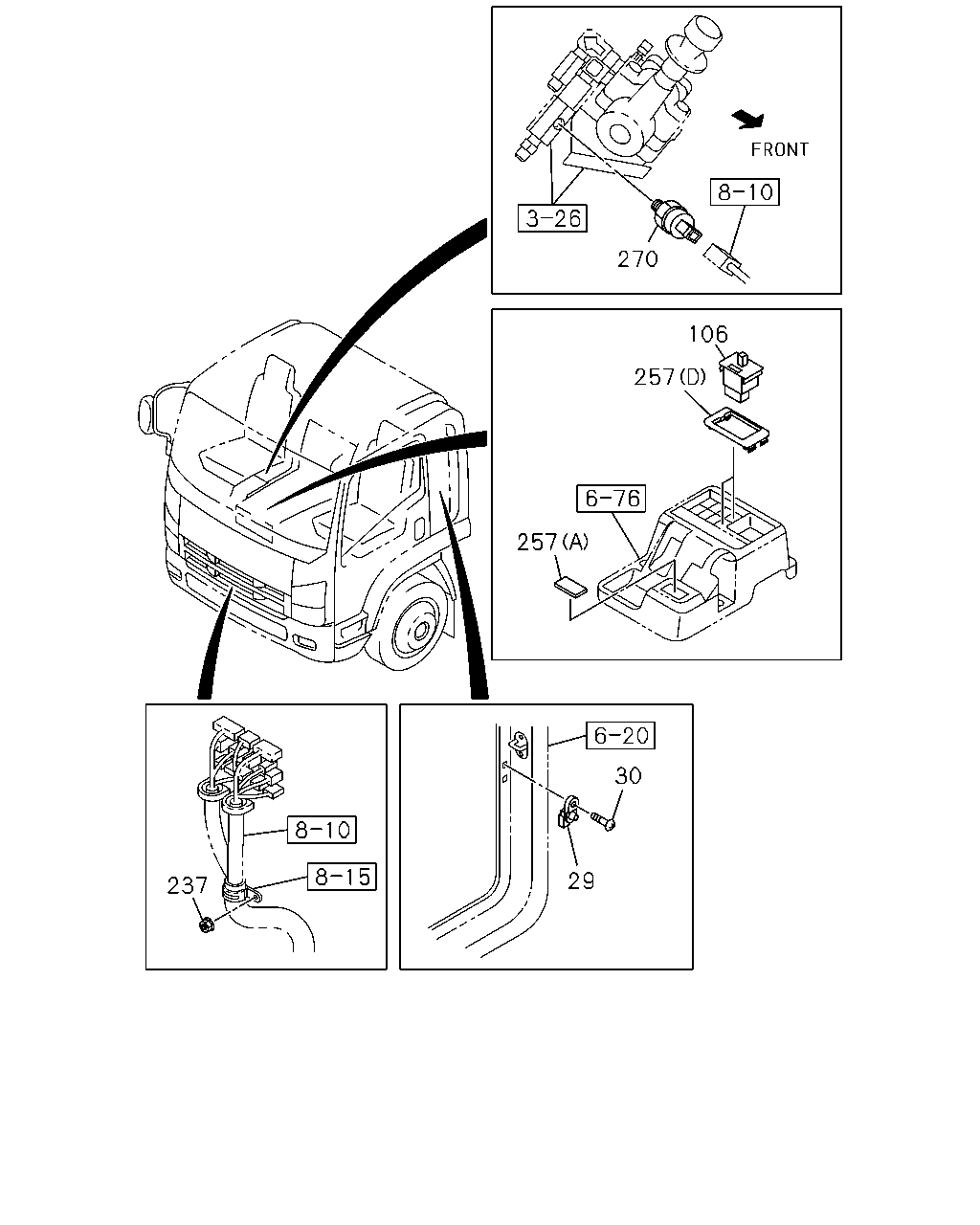

270 106 257 257 30 29 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0710-	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0710-	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0710-	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0710-	●	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	1-82350-223-0	02	1	0710-	●	●
237	NUT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
257	COVER; HOLE,SW (A) GRAY	8-97409-339-0	01	1	0710-0710	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	0710-	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	0710-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,HEATED<7SV> (C)	8-98025-954-1	01	1	0710-	●	●
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	0710-	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	0710-		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D)	8-97619-254-1	02	1	0710-	●	●
270	SWITCH; PRESS,WHEEL PARKING STAMP 2.0	8-98010-856-1	01	1	0710-	●	●
