Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#42815) — 472 parça

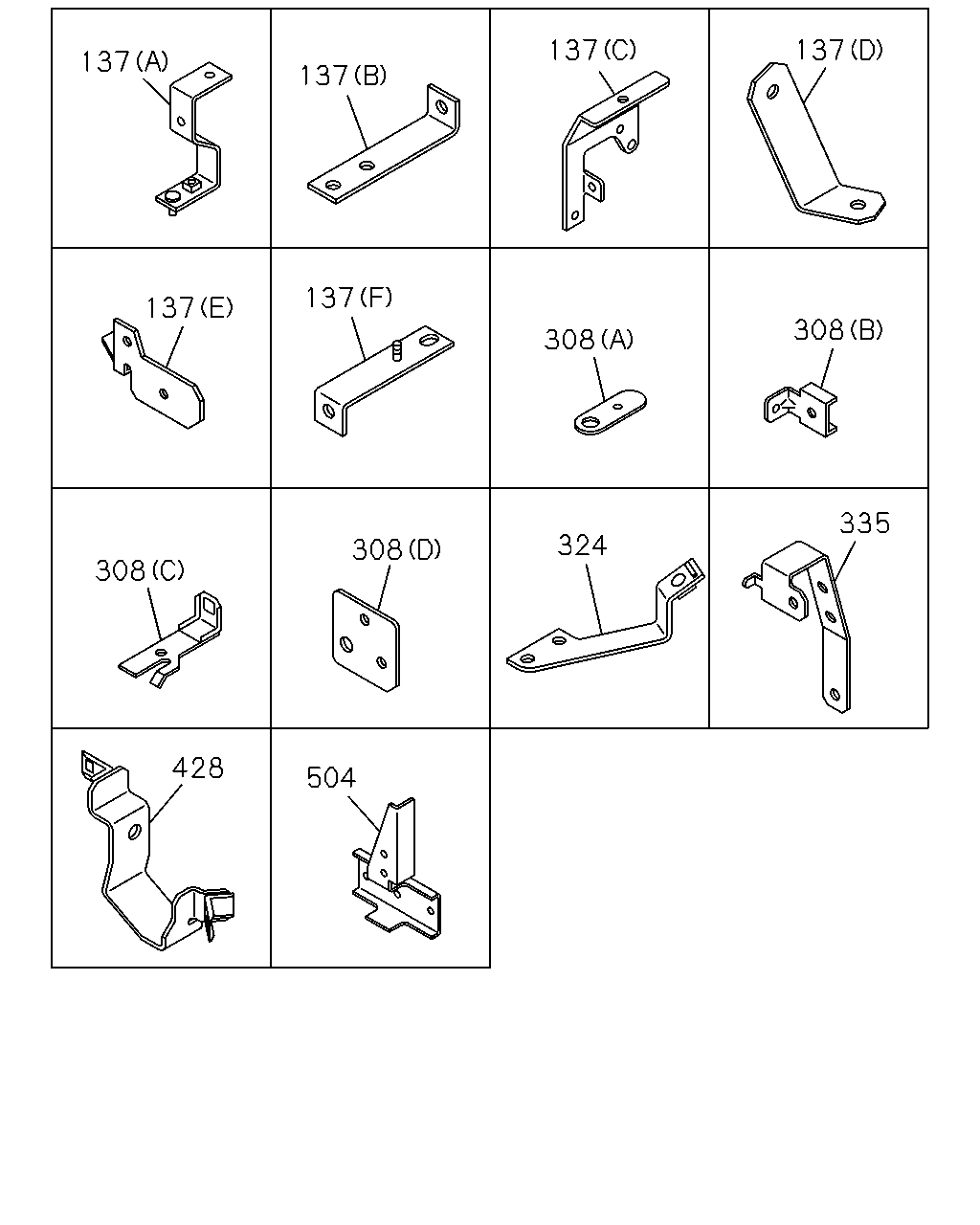

137 137 137 137 137 137 308 308 335 324 308 308 428 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	0710-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	0710-	●	●
137	BRACKET; HARNESS CLAMP (B)	8-97622-657-0	01	1	0710-0710	●	●
137	BRACKET; HARNESS CLAMP (F)	8-97624-013-0	01	1	0711-	●	●
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	0710-	●	●
137	BRACKET; HARNESS CLAMP (E)	8-98059-231-1	01	1	0710-	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0710-1010	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0710-	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0710-	●	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0710-	●	●
324	BRACKET; CLIP	8-98051-649-1	01	1	0710-	●	●
324	BRACKET; CLIP	8-98051-648-1	01	1	0710-	●	●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0710-	●	●
428	BRACKET	8-98090-952-0	01	1	0710-	●	●
504	PROTECTOR; HARNESS	8-98042-155-0	01	1	0710-0807	●

16 16 48 171 16 16 171 305 305 48 48 16 48 16 81 171 223 235 305 470 48 16 48 171 223 16 171 235 48 48 305 16 48 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0710-0901	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	0710-0901	●
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-		●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	02	1	0710-	●
16	CLIP; HARNESS (O) ID=11 L=16	0-95235-025-0	04	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0710-	●	●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0710-0911	●	●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0710-0906	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0907-	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-0906	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0907-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (S) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (H) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (T) OD=9 H=6	1-09709-178-0	01	1	0804-	●	●
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (R) ID=16 L=28	8-97367-951-0	02	1	0710-0901		●
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (U) ID=11 L=20	0-95235-035-0	02	1	0902-		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0710-		●
48	CLIP; FRAME HARNESS (G) ID=11 L=20	0-95235-035-0	02	1	0710-	●
48	CLIP; FRAME HARNESS (I) ID=19 L=28	0-95235-856-0	02	1	0710-	●
48	CLIP; FRAME HARNESS (M) ID=35 L=50	1-09701-214-0	01	1	0710-	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50	1-09701-214-0	01	1	0710-		●
48	CLIP; FRAME HARNESS (J) ID=21 L=24	8-94176-807-1	03	1	0710-	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	19	1	0710-0804	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	18	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	19	1	0903-1007	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	12	1	1008-	●
48	CLIP; FRAME HARNESS (S) ID=18-24 L=22	1-09709-295-0	01	1	0805-	●
48	CLIP; FRAME HARNESS (R) ID=14 L=44	9-09917-427-0	07	1	1008-	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0710-	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0901	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0902-		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0710-1201	●	●
48	CLIP; FRAME HARNESS (R) ID=14 L=44	9-09917-427-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (O) ID=22 L=32	1-09700-126-1	02	1	0710-0710		●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (P) ID=19 L=32	0-95235-866-0	02	1	0710-		●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (Q) L=180	1-09707-162-1	01	1	0710-		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50	1-09701-055-1	01	1	0710-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	12	1	0710-0902		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0903-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (R) ID=14 L=44	9-09917-427-0	10	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0710-0804		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (T) ID=13-18 L=22	1-09709-292-0	01	1	0805-0910		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (T) ID=13-18 L=22	1-09709-292-0	01	1	0911-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (R) ID=14 L=44	9-09917-427-0	19	1	1008-		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0712-0901	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	02	1	0804-0905		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0710-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (C) ID=12 L=35	5-09700-206-0	01	1	0806-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0710-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-	●	●

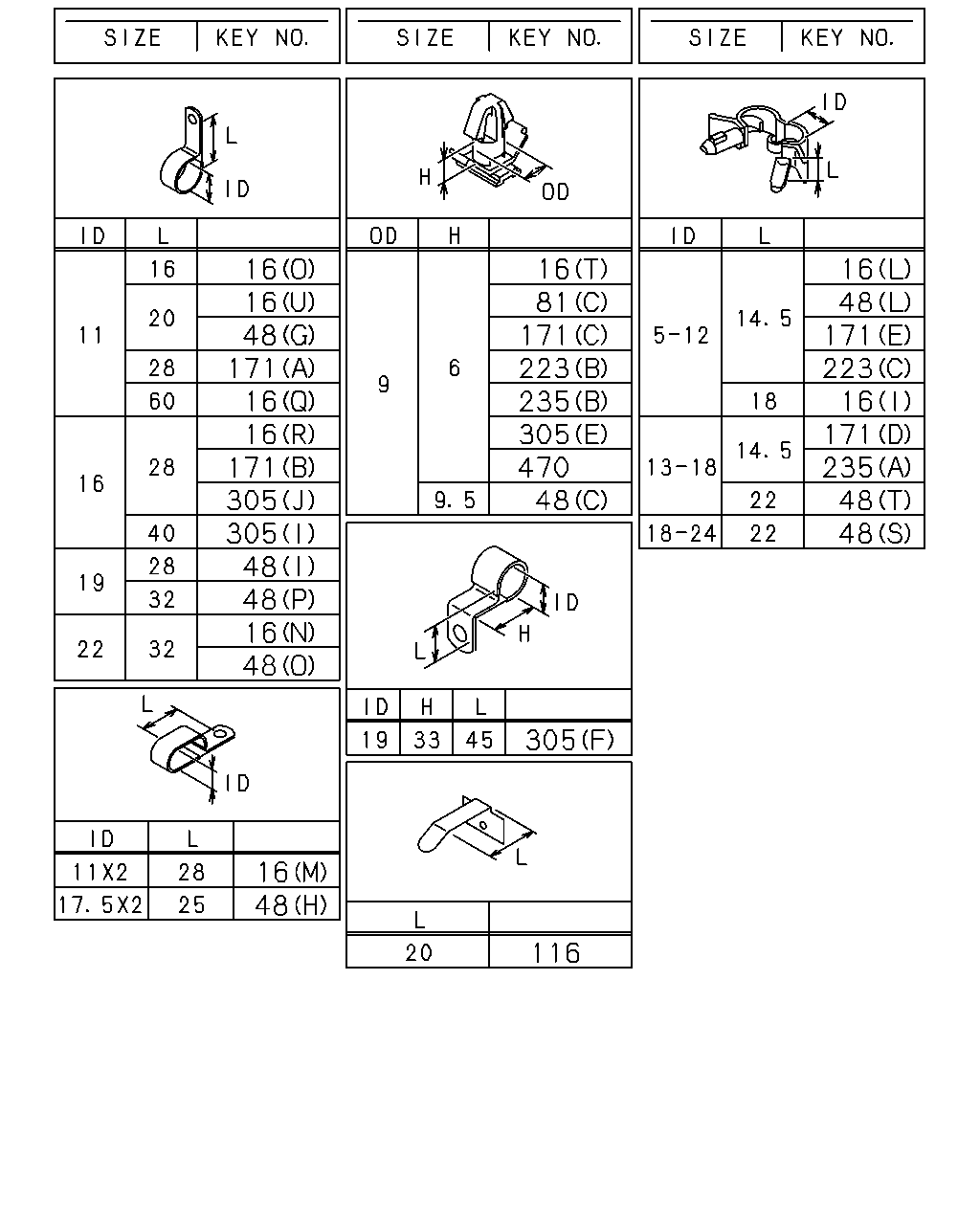

171 16 306 16 305 16 16 16 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0710-0901	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	0710-0901	●
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-		●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	02	1	0710-	●
16	CLIP; HARNESS (O) ID=11 L=16	0-95235-025-0	04	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0710-	●	●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0710-0911	●	●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0710-0906	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0907-	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-0906	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0907-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (S) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (H) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (T) OD=9 H=6	1-09709-178-0	01	1	0804-	●	●
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (R) ID=16 L=28	8-97367-951-0	02	1	0710-0901		●
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (U) ID=11 L=20	0-95235-035-0	02	1	0902-		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0710-		●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-	●	●
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0710-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (C) ID=12 L=35	5-09700-206-0	01	1	0806-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0710-	●	●

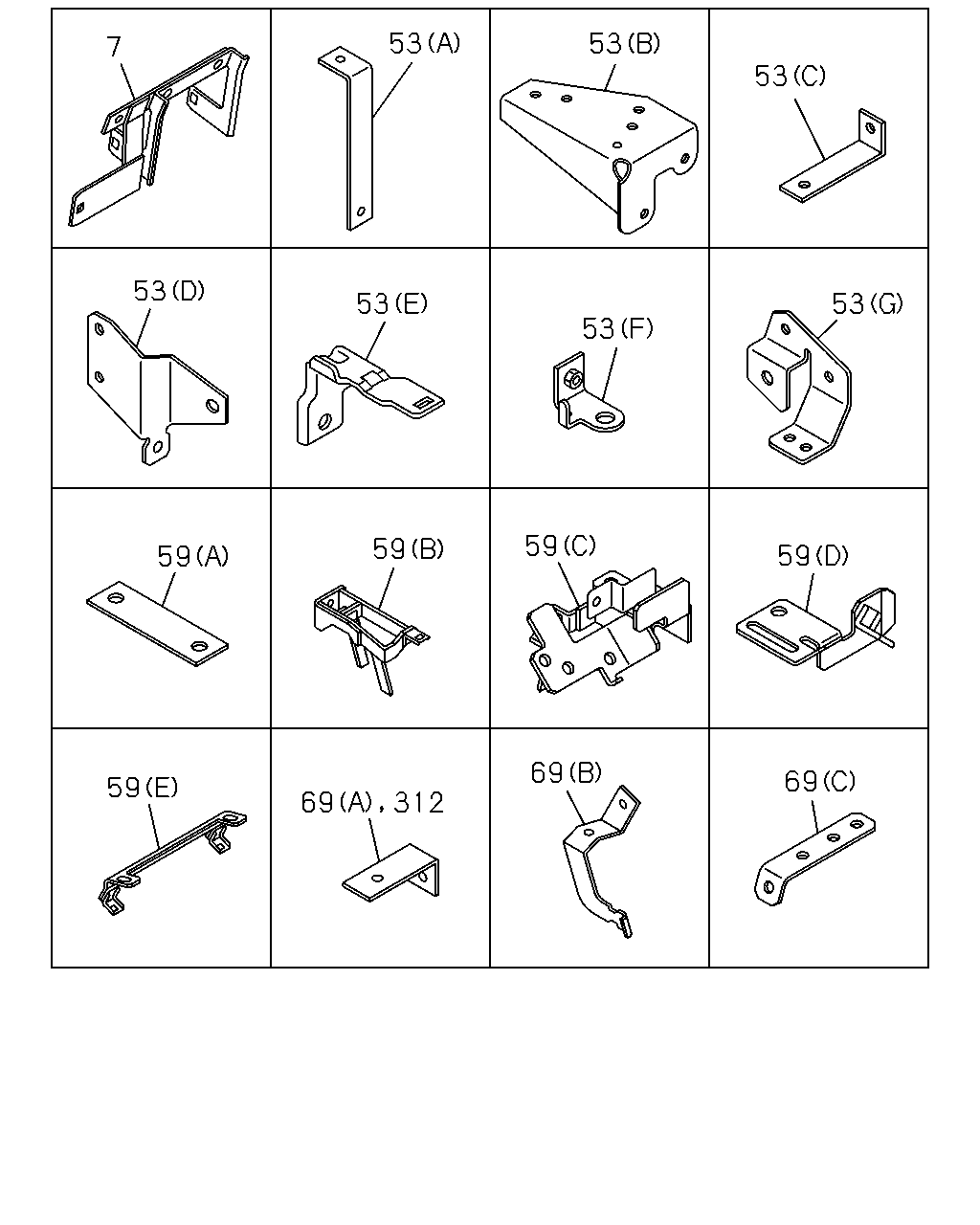

53 53 7 53 53 53 53 53 59 59 59 59 69 69 59 69 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0710-	●	●
53	BRACKET; HARNESS (A) L=145	1-47475-655-0	02	1	0710-	●
53	BRACKET; HARNESS (A) L=145	1-47475-655-0	02	1	0710-	●
53	BRACKET; HARNESS (C) L=95	1-82699-085-0	01	1	0710-	●
53	BRACKET; HARNESS (E)	8-98052-458-0	01	1	0710-	●	●
53	BRACKET; HARNESS (D)	8-98047-891-0	01	1	0710-	●	●
53	BRACKET; HARNESS (D)	8-98047-890-0	01	1	0710-	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G)	8-98084-590-0	01	1	0710-	●	●
53	BRACKET; HARNESS LCT2000 A/T ALLISON(Y4F) (B)	1-82698-295-1	01	1	0710-0710		●
53	BRACKET; HARNESS LCT2000 A/T ALLISON(Y4F) (F)	1-82698-296-0	03	1	0710-0711		●
53	BRACKET; HARNESS LCT2000 A/T ALLISON(Y4F) (F)	1-82698-296-0	02	1	0712-		●
59	BRACKET; FRAME HARNESS (B)	8-97609-264-2	01	1	0710-0805	●	●
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),LCT2000 A/T ALLISON(Y4F) (B)	8-97609-264-2	01	1	0806-0906	●	●
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (B)	8-97609-264-2	01	1	0907-	●	●
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	0710-0710	●	●
59	BRACKET; FRAME HARNESS EXC. A/T<X9D> (A) L=85	8-98044-743-0	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	0806-	●	●
69	BRACKET; CLIP (B)	8-97616-357-3	01	1	0710-	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=55	1-47475-304-0	01	1	0803-0803	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	1-82698-167-0	01	1	0804-	●	●
312	BRACKET; CLIP HARNESS L=55	1-47475-304-0	01	1	0710-	●	●

38 38 313 19 38 139 139 150 313 38 139 38 139 313 304 304 139 304 38 304 516 304 38 139 139 524 219 294 515 525 294 38 386 184 516 377 38 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0710-0807	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	05	1	0710-	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0710-	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0710-	●	●
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0710-1201	●	●
38	BOLT; CLIP,HARNESS (I) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS (G) M8X16 FLANGE	8-98076-109-0	01	1	0710-0710	●	●
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (H) M10X20 FLANGE	0-28751-020-0	01	1	0806-	●	●
38	BOLT; CLIP,HARNESS LCT2000 A/T ALLISON(Y4F) (C) M8X16 FLANGE	0-28050-816-0	02	1	0710-		●
38	BOLT; CLIP,HARNESS LCT2000 A/T ALLISON(Y4F) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-		●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0710	●	●
139	BOLT; BRKT EXC. A/T<X9D> (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0802	●	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
139	BOLT; BRKT EXC. A/T<X9D> (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-0812	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0710-	●	●
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-	●	●
150	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-	●	●
219	NUT M8 FLANGE	0-91180-108-0	05	1	0710-0804	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	0805-	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0710-	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0710-0804	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0710-0804	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0805-0812	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0805-0812	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0901-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0901-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0901-0901	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0804	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0805-0812	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0710-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0710-1107	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1108-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0710-0811	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0812-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0812-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0710-0811	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0812-	●	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0710-	●	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0710-1010	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0710-	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0710-	●	●
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
313	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0710-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0710-	●	●
516	BOLT; HARNESS MLD6W M/T(Y2C) (A) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0710-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0710-	●	●

16 48 14 16 48 194 206 217 225 491 612 612 14 14 48 102 208 48 530 503 503 1 224 1 1 48 81 225 228 231 178 178 14 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

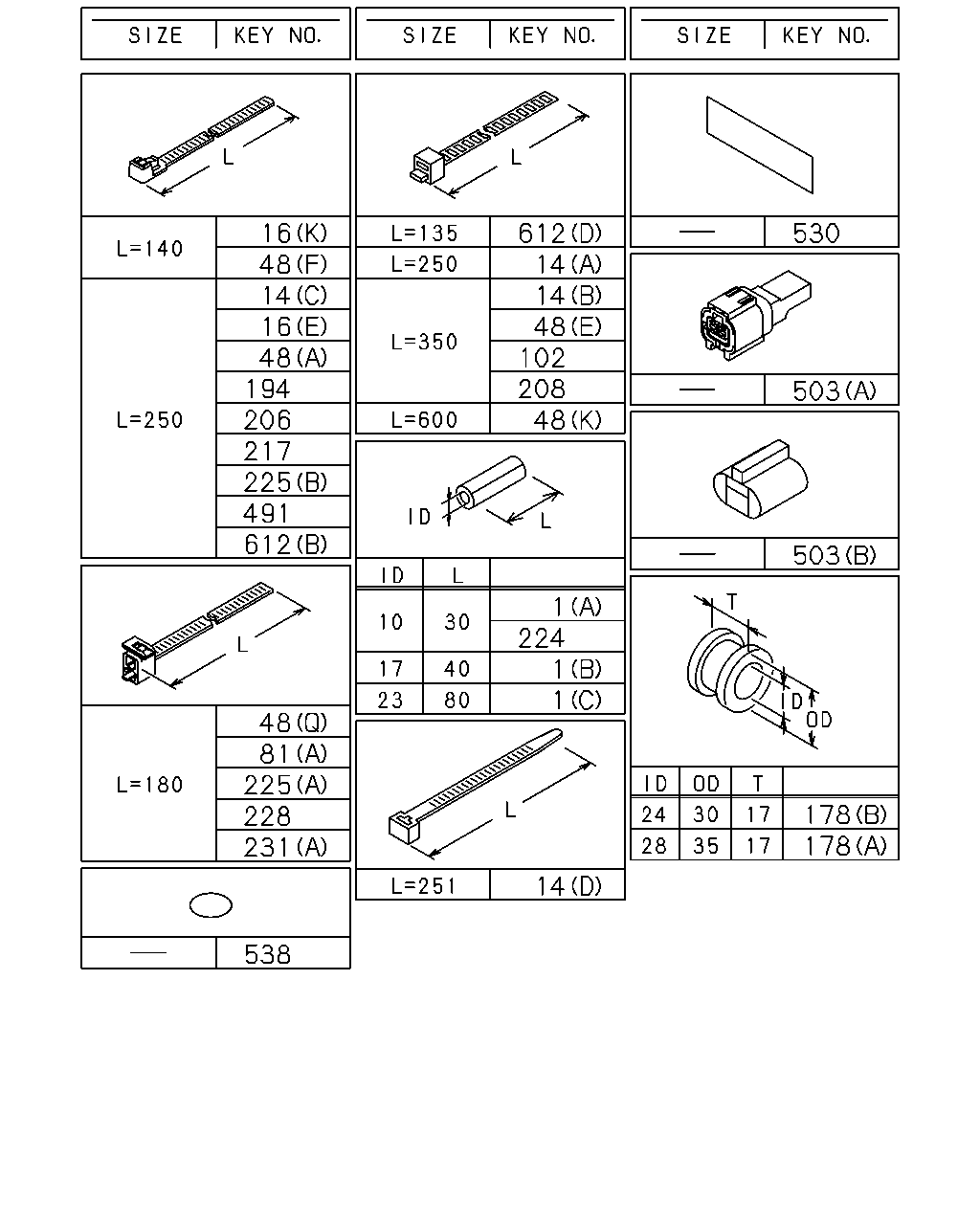

1	SLEEVE; RUBBER (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	0710-	●	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0710-	●	●
1	SLEEVE; RUBBER LCT2000 A/T ALLISON(Y4F) (B) ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-0803		●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0710-	●	●
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0710-	●	●
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0910-	●	●
14	CLIP; BAND,HARNESS MZX6P M/T(RSW) (C) L=250	5-09707-030-1	13	1	0710-0712	●	●
14	CLIP; BAND,HARNESS MZX6P M/T(RSW) (C) L=250	5-09707-030-1	14	1	0801-0805	●	●
14	CLIP; BAND,HARNESS MZX6P M/T(RSW),MLD6W M/T(Y2C) (C) L=250	5-09707-030-1	14	1	0806-0906	●	●
14	CLIP; BAND,HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C) L=250	5-09707-030-1	14	1	0907-0909	●	●
14	CLIP; BAND,HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C) L=250	5-09707-030-1	13	1	0910-1205	●	●
14	CLIP; BAND,HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C) L=250	8-98216-430-0	13	1	1206-	●	●
14	CLIP; BAND,HARNESS LCT2000 A/T ALLISON(Y4F) (C) L=250	5-09707-030-1	14	1	0710-0712		●
14	CLIP; BAND,HARNESS LCT2000 A/T ALLISON(Y4F) (C) L=250	5-09707-030-1	15	1	0801-0805		●
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	15	1	0801-0805		●
14	CLIP; BAND,HARNESS LCT2000 A/T ALLISON(Y4F) (C) L=250	5-09707-030-1	15	1	0806-0909		●
14	CLIP; BAND,HARNESS LCT2000 A/T ALLISON(Y4F) (C) L=250	5-09707-030-1	14	1	0910-1205		●
14	CLIP; BAND,HARNESS LCT2000 A/T ALLISON(Y4F) (C) L=250	8-98216-430-0	14	1	1206-		●

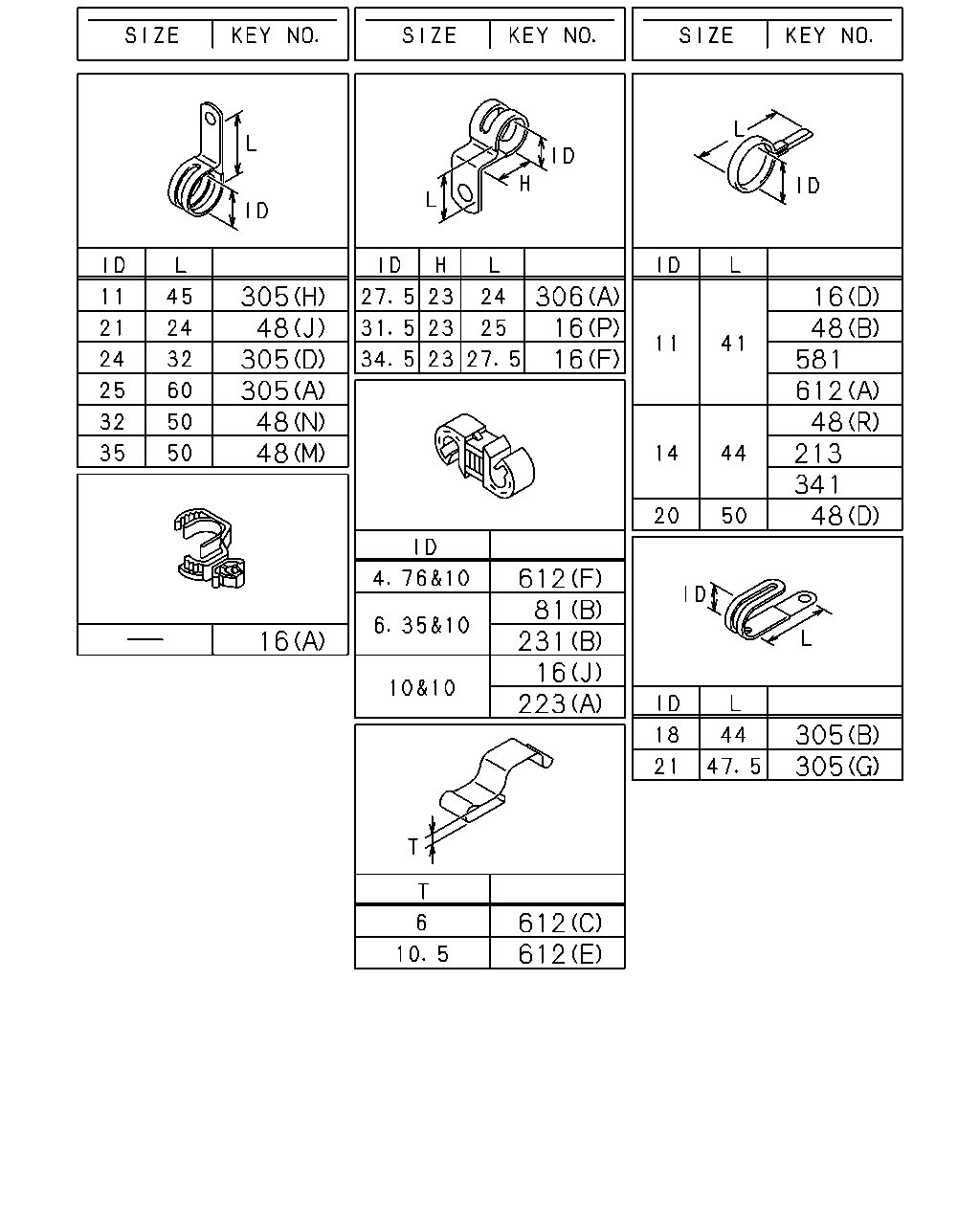

16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0710-0901	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	0710-0901	●
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-		●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	02	1	0710-	●
16	CLIP; HARNESS (O) ID=11 L=16	0-95235-025-0	04	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0710-	●	●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0710-0911	●	●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0710-0906	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0907-	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-0906	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0907-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (S) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (H) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (T) OD=9 H=6	1-09709-178-0	01	1	0804-	●	●
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (R) ID=16 L=28	8-97367-951-0	02	1	0710-0901		●
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (U) ID=11 L=20	0-95235-035-0	02	1	0902-		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0710-		●
48	CLIP; FRAME HARNESS (G) ID=11 L=20	0-95235-035-0	02	1	0710-	●
48	CLIP; FRAME HARNESS (I) ID=19 L=28	0-95235-856-0	02	1	0710-	●
48	CLIP; FRAME HARNESS (M) ID=35 L=50	1-09701-214-0	01	1	0710-	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50	1-09701-214-0	01	1	0710-		●
48	CLIP; FRAME HARNESS (J) ID=21 L=24	8-94176-807-1	03	1	0710-	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	19	1	0710-0804	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	18	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	19	1	0903-1007	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	12	1	1008-	●
48	CLIP; FRAME HARNESS (S) ID=18-24 L=22	1-09709-295-0	01	1	0805-	●
48	CLIP; FRAME HARNESS (R) ID=14 L=44	9-09917-427-0	07	1	1008-	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0710-	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0901	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0902-		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0710-1201	●	●
48	CLIP; FRAME HARNESS (R) ID=14 L=44	9-09917-427-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (O) ID=22 L=32	1-09700-126-1	02	1	0710-0710		●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (P) ID=19 L=32	0-95235-866-0	02	1	0710-		●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (Q) L=180	1-09707-162-1	01	1	0710-		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50	1-09701-055-1	01	1	0710-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	12	1	0710-0902		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0903-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (R) ID=14 L=44	9-09917-427-0	10	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0710-0804		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (T) ID=13-18 L=22	1-09709-292-0	01	1	0805-0910		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (T) ID=13-18 L=22	1-09709-292-0	01	1	0911-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (R) ID=14 L=44	9-09917-427-0	19	1	1008-		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0712-0901	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-	●	●
102	CLIP; BAND L=350	1-09707-183-0	01	1	0710-0911	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0710-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0710-0804	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0805-0806	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0807-0811	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	0805-0806	●	●
194	CLIP; BAND L=250	5-09707-030-1	02	1	0710-	●
194	CLIP; BAND L=250	5-09707-030-1	01	1	0710-0710	●	●
194	CLIP; BAND L=250	5-09707-030-1	01	1	0710-0803	●	●
194	CLIP; BAND LCT2000 A/T ALLISON(Y4F) L=250	5-09707-030-1	01	1	0710-0803		●
194	CLIP; BAND L=250	5-09707-030-1	01	1	0804-	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0710-0901	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	0710-0901	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0902-	●	●
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0710-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0710-	●	●
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	0710-0803	●	●
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0710-	●	●
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	01	1	0710-1011	●	●
228	CLIP; COOLER HARNESS L=180	1-09707-162-1	01	1	0804-0807	●	●
231	CLIP; BAND,OIL PRESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0710-0711	●	●
231	CLIP; BAND,OIL PRESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●	●
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> L=250	5-09707-030-1	03	1	0710-		●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-82690-668-0	01	1	0710-	●	●
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0804-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0710-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0710-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-	●
530	SEAL; HARNESS A/T<X9D> 180X40	1-72498-019-1	01	1	1306-		●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> 180X40	1-72498-019-1	01	1	1306-		●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0710-	●	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0710-	●	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0710-	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0710-	●	●
612	CLIP; HARNESS DPD (F) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-	●	●
612	CLIP; HARNESS DPD WHEEL BASE 5500MM(55W) (E) T=9 & 10.5	8-97371-949-0	03	1	0710-0804	●	●
612	CLIP; HARNESS DPD WHEEL BASE 3700MM(37W) (C) T=6.0	8-97371-948-0	03	1	0710-0804		●

305 48 305 305 48 48 306 16 16 16 48 581 612 48 213 341 48 612 81 231 16 223 16 305 305 612 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0710-0901	●
16	CLIP; HARNESS (D) ID=11 L=41	1-09700-403-0	03	1	0710-0901	●
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-		●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	02	1	0710-	●
16	CLIP; HARNESS (O) ID=11 L=16	0-95235-025-0	04	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	0710-	●	●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0710-0911	●	●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0710-0906	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	0907-	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-0906	●	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0907-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (S) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (H) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (T) OD=9 H=6	1-09709-178-0	01	1	0804-	●	●
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (R) ID=16 L=28	8-97367-951-0	02	1	0710-0901		●
16	CLIP; HARNESS LCT2000 A/T ALLISON(Y4F) (U) ID=11 L=20	0-95235-035-0	02	1	0902-		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0710-		●
48	CLIP; FRAME HARNESS (G) ID=11 L=20	0-95235-035-0	02	1	0710-	●
48	CLIP; FRAME HARNESS (I) ID=19 L=28	0-95235-856-0	02	1	0710-	●
48	CLIP; FRAME HARNESS (M) ID=35 L=50	1-09701-214-0	01	1	0710-	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=35 L=50	1-09701-214-0	01	1	0710-		●
48	CLIP; FRAME HARNESS (J) ID=21 L=24	8-94176-807-1	03	1	0710-	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	19	1	0710-0804	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	18	1	0805-0902	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	19	1	0903-1007	●	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	12	1	1008-	●
48	CLIP; FRAME HARNESS (S) ID=18-24 L=22	1-09709-295-0	01	1	0805-	●
48	CLIP; FRAME HARNESS (R) ID=14 L=44	9-09917-427-0	07	1	1008-	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0710-	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0901	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0902-		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0710-1201	●	●
48	CLIP; FRAME HARNESS (R) ID=14 L=44	9-09917-427-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (O) ID=22 L=32	1-09700-126-1	02	1	0710-0710		●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (P) ID=19 L=32	0-95235-866-0	02	1	0710-		●
48	CLIP; FRAME HARNESS LCT2000 A/T ALLISON(Y4F) (Q) L=180	1-09707-162-1	01	1	0710-		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50	1-09701-055-1	01	1	0710-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	12	1	0710-0902		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0903-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (R) ID=14 L=44	9-09917-427-0	10	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0710-0804		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (T) ID=13-18 L=22	1-09709-292-0	01	1	0805-0910		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (T) ID=13-18 L=22	1-09709-292-0	01	1	0911-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (R) ID=14 L=44	9-09917-427-0	19	1	1008-		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0712-0901	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0712-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	02	1	0804-0905		●
231	CLIP; BAND,OIL PRESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0710-0711	●	●
231	CLIP; BAND,OIL PRESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0711	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0710-	●	●
341	CLIP; BAND,STARTER RELAY ID=14 L=44	9-09917-427-0	01	1	0710-0802	●	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	03	1	0710-	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0710-	●	●
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0710-	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0710-	●	●
612	CLIP; HARNESS DPD (F) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-	●	●
612	CLIP; HARNESS DPD WHEEL BASE 5500MM(55W) (E) T=9 & 10.5	8-97371-949-0	03	1	0710-0804	●	●
612	CLIP; HARNESS DPD WHEEL BASE 3700MM(37W) (C) T=6.0	8-97371-948-0	03	1	0710-0804		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
