1 |

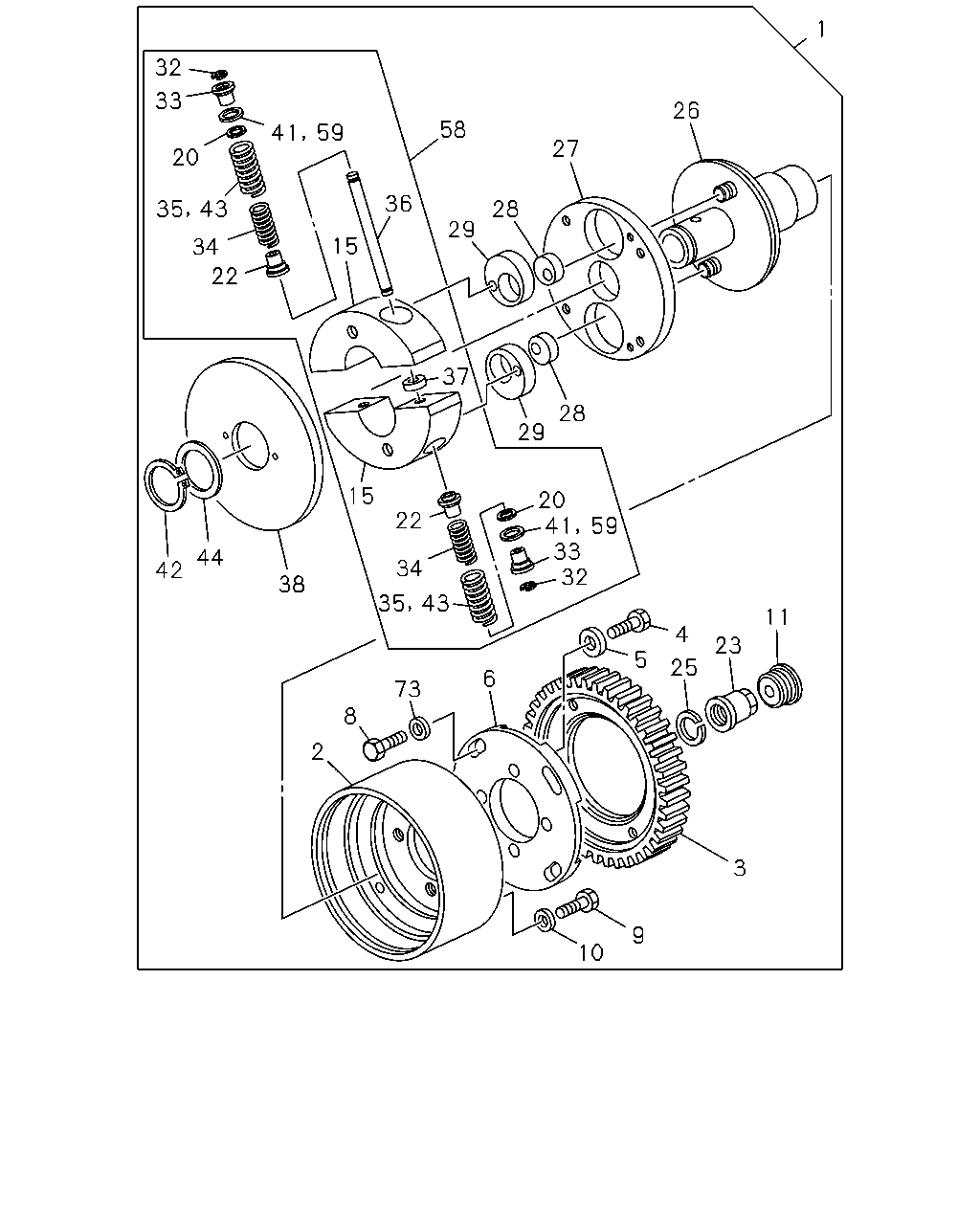

TIMER ASM; INJ PUMP
ASM PART: Q = 1-15603-227-2
|
1-15740-487-1 |
01 |
1 |
-0202 |
| |
1 |
TIMER ASM; INJ PUMP
ASM PART: H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
R = 1-15603-315-2
|
1-15740-487-1 |
01 |
1 |
-0011 |
| |
1 |
TIMER ASM; INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1
|
1-15740-487-1 |
01 |
1 |
- |
| |
1 |
TIMER ASM; INJ PUMP
ASM PART: K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15740-490-1 |
01 |
1 |
-0011 |
| |
1 |
TIMER ASM; INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2
|
1-15740-490-1 |
01 |
1 |
- |
| |
1 |
TIMER ASM; INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15740-507-0 |
01 |
1 |
- |
| |
1 |
TIMER ASM; INJ PUMP
ASM PART: Q = 1-15603-227-2
|
1-15740-529-0 |
01 |
1 |
0203- |
| |
1 |
TIMER ASM; INJ PUMP
ASM PART: H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
R = 1-15603-315-2
|
1-15740-529-0 |
01 |
1 |
0012- |
| |
1 |
TIMER ASM; INJ PUMP
ASM PART: K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15740-530-0 |
01 |
1 |
0012- |
| |
2 |
HOUSING; TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15741-016-0 |
01 |
1 |
- |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1
|
1-12524-034-0 |
01 |
1 |
-9603 |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: B = 1-15603-060-2
|
1-12524-034-0 |
01 |
1 |
-9606 |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: C = 1-15603-061-2, E = 1-15603-063-2
|
1-12524-034-0 |
01 |
1 |
-9611 |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
R = 1-15603-315-2
|
1-12524-085-3 |
01 |
1 |
0012- |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: Q = 1-15603-227-2
|
1-12524-085-3 |
01 |
1 |
0203- |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1
|
1-15789-190-0 |
01 |
1 |
9604- |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
R = 1-15603-315-2
|
1-15789-190-0 |
01 |
1 |
-0011 |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: D = 1-15603-062-2, G = 1-15603-123-2,
P = 1-15603-209-1
|
1-15789-190-0 |
01 |
1 |
- |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: B = 1-15603-060-2
|
1-15789-190-0 |
01 |
1 |
9607- |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: C = 1-15603-061-2, E = 1-15603-063-2
|
1-15789-190-0 |
01 |
1 |
9612- |
| |
3 |
GEAR; DRIVE,INJ PUMP
ASM PART: Q = 1-15603-227-2
|
1-15789-190-0 |
01 |
1 |
-0202 |
| |
4 |
BOLT; DRIVE GEAR FLANGE,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-188-0 |
04 |
1 |
- |
| |
5 |
WASHER; DRIVE GEAR FLANGE,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-189-0 |
04 |
1 |
- |
| |
6 |
FLANGE; DRIVE GEAR,INJ PUMP
T=1.00
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15742-036-0 |
01 |
1 |
- |
| |
8 |
BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-186-0 |
04 |
1 |
- |
| |
9 |
BOLT; TIMER HSG,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-190-0 |
04 |
1 |
- |
| |
10 |
WASHER; HSG FIX BOLT,TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-191-0 |
04 |
1 |
- |
| |
11 |
CAP; TIMER HSG,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-698-0 |
01 |
1 |
- |
| |
15 |
FLYWEIGHT; TIMER,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15743-143-0 |
02 |
1 |
- |
| |
15 |
FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, K = 1-15603-204-2,
L = 1-15603-205-2, M = 1-15603-206-2,
N = 1-15603-207-2, O = 1-15603-208-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15743-150-0 |
02 |
1 |
- |
| |
20 |
SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.10
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-394-0 |
AR |
1 |
- |
| |
20 |
SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.30
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-395-0 |
AR |
1 |
- |
| |
20 |
SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.50
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-396-0 |
AR |
1 |
- |
| |
20 |
SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.00
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-397-0 |
AR |
1 |
- |
| |
20 |
SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.40
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-495-0 |
AR |
1 |
- |
| |
20 |
SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.70
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-496-0 |
AR |
1 |
- |
| |
22 |
SEAT; INNER SPRING,TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-635-0 |
04 |
1 |
- |
| |
23 |
NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-144-0 |
01 |
1 |
- |
| |
25 |
WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-145-0 |
01 |
1 |
- |
| |
26 |
FLANGE; TIMER,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15742-150-0 |
01 |
1 |
- |
| |
26 |
FLANGE; TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15742-153-0 |
01 |
1 |
- |
| |
26 |
FLANGE; TIMER,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15742-158-0 |
01 |
1 |
- |
| |
27 |
PLATE; CAM,TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-239-0 |
01 |
1 |
- |
| |
28 |
CAM; INNER,ECCENTRIC,TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-152-0 |
02 |
1 |
- |
| |
29 |
CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-151-0 |
02 |
1 |
- |
| |
32 |
RING; SNAP,SPRING SEAT,TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-159-0 |
04 |
1 |
- |
| |
33 |
SEAT; OUTER SPRING,TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-176-0 |
04 |
1 |
- |
| |
34 |
SPRING; TIMER,INNER,INJ PUMP
L=44 ASM PART: E = 1-15603-063-2
|
1-15749-881-0 |
01 |
1 |
-9611 |
| |
34 |
SPRING; TIMER,INNER,INJ PUMP
L=40 ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-883-0 |
04 |
1 |
- |
| |
35 |
SPRING; TIMER,OUTER,INJ PUMP
L=45 ASM PART: E = 1-15603-063-2
|
1-15749-880-0 |
04 |
1 |
9612- |
| |
35 |
SPRING; TIMER,OUTER,INJ PUMP
L=45 ASM PART: D = 1-15603-062-2, K = 1-15603-204-2,
L = 1-15603-205-2, N = 1-15603-207-2,
O = 1-15603-208-2
|
1-15749-880-0 |
04 |
1 |
- |
| |
35 |
SPRING; TIMER,OUTER,INJ PUMP
L=45 ASM PART: E = 1-15603-063-2
|
1-15749-880-0 |
01 |
1 |
-9611 |
| |
35 |
SPRING; TIMER,OUTER,INJ PUMP
L=44 ASM PART: E = 1-15603-063-2
|
1-15749-882-0 |
04 |
1 |
-9611 |
| |
35 |
SPRING; TIMER,OUTER,INJ PUMP
L=44 ASM PART: D = 1-15603-062-2
|
1-15749-882-0 |
04 |
1 |
- |
| |
36 |
PIN; PILOT,TIMER SPRING,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-174-0 |
02 |
1 |
- |
| |
37 |
SPACER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-402-0 |
02 |
1 |
- |
| |
38 |
COVER; TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-283-0 |
01 |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.10
ASM PART: B = 1-15603-060-2
|
1-15749-390-0 |
AR |
1 |
-9606 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.10
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-390-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.10
ASM PART: C = 1-15603-061-2
|
1-15749-390-0 |
AR |
1 |
-9611 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.30
ASM PART: C = 1-15603-061-2
|
1-15749-391-0 |
AR |
1 |
-9611 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.30
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-391-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.30
ASM PART: B = 1-15603-060-2
|
1-15749-391-0 |
AR |
1 |
-9606 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.50
ASM PART: C = 1-15603-061-2
|
1-15749-392-0 |
AR |
1 |
-9611 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.50
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-392-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.50
ASM PART: B = 1-15603-060-2
|
1-15749-392-0 |
AR |
1 |
-9606 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00
ASM PART: C = 1-15603-061-2
|
1-15749-393-0 |
AR |
1 |
-9611 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00
ASM PART: B = 1-15603-060-2
|
1-15749-393-0 |
AR |
1 |
-9606 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-393-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.40
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-493-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.40
ASM PART: C = 1-15603-061-2
|
1-15749-493-0 |
AR |
1 |
-9611 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.40
ASM PART: B = 1-15603-060-2
|
1-15749-493-0 |
AR |
1 |
-9606 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15749-494-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70
ASM PART: C = 1-15603-061-2
|
1-15749-494-0 |
AR |
1 |
-9611 |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70
ASM PART: B = 1-15603-060-2
|
1-15749-494-0 |
AR |
1 |
-9606 |
| |
42 |
RING; SNAP,TIMER COVER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-185-0 |
01 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
D=2.0 L=47.5
ASM PART: C = 1-15603-061-2
|
1-15749-873-0 |
01 |
1 |
-9611 |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
D=2.0 L=47.5
ASM PART: B = 1-15603-060-2
|
1-15749-873-0 |
01 |
1 |
-9606 |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
D=2.0 L=47.5
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1
|
1-15749-873-0 |
01 |
1 |
-9603 |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
D=2.2 L=45.5
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1
|
1-15749-874-0 |
01 |
1 |
-9603 |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
D=2.2 L=45.5
ASM PART: C = 1-15603-061-2
|
1-15749-874-0 |
01 |
1 |
-9611 |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
D=2.2 L=45.5
ASM PART: B = 1-15603-060-2
|
1-15749-874-0 |
01 |
1 |
-9606 |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
D=2.1 L=46.5
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-879-0 |
04 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
T=2.0 L=46
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15749-902-0 |
01 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
T=2.0 L=45
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15749-903-0 |
01 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
T=2.0 L=43.5
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15749-904-0 |
01 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
T=2.2 L=43.5
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15749-905-0 |
01 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
T=2.0 L=44
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15749-906-0 |
04 |
1 |
- |
| |
44 |
SHIM; TIMER COVER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-184-0 |
01 |
1 |
- |
| |
58 |
FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, F = 1-15603-072-1,
H = 1-15603-201-2, I = 1-15603-202-2,
J = 1-15603-203-2, M = 1-15603-206-2,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15743-148-0 |
01 |
1 |
- |
| |
58 |
FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: D = 1-15603-062-2, E = 1-15603-063-2,
K = 1-15603-204-2, L = 1-15603-205-2,
N = 1-15603-207-2, O = 1-15603-208-2
|
1-15743-152-0 |
01 |
1 |
- |
| |
58 |
FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: G = 1-15603-123-2, P = 1-15603-209-1
|
1-15743-159-0 |
01 |
1 |
- |
| |
59 |
SHIM; SPR,TIMER
T=0.10
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-390-0 |
AR |
1 |
- |
| |
59 |
SHIM; SPR,TIMER
T=0.10
ASM PART: B = 1-15603-060-2
|
1-15749-390-0 |
AR |
1 |
9607- |
| |
59 |
SHIM; SPR,TIMER
T=0.10
ASM PART: C = 1-15603-061-2
|
1-15749-390-0 |
AR |
1 |
9612- |
| |
59 |
SHIM; SPR,TIMER
T=0.30
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-391-0 |
AR |
1 |
- |
| |
59 |
SHIM; SPR,TIMER
T=0.30
ASM PART: C = 1-15603-061-2
|
1-15749-391-0 |
AR |
1 |
9612- |
| |
59 |
SHIM; SPR,TIMER
T=0.30
ASM PART: B = 1-15603-060-2
|
1-15749-391-0 |
AR |
1 |
9607- |
| |
59 |
SHIM; SPR,TIMER
T=0.50
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-392-0 |
AR |
1 |
- |
| |
59 |
SHIM; SPR,TIMER
T=0.50
ASM PART: B = 1-15603-060-2
|
1-15749-392-0 |
AR |
1 |
9607- |
| |
59 |
SHIM; SPR,TIMER
T=0.50
ASM PART: C = 1-15603-061-2
|
1-15749-392-0 |
AR |
1 |
9612- |
| |
59 |
SHIM; SPR,TIMER
T=1.00
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-393-0 |
AR |
1 |
- |
| |
59 |
SHIM; SPR,TIMER
T=1.00
ASM PART: C = 1-15603-061-2
|
1-15749-393-0 |
AR |
1 |
9612- |
| |
59 |
SHIM; SPR,TIMER
T=1.00
ASM PART: B = 1-15603-060-2
|
1-15749-393-0 |
AR |
1 |
9607- |
| |
59 |
SHIM; SPR,TIMER
T=0.40
ASM PART: C = 1-15603-061-2
|
1-15749-493-0 |
AR |
1 |
9612- |
| |
59 |
SHIM; SPR,TIMER
T=0.40
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-493-0 |
AR |
1 |
- |
| |
59 |
SHIM; SPR,TIMER
T=0.40
ASM PART: B = 1-15603-060-2
|
1-15749-493-0 |
AR |
1 |
9607- |
| |
59 |
SHIM; SPR,TIMER
T=0.70
ASM PART: B = 1-15603-060-2
|
1-15749-494-0 |
AR |
1 |
9607- |
| |
59 |
SHIM; SPR,TIMER
T=0.70
ASM PART: A = 1-15603-059-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
M = 1-15603-206-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-494-0 |
AR |
1 |
- |
| |
59 |
SHIM; SPR,TIMER
T=0.70
ASM PART: C = 1-15603-061-2
|
1-15749-494-0 |
AR |
1 |
9612- |
| |
73 |
WASHER; DRIVE GEAR,INJ PUMP
ASM PART: A = 1-15603-059-2, B = 1-15603-060-2,
C = 1-15603-061-2, D = 1-15603-062-2,
E = 1-15603-063-2, F = 1-15603-072-1,
G = 1-15603-123-2, H = 1-15603-201-2,
I = 1-15603-202-2, J = 1-15603-203-2,
K = 1-15603-204-2, L = 1-15603-205-2,
M = 1-15603-206-2, N = 1-15603-207-2,
O = 1-15603-208-2, P = 1-15603-209-1,
Q = 1-15603-227-2, R = 1-15603-315-2
|
1-15749-187-0 |
04 |
1 |
- |
