◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11418 - FSR(AUST)EU4 EXC.SPA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#42807) — 193 parça

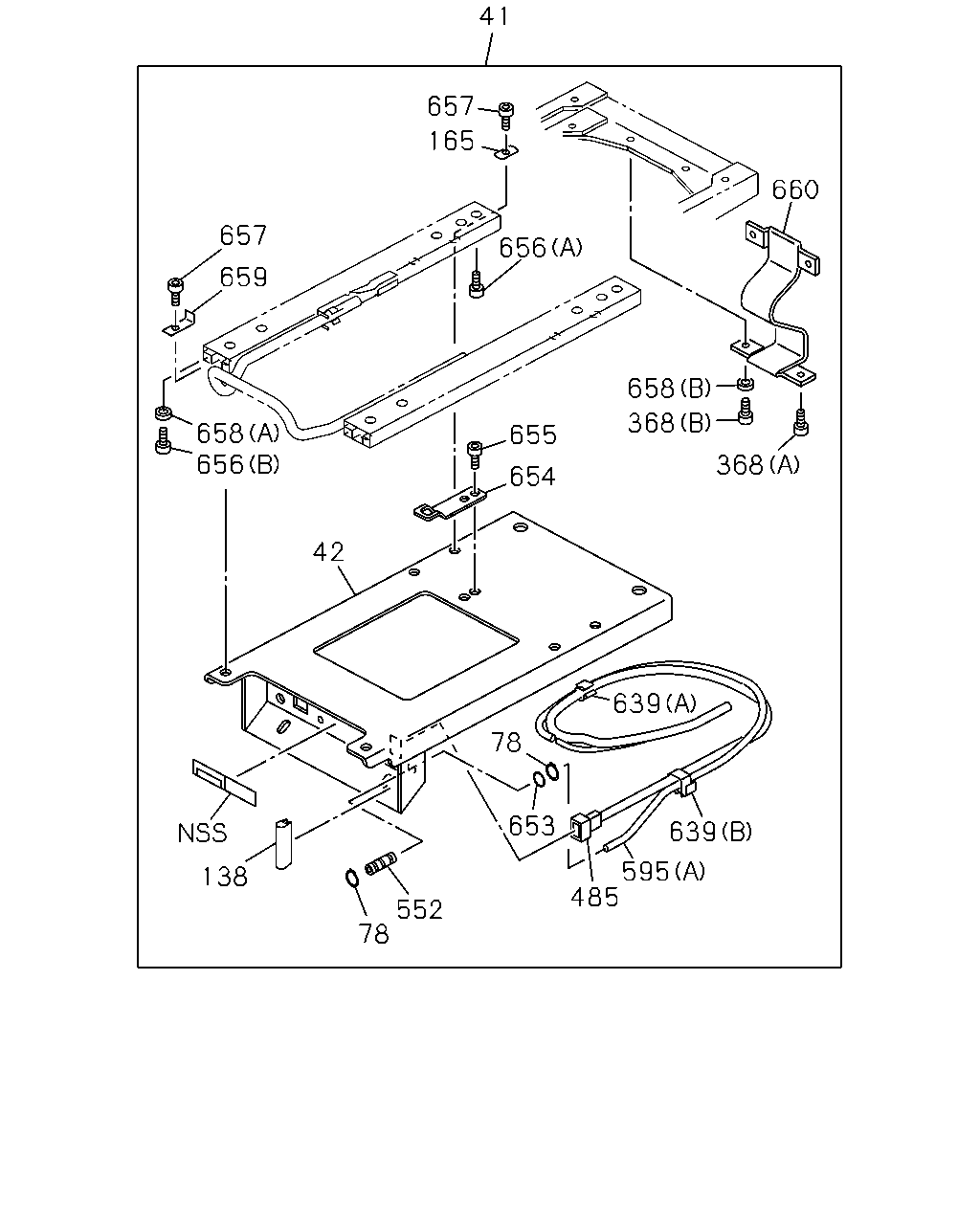

çizim 109318
41 657 165 656 660 657 659 658 368 368 655 654 42 658 656 138 78 552 78 639 653 639 595 485
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0710- ● ●
78 RING; SNAP 8-98101-900-0 02 1 0710- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0710- ● ●
165 WASHER; PL 1-75590-086-0 04 1 0710- ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0710- ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0710- ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0710- ● ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0710- ● ●
552 CONNECTOR 8-98101-902-0 01 1 0710- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0710- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0710- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0710- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0710- ● ●
653 GASKET 8-98101-901-0 01 1 0710- ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0710- ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 0710- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0710- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0710- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0710- ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0710- ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0710- ● ●
659 STOPPER 8-98106-356-0 02 1 0710- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 0710- ● ●

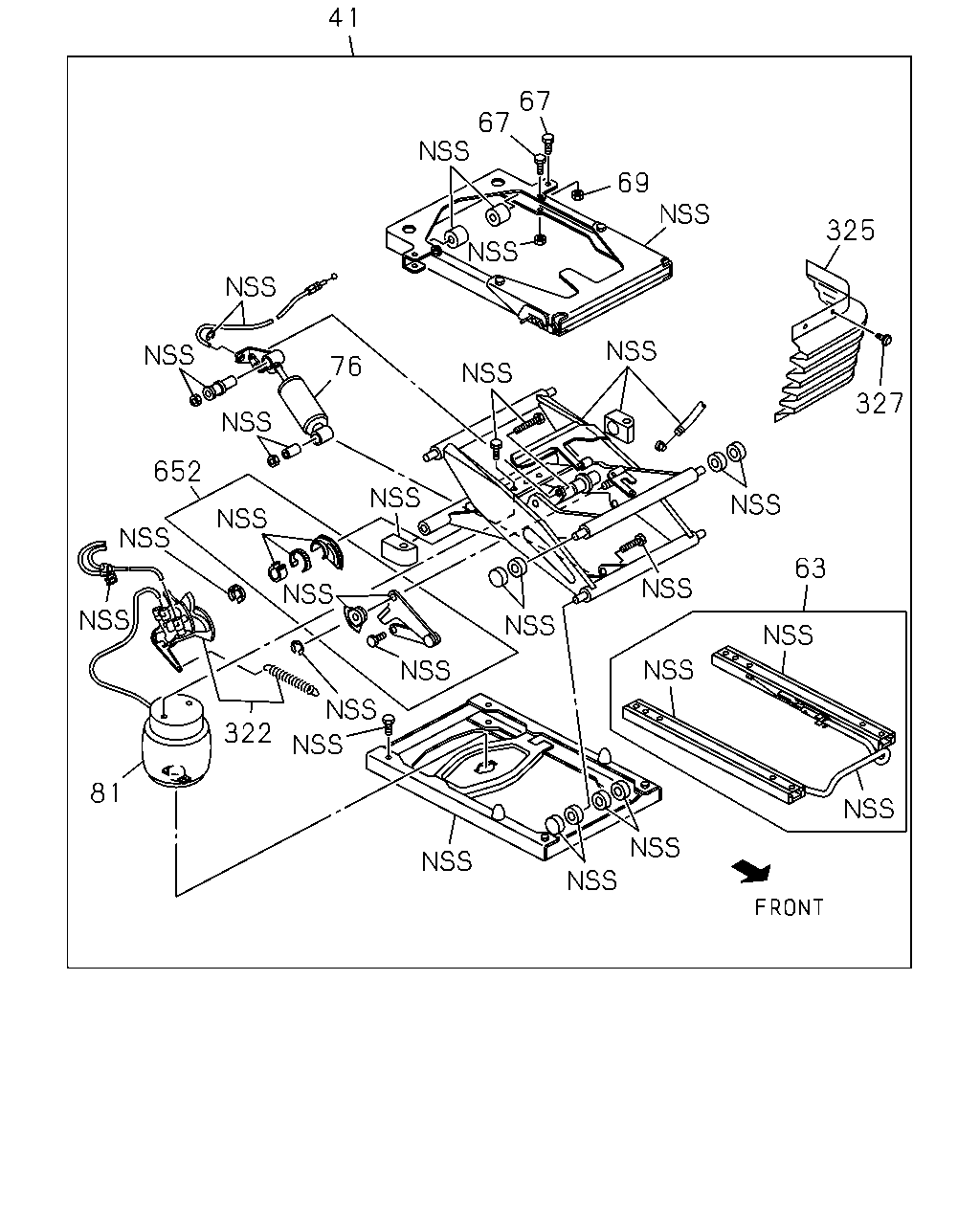

çizim 109319
41 67 69 325 327 63 67 76 652 81 322
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0710- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0710- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 0710- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0710- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0710- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0710- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0710- ● ●

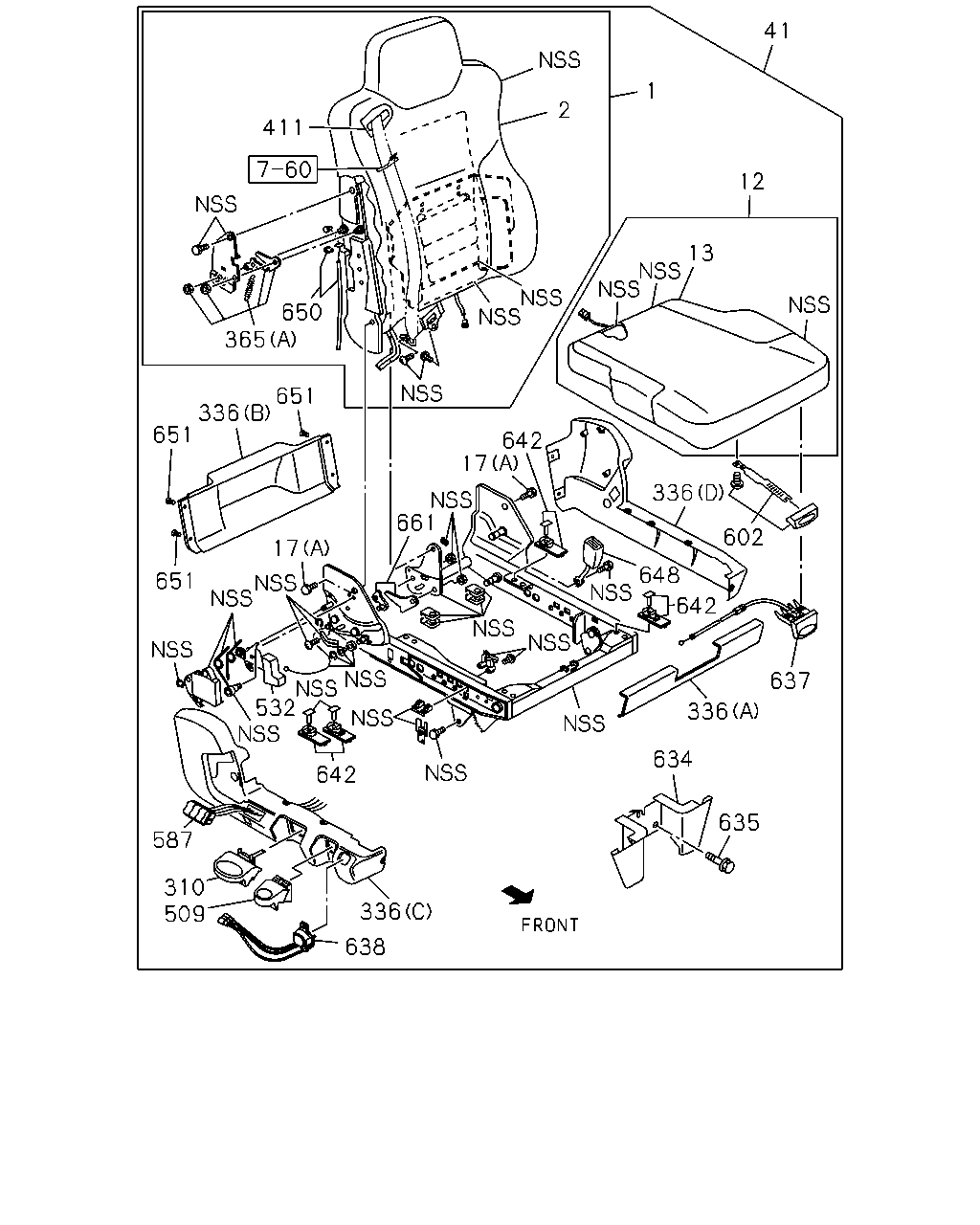

çizim 109559
41 1 2 12 13 642 17 661 336 602 648 642 637 336 634 635 336 638 509 587 310 532 17 651 336 651 651 365 650 411 642
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-964-0 01 1 0710- ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-963-0 01 1 0710- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0710-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0710- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0710- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 0710- ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M8X20 		8-98092-334-0 02 1 0710-0906 ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0907-0912 ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1001-1203 ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1204- ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0710- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0710- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 0710-0912 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1001- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0710- ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0710- ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 0710- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0710- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0710- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0710- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0710- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0710- ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0710- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0710- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0710- ● ●
650 CABLE 8-98097-973-0 01 1 0710-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301- ● ●
651 RIVET 8-98194-075-0 04 1 0710- ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0710- ● ●

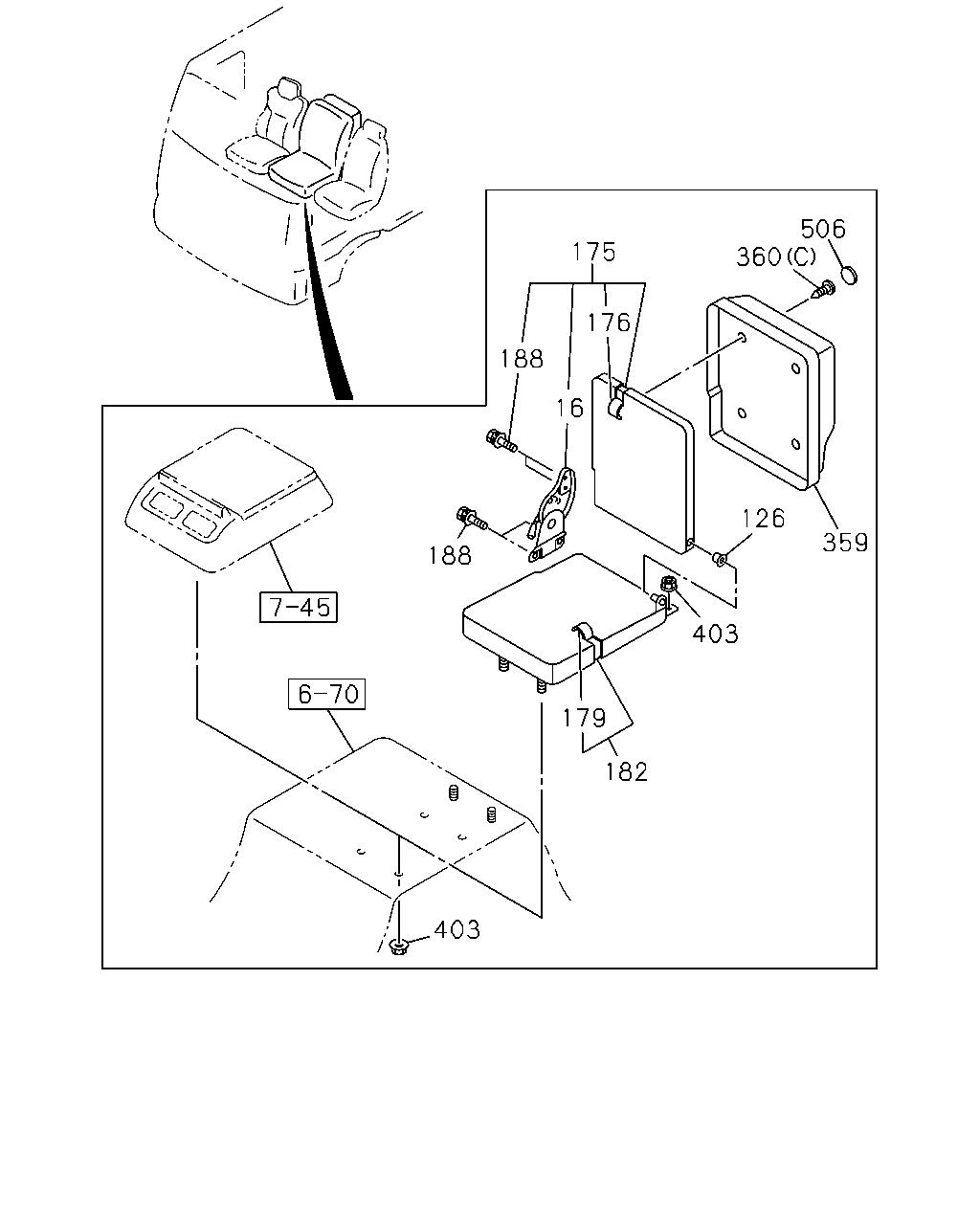

çizim 109565
506 360 175 176 188 126 16 359 403 179 182 188 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-75418-062-1 01 1 0710-0912 ● ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1001- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		8-97854-900-0 01 1 0710-0912 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1001- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-984-0 01 1 0710-0902 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-233-0 01 1 0903-0912 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-233-0 01 1 1001-1009 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1010- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-985-0 01 1 0710-0902 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-234-0 01 1 0903-0912 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-234-0 01 1 1001-1009 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1010- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-983-0 01 1 0710-0902 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-237-0 01 1 0903-0912 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-237-0 01 1 1001-1009 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1010- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-982-0 01 1 0710-0902 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-235-0 01 1 0903-0912 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-235-0 01 1 1001-1009 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1010- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE 		1-75198-053-0 04 1 0710-0912 ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1001- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-977-2 01 1 0710-0912 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 1001-1006 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1001-1009 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1001- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1001-1110 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20 		9-09829-324-1 02 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1001-1009 ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-980-1 04 1 0710-0912 ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 04 1 1001-1006 ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1007- ● ●

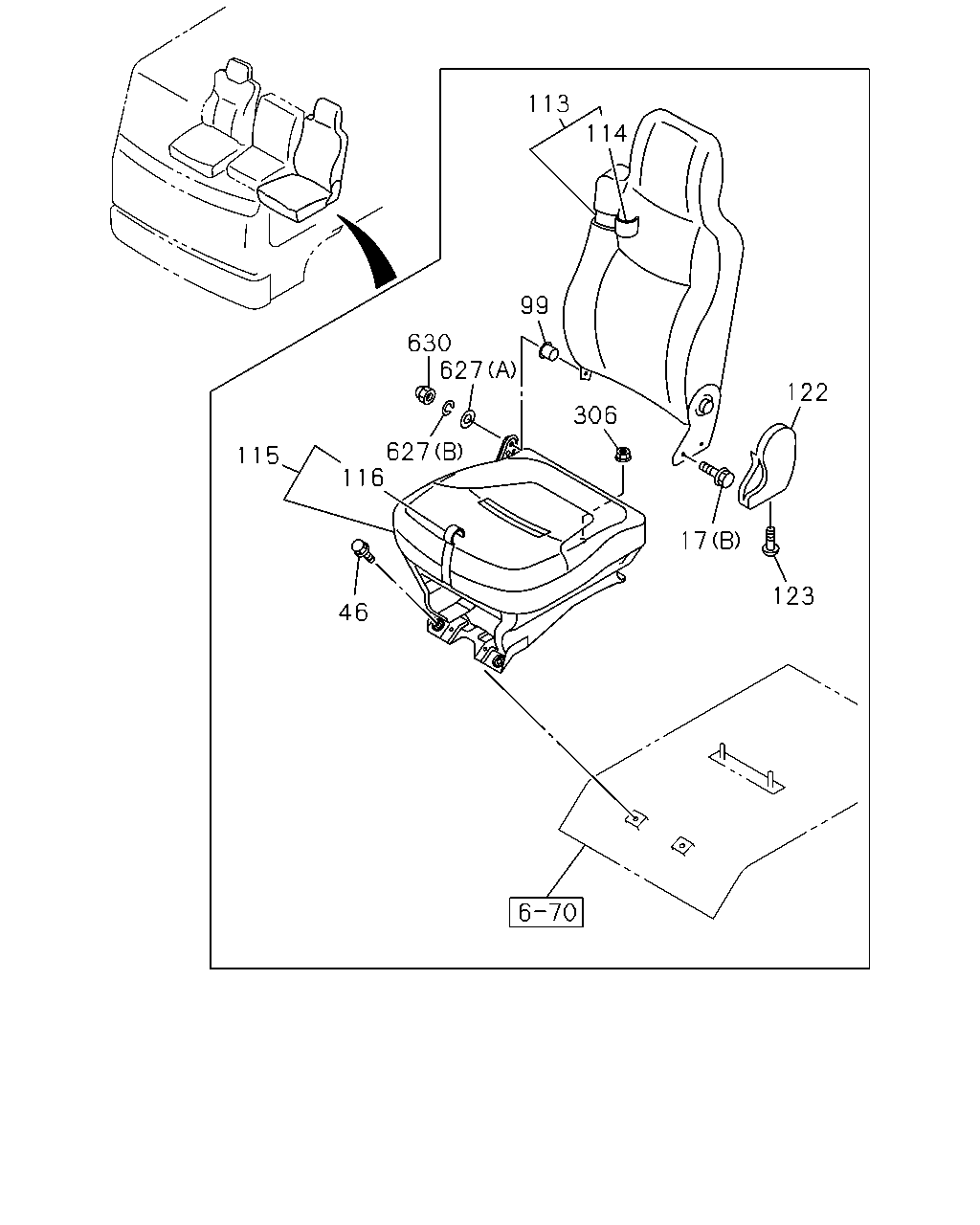

çizim 109576
113 114 122 17 123 46 115 116 627 627 630 99 306
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 0710- ● ●
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M8X20 		8-98092-334-0 02 1 0710-0906 ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0907-0912 ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1001-1203 ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1204- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
99 BUSHING; SEAT BACK
SEAT CLOTH<7FL> 		8-98063-219-0 01 1 0710-0906 ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0907-1009 ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97409-969-0 01 1 0710-0902 ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 0903-1009 ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-914-0 01 1 0710-0902 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 0903-1009 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-968-0 01 1 0710-0902 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 0903-1009 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-0 01 1 1010- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-913-0 01 1 0710-0902 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 0903-1009 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010- ● ●
122 COVER; ADJ,RECLINING
SEAT CLOTH<7FL> GRAY 		8-97409-967-0 01 1 0710-0906 ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0907-0912 ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1001- ● ●
123 SCREW; COVER,RECLINING
SEAT CLOTH<7FL> 		8-98070-026-0 01 1 0710-0906 ● ●
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 0907-0912 ● ●
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 1001- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 0710-0906 ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0907-0912 ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1001- ● ●
627 WASHER; FRT SEAT
SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 0710-0906 ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0907-0912 ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1001- ● ●
630 NUT; CAP
SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 0710-0906 ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 0907-0912 ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1001- ● ●

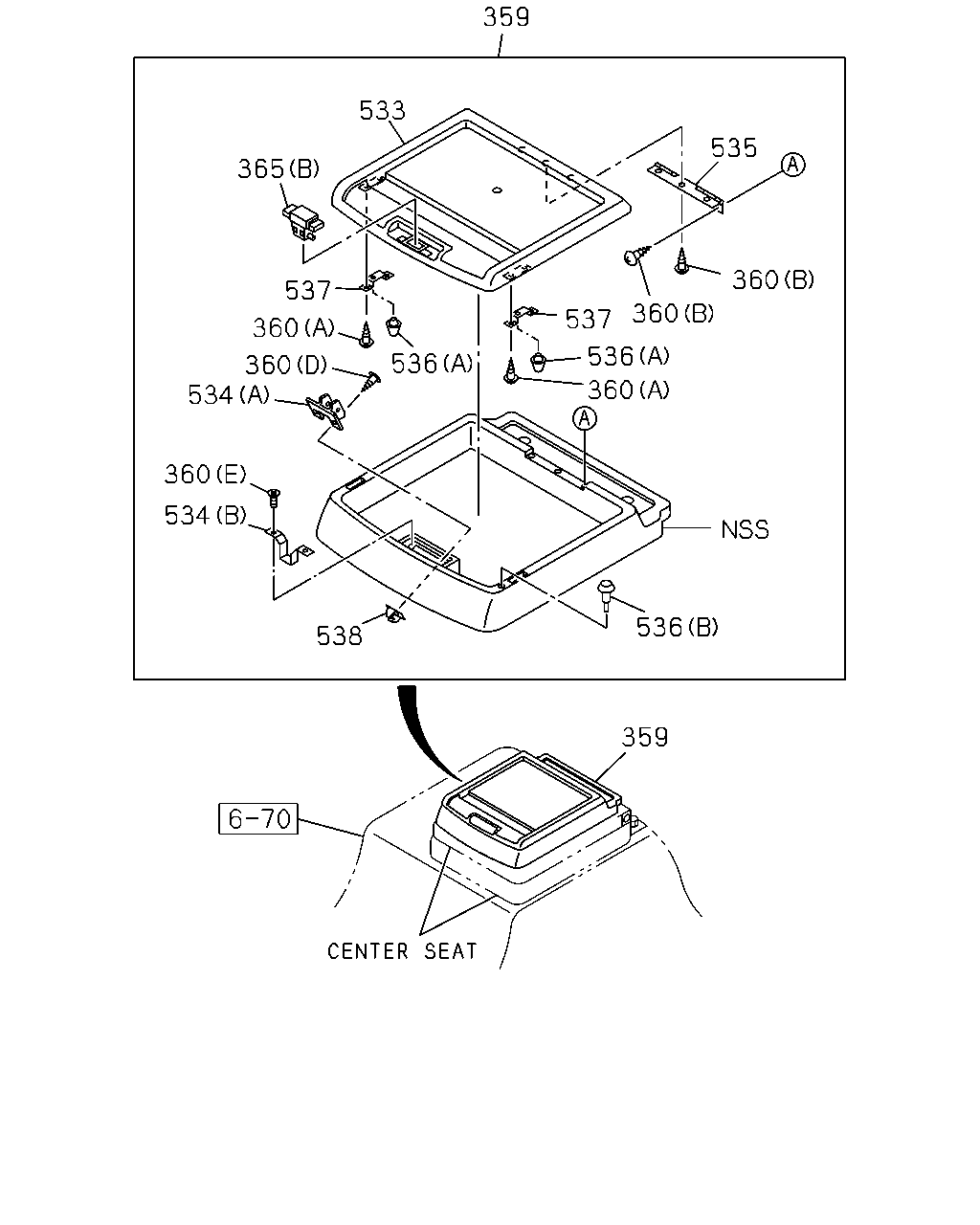

çizim 109586
535 359 533 365 537 360 360 534 360 534 538 536 359 360 536 537 360 536 360
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-977-2 01 1 0710-0912 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 1001-1006 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1001-1009 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1001- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1001-1110 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20 		9-09829-324-1 02 1 0710-0912 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1001-1009 ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0710- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 0710-0912 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1001- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-979-1 01 1 0710-0912 ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-979-1 01 1 1001-1006 ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) 		1-72538-181-0 01 1 0710-0912 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 1001-1009 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72447-391-1 01 1 0710-0912 ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1001- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) 		5-09983-002-1 02 1 0710-0912 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 1001-1009 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010- ● ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72548-057-1 02 1 0710-0912 ● ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 1001-1009 ● ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-09983-165-0 02 1 0710-0912 ● ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 1001-1009 ● ●

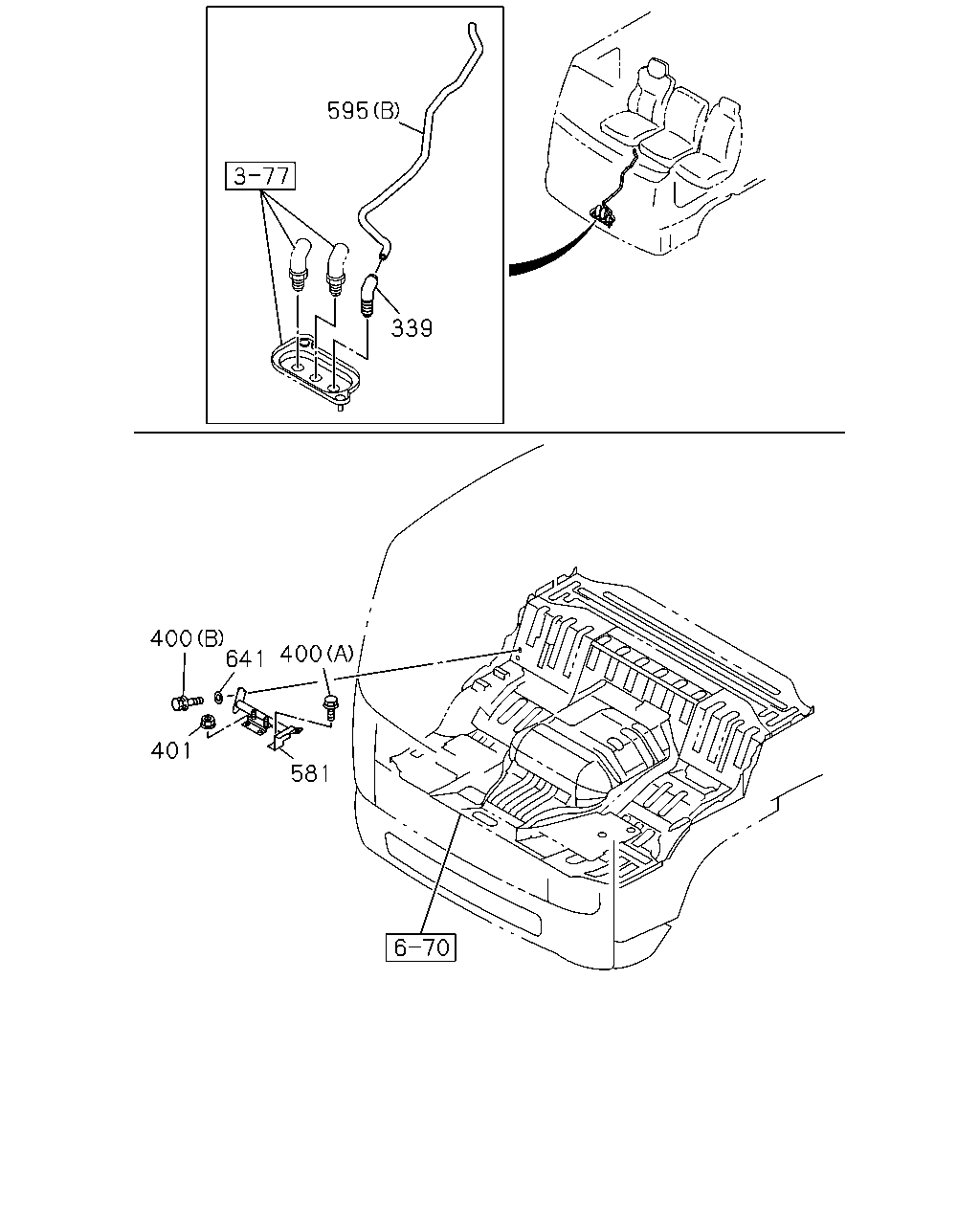

çizim 337044
595 339 400 400 641 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 0710- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0710- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
581 PIPE; SEAT 8-97589-692-3 01 1 0710- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0710- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0710- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
