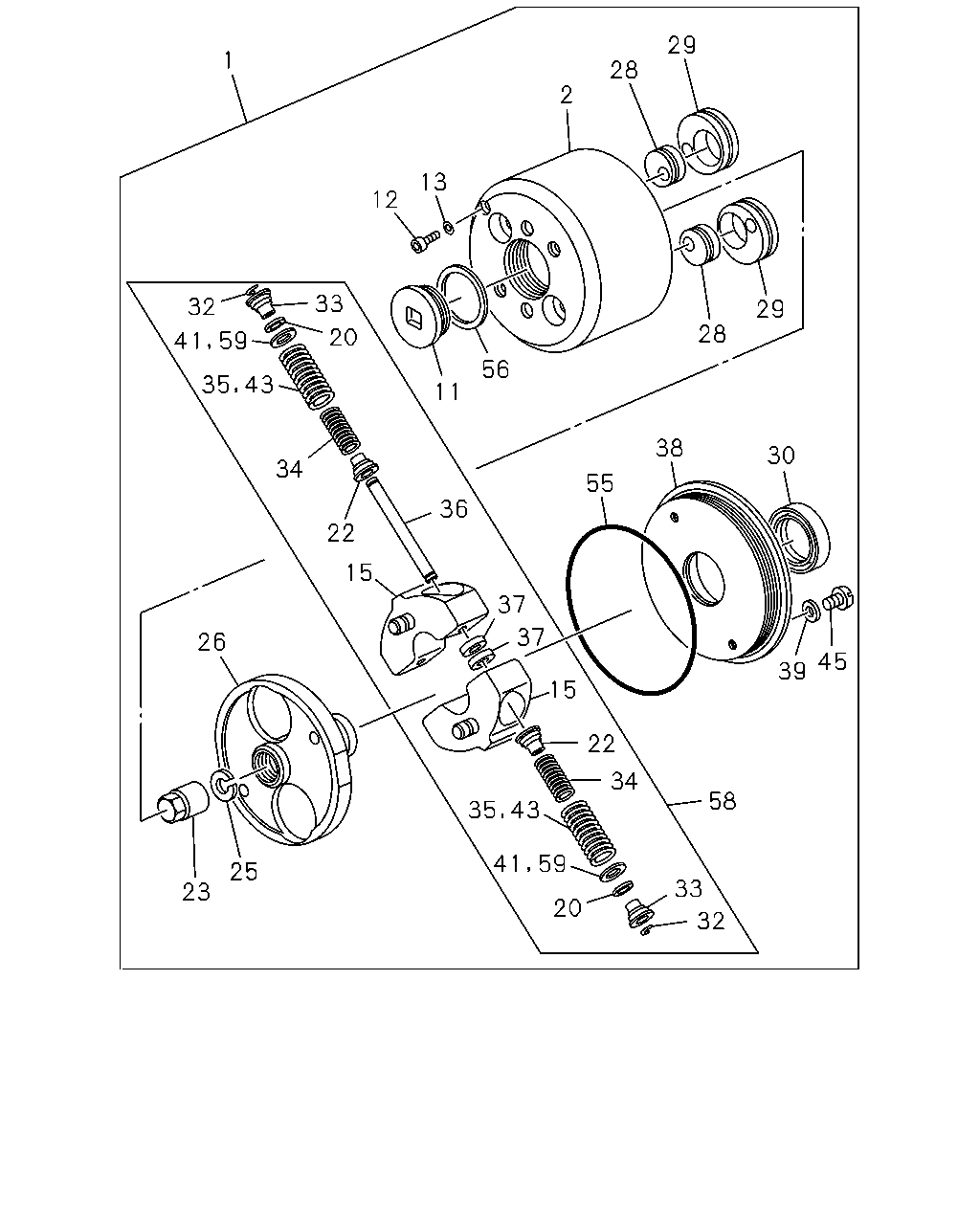

0-85A — AUTO TIMER; INJECTION PUMP (#4280) — 75 parça

29 1 28 2 13 12 33 32 29 28 20 56 11 38 30 34 55 36 22 15 37 37 26 45 39 15 22 34 58 25 33 23 20 32 41 59 35 43 35 43 41 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-068-5	1-15740-488-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15603-114-4	1-15740-494-0	01	1	-9610
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15603-115-2	1-15740-495-1	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15603-121-2	1-15740-496-0	01	1	-9702
1	TIMER ASM; INJ PUMP ASM PART: E = 1-15603-122-1	1-15740-497-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15603-114-4	1-15740-506-0	01	1	9611-
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15603-121-2	1-15740-509-0	01	1	9703-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15741-053-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15741-076-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-068-5, B = 1-15603-114-4, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-031-0	01	1	9611-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-030-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-030-0	01	1	9611-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15743-151-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15743-156-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP ID=15.2 T=0.5 ASM PART: B = 1-15603-114-4	1-15749-725-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP ID=15.2 T=1.0 ASM PART: B = 1-15603-114-4	1-15749-726-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-714-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-870-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-734-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-116-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-733-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-068-5	1-15742-154-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15742-157-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15742-159-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-152-0	02	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-713-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-151-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-712-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-729-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-789-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-718-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-715-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-871-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-895-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP L=55.5 ASM PART: B = 1-15603-114-4	1-15749-894-0	04	1	-9610
35	SPRING; TIMER,OUTER,INJ PUMP L=64 ASM PART: B = 1-15603-114-4	1-15749-908-0	04	1	9611-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-719-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-869-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-402-0	04	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-727-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-728-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-788-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-030-0	01	1	-9610
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.1 ASM PART: B = 1-15603-114-4	1-15749-720-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.3 ASM PART: B = 1-15603-114-4	1-15749-721-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.5 ASM PART: B = 1-15603-114-4	1-15749-722-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=0.7 ASM PART: B = 1-15603-114-4	1-15749-723-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP ID=20.2 T=1.0 ASM PART: B = 1-15603-114-4	1-15749-724-0	AR	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: C = 1-15603-115-2	1-15749-890-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: E = 1-15603-122-1	1-15749-891-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=50.0 ASM PART: D = 1-15603-121-2	1-15749-899-0	01	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP L=48.0 ASM PART: D = 1-15603-121-2	1-15749-900-0	04	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP L=46.5 ASM PART: D = 1-15603-121-2	1-15749-901-0	01	1	-9702
43	SPRING; PISTON,TIMER,INJ PUMP L=52.5 ASM PART: D = 1-15603-121-2	1-15749-913-0	04	1	9703-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-031-0	01	1	-9610
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15603-114-4	1-15749-730-0	01	1	-
56	GASKET; CAP ASM PART: A = 1-15603-068-5, B = 1-15603-114-4, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-068-5	1-15743-149-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 1-15603-122-1	1-15743-154-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15743-155-0	01	1	-9610
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: D = 1-15603-121-2	1-15743-158-0	01	1	-9702
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: B = 1-15603-114-4	1-15743-160-0	01	1	9611-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: C = 1-15603-115-2	1-15743-161-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: D = 1-15603-121-2	1-15743-162-0	01	1	9703-
59	SHIM; SPR,TIMER T=0.10 ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: A = 1-15603-068-5, C = 1-15603-115-2, D = 1-15603-121-2, E = 1-15603-122-1	1-15749-494-0	AR	1	-
