Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33A - FAN AND FAN BELT
▶

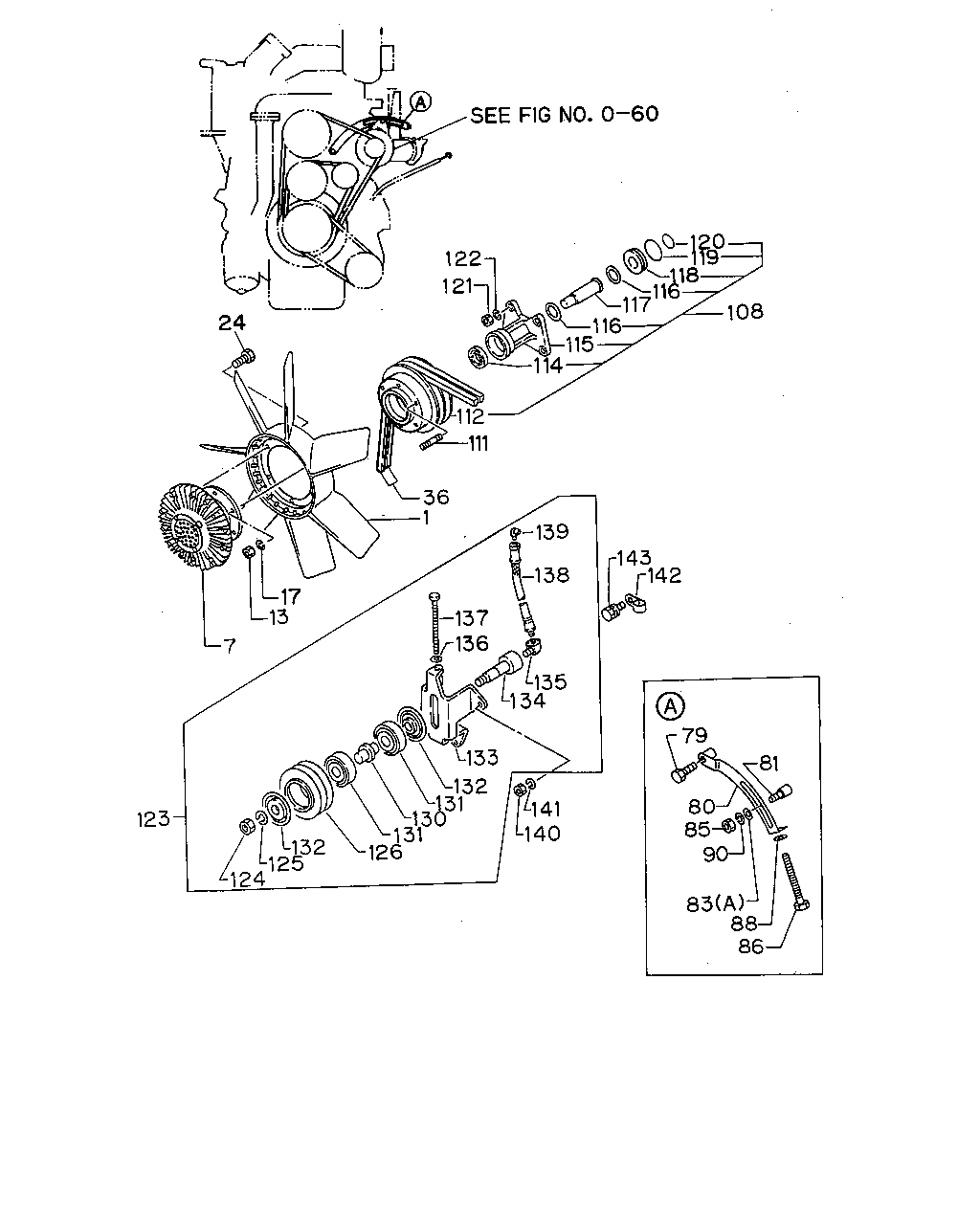

0-33A — FAN AND FAN BELT
(#428) — 59 parça
Tümü
A - 6RA1TC ENG
B - 6RB1TC ENG
C - 6RB1 TURBO ENG
122
120
108
119
121
118
116
117
116
115
114
112
111
36
24
17
13
7
1
123
139
142
143
138
137
136
135
134
133
132
131
130
131
126
132
125
124
141
140
79
81
80
85
90
83
88
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
FAN; COOLING
1-13660-209-3
01
1
8712-8807
●
●
●
1
FAN; COOLING
1-13660-224-0
01
1
8808-
●
●
●
7
COUPLING; FAN
1-21650-120-1
01
1
8712-
●
●
7
COUPLING; FAN
1-21650-116-1
01
1
8712-9306
●
13
NUT; COOLING FAN
M8
9-09110-408-0
06
1
8712-
●
●
●
17
WASHER; LK,FAN TO COUPLING
ID=8.2
9-09150-508-0
06
1
8712-
●
●
●
24
BOLT; FAN
M8X18 W/LK&PL WASHER
9-01970-818-0
06
1
8712-8905
●
●
24
BOLT; FAN
M8X16 FLANGE
0-28020-816-0
06
1
8906-9005
●
●
24
BOLT; FAN
M8X16 FLANGE
0-28080-816-0
06
1
9006-
●
24
BOLT; FAN
M8X16 W/LK WASHER
9-01910-816-0
06
1
8712-8905
●
24
BOLT; FAN
M8X14
0-28020-814-0
06
1
8906-9005
●
24
BOLT; FAN
M8X14 FLANGE
0-28080-814-0
06
1
9006-9306
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711530) MITSUBOSHI
1-13671-152-0
01
1
8712-
●
●
●
36
BELT; COOLING FAN
1 SET=3 PIECE(1136712850) MITSUBOSHI
1-13671-284-0
01
1
8712-
●
●
●
79
BOLT; PLATE
M12X45
9-01931-245-0
01
1
8712-9005
●
●
●
79
BOLT; PLATE
M12X45 W/LK WASHER
0-50051-245-0
01
1
9006-
●
●
80
PLATE; ADJ
1-13674-135-0
01
1
8712-
●
●
●
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
8712-
●
83
WASHER; PL
(A) ID=12.5
9-09160-512-0
01
1
8712-9306
●
●
●
83
WASHER; PL
(A) ID=12.5
9-09160-512-0
01
1
9307-
●
85
NUT; AC GEN
M12
9-99110-412-0
01
1
8712-
●
●
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
8712-9306
●
●
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9307-
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
8712-
●
●
●
90
WASHER; LK
ID=12.2
9-09150-512-0
01
1
8712-
●
●
●
108
CENTER; COOLING FAN
1-13660-211-1
01
1
8712-8712
●
●
●
108
CENTER; COOLING FAN
1-13660-244-1
01
1
8801-
●
●
●
111
STUD; FAN DRIVE
M8X20 L=32
9-04110-820-0
06
1
8712-
●
●
●
112
PULLEY; FAN CENTER
3-GROOVE
1-13663-048-0
01
1
8712-
●
●
●
114
SEAL; OIL
1-09625-325-0
01
1
8712-
●
●
●
115
BODY; FAN CENTER
1-13661-039-0
01
1
8712-8712
●
●
●
115
BODY; FAN CENTER
1-13661-048-1
01
1
8801-
●
●
●
116
BEARING; THRUST
1-13666-010-0
02
1
8712-
●
●
●
117
SPINDLE
1-13665-019-0
01
1
8712-8712
●
●
●
117
SPINDLE
1-13665-025-0
01
1
8801-
●
●
●
118
COLLAR; THRUST BRG
1-13666-009-1
01
1
8712-
●
●
●
119
GASKET; COLLAR
ID=49.7
1-09623-171-0
01
1
8712-
●
●
●
120
GASKET; FAN CENTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7
1-09623-184-0
01
1
8712-
●
●
●
121
NUT; FAN CENTER
M10
9-09110-410-0
04
1
8712-
●
●
●
122
WASHER; LK,FAN
ID=10.2
9-09150-510-0
04
1
8712-
●
●
●
123
PULLEY ASM; CENTER
1-13660-176-1
01
1
8712-
●
●
●
124
NUT; BRG
M18
9-99110-518-0
01
1
8712-
●
●
●
125
WASHER
ID=19 OD=36
9-09164-618-0
01
1
8712-
●
●
●
126
PULLEY; IDLE
3-GROOVE
1-13663-037-0
01
1
8712-
●
●
●
130
SPACER; IDLE PULLEY BRG
1-13666-013-1
01
1
8712-
●
●
●
131
BEARING; BALL,FAN PULLEY
1-09800-176-0
02
1
8712-
●
●
●
132
COVER; DUST
1-13664-009-1
02
1
8712-
●
●
●
133
BRACKET; IDLE PULLEY
1-13669-099-0
01
1
8712-
●
●
●
134
SPINDLE; IDLE PULLEY
1-13665-012-0
01
1
8712-
●
●
●
135
CONNECTOR
PT 1/8
1-09660-143-0
01
1
8712-
●
●
●
136
WASHER; TENSION
ID=10.5 OD=18
9-09160-510-0
01
1
8712-
●
●
●
137
BOLT; TENSION
M10X140
1-09000-104-1
01
1
8712-
●
●
●
138
HOSE; FLEX,IDLE PULLEY
9-09911-863-0
01
1
8712-
●
●
●
139
NIPPLE; GREASE,IDLE PULLEY
PT1/8 STRAIGHT
9-09031-010-0
01
1
8712-
●
●
●
140
NUT; IDLE PULLEY
M10
9-09110-410-0
03
1
8712-
●
●
●
141
WASHER; LK,IDLE PULLEY
ID=10.2
9-09150-510-0
03
1
8712-
●
●
●
142
CLIP; FLEX TUBE
1-09700-913-0
01
1
8712-
●
●
●
143
BOLT; CLIP,FLEX TUBE
M10X25
9-01971-025-0
01
1
8712-9002
●
●
●
143
BOLT; CLIP,FLEX TUBE
M10X25 W/LK&PL WASHER
0-50141-025-0
01
1
9003-
●
●
