6-76 — FLOOR EQUIPMENT AND SEALING (#42793) — 19 parça

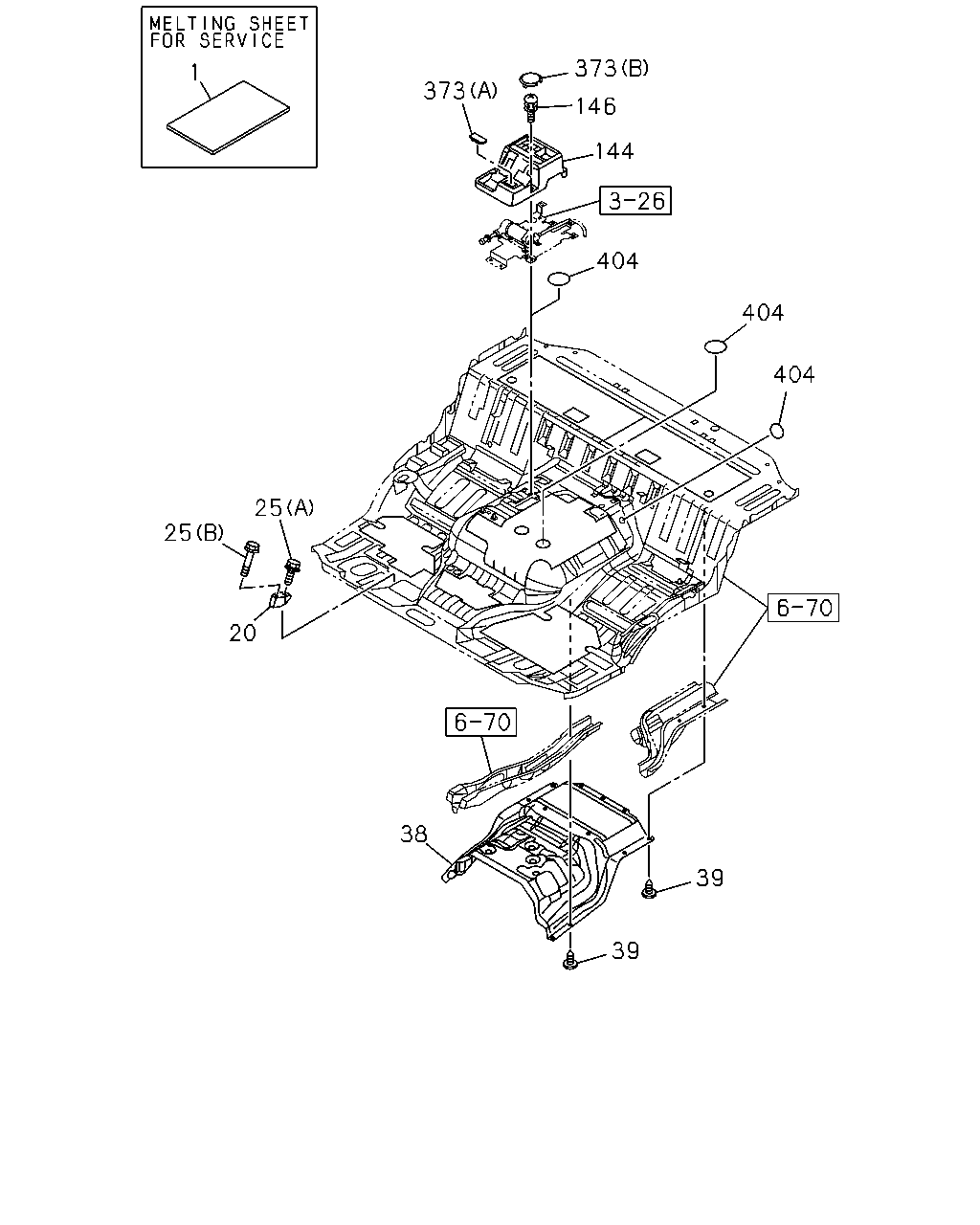

çizim 109544
373 1 373 146 144 404 404 404 25 25 20 38 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0710- ● ●
20 REST; FOOT 1-73907-176-1 01 1 0710- ● ●
25 SCREW; FOOT REST
(A) BOLT M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710- ● ●
25 SCREW; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 0710- ● ●
38 INSULATOR; ENG COVER 8-97586-180-6 01 1 0710-1310 ● ●
38 INSULATOR; ENG COVER 8-98240-137-1 01 1 1311- ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 24 1 0710- ● ●
144 COVER; HAND BRK VLV
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97409-812-0 01 1 0710-0710 ● ●
144 COVER; HAND BRK VLV
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-753-0 01 1 0711- ● ●
144 COVER; HAND BRK VLV
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97407-974-0 01 1 0710-0710 ● ●
144 COVER; HAND BRK VLV
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> GRAY 		8-97414-752-0 01 1 0711- ● ●
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 04 1 0710- ● ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 0710- ● ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 0711- ● ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 11 1 0710-0711 ● ●
404 SEAL; FLOOR,HOLE
OD=25 BLACK 		1-76798-019-0 12 1 0712- ● ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ●
çizim 109547
370 370 370
BalonParca AdiParca NoAdetTipApplied Date A B
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 0710-1211 ● ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212- ● ●
