◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11418 - FSR(AUST)EU4 EXC.SPA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#42790) — 23 parça

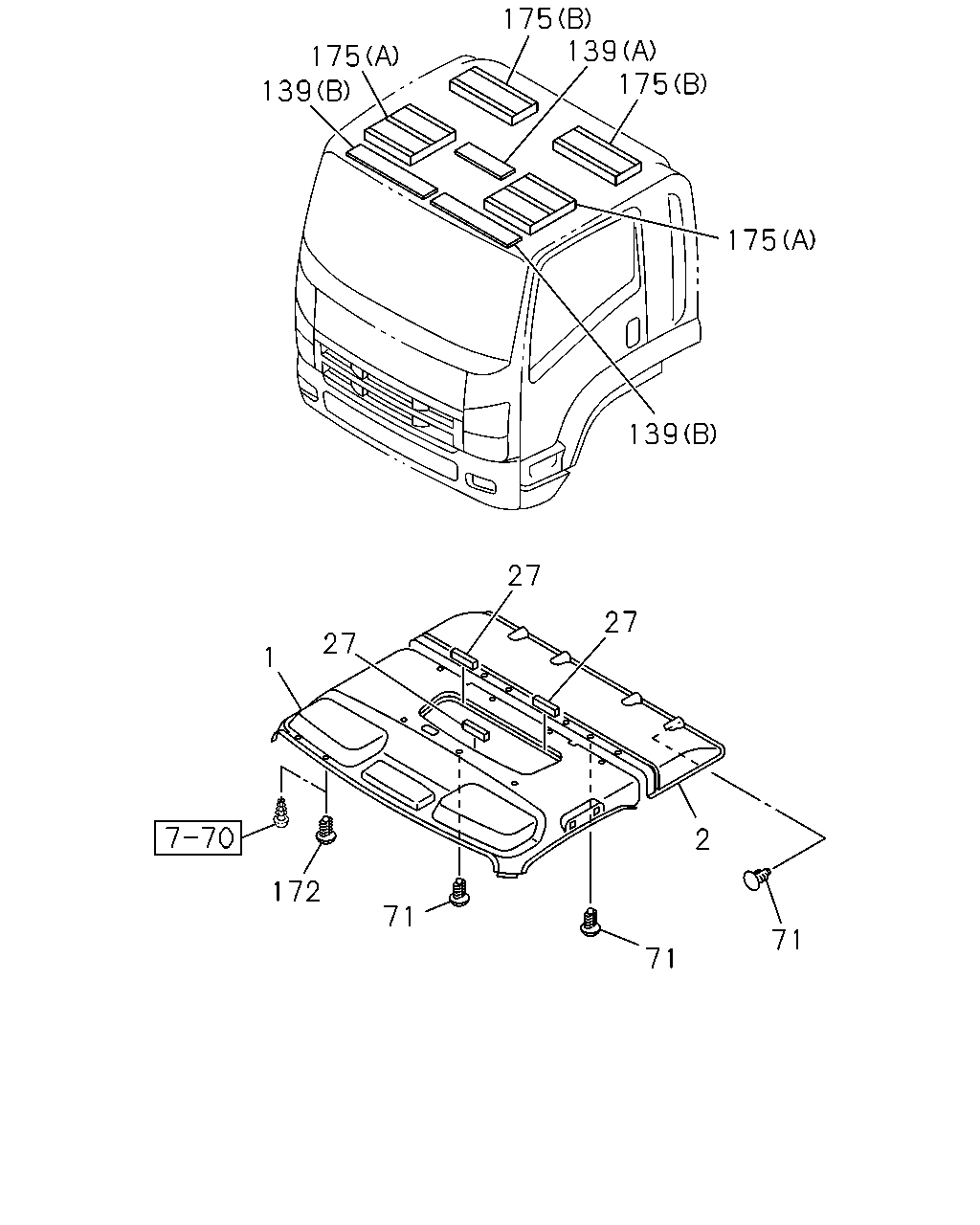

çizim 109543
175 139 175 175 139 175 139 27 27 27 1 2 172 71 71 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97409-789-4 01 1 0710-0710 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97407-443-5 01 1 0710-0811 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-347-0 01 1 0812-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-701-0 01 1 1307- ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97407-434-5 01 1 0710-0811 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-344-0 01 1 0812-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-698-0 01 1 1307- ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97407-433-5 01 1 0710-0811 ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-343-0 01 1 0812-1306 ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-697-0 01 1 1307- ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97407-451-4 01 1 0710-0804 ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97415-673-0 01 1 0805- ● ●
27 INSULATION; ROOF 8-98046-638-2 03 1 0710- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 09 1 0710-0710 ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 0710- ● ●
139 SEAL; ROOF
(B) 		8-98076-274-0 02 1 0710-1009 ● ●
139 SEAL; ROOF
(B) 		8-98169-116-0 02 1 1010- ● ●
139 SEAL; ROOF
(A) 		8-98076-275-0 01 1 0710-0712 ● ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 12 1 0710-0710 ● ●
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 12 1 0711-0804 ● ●
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 14 1 0805- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 0710- ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
