6-20 — SIDE PANEL AND STEP (#42782) — 56 parça

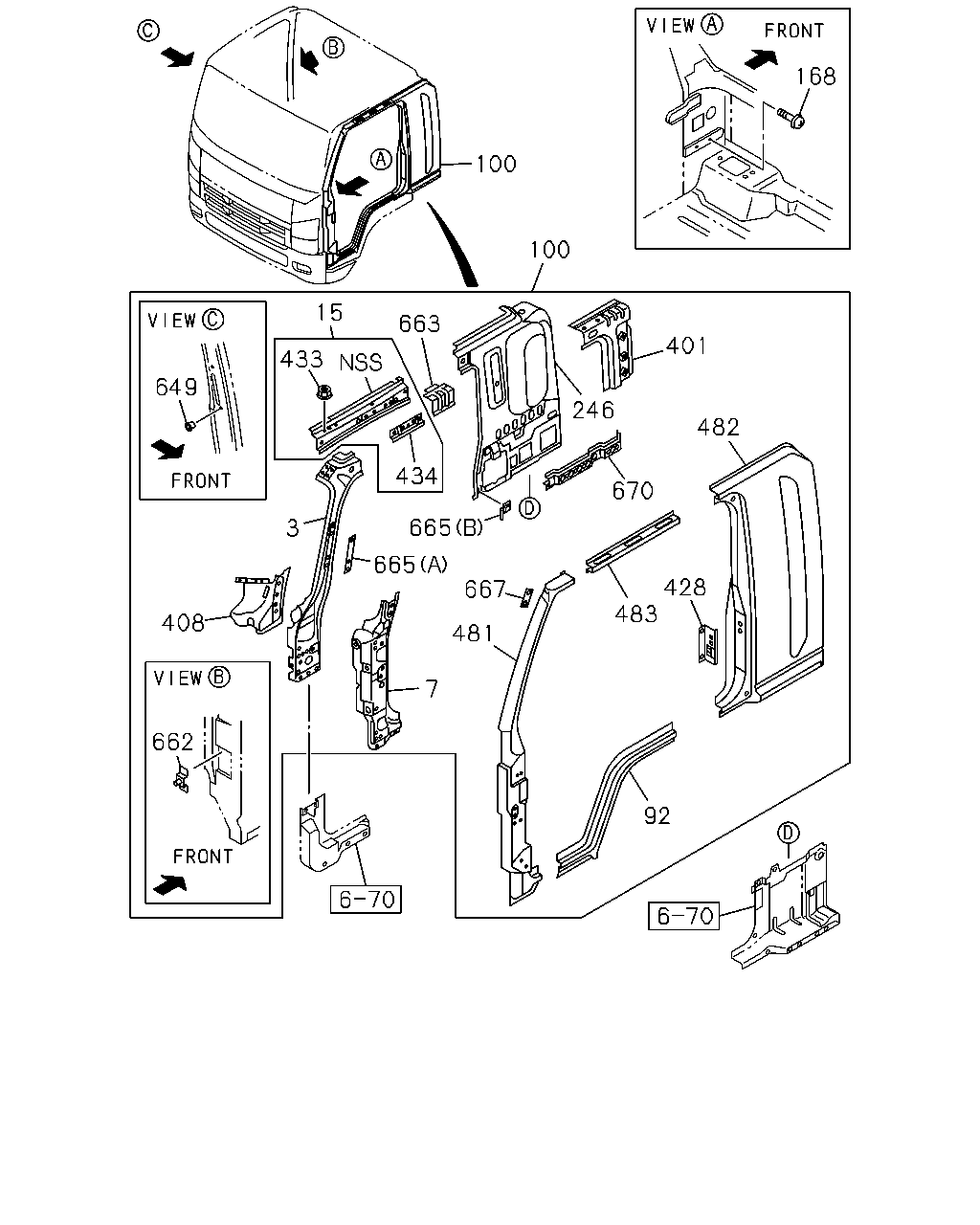

çizim 109538
168 100 100 15 663 401 433 649 246 482 434 670 665 3 665 428 483 667 408 481 7 662 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0710- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0710- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0710- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0710- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0710- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0710- ● ●
100 PANEL ASM; BODY SIDE 8-98088-579-2 01 1 0710-0901 ● ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 0902- ● ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-590-3 01 1 0710-0901 ● ●
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-079-7 01 1 0902- ● ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98088-587-3 01 1 0710-0901 ● ●
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-6 01 1 0902- ● ●
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0802 ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0710- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0710- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0710- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0710- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0710- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0710- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0710- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0710- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0710- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0710- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0710- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710- ● ●
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-915-0 01 1 0710- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 0710- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0710-0807 ● ●
482 PANEL; SIDE RR PILLAR 8-98092-925-0 01 1 0808-0901 ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0902- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0710-0807 ● ●
482 PANEL; SIDE RR PILLAR 8-98092-923-0 01 1 0808-0901 ● ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0902- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0710- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0710- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0710- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0710- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 0710- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 0710- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0710- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0710- ● ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98005-264-0 01 1 0710-0806 ● ●
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98109-948-0 01 1 0807- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 0710- ● ●

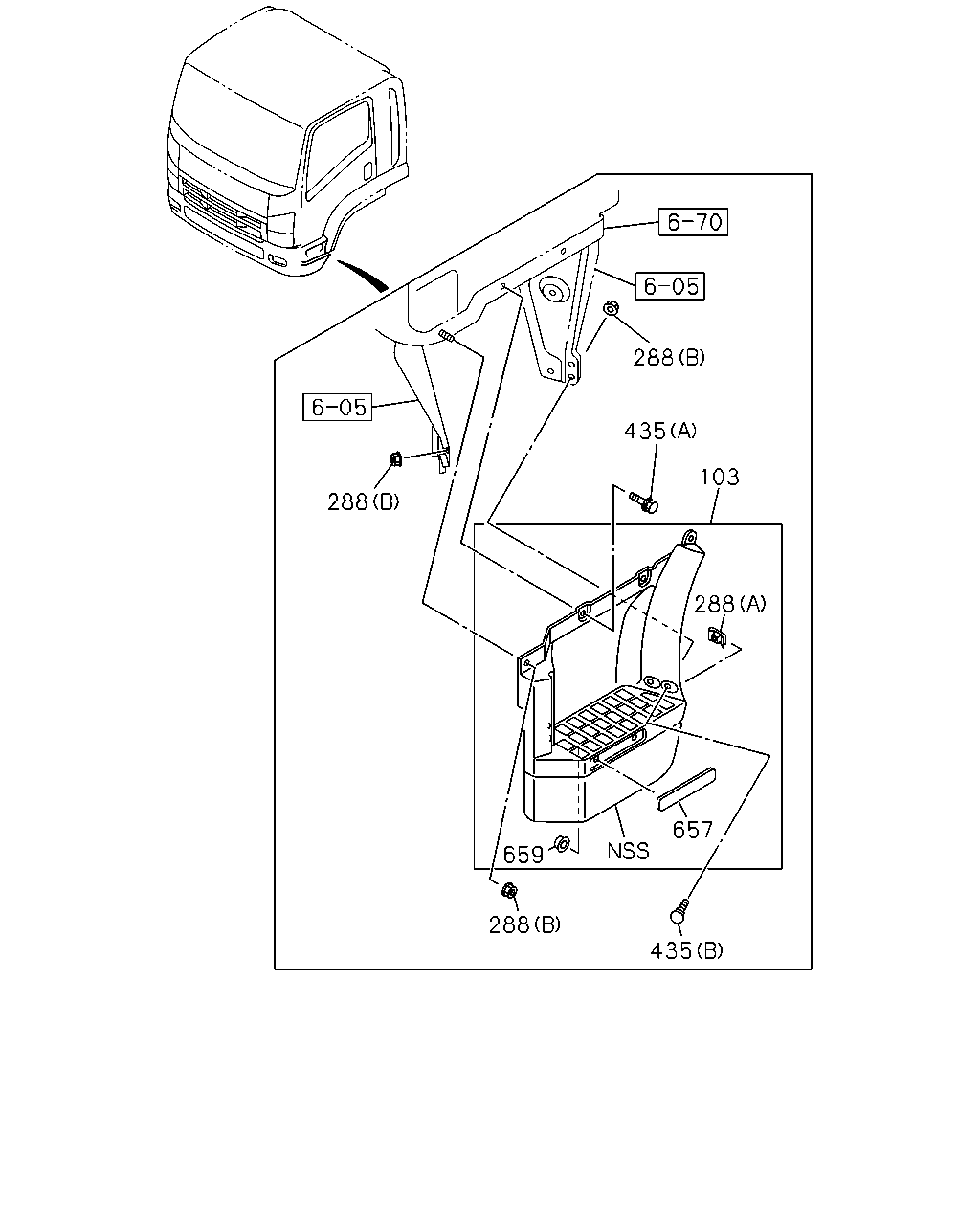

çizim 109539
288 435 103 288 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98037-326-3 01 1 0710- ● ●
103 PLATE; STEP 8-98037-325-3 01 1 0710- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0710- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0710- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0710-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0710- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0710- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0710- ● ●
