◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11418 - FSR(AUST)EU4 EXC.SPA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#42781) — 13 parça

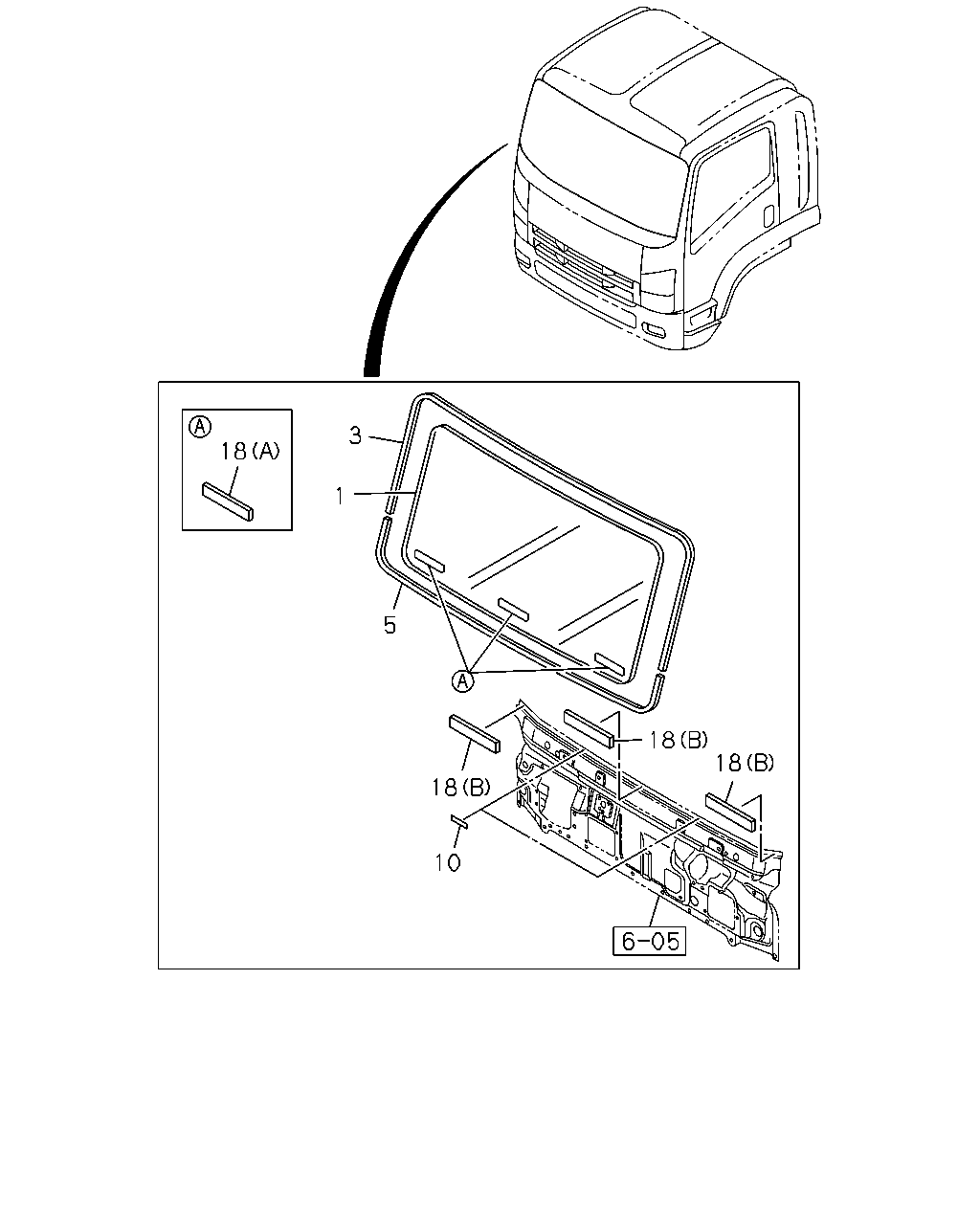

çizim 109531
3 18 1 5 18 18 18 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; WINDSHIELD 8-98064-709-2 01 1 0710-0805 ● ●
1 GLASS; WINDSHIELD
EXC. COUNTRY NEW ZEALAND(CX6) 		8-98064-709-3 01 1 0806- ● ●
1 GLASS; WINDSHIELD
COUNTRY NEW ZEALAND(CX6) 		8-98041-646-3 01 1 0806- ● ●
3 MOLDING; WINDSHIELD 8-98041-650-3 01 1 0710- ● ●
5 MOLDING; WINDSHIELD,LWR 8-98041-653-2 01 1 0710-1209 ● ●
5 MOLDING; WINDSHIELD,LWR 8-98222-158-0 01 1 1210- ● ●
10 SPACER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> L=100 B=1.5 		8-98095-044-0 02 1 0710- ●
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 06 1 0710- ●
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 06 1 0710- ●
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 06 1 0710- ●
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 06 1 0710- ●
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 10 1 0710- ●
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 10 1 0710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
