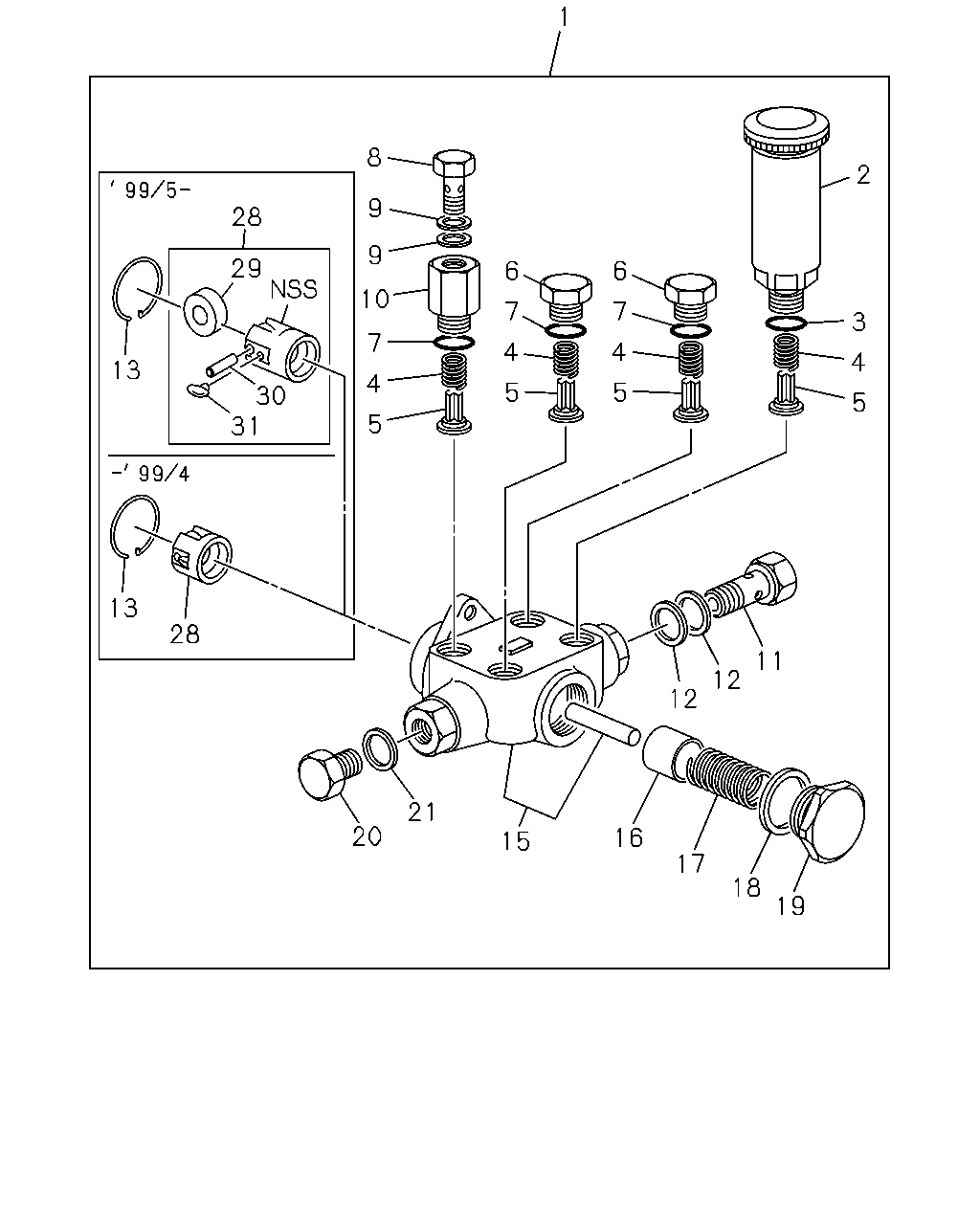

0-84A — FEED PUMP; INJECTION PUMP (#4278) — 62 parça

1 8 2 9 28 9 29 6 6 10 7 7 3 7 4 4 4 13 4 5 5 30 31 5 5 13 28 11 12 12 21 20 16 15 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15750-151-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 1-15603-265-3, J = 1-15603-290-5	1-15750-152-0	01	1	-0202
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: H = 1-15603-240-3	1-15750-152-0	01	1	-9907
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 1-15603-114-4	1-15750-167-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: H = 1-15603-240-3	1-15750-190-0	01	1	9908-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: I = 1-15603-265-3, J = 1-15603-290-5	1-15750-190-0	01	1	0203-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: H = 1-15603-240-3	1-15755-002-0	04	1	9908-
5	VALVE; FUEL FEED PUMP ASM PART: I = 1-15603-265-3, J = 1-15603-290-5	1-15755-002-0	04	1	0203-
5	VALVE; FUEL FEED PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: I = 1-15603-265-3, J = 1-15603-290-5	9-81351-602-0	04	1	-0202
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1	9-81351-602-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: H = 1-15603-240-3	9-81351-602-0	04	1	-9907
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2	1-15759-009-0	02	1	-0202
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2	1-15759-066-0	02	1	0203-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2	1-19623-016-0	03	1	0203-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2	9-81355-031-0	03	1	-0202
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15759-011-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15759-052-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2	1-15759-052-0	01	1	-0202
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: H = 1-15603-240-3	1-15759-029-0	01	1	-9907
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, J = 1-15603-290-5	1-15759-029-0	01	1	-0202
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1, I = 1-15603-265-3	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, J = 1-15603-290-5	8-97203-957-0	01	1	0203-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: H = 1-15603-240-3	8-97203-957-0	01	1	9908-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	1-15751-010-0	01	1	-0202
15	HOUSING; FUEL FEED PUMP ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: I = 1-15603-265-3, J = 1-15603-290-5	1-15751-031-0	01	1	-0202
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: H = 1-15603-240-3	1-15751-031-0	01	1	-9907
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-114-4	1-15751-038-0	01	1	-0202
15	HOUSING; FUEL FEED PUMP ASM PART: H = 1-15603-240-3	1-15751-046-0	01	1	9908-
15	HOUSING; FUEL FEED PUMP ASM PART: I = 1-15603-265-3, J = 1-15603-290-5	1-15751-046-0	01	1	0203-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, I = 1-15603-265-3, J = 1-15603-290-5	1-15759-004-0	01	1	-0202
20	PLUG; HSG,FUEL FEED PUMP ASM PART: H = 1-15603-240-3	1-15759-004-0	01	1	-9907
20	PLUG; HSG,FUEL FEED PUMP ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, B = 1-15603-068-5, F = 1-15603-122-1, G = 1-15603-156-1	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: H = 1-15603-240-3	1-09630-085-0	01	1	-9907
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	01	1	-0202
28	TAPPET ASM; FUEL FEED PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15754-006-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: C = 1-15603-114-4	1-15754-007-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: H = 1-15603-240-3	1-15759-055-0	01	1	9908-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: I = 1-15603-265-3, J = 1-15603-290-5	1-15759-055-0	01	1	0203-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81355-059-0	01	1	0203-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: H = 1-15603-240-3	1-15759-056-0	01	1	9908-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: C = 1-15603-114-4, I = 1-15603-265-3, J = 1-15603-290-5	1-15759-056-0	01	1	0203-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: D = 1-15603-115-2, E = 1-15603-121-2	9-81355-060-0	01	1	0203-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: H = 1-15603-240-3	1-15759-057-0	02	1	9908-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: C = 1-15603-114-4, I = 1-15603-265-3, J = 1-15603-290-5	1-15759-057-0	02	1	0203-
