6-04 — CAB ASM (#42779) — 4 parça

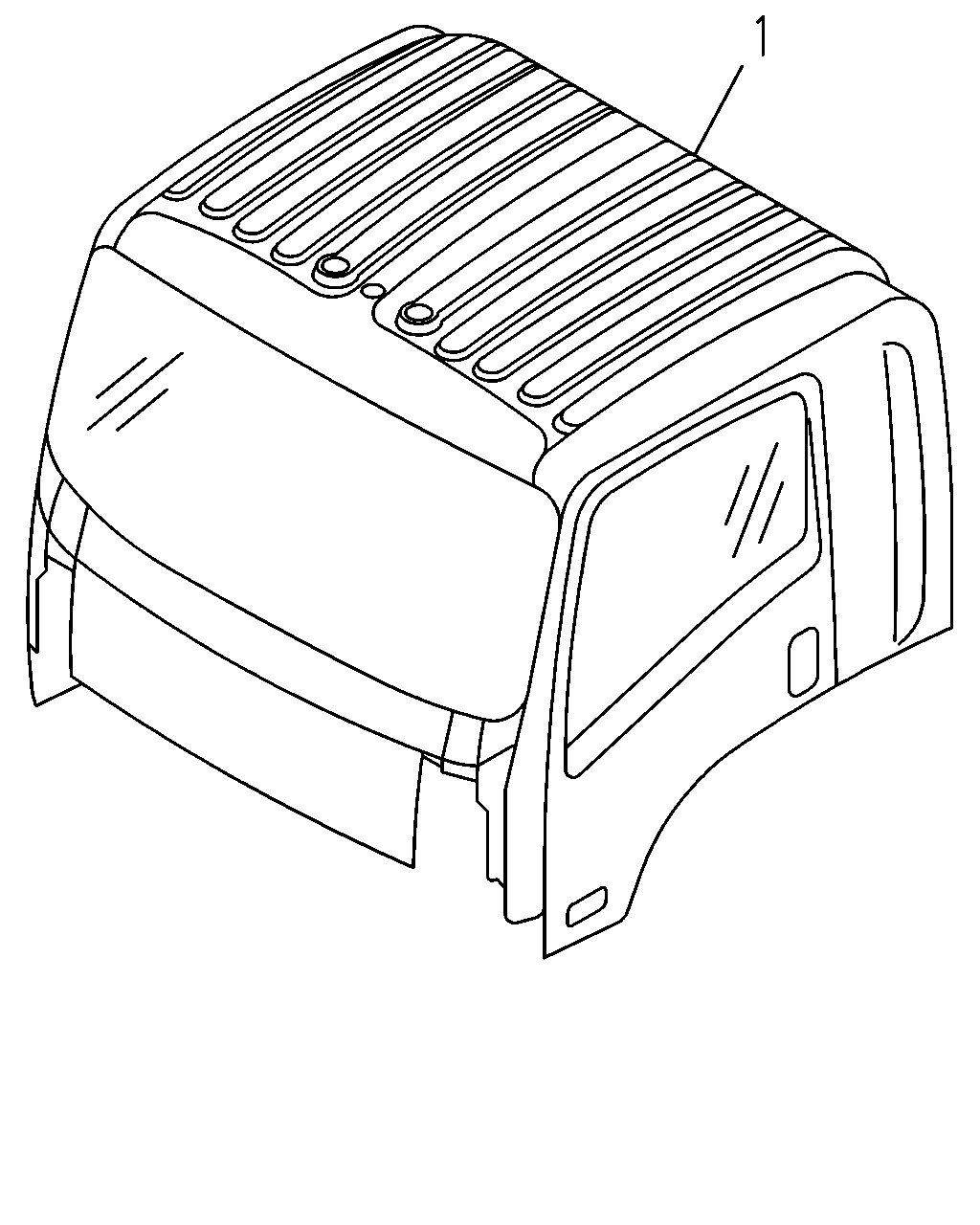

çizim 109509
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) ASSISTOR SHIFT CONTROL<WX8> MZX6P M/T(RSW) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF),ASH TRAY PASSENGER DOOR<8LX> 		1-61087-343-0 01 1 0710-0711 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LAMPS TWO ROOF MARKER<TEC> AUSTRALIA EQUIPMENT(B13) MZX6P M/T(RSW) INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> MANUAL TRANSMISSION<X9C> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF),ASH TRAY PASSENGER DOOR<8LX> 		1-61087-343-0 01 1 0712- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LCT2000 A/T ALLISON(Y4F) LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF), ASH TRAY PASSENGER DOOR<8LX> 		1-61087-342-0 01 1 0710-0711 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LCT2000 A/T ALLISON(Y4F) LAMPS TWO ROOF MARKER<TEC> AUSTRALIA EQUIPMENT(B13) INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> A/T<X9D> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF),ASH TRAY PASSENGER DOOR<8LX> 		1-61087-342-0 01 1 0712- ●
