6-03 — RADIATOR GRILLE (#42778) — 74 parça

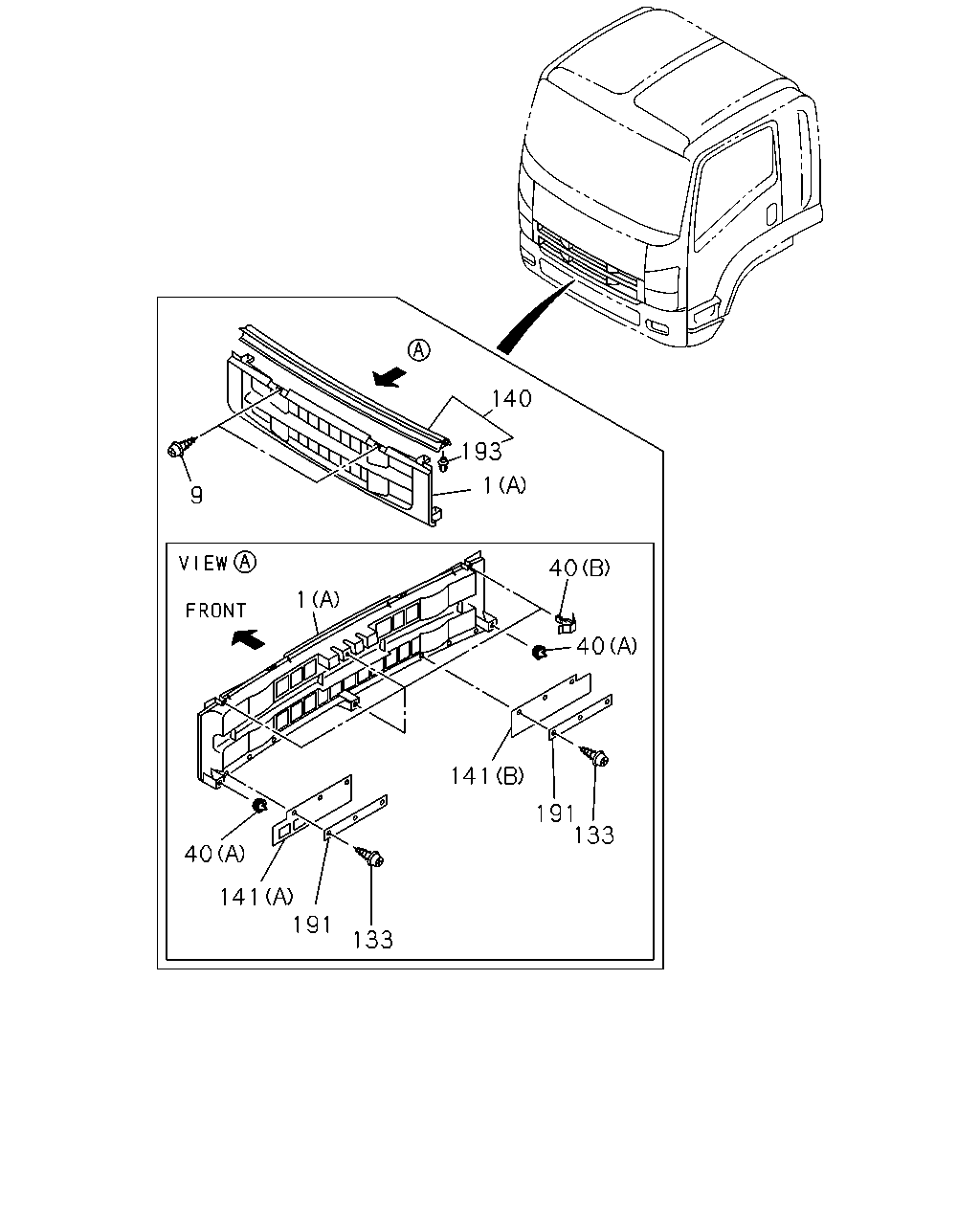

140 193 1 9 40 1 40 141 191 133 40 141 191 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-918-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE	8-97407-867-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-867-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97418-045-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED	8-97411-380-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-380-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-927-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED	8-97411-383-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-383-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> (A) BEIGE	8-97411-824-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-824-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-926-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW	8-97411-384-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-384-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-933-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-931-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-930-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-984-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-919-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE	8-97411-381-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-381-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE	8-97411-385-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-385-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-929-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-928-5	01	1	0906-	●	●
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-505-7	01	1	0710-	●	●
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD> (A) DARK GRAY	8-98040-994-5	01	1	0710-0710	●	●
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-994-5	01	1	0710-	●	●
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0710-	●	●
40	CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0710-	●	●
40	CLIP; RAD GRILLE (B)	8-98025-698-0	04	1	0710-	●	●
133	SCREW; COVER T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	06	1	0710-0710	●	●
133	SCREW; COVER T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0710-	●	●
140	SEAL; RAD GRILLE	8-98060-339-0	01	1	0710-	●	●
141	COVER; RAD GRILLE (B)	8-98041-012-1	01	1	0710-	●	●
141	COVER; RAD GRILLE (A)	8-98060-783-0	01	1	0710-	●	●
191	RETAINER; PLATE	8-98061-082-0	02	1	0710-0710	●	●
193	CLIP; SEAL NATURAL	8-98027-457-0	13	1	0710-	●	●

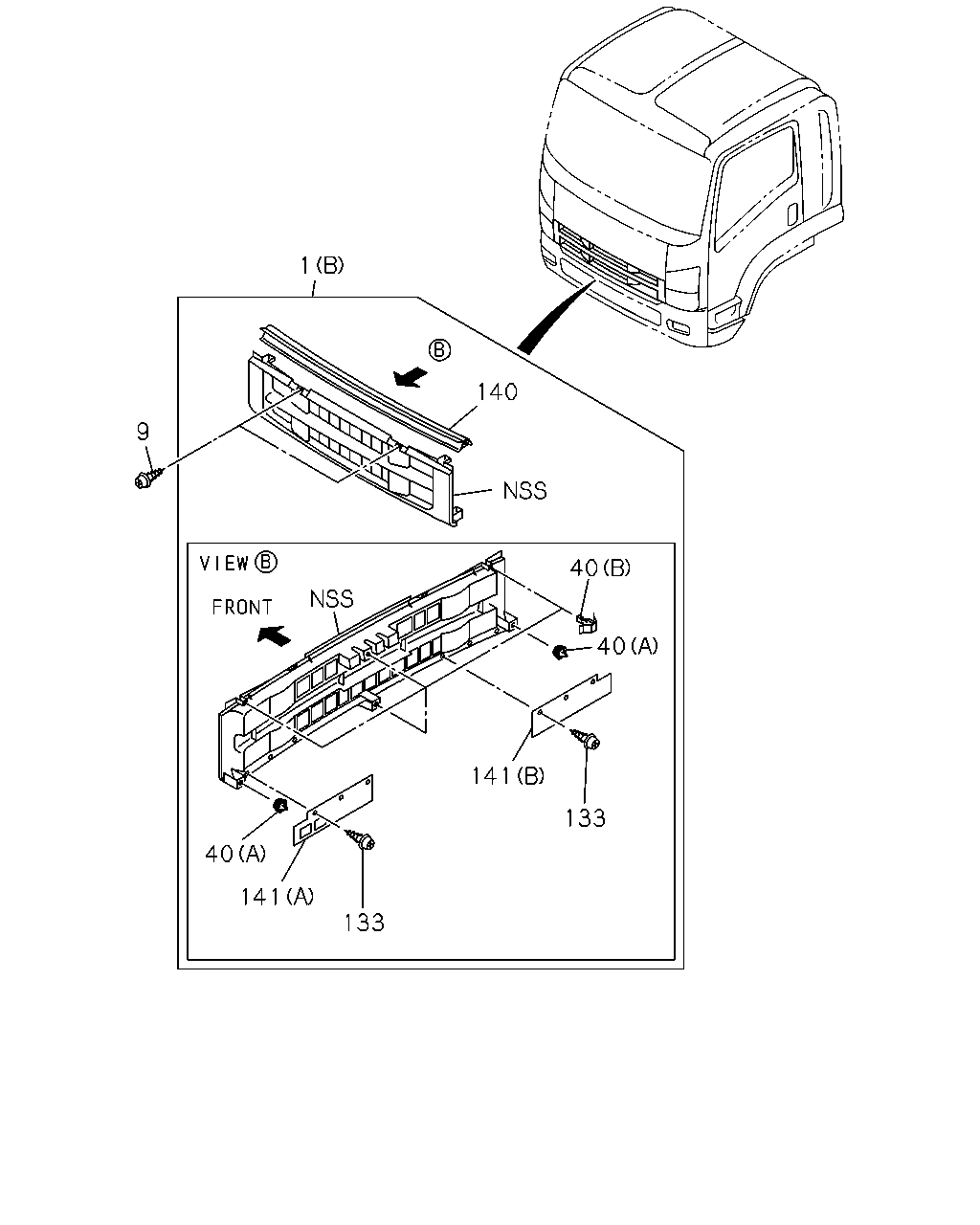

1 140 9 40 40 141 133 40 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-918-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE	8-97407-867-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-867-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97418-045-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED	8-97411-380-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-380-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-927-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED	8-97411-383-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-383-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> (A) BEIGE	8-97411-824-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-824-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-926-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW	8-97411-384-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-384-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-933-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-931-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-930-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-984-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-919-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE	8-97411-381-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-381-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE	8-97411-385-5	01	1	0710-0710	●	●
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-385-5	01	1	0710-	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-929-5	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-928-5	01	1	0906-	●	●
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-505-7	01	1	0710-	●	●
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD> (A) DARK GRAY	8-98040-994-5	01	1	0710-0710	●	●
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-994-5	01	1	0710-	●	●
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0710-	●	●
40	CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0710-	●	●
40	CLIP; RAD GRILLE (B)	8-98025-698-0	04	1	0710-	●	●
133	SCREW; COVER T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	06	1	0710-0710	●	●
133	SCREW; COVER T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0710-	●	●
140	SEAL; RAD GRILLE	8-98060-339-0	01	1	0710-	●	●
141	COVER; RAD GRILLE (B)	8-98041-012-1	01	1	0710-	●	●
141	COVER; RAD GRILLE (A)	8-98060-783-0	01	1	0710-	●	●
