Isuzu WW
▶
TRUCKS
▶
FSR
▶
11418 - FSR(AUST)EU4 EXC.SPA
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#42773) — 36 parça
Tümü
A - FCD5MS
B - FCR5MS
◀

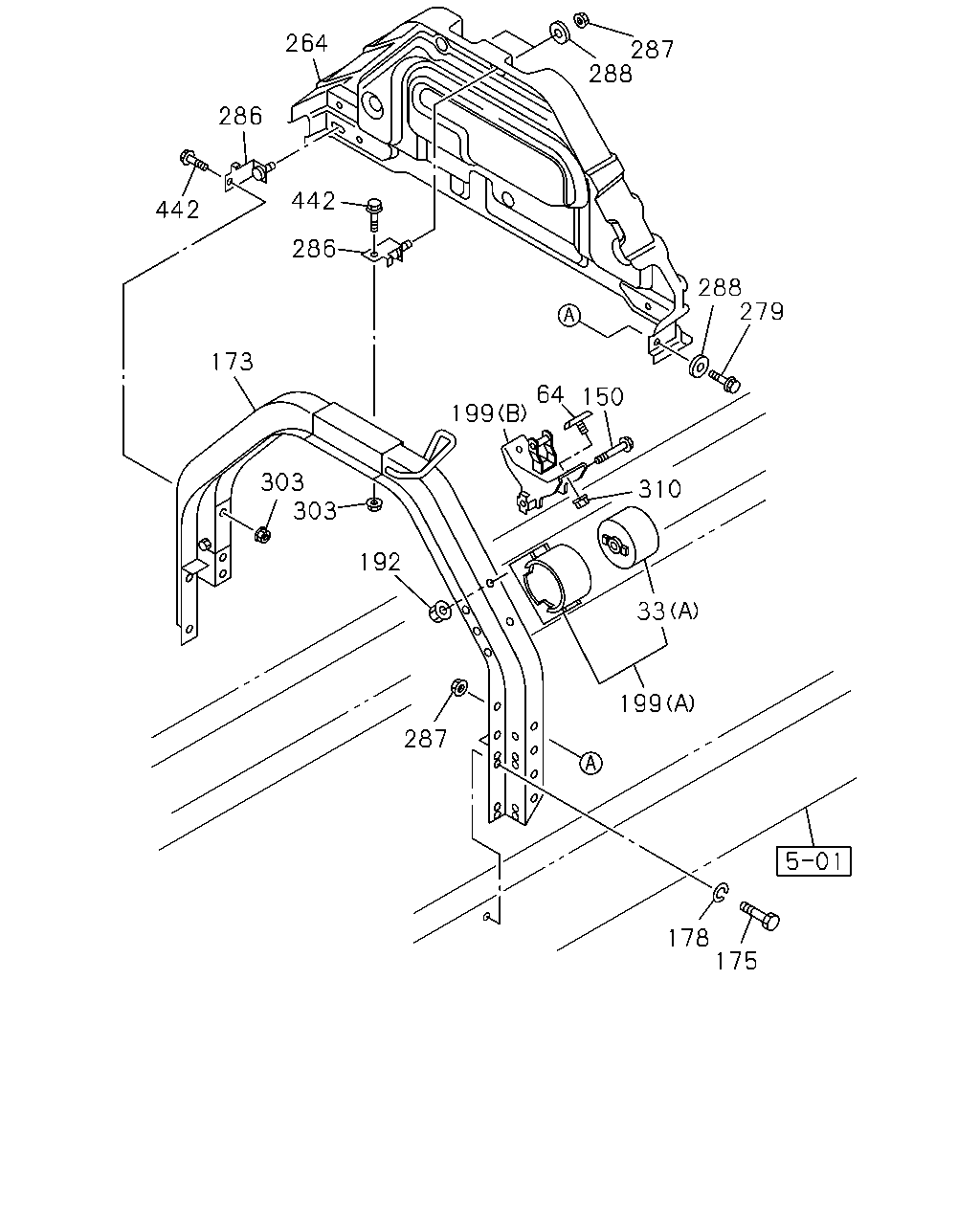

[510A] REAR (23 parça)

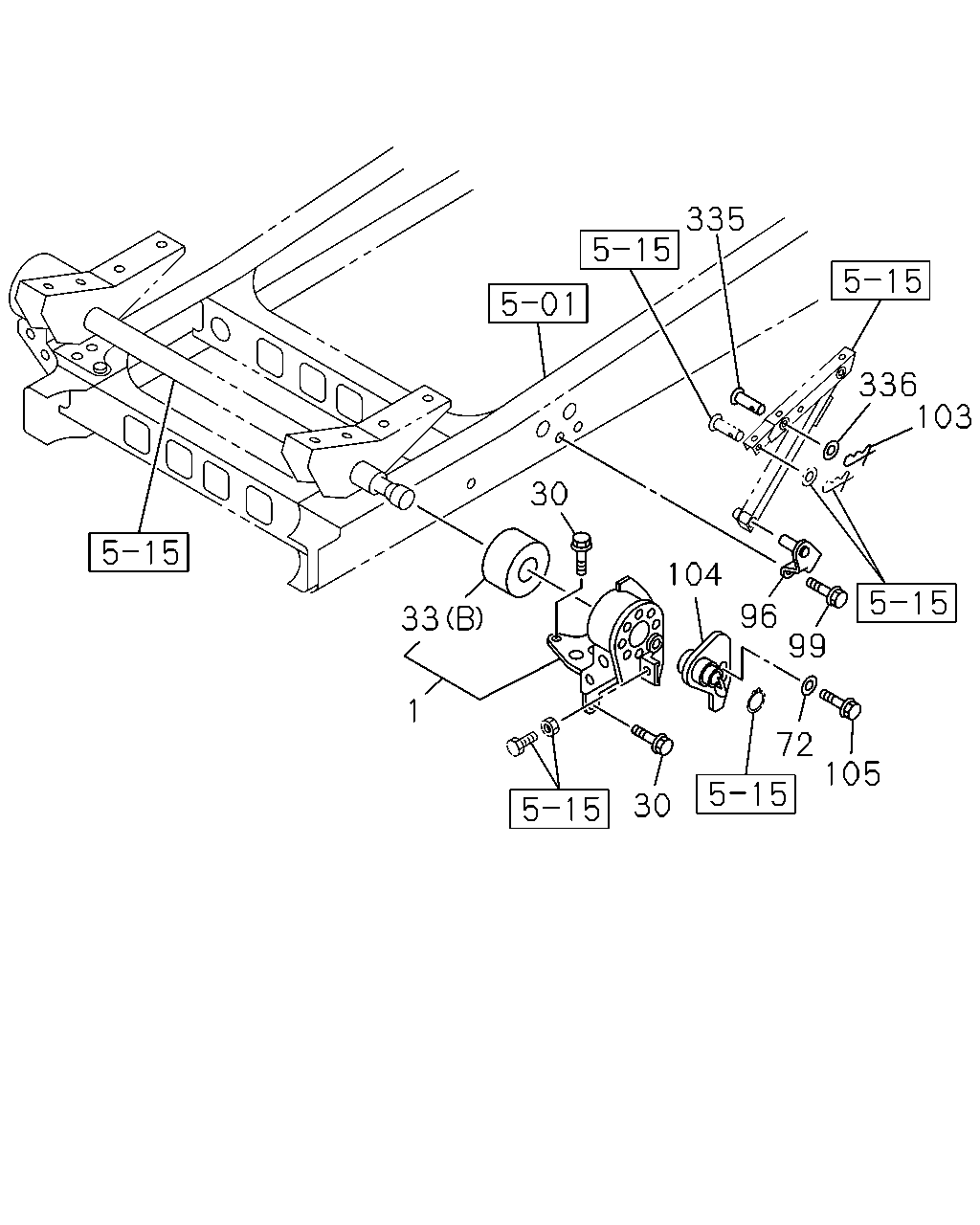

[510A] FRONT (13 parça)
▶
264
287
288
286
442
442
286
288
279
173
64
199
150
303
303
310
192
33
199
287
178
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A)
8-98010-759-2
02
1
0710-
●
●
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98013-932-2
02
1
0710-
●
●
64
RUBBER; CUSHION
8-97113-340-0
04
1
0710-
●
●
150
BOLT; CAB MTG RR
M14X100
0-10956-400-0
02
1
0710-
●
●
173
MEMBER; CAB MTG RR
8-98017-669-3
01
1
0710-0910
●
●
173
MEMBER; CAB MTG RR
8-98150-944-0
01
1
0911-
●
●
175
BOLT; MEMBER TO FRAME
M12X35
0-20951-235-0
08
1
0710-
●
●
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
0710-
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-212-0
04
1
0710-
●
●
199
BRACKET; CAB RR MTG
(A)
8-98010-769-2
02
1
0710-
●
●
199
BRACKET; CAB RR MTG
(B)
8-98023-692-0
02
1
0710-
●
●
264
PANEL; BACK
MZX6P M/T(RSW)
1-53194-609-2
01
1
0710-0805
●
●
264
PANEL; BACK
MZX6P M/T(RSW),MLD6W M/T(Y2C)
1-53194-609-2
01
1
0806-0906
●
●
264
PANEL; BACK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
1-53194-609-2
01
1
0907-
●
●
264
PANEL; BACK
LCT2000 A/T ALLISON(Y4F)
8-98092-711-3
01
1
0710-
●
279
BOLT
M8X25 FLANGE
0-28650-825-0
01
1
0710-
●
●
286
BRACKET; LOW
1-53457-187-0
02
1
0710-
●
●
287
NUT
M8 FLANGE
0-91180-108-0
02
1
0710-0809
●
●
287
NUT
M8 FLANGE
0-91180-108-0
03
1
0810-
●
●
288
WASHER; PL
ID=8.4 OD=26
0-91614-808-0
03
1
0710-
●
●
303
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0710-
●
●
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
0710-
●
●
442
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0710-
●
●
335
336
103
30
104
96
99
33
1
72
105
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; CAB MTG
8-98010-749-3
01
1
0710-
●
●
1
BRACKET; CAB MTG
8-98010-748-2
01
1
0710-
●
●
30
BOLT; CAB FRT FOOT
M14X45 FLANGE
0-28861-445-0
10
1
0710-
●
●
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A)
8-98010-759-2
02
1
0710-
●
●
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98013-932-2
02
1
0710-
●
●
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
0710-
●
●
96
BRACKET; CAB STAY
1-62500-628-0
01
1
0710-
●
●
99
BOLT; BRKT
M10X30 FLANGE
0-28661-030-0
02
1
0710-
●
●
103
PIN; SPLIT,CAB STAY
L=32.6
8-98062-280-0
01
1
0710-
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98010-753-3
01
1
0710-
●
●
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
0710-
●
●
335
PIN; ADJ,STAY LOCK
OD=10 L=48
1-09744-107-0
01
1
0710-
●
●
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
1-09985-183-0
01
1
0710-
●
●
