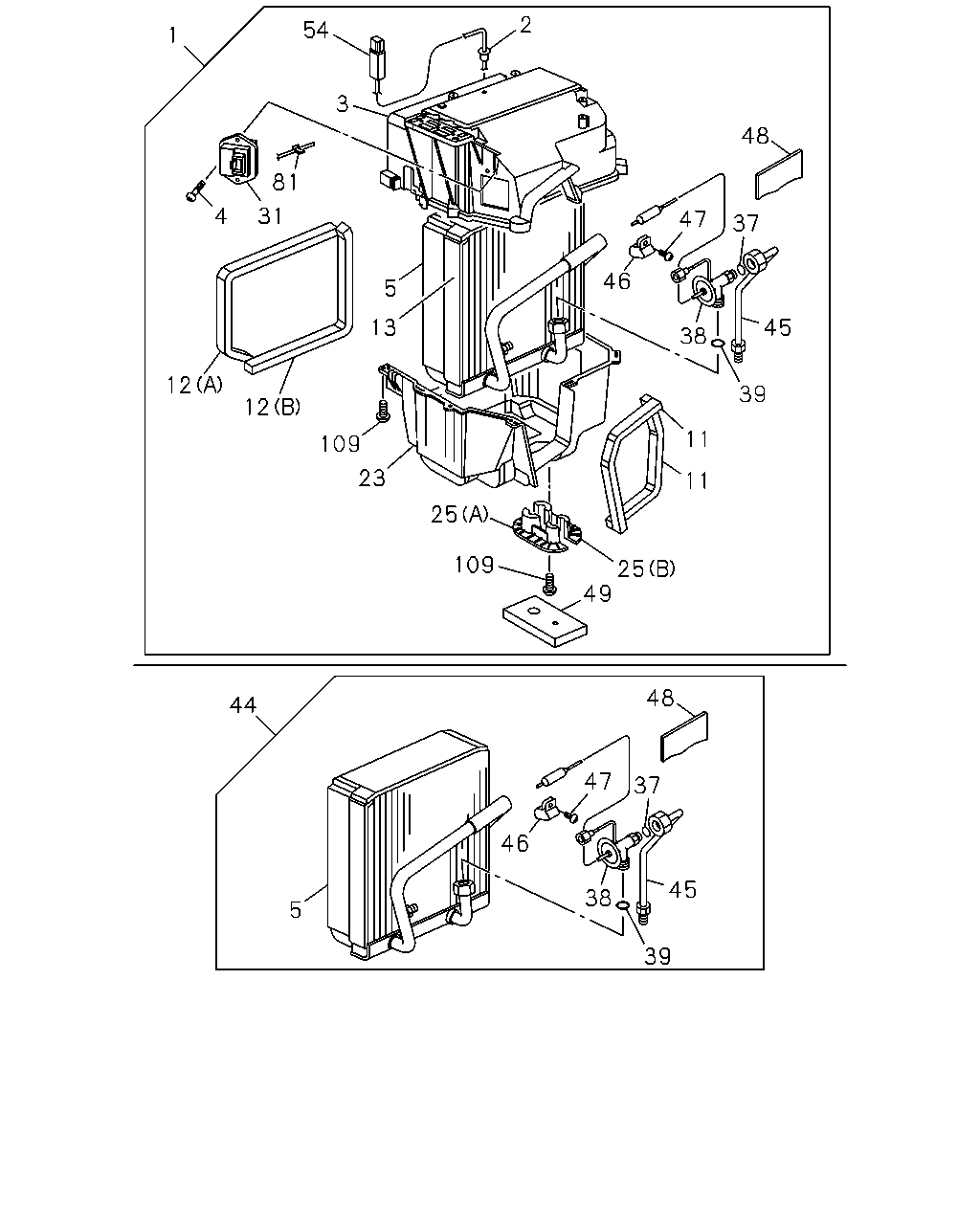

8-74 — EVAPORATOR (#42755) — 72 parça

2 54 1 3 48 81 31 4 47 37 46 5 13 45 38 12 39 12 11 109 23 11 25 109 25 49 48 44 47 37 46 45 38 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97071-220-1	01	1	9811-	●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9811-	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	9811-	●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	02	1	9811-	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	9811-	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97102-599-0	02	1	9811-9912	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-549-0	01	1	0001-	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9811-9912	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9811-9912	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) (C)	8-97188-565-0	01	1	0001-	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	9811-	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-1	01	1	9811-	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9811-	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9811-	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) 08.855	8-97083-135-0	01	1	9811-9912	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97234-545-0	01	1	0001-	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=6	8-94481-700-0	01	1	9811-9912	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	0001-	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-275-0	01	1	9811-9912	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0001-	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9811-	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97102-593-0	01	1	9811-9912	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-546-0	01	1	0001-	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	9811-	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-596-0	01	1	9811-9912	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0001-	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9811-9912	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0001-	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	5-83579-024-0	01	1	9811-9912	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0001-	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9811-9912	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0001-	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) 09.275	8-97085-283-0	01	1	9811-9912	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) 09.275 "R-134A"	8-97087-577-1	01	1	0001-	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9811-	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9811-	●	●	●
