◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#42750) — 18 parça

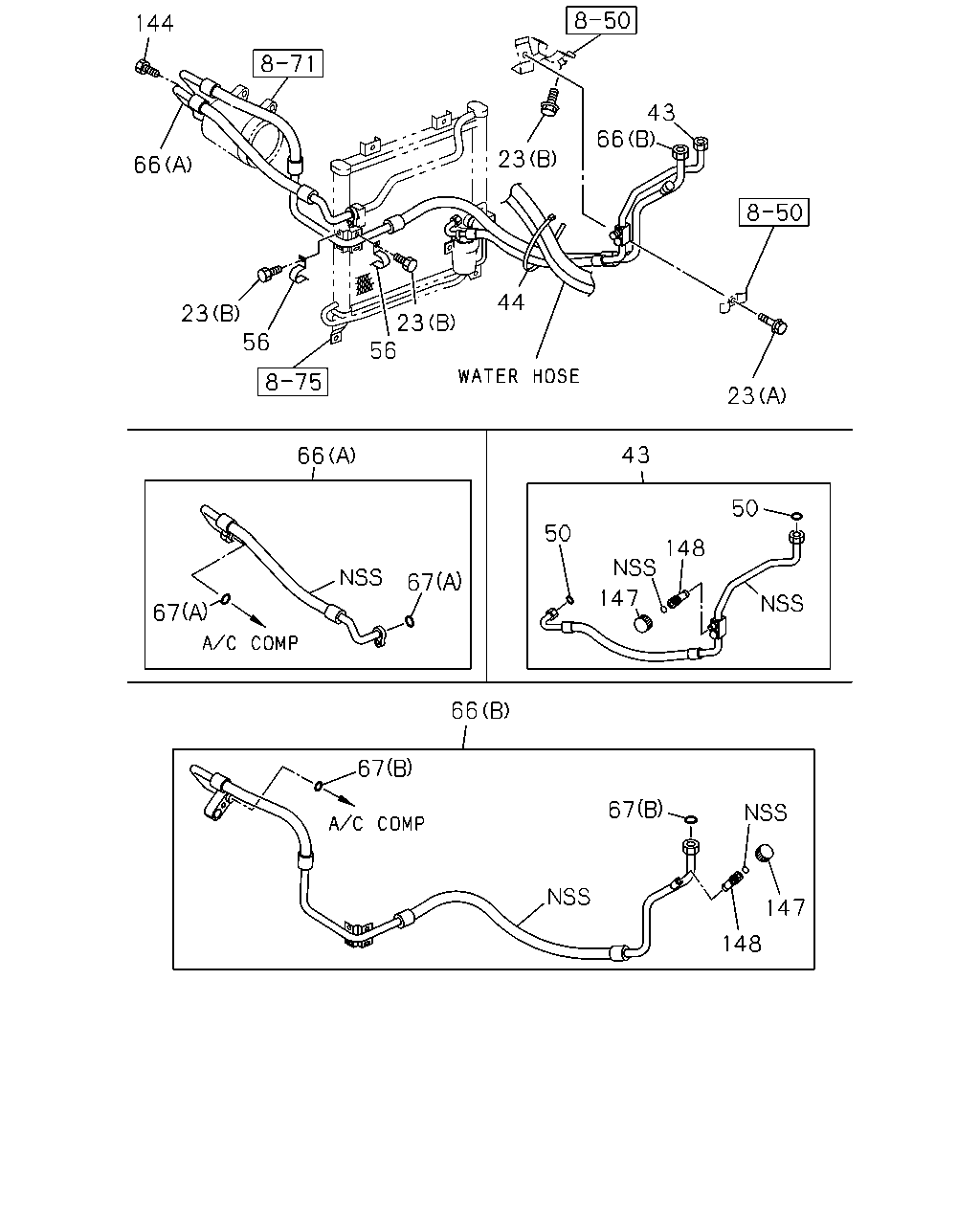

çizim 48871
144 43 66 23 66 44 23 23 56 56 23 43 66 50 50 148 67 147 67 66 67 67 147 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.738 (B) M6X16 FLANGE 		0-28080-616-0 03 1 9811- ● ● ●
23 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE 		0-28080-620-0 01 1 9811- ● ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97103-572-0 01 1 9811- ● ● ●
44 09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250 		5-09707-030-1 03 1 9811- ● ● ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07 		8-94461-902-0 02 1 9811- ● ● ●
56 09.242 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) 09.190 		8-97024-716-0 02 1 9811- ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97069-977-1 01 1 9811- ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-684-1 01 1 9811- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.222 (B) ID=13.9 		8-94113-330-0 01 1 9811- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.222 (A) ID=10.8 		8-94113-331-0 01 1 9811- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.0 		8-94461-900-0 01 1 9811- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.8 		8-94461-901-0 01 1 9811- ● ● ●
144 09.242 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811- ● ● ● ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) CAP MARK H 		8-97083-101-0 01 1 9811- ● ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L 		8-97083-102-0 01 1 9811- ● ● ●
148 09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 02 1 9811-0105 ● ● ●
148 09.262 VALVE; FLEX HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 02 1 9811-0105 ● ● ●
148 09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97083-100-0 02 1 0106- ● ● ●
