◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82B - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#4275) — 18 parça

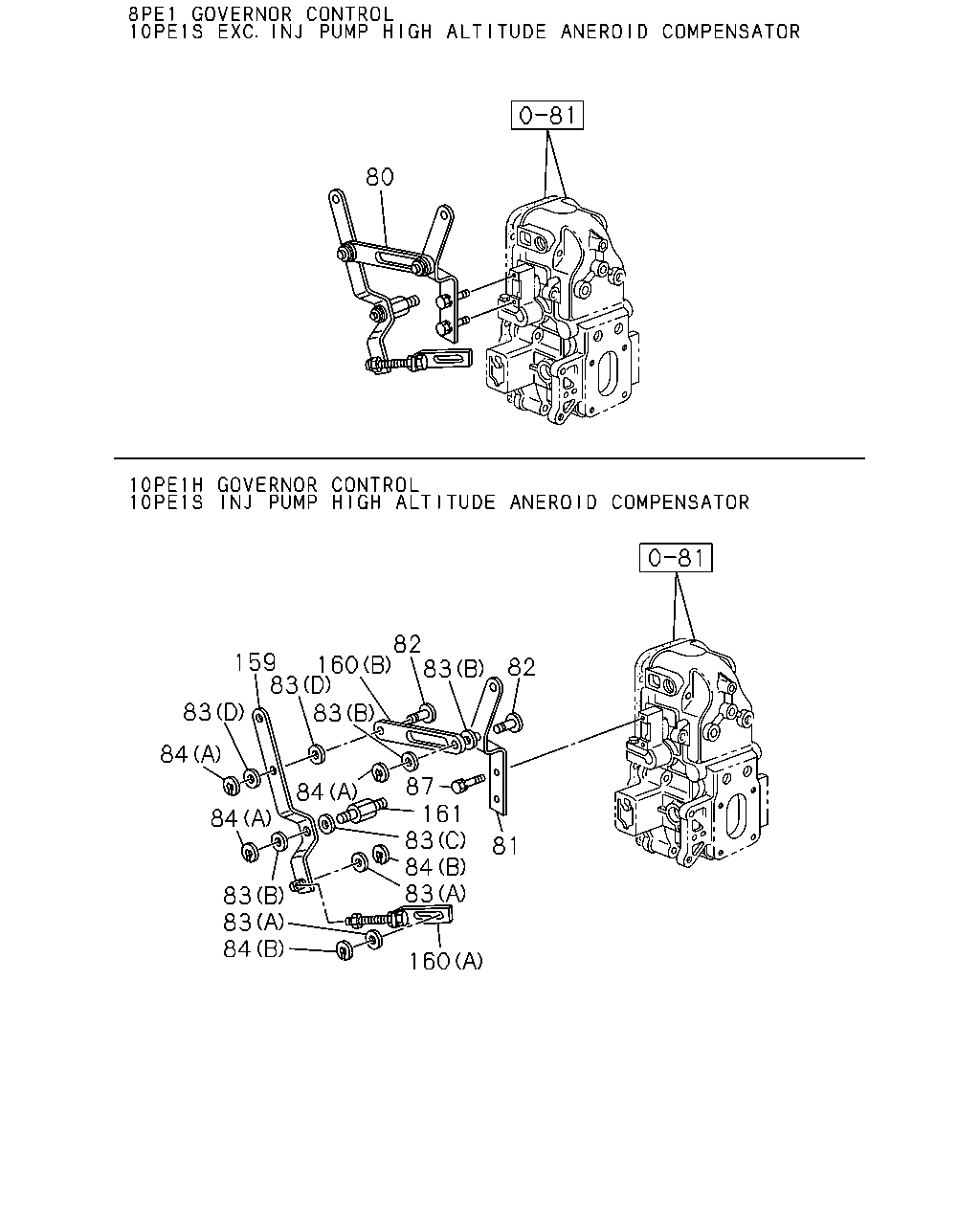

çizim 40559
80 82 159 160 83 83 83 84 87 161 83 84 83 84 84 81 83 83 84 160 83 82
BalonParca AdiParca NoAdetTipApplied Date
80 LEVER KIT
ASM PART: A = 1-15603-072-1, B = 1-15603-206-2, C = 1-15603-207-2, D = 1-15603-208-2 		1-15725-678-0 01 1 -
81 LEVER; INNER
ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		1-15725-662-0 01 1 -
82 PIN; LEVER TO LEVER
ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		1-15729-722-0 02 1 -
83 WASHER; LEVER
(D), ID=10.5 OD=18 ASM PART: E = 1-15603-227-2 		9-09160-510-0 02 1 -0202
83 WASHER; LEVER
(D), ID=10.5 OD=18 ASM PART: F = 1-15603-315-2 		9-09160-510-0 02 1 -
83 WASHER; LEVER
(A), ID=6.4 OD=14 ASM PART: F = 1-15603-315-2 		9-09160-606-0 03 1 -
83 WASHER; LEVER
(A), ID=6.4 OD=14 ASM PART: E = 1-15603-227-2 		9-09160-606-0 02 1 -
83 WASHER; LEVER
(B), ID=10.5 ASM PART: E = 1-15603-227-2 		9-09164-510-0 05 1 0203-
83 WASHER; LEVER
(B), ID=10.5 ASM PART: E = 1-15603-227-2 		9-09164-510-0 03 1 -0202
83 WASHER; LEVER
(B), ID=10.5 ASM PART: F = 1-15603-315-2 		9-09164-510-0 03 1 -
83 WASHER; LEVER
(C), T=0.20 ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		9-88410-421-0 01 1 -
84 RING; SNAP
(A) ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		1-15729-723-0 03 1 -
84 RING; SNAP
(B) ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		8-94244-599-0 02 1 -
87 BOLT; LEVER
M6X16 W/LK WASHER ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		9-01900-616-0 02 1 -
159 LEVER; OUTER
ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		1-15725-408-0 01 1 -
160 LINK; LEVER
(A) ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		1-15725-410-0 01 1 -
160 LINK; LEVER
(B) ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		1-15725-904-0 01 1 -
161 PIN; LEVER
ASM PART: E = 1-15603-227-2, F = 1-15603-315-2 		1-15729-724-0 01 1 -
