Sayfa 8-45 - Isuzu EPC

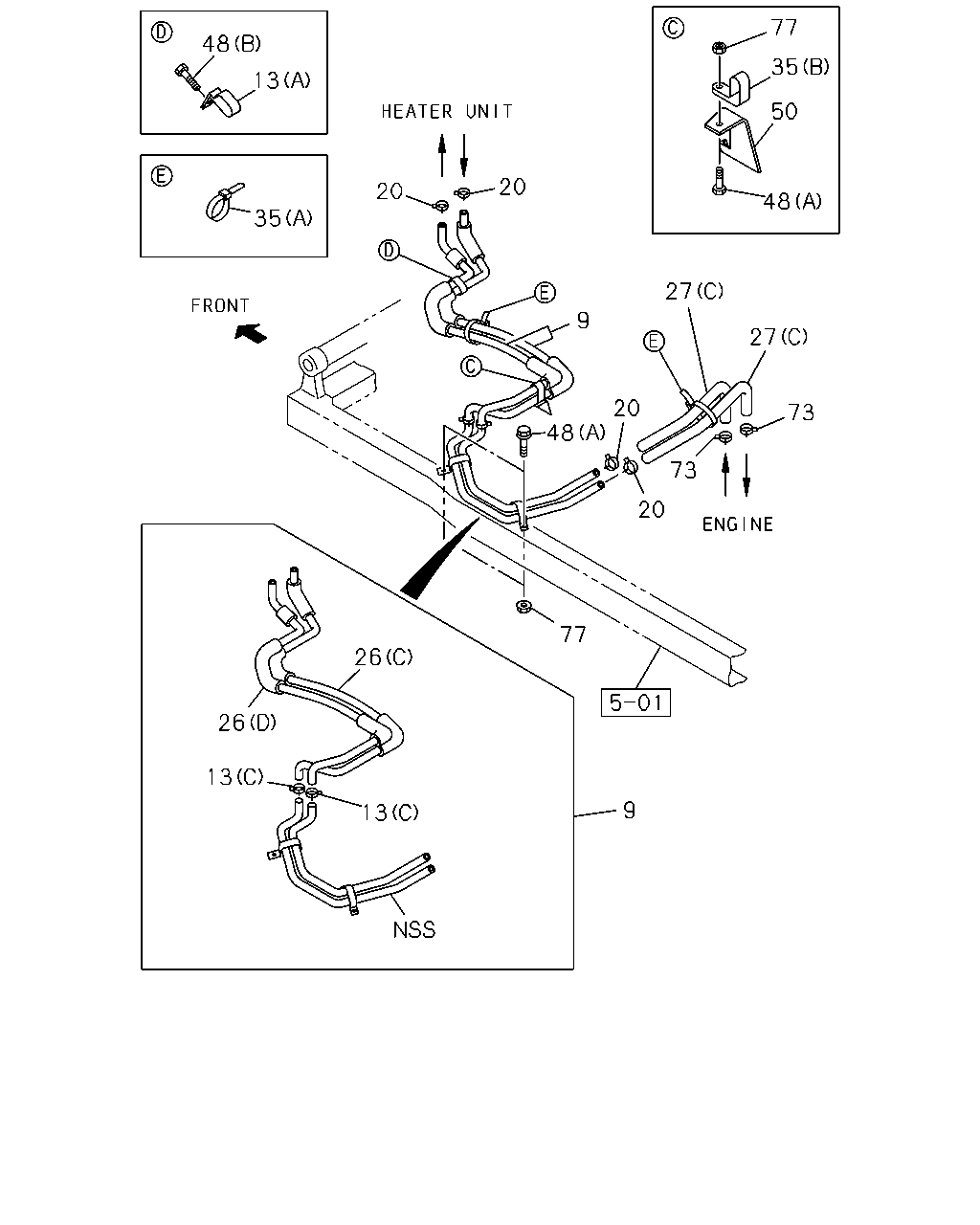

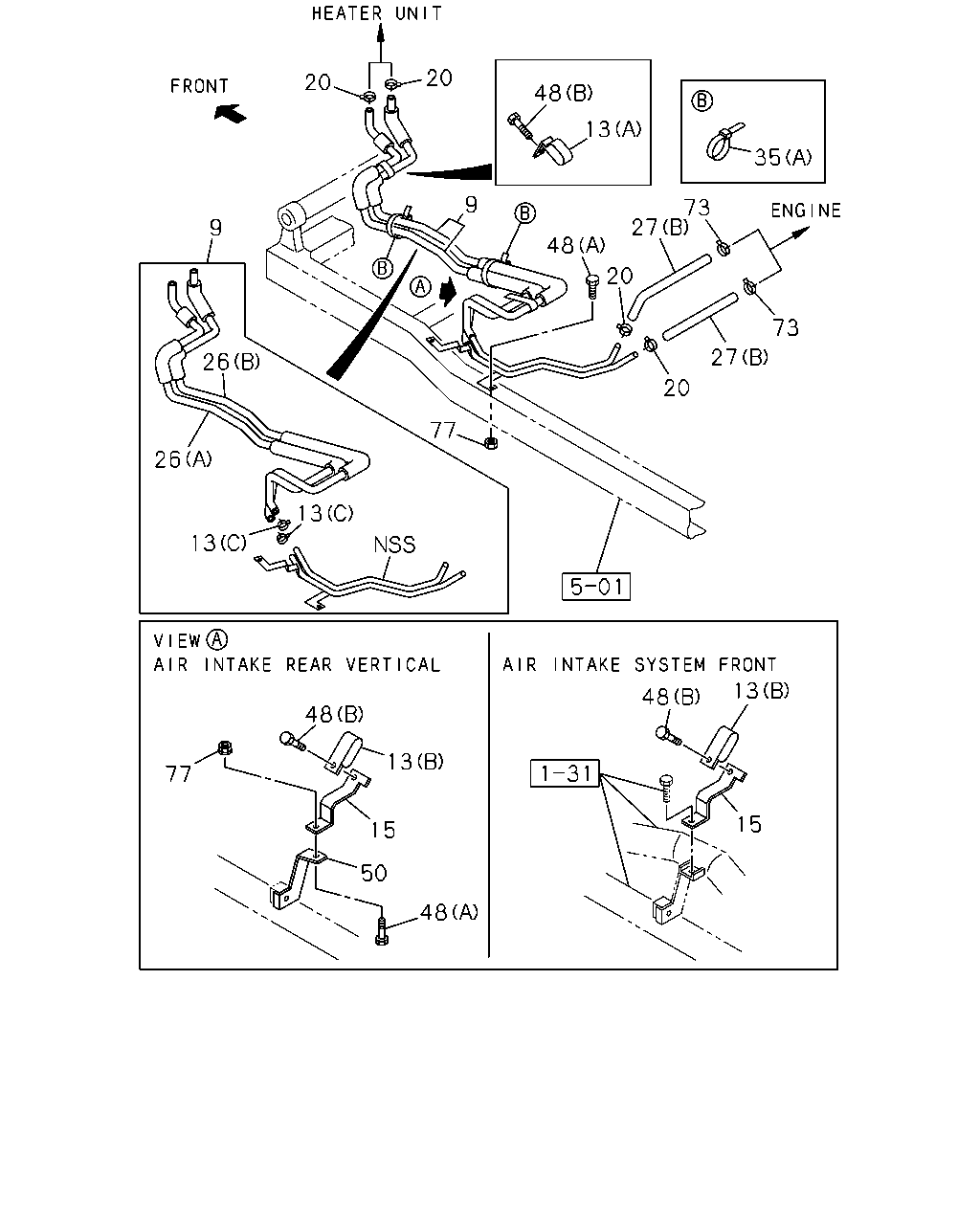

8-45 — HEATER PIPING (#42748) — 119 parça

20 20 25 35 35 73 27 48 73 48 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-003-0	01	1	9811-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9811-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9811-				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9811-				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9811-0004				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	0005-				●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	0005-					●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9811-	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9811-				●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41)	8-97129-200-0	01	1	9811-0105	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL>	8-97129-200-0	01	1	0106-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41)	8-97129-200-0	01	1	0106-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9811-0105	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A)	8-97129-201-0	01	1	0106-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	0106-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (C)	8-97205-283-0	02	1	9811-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9811-0011				●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B)	8-97300-262-0	02	1	0012-				●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9811-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B)	5-83574-006-0	01	1	0005-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9811-0004	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9811-0004	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	9811-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9811-0004	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> ID=22	8-94382-401-0	02	1	9811-0004	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0005-	●	●	●	●	●	●

77 48 35 13 50 20 20 48 35 27 9 27 20 73 48 73 20 77 26 26 13 9 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97231-907-0	01	1	0005-				●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	9811-0004				●	●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-185-0	01	1	0005-				●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	0005-					●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-003-0	01	1	9811-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9811-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9811-				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9811-				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9811-0004				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	0005-				●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	0005-					●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9811-	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9811-				●	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97239-084-0	01	1	0005-				●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97239-085-0	01	1	0005-				●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9811-0004				●	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	0005-				●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0005-					●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9811-0004				●	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	0005-				●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0005-					●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9811-0105	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A)	8-97129-201-0	01	1	0106-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	0106-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (C)	8-97205-283-0	02	1	9811-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9811-0011				●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B)	8-97300-262-0	02	1	0012-				●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9811-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B)	5-83574-006-0	01	1	0005-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9811-0004	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9811-0004	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	9811-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-97072-530-0	01	1	9811-9907				●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.417	8-97072-530-0	01	1	0005-				●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9811-0004	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> ID=22	8-94382-401-0	02	1	9811-0004	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0005-	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-				●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	9811-				●	●	●

20 20 48 13 35 9 73 27 9 48 20 73 27 26 20 77 26 13 13 13 48 48 13 77 15 15 50 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97231-907-0	01	1	0005-				●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	9811-0004				●	●	●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-185-0	01	1	0005-				●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-185-0	01	1	0005-					●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	5-83574-003-0	01	1	9811-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9811-	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94124-169-1	01	1	9811-				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22	8-94382-401-0	02	1	9811-				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9811-0004				●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	0005-				●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	0005-					●	●
15	08.846 BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-872-0	01	1	9811-0004				●	●	●
15	08.846 BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-872-0	01	1	0005-				●
15	08.846 BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-872-0	01	1	0005-					●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9811-	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	04	1	9811-				●	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (C)	8-97239-084-0	01	1	0005-				●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (D)	8-97239-085-0	01	1	0005-				●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	9811-0004				●	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97107-809-0	01	1	0005-				●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97107-809-0	01	1	0005-					●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	9811-0004				●	●	●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (B)	8-97107-810-0	01	1	0005-				●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97107-810-0	01	1	0005-					●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	9811-0105	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (A)	8-97129-201-0	01	1	0106-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) (A)	8-97129-201-0	01	1	0106-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (C)	8-97205-283-0	02	1	9811-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) L=610 SERVICED BY L=3000	0-03266-300-0	01	1	9811-0011				●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B)	8-97300-262-0	02	1	0012-				●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9811-	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (B)	5-83574-006-0	01	1	0005-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9811-0004	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9811-0004	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-	●	●	●		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0005-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	9811-				●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-				●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-97072-530-0	01	1	9811-9907				●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 03.417	8-97072-530-0	01	1	0005-				●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9811-0004	●	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> ID=22	8-94382-401-0	02	1	9811-0004	●	●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0005-	●	●	●	●	●	●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE REAR VERTICAL<KJ3> 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-				●
77	08.866 NUT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) AIR INTAKE SYSTEM FRONT<6PC> 01.540 M8 FLANGE	0-91150-208-0	01	1	9811-				●	●	●
