◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#42747) — 100 parça

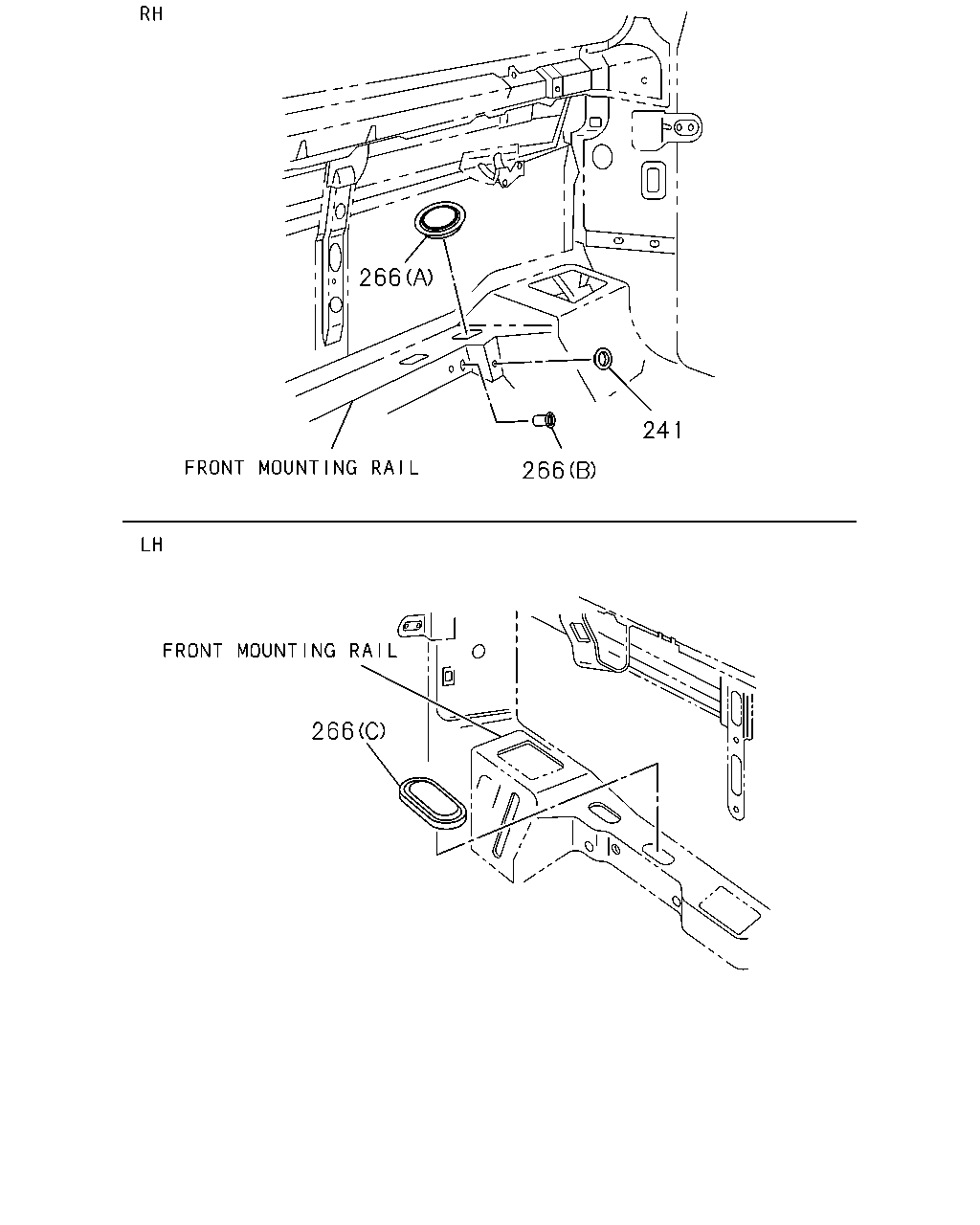

çizim 7935
266 241 266 266
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97037-392-0 01 1 9811- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37 		8-97036-019-0 01 1 9811- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13 		9-09756-019-0 01 1 9811- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5 		8-97036-020-0 01 1 9811- ● ● ● ● ● ●
çizim 8503
371 371 370 370
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
370 08.866 PLATE; BAFFLE,BLOWER UNIT 8-97856-129-1 01 1 9811- ● ● ●
370 08.866 PLATE; BAFFLE,BLOWER UNIT 8-97856-617-0 01 1 9811- ● ● ●
371 08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 9811- ● ● ● ● ● ●

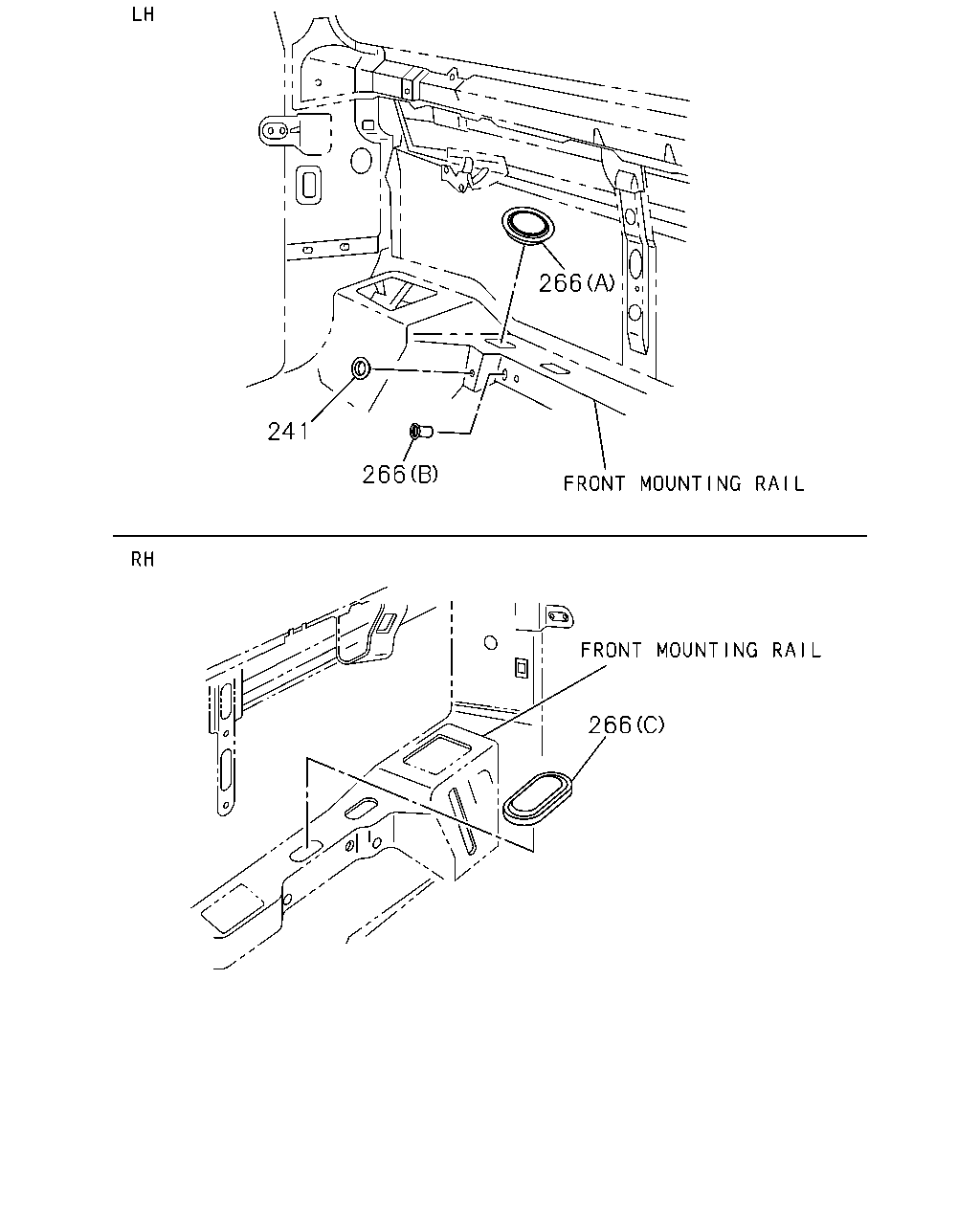

çizim 43306
266 241 266 266
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97037-392-0 01 1 9811- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37 		8-97036-019-0 01 1 9811- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13 		9-09756-019-0 01 1 9811- ● ● ● ● ● ●
266 08.845 PLUG; HTR HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5 		8-97036-020-0 01 1 9811- ● ● ● ● ● ●
çizim 44082
368 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
368 09.277 RELAY; HEATER AND A/C
08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
çizim 44084
367
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
367 08.552 HARNESS; EXT
AIR CONDITIONER MANUAL CONT(C60) 		8-97106-950-0 01 1 9811- ● ● ●

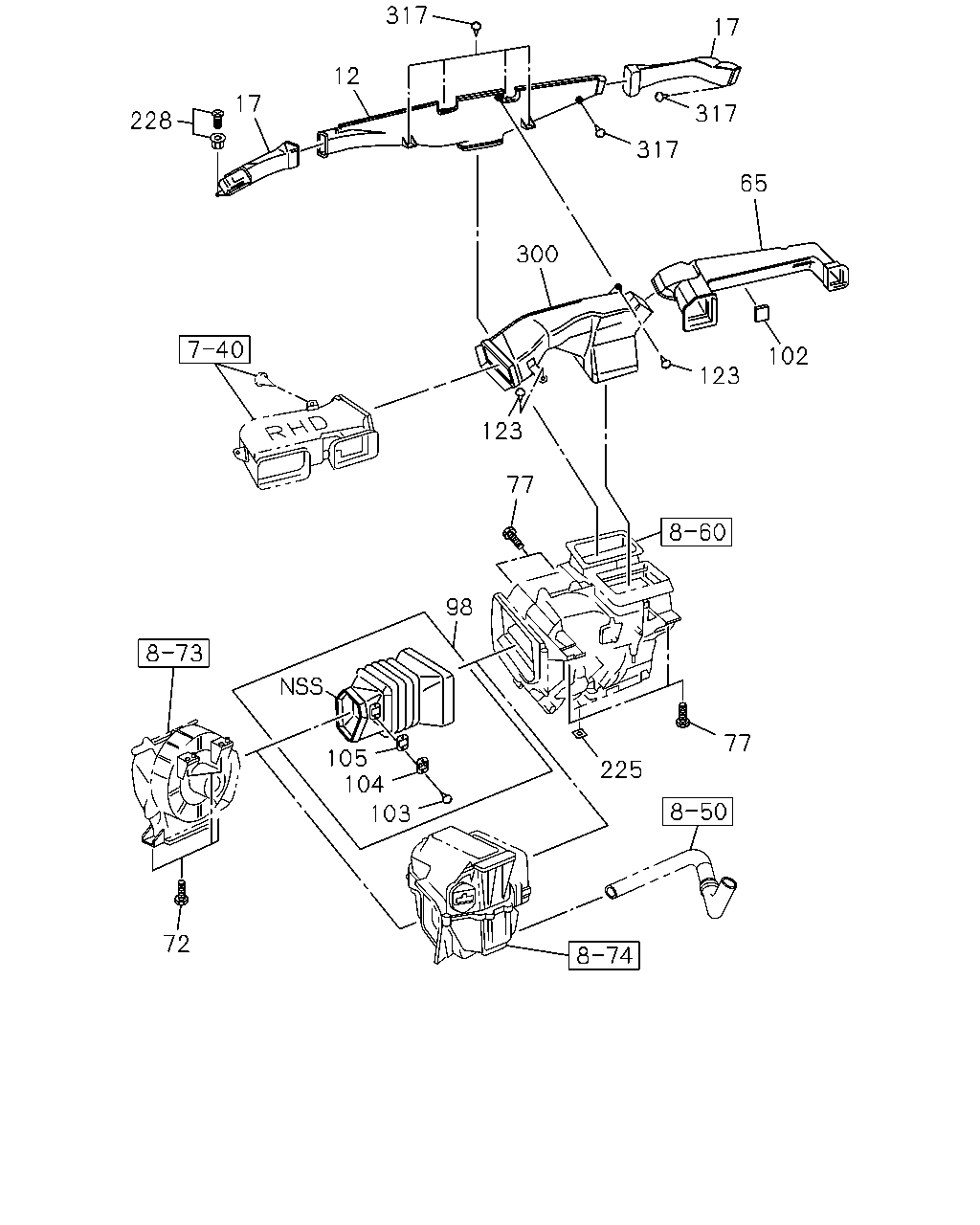

çizim 44767
317 17 12 17 317 228 317 65 300 102 123 123 77 98 77 105 104 225 103 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 09.779 NOZZLE; DEFROSTER 8-97035-235-1 01 1 9811-9901 ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97223-176-0 01 1 9902-0003 ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97251-627-0 01 1 0004- ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97069-817-0 01 1 9811-0006 ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97251-629-0 01 1 0007- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97035-237-1 01 1 9811-0007 ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-690-0 01 1 0008- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97035-236-1 01 1 9811-0007 ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-689-0 01 1 0008- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97069-819-0 01 1 9811-0007 ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-693-0 01 1 0008- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97069-820-0 01 1 9811-0007 ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-694-0 01 1 0008- ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97035-232-1 01 1 9811-0007 ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97262-686-0 01 1 0008- ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97069-821-0 01 1 9811-0007 ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97262-695-0 01 1 0008- ● ● ●
72 08.857 BOLT; BLOWER UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811- ● ● ● ● ● ●
72 08.857 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 9811- ● ● ● ● ● ●
77 08.845 BOLT; HTR UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811- ● ● ● ● ● ●
77 08.845 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 9811- ● ● ●
77 08.845 BOLT; HTR UNIT
03.704 M8X40 FLANGE 		0-28680-840-0 01 1 9811- ● ● ●
77 08.845 BOLT; HTR UNIT
M8X25 		8-97103-451-0 01 1 9811- ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97035-223-4 01 1 9811-0007 ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97262-791-0 01 1 0008- ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97069-826-2 01 1 9811-0007 ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97262-787-0 01 1 0008- ● ● ●
102 09.262 LINING; HTR DUCT 8-97145-038-0 01 1 9811- ● ● ● ● ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING 		1-83579-114-0 02 1 9811- ● ● ● ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97177-238-0 01 1 9811-0003 ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97234-546-0 01 1 0004- ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97083-136-1 01 1 9811-0003 ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97234-545-0 01 1 0004- ● ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97020-761-0 01 1 9811- ● ● ● ● ● ●
123 09.786 SCREW; DUCT
09.264 M5X12 W/PL WASHER 		8-97147-069-0 02 1 9811- ● ● ● ● ● ●
225 08.845 SEAL; WATER 8-97856-616-0 04 1 9811- ● ● ● ● ● ●
228 09.780 CLIP; DEFROSTER
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 9811- ● ● ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97035-233-5 01 1 9811-0007 ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97262-687-0 01 1 0008- ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97069-823-0 01 1 9811-0007 ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97262-697-0 01 1 0008- ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER 		8-97147-069-0 05 1 9811- ● ● ● ● ● ●

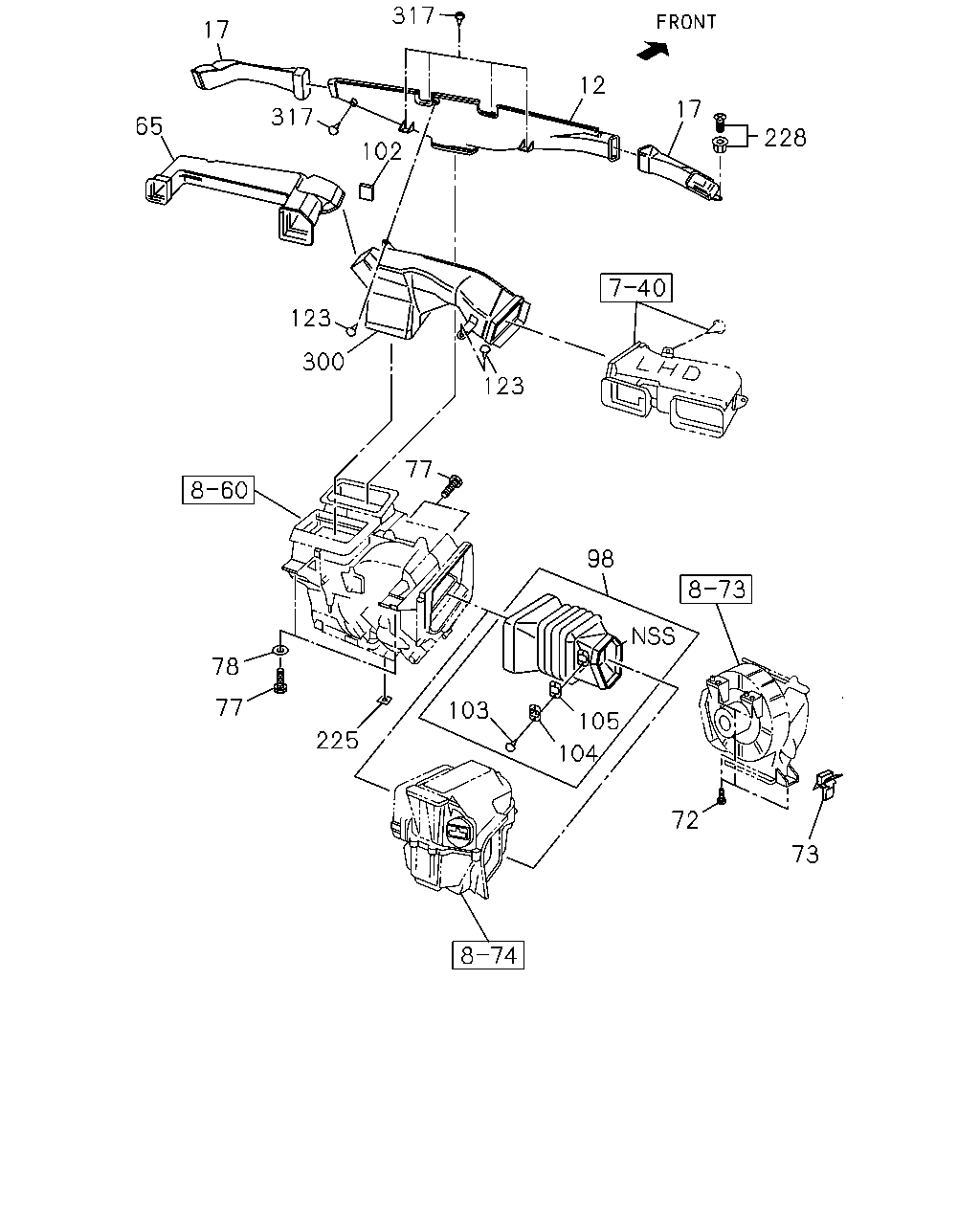

çizim 46599
317 17 12 17 317 65 228 102 123 123 300 77 98 78 77 103 105 225 104 72 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 09.779 NOZZLE; DEFROSTER 8-97035-235-1 01 1 9811-9901 ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97223-176-0 01 1 9902-0003 ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97251-627-0 01 1 0004- ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97069-817-0 01 1 9811-0006 ● ● ●
12 09.779 NOZZLE; DEFROSTER 8-97251-629-0 01 1 0007- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97035-237-1 01 1 9811-0007 ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-690-0 01 1 0008- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97035-236-1 01 1 9811-0007 ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-689-0 01 1 0008- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97069-819-0 01 1 9811-0007 ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-693-0 01 1 0008- ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97069-820-0 01 1 9811-0007 ● ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE 8-97262-694-0 01 1 0008- ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97035-232-1 01 1 9811-0007 ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97262-686-0 01 1 0008- ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97069-821-0 01 1 9811-0007 ● ● ●
65 09.786 DUCT; VENT,DRIVER SIDE 8-97262-695-0 01 1 0008- ● ● ●
72 08.857 BOLT; BLOWER UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811- ● ● ● ● ● ●
72 08.857 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 9811- ● ● ● ● ● ●
73 08.807 CLIP; HARNESS TO BLOWER UNIT
09.787 		8-94337-654-0 01 1 9811- ● ● ●
77 08.845 BOLT; HTR UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811- ● ● ● ● ● ●
77 08.845 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 9811- ● ● ●
77 08.845 BOLT; HTR UNIT
03.704 M8X40 FLANGE 		0-28680-840-0 01 1 9811- ● ● ●
77 08.845 BOLT; HTR UNIT
M8X25 		8-97103-451-0 01 1 9811- ● ● ●
78 08.845 WASHER; PL,HTR UNIT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9811- ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97035-223-4 01 1 9811-0007 ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97262-791-0 01 1 0008- ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97069-826-2 01 1 9811-0007 ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97262-787-0 01 1 0008- ● ● ●
102 09.262 LINING; HTR DUCT 8-97145-038-0 01 1 9811- ● ● ● ● ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING 		1-83579-114-0 02 1 9811- ● ● ● ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97177-238-0 01 1 9811-0003 ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97234-546-0 01 1 0004- ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97083-136-1 01 1 9811-0003 ● ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97234-545-0 01 1 0004- ● ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97020-761-0 01 1 9811- ● ● ● ● ● ●
123 09.786 SCREW; DUCT
09.264 M5X12 W/PL WASHER 		8-97147-069-0 02 1 9811- ● ● ● ● ● ●
225 08.845 SEAL; WATER 8-97856-616-0 04 1 9811- ● ● ● ● ● ●
228 09.780 CLIP; DEFROSTER
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 01 1 9811- ● ● ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97035-233-5 01 1 9811-0007 ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97262-687-0 01 1 0008- ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97069-823-0 01 1 9811-0007 ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97262-697-0 01 1 0008- ● ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER 		8-97147-069-0 05 1 9811- ● ● ● ● ● ●
