Isuzu WW
▶
TRUCKS
▶
NHR
▶
50808 - NHR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#42745) — 23 parça
Tümü
A - NHB5SF
B - NHB5WF
C - NHB6SF
D - NHB6WF
E - NHN5SF
F - NHN6SF
◀

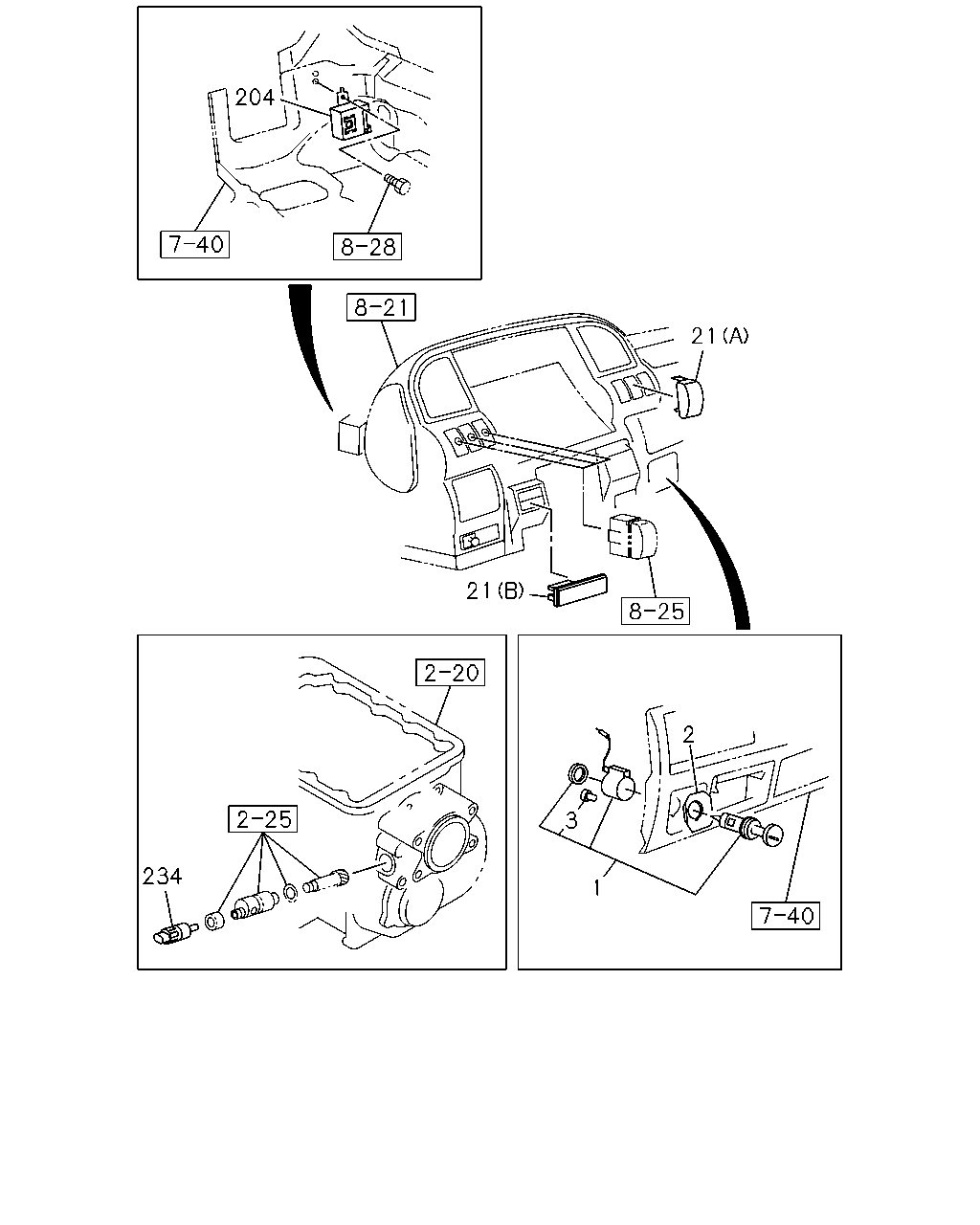

[826A] LHD (12 parça)

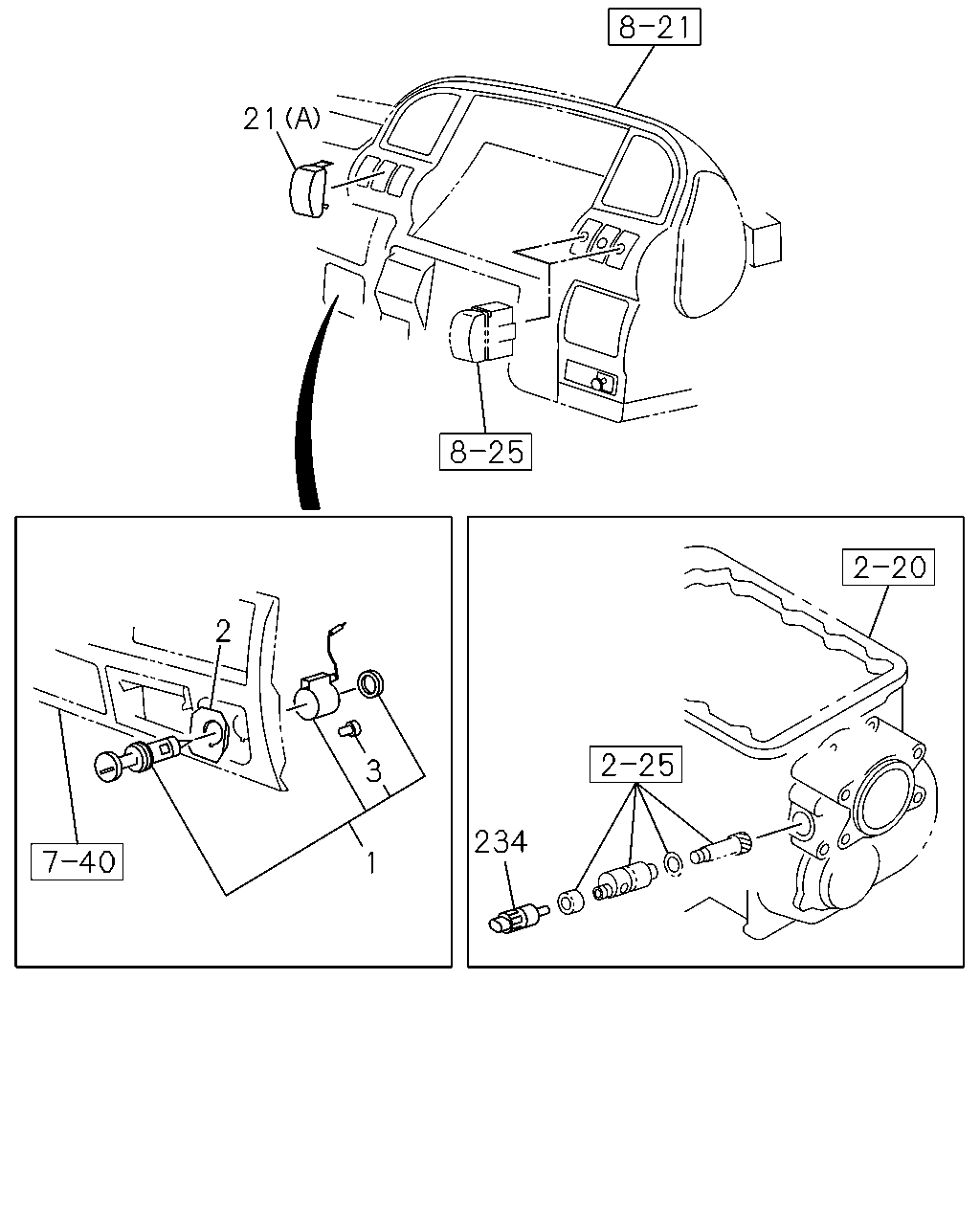

[826A] RHD (11 parça)
▶
204
21
21
2
234
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
09.709 LIGHTER; CIGAR
8-97073-936-1
01
1
9811-0108
●
●
●
●
●
●
1
09.709 LIGHTER; CIGAR
8-97320-322-0
01
1
0109-
●
●
●
●
●
●
2
09.709 BEZEL; CIGAR LIGHTER
8-97853-159-1
01
1
9811-
●
●
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
14V 1.4W
8-97173-160-0
01
1
9811-
●
●
●
●
●
●
21
09.744 COVER; HOLE
(A)
8-97136-694-0
01
1
9811-
●
●
●
●
●
●
21
09.744 COVER; HOLE
(A)
8-97136-694-0
01
1
9811-
●
●
●
●
●
●
21
09.744 COVER; HOLE
(A)
8-97136-694-0
01
1
9811-
●
●
●
●
●
●
21
09.744 COVER; HOLE
02.485 (B)
8-94310-890-0
01
1
9811-
●
●
●
204
02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765
8-97036-649-0
01
1
9811-
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
9811-0006
●
●
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM
8-97256-525-0
01
1
0007-0105
●
●
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
0106-
●
●
●
●
●
●
21
2
234
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
09.709 LIGHTER; CIGAR
8-97073-936-1
01
1
9811-0108
●
●
●
●
●
●
1
09.709 LIGHTER; CIGAR
8-97320-322-0
01
1
0109-
●
●
●
●
●
●
2
09.709 BEZEL; CIGAR LIGHTER
8-97853-159-1
01
1
9811-
●
●
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
14V 1.4W
8-97173-160-0
01
1
9811-
●
●
●
●
●
●
21
09.744 COVER; HOLE
(A)
8-97136-694-0
01
1
9811-
●
●
●
●
●
●
21
09.744 COVER; HOLE
(A)
8-97136-694-0
01
1
9811-
●
●
●
●
●
●
21
09.744 COVER; HOLE
(A)
8-97136-694-0
01
1
9811-
●
●
●
●
●
●
21
09.744 COVER; HOLE
02.485 (B)
8-94310-890-0
01
1
9811-
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
9811-0006
●
●
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM
8-97256-525-0
01
1
0007-0105
●
●
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
0106-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
