◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#42744) — 137 parça

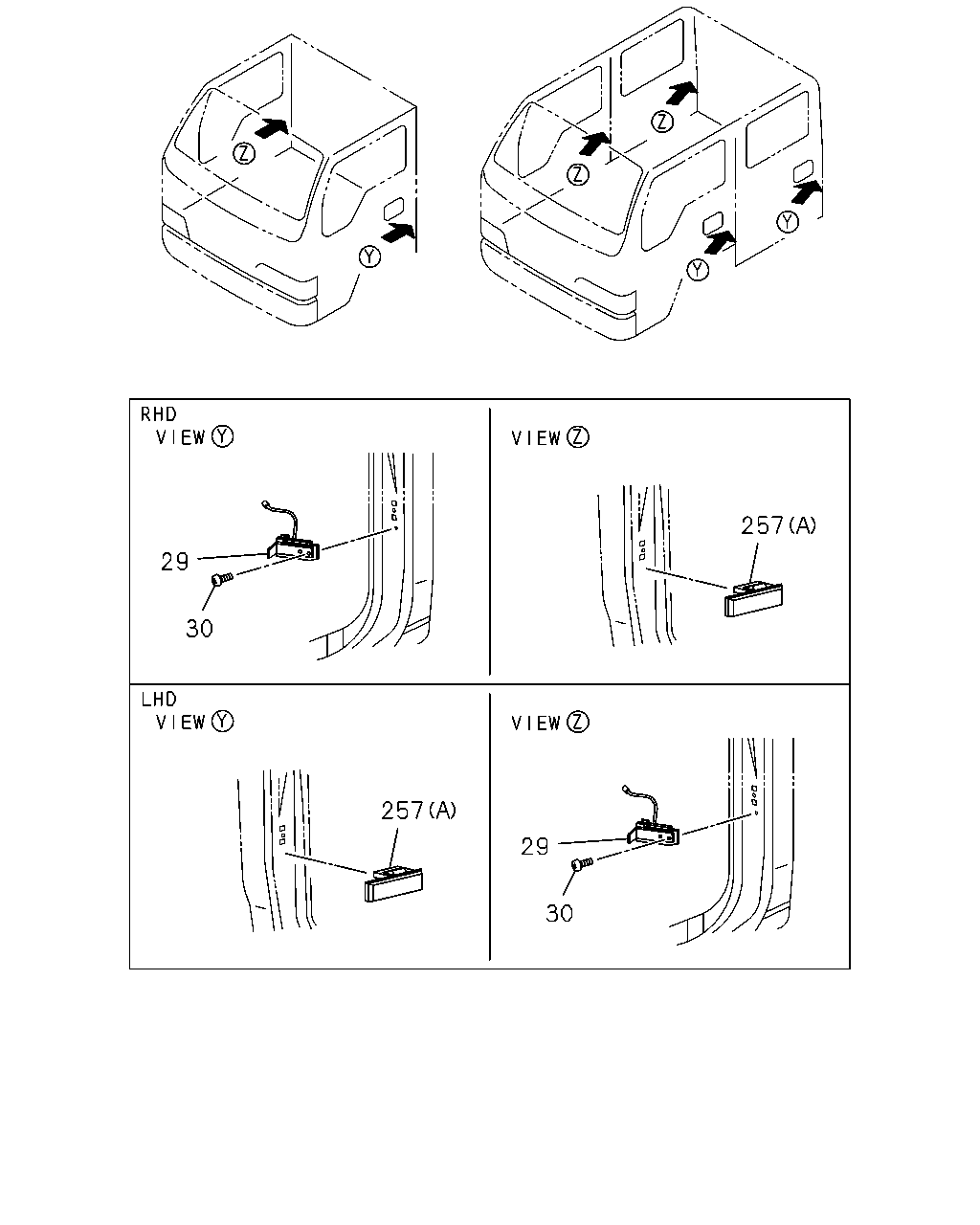

çizim 7592
257 29 30 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 9811- ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 9811- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9811- ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9811- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9811- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9811- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9811- ● ●
257 16.081 COVER; HOLE,SW
02.485 (B) 		8-94310-890-0 01 1 9811- ● ● ●

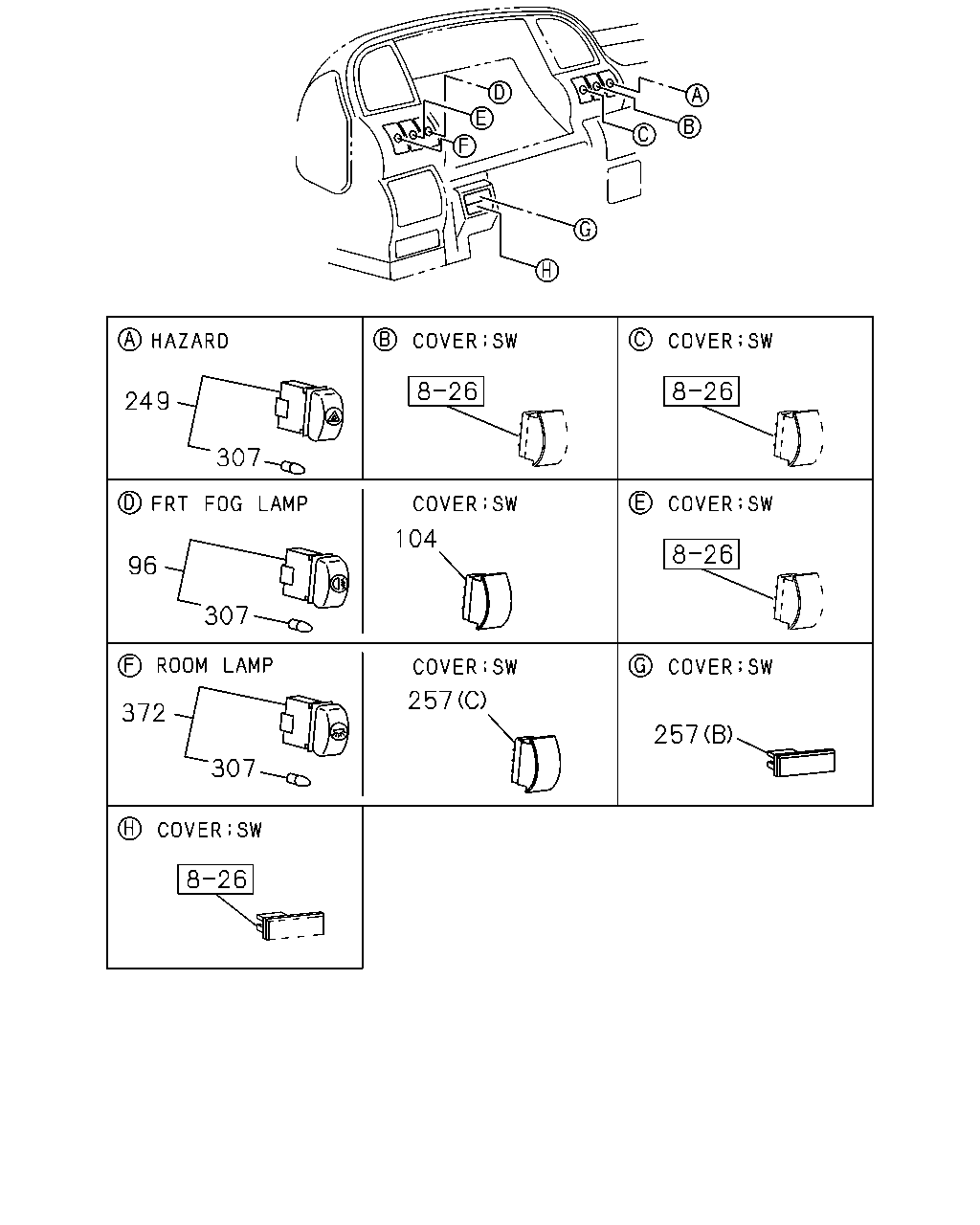

çizim 9377
249 307 104 96 307 257 372 257 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 02.485 SWITCH; FOG LAMP
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 9811-0105 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 9811-0105 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 0106- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 0106- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP(T96) 09.744 		8-97136-694-0 01 1 9811-0101 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP(T96) 09.744 		8-97136-694-0 01 1 0102- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 9811- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9811- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9811- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9811- ● ●
257 16.081 COVER; HOLE,SW
02.485 (B) 		8-94310-890-0 01 1 9811- ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 9811- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 14V 60MA 		8-97116-329-0 01 1 9811-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 9811-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> 14V 60MA 		8-97116-329-0 01 1 9811-0105 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 14V 60MA 		8-97116-329-0 01 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> 14V 60MA 		8-97116-329-0 01 1 0106- ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 9811- ● ● ● ● ● ●

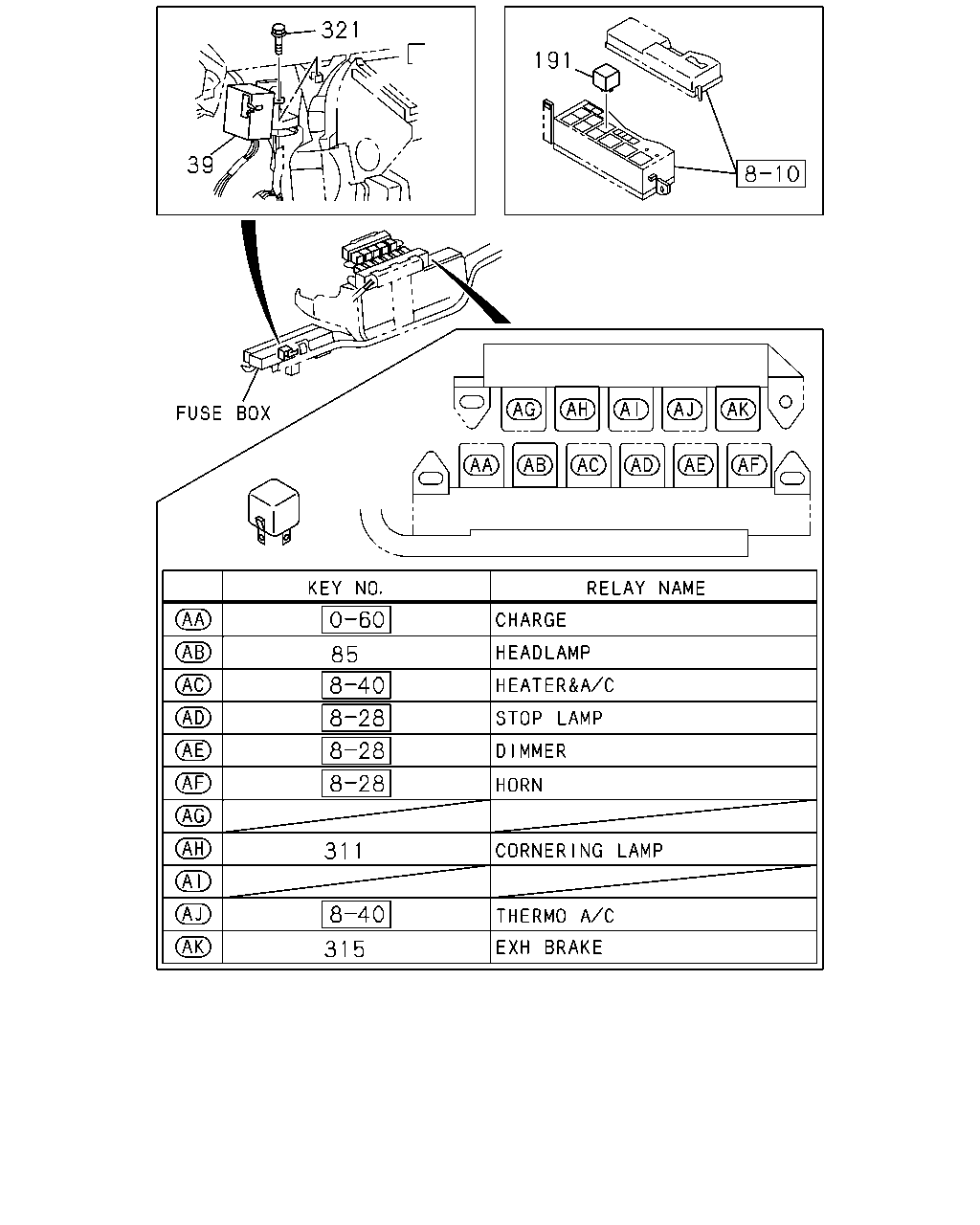

çizim 45533
321 191 39 85 311 315
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-215-0 01 1 9811-0212 ● ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97359-591-0 01 1 0301- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> 08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9811- ● ● ● ● ● ●

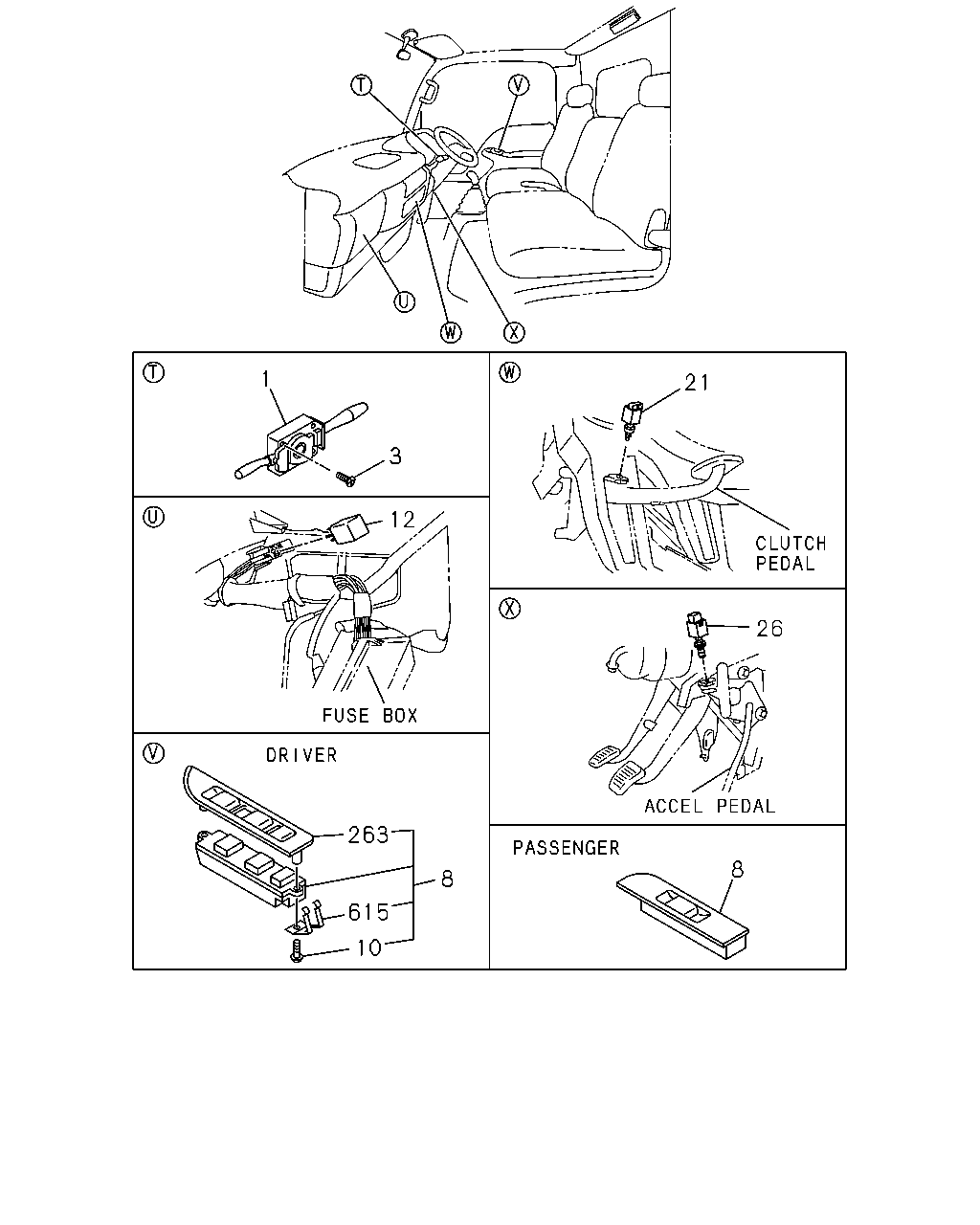

çizim 45569
1 21 3 12 26 263 8 8 615 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97170-393-0 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-892-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-394-0 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-893-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-218-1 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-887-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-882-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97167-653-0 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-890-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-390-0 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-891-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-008-2 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-883-2 01 1 0102- ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9811- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-343-0 01 1 9811-9811 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97214-600-0 01 1 9812-9905 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97222-593-0 01 1 9906-0004 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-351-0 01 1 0005-0106 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-177-0 01 1 0107- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9811-9901 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97214-398-0 01 1 9902- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-345-0 01 1 9811-9811 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97214-602-0 01 1 9812-9905 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97222-595-0 01 1 9906-0004 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-353-0 01 1 0005-0106 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-179-0 01 1 0107- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-727-0 01 1 9811-9901 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-399-0 01 1 9902- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9811- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9811-0212 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0301- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 9811-0212 ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0301- ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 9811- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9811- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 9811- ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9811- ● ● ● ● ● ●

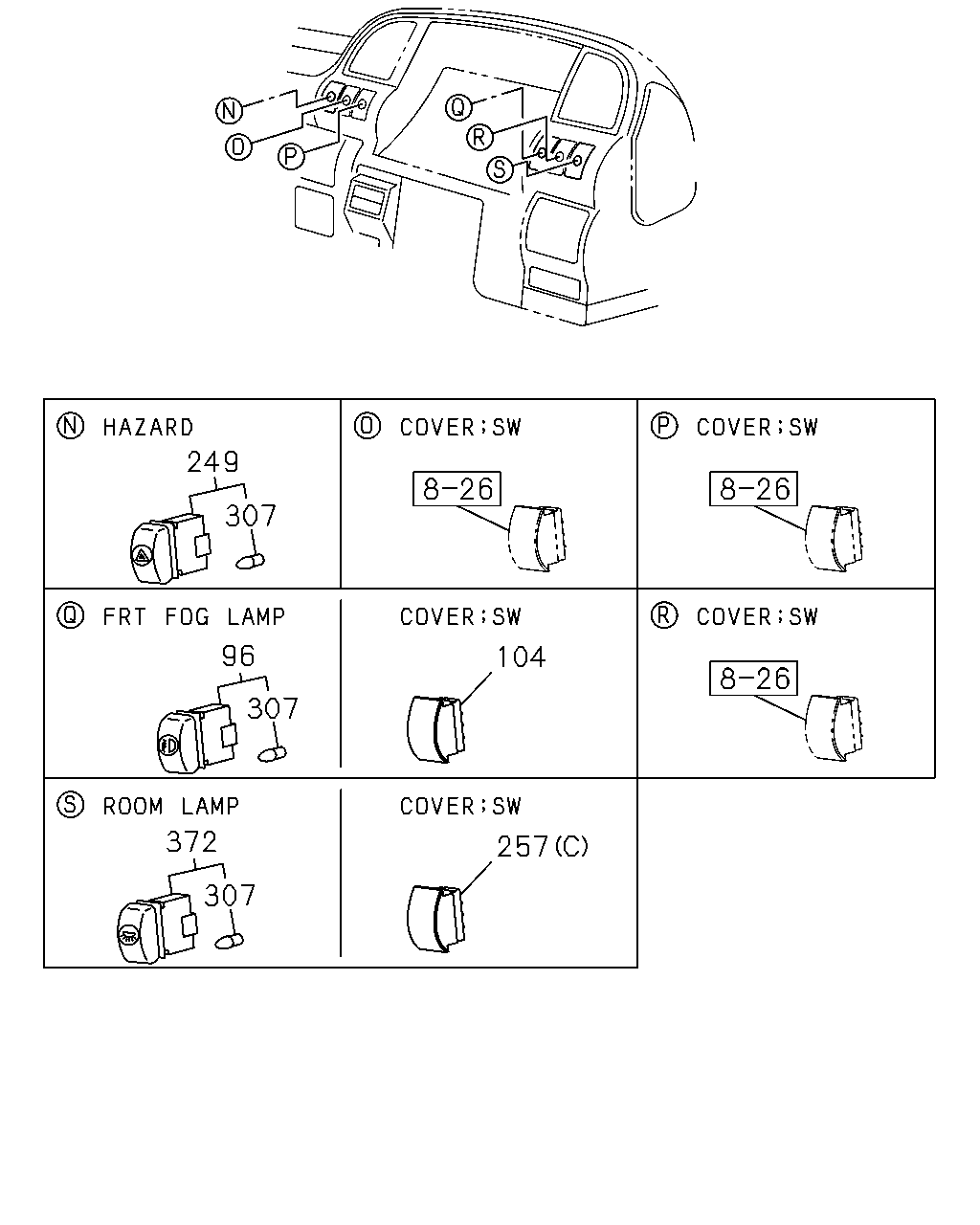

çizim 46982
249 307 96 104 307 372 257 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 02.485 SWITCH; FOG LAMP
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 9811-0105 ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 9811-0105 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 0106- ● ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97140-964-0 01 1 0106- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP(T96) 09.744 		8-97136-694-0 01 1 9811-0101 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,FOG LAMP(T96) 09.744 		8-97136-694-0 01 1 0102- ● ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-476-0 01 1 9811- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9811- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9811- ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9811- ● ●
257 16.081 COVER; HOLE,SW
02.485 (B) 		8-94310-890-0 01 1 9811- ● ● ●
307 08.991 BULB ASM; SW
14V 60MA 		8-97116-329-0 02 1 9811- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 14V 60MA 		8-97116-329-0 01 1 9811-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 9811-0105 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> 14V 60MA 		8-97116-329-0 01 1 9811-0105 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP(T96) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 14V 60MA 		8-97116-329-0 01 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 14V 60MA 		8-97116-329-0 01 1 0106- ● ● ● ● ● ●
307 08.991 BULB ASM; SW
HALOGEN HEAD LAMP RECTANGULAR<TR4> 14V 60MA 		8-97116-329-0 01 1 0106- ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-692-0 01 1 9811- ● ● ● ● ● ●

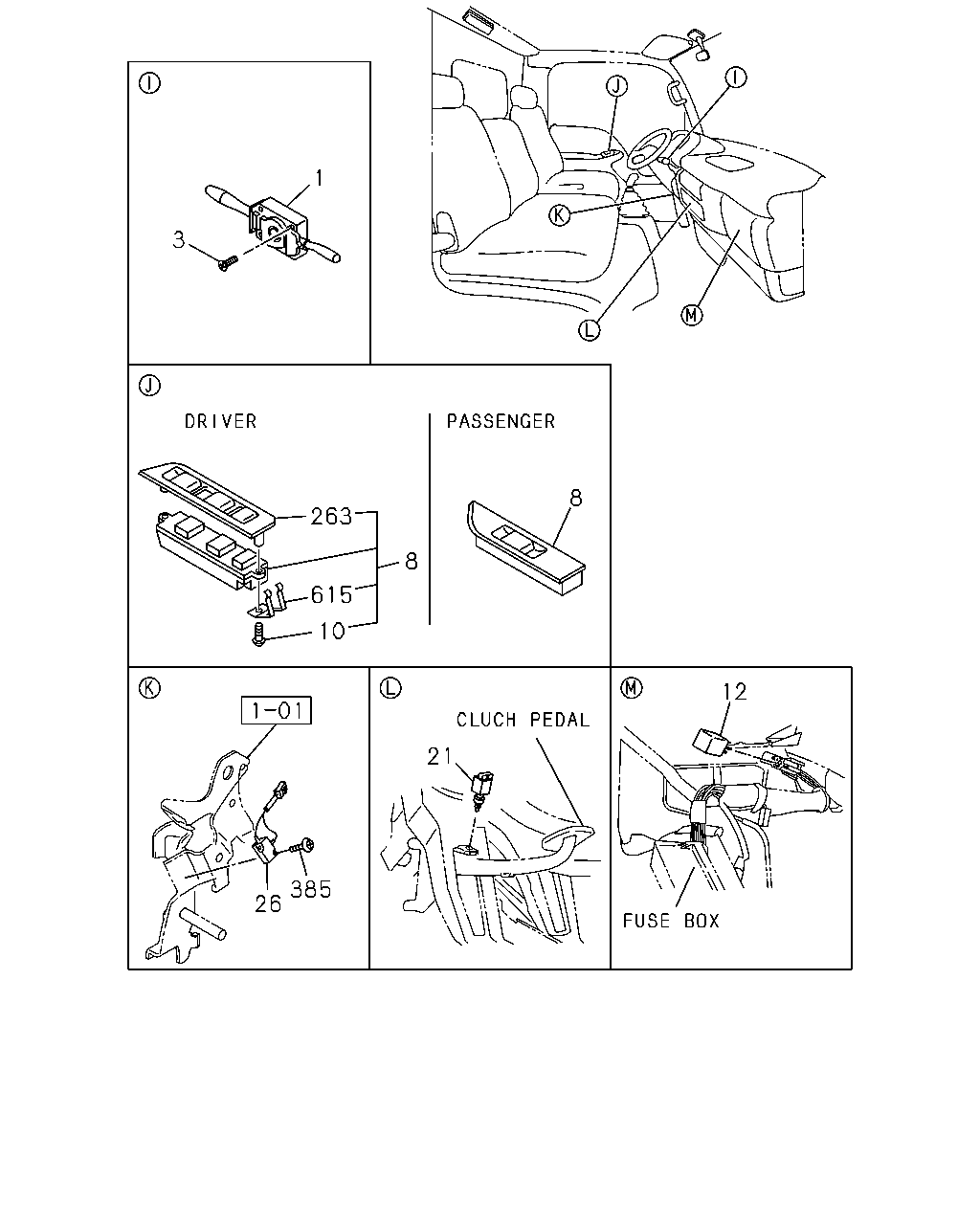

çizim 47139
1 3 8 263 8 615 10 12 21 385 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-217-1 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97170-393-0 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-892-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-394-0 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-893-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-218-1 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-887-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97287-882-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97167-653-0 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97287-890-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97170-390-0 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-891-2 01 1 0102- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-008-2 01 1 9811-0101 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-883-2 01 1 0102- ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9811- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-343-0 01 1 9811-9811 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97214-600-0 01 1 9812-9905 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97222-593-0 01 1 9906-0004 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-351-0 01 1 0005-0106 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-177-0 01 1 0107- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-726-0 01 1 9811-9901 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 		8-97214-398-0 01 1 9902- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-345-0 01 1 9811-9811 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97214-602-0 01 1 9812-9905 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97222-595-0 01 1 9906-0004 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97249-353-0 01 1 0005-0106 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-179-0 01 1 0107- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-727-0 01 1 9811-9901 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-399-0 01 1 9902- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9811- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 9811- ● ● ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9811-0212 ● ● ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0301- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 		8-94368-343-0 01 1 9811-0212 ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0301- ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 9811- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-234-0 01 1 9811- ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 9811- ● ● ●
385 08.909 SCREW; ACCEL SW
EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9811- ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
