Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#42742) — 217 parça

483 48 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=33.5	1-09987-165-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=31 L=30	1-09700-969-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=32 L=35	1-09701-244-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9912-	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 04.342 (A) L=197	1-83574-032-0	01	1	9811-	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS (B) ID=11 L=20	9-09525-035-0	01	1	9811-	●	●	●	●	●	●

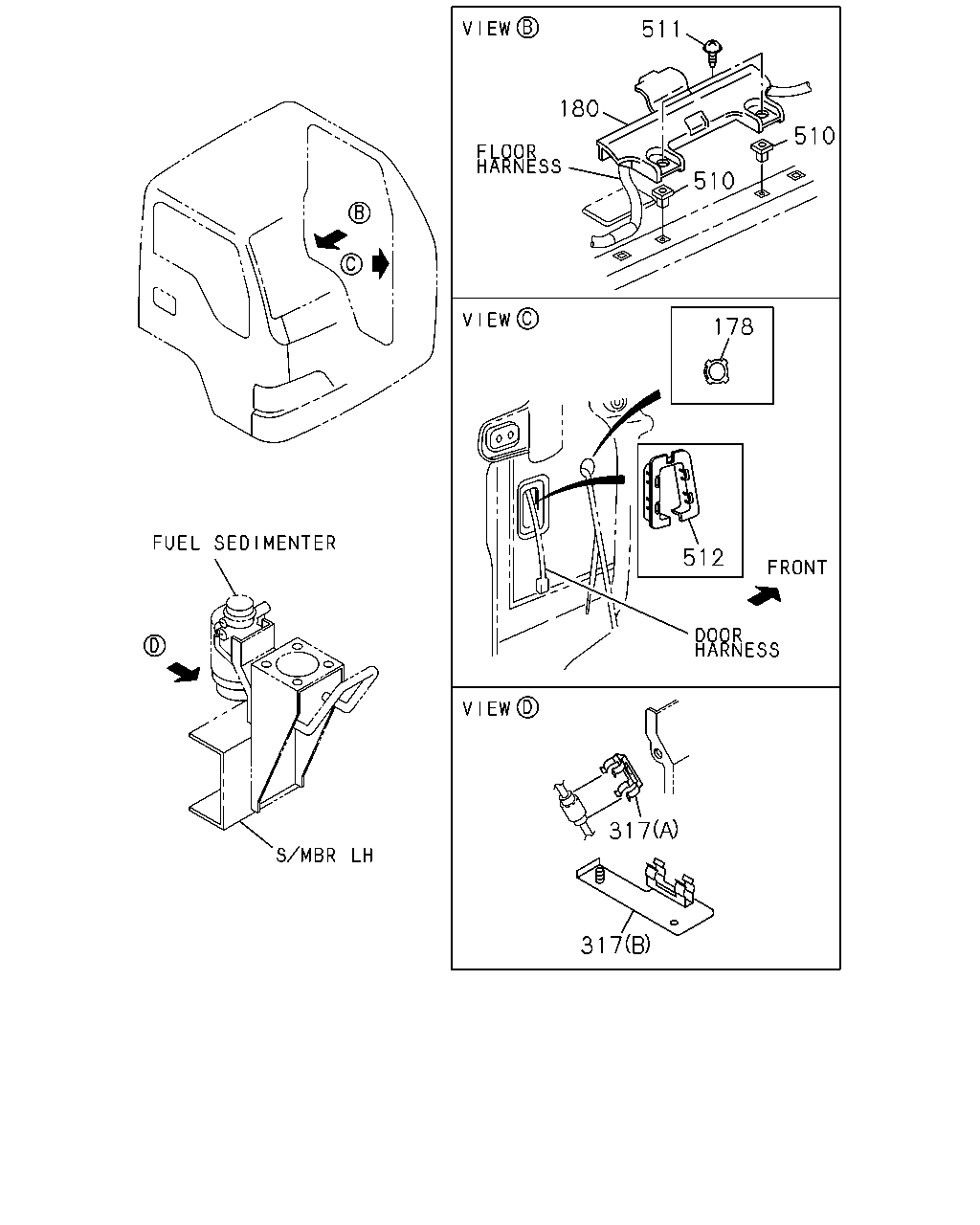

511 180 510 510 178 512 317 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9811-	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9811-	●	●	●	●	●	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	9811-	●	●	●	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> (A)	8-94441-365-0	01	1	9811-					●	●
317	02.559 CLAMP; CONNECTOR RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94310-684-0	01	1	9811-					●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	9811-	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●

16 16 48 488 16 16 14 16 48 483 16 116 16 464 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	9811-	●	●			●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) L=80	5-09700-307-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.587 (K) L=112	8-94232-618-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=100	8-94442-388-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=60	8-94457-053-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (M) ID=22 & 22	8-94464-837-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=175	8-97110-167-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9901-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (R) L=135	1-09987-143-1	AR	1	9904-	●	●			●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=33.5	1-09987-165-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=31 L=30	1-09700-969-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=32 L=35	1-09701-244-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9912-	●	●	●	●	●	●
116	02.559 CLIP; ROOF HARNESS CAB-LOW ROOF<6XQ> 16.065 1 SET=5 PIECE	1-09987-214-0	01	1	9811-					●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9811-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS RR BODY FLAT BED<RS6> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9811-					●	●
464	02.525 CLIP; SEDIMENTER HARNESS EXC. RR BODY FLAT BED<RS6> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9811-					●	●
464	02.525 CLIP; SEDIMENTER HARNESS RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> 02.587 (A) L=112	8-94232-618-0	01	1	9811-					●	●
483	02.559 CLIP; ENG HARNESS 04.342 (A) L=197	1-83574-032-0	01	1	9811-	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS (B) ID=11 L=20	9-09525-035-0	01	1	9811-	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> L=250	5-09707-030-1	01	1	9812-	●	●	●	●	●	●

16 208 16 48 48 48 48 48 48 48 48 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) L=80	5-09700-307-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.587 (K) L=112	8-94232-618-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=100	8-94442-388-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=60	8-94457-053-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (M) ID=22 & 22	8-94464-837-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=175	8-97110-167-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9901-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (R) L=135	1-09987-143-1	AR	1	9904-	●	●			●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=33.5	1-09987-165-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=31 L=30	1-09700-969-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=32 L=35	1-09701-244-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9912-	●	●	●	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV EXHAUST BRAKE<NF8> 01.240 (A) T=5.5	5-09709-047-0	01	1	9811-	●	●	●	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV EXHAUST BRAKE<NF8> 02.557 (B) ID=10	5-09700-318-0	02	1	9811-	●	●	●	●	●	●

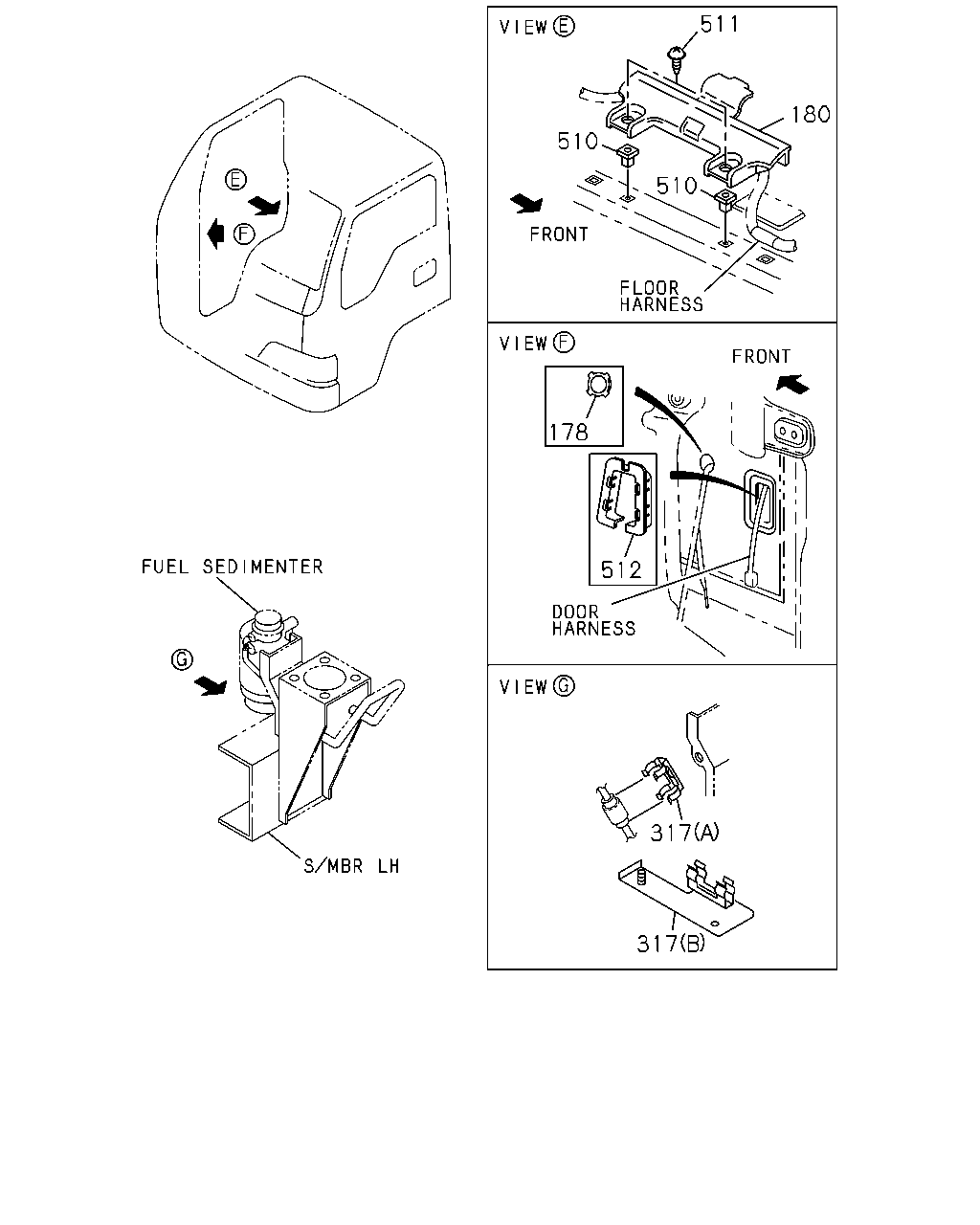

511 180 510 510 178 512 317 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9811-	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9811-	●	●	●	●	●	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	9811-	●	●	●	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> (A)	8-94441-365-0	01	1	9811-					●	●
317	02.559 CLAMP; CONNECTOR RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94310-684-0	01	1	9811-					●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	9811-	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●

38 8 38 38 150 150 139 377 8 38 19 219 386 159 55 64 511 10 219 219 294 219 469 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-	●	●	●	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-			●	●		●
10	02.559 SCREW; BRKT TO BODY 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9811-			●	●		●
19	02.559 BOLT; PROTECTOR 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9811-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	9811-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	9811-					●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	9811-0105	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0106-	●	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JB1 ENG(RLF) 04.930 (C) M6X20 FLANGE	0-28680-620-0	01	1	0106-					●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	02	1	9811-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	9811-			●	●		●
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	9811-	●	●	●	●	●	●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	9811-		●		●
139	02.559 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9811-	●	●	●	●	●	●
150	02.343 BOLT; CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-	●	●	●	●	●	●
150	02.343 BOLT; CLIP RR BODY NON FLAT BED(RS5) 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	9811-		●		●
159	02.559 BOLT; GRAND ENG ELEC 02.343 M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9811-	●	●	●	●	●	●
219	02.559 NUT FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	9811-	●	●	●	●
219	02.559 NUT FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	9811-					●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9811-	●	●	●	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9811-0105	●	●	●	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9811-0105	●	●	●	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0106-	●	●	●	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0106-	●	●	●	●		●
219	02.559 NUT 4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0106-					●
219	02.559 NUT (D)	8-97108-658-0	01	1	9811-			●	●		●
219	02.559 NUT RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> 07.829 (B) M6 FLANGE	5-09440-004-0	01	1	9811-					●	●
294	02.559 NUT RR BODY NON FLAT BED(RS5) 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-		●		●
377	02.559 BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9811-	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9811-	●	●	●	●	●	●
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9811-	●	●	●	●	●	●
519	02.559 NUT; EARTH CABLE 05.586 M12 FLANGE	0-91150-112-0	01	1	9811-	●	●	●	●	●	●

397 48 16 16 264 16 16 264 16 16 16 464 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) L=80	5-09700-307-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (G) L=140	5-09707-031-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.587 (K) L=112	8-94232-618-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=100	8-94442-388-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=60	8-94457-053-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (M) ID=22 & 22	8-94464-837-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=175	8-97110-167-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	AR	1	9811-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9901-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (Q) ID=15-40	8-97223-033-0	AR	1	9904-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (R) L=135	1-09987-143-1	AR	1	9904-	●	●			●
48	02.559 CLIP; FRAME HARNESS (G) ID=35 L=35	1-09700-895-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=31 L=33.5	1-09987-165-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=31 L=30	1-09700-969-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=25 L=60	1-09701-041-1	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) L=170.3	1-09987-182-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=9	8-97063-874-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=28 L=32	1-09701-064-1	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=32 L=35	1-09701-244-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=19 L=60	9-09525-893-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=19 H=70 L=25	1-09700-773-0	AR	1	9811-	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9912-	●	●	●	●	●	●
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	9811-		●		●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	9811-0101	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	0102-	●	●			●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0102-			●	●		●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0102-			●	●		●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	9811-		●		●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6.5	8-94257-639-0	01	1	9811-	●	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS RR BODY FLAT BED<RS6> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9811-					●	●
464	02.525 CLIP; SEDIMENTER HARNESS EXC. RR BODY FLAT BED<RS6> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9811-					●	●
464	02.525 CLIP; SEDIMENTER HARNESS RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> 02.587 (A) L=112	8-94232-618-0	01	1	9811-					●	●

7 31 31 178 180 317 317 510 512 527 514 514 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	02.559 BRACKET; CONNECTOR	8-97102-247-2	01	1	9811-			●	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	9811-	●	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	9811-	●	●	●	●	●	●
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9811-	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9811-	●	●	●	●	●	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94441-365-0	01	1	9811-	●	●	●	●
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> EXC. RR BODY FLAT BED<RS6> (A)	8-94441-365-0	01	1	9811-					●	●
317	02.559 CLAMP; CONNECTOR RR BODY FLAT BED<RS6> FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94310-684-0	01	1	9811-					●	●
504	02.559 PROTECTOR; HARNESS 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9811-0105	●	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0106-	●	●	●	●	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>	8-97072-950-0	02	1	9811-	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	9811-	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	9811-			●	●		●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	9811-	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	9811-	●	●	●	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	9811-			●	●		●

31 31

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	31	02.559 BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	9811-	●	●	●	●	●	●
	31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	9811-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
