◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#42741) — 392 parça

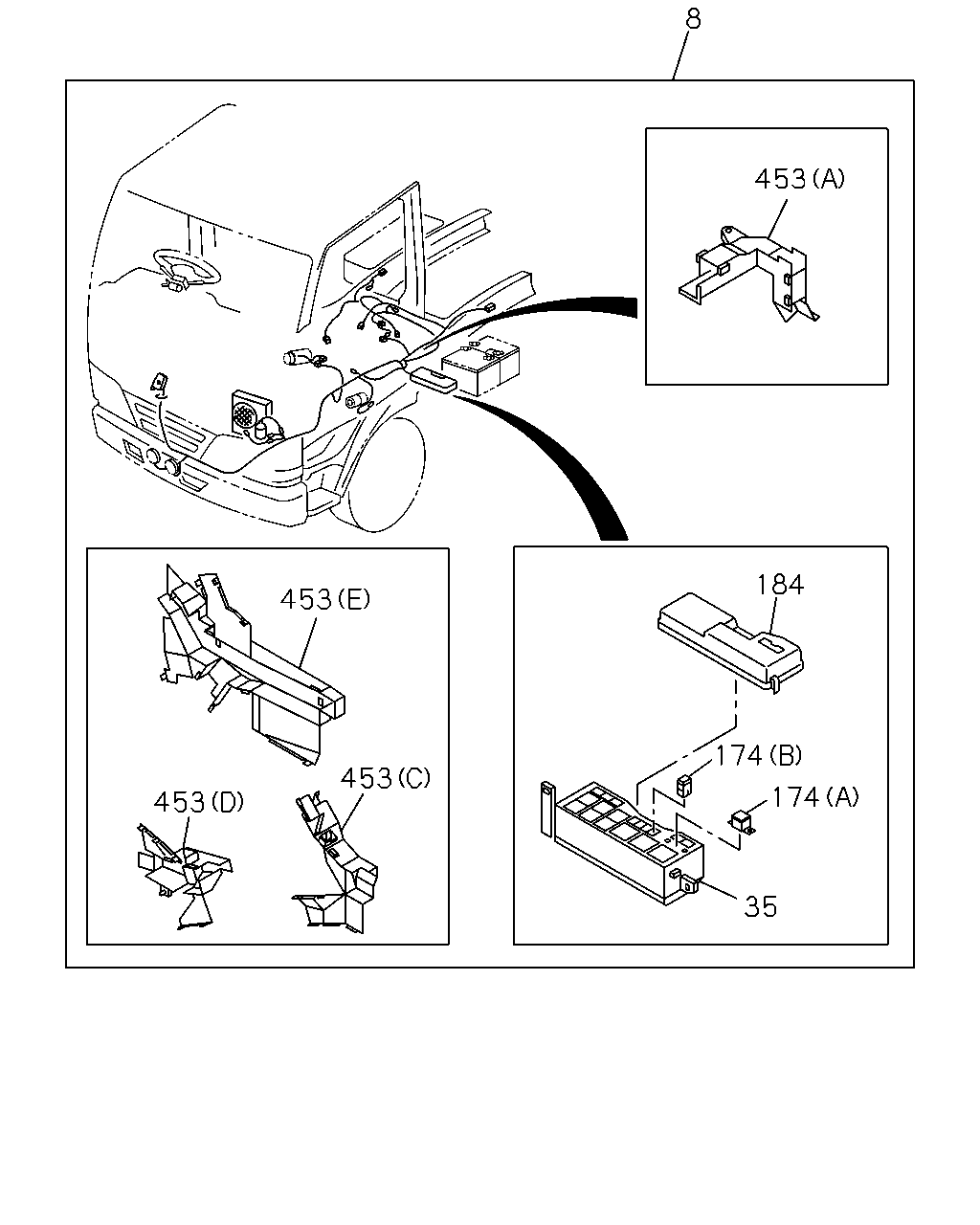

çizim 10859
8 453 184 453 174 453 174 453 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-697-2 01 1 9811-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97260-492-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97212-321-0 01 1 9811-9910 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97212-321-1 01 1 9911-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. EURO2 SPECIFICATION<7AF> 		8-97212-321-1 01 1 9911-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97212-321-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97245-266-1 01 1 9911-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97245-266-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
CHARGE AIR COOLER<6PL> 		8-97225-916-1 01 1 0005-0105 ●
8 02.480 HARNESS; FRAME,FRT
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97260-390-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-1 01 1 9811-0004 ● ● ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97188-699-2 01 1 0005-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 0005-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-495-1 01 1 0106- ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9811-9910 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JB1 ENG(RLF) 		8-97063-150-1 01 1 9911-0105 ● ● ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97063-150-1 01 1 9911-0105 ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9911-0105 ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0106- ● ● ● ●
35 02.530 BOX; RELAY & FUSE
EXC. CHARGE AIR COOLER<6PL> 		8-97063-150-1 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97063-150-1 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JB1 ENG(RLF) 		8-97063-150-1 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97063-150-1 01 1 0106- ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9811- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9811-9910 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) 		8-97063-152-1 01 1 9911-0105 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97063-152-1 01 1 9911-0105 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9911-0105 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0106- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
EXC. CHARGE AIR COOLER<6PL> 		8-97063-152-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97063-152-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) 		8-97063-152-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97063-152-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-97259-730-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (E) 		8-97259-730-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (D) 		8-97259-731-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (D) 		8-97259-731-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (C) 		8-97262-956-3 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (C) 		8-97262-956-3 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (A) 		8-97120-589-0 01 1 9811-9910 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 9911-0004 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0005-0007 ● ● ●
453 02.483 PROTECTOR; HARNESS
CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0005-0007 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0106- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> (F) 		8-97093-668-1 01 1 9911-0105 ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0106- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> (F) 		8-97093-668-1 01 1 0106- ●
çizim 10860
13 575 329 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-697-2 01 1 9811-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97260-492-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97212-321-0 01 1 9811-9910 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97212-321-1 01 1 9911-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. EURO2 SPECIFICATION<7AF> 		8-97212-321-1 01 1 9911-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97212-321-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97245-266-1 01 1 9911-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97245-266-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
CHARGE AIR COOLER<6PL> 		8-97225-916-1 01 1 0005-0105 ●
8 02.480 HARNESS; FRAME,FRT
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97260-390-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-1 01 1 9811-0004 ● ● ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97188-699-2 01 1 0005-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 0005-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-495-1 01 1 0106- ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> 		8-97173-694-1 01 1 9811- ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97173-696-1 01 1 9811-0105 ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. EURO2 SPECIFICATION<7AF> 		8-97173-696-1 01 1 9811-0105 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97173-696-1 01 1 0106- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) 		8-97204-771-2 01 1 9911-0105 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) FAN FLUID DRIVE<KA3> LOW EMISSION VEHICLE PACKAGE<7VP> EXC. HEATER & DEFROSTER(C41) 		8-97204-771-2 01 1 0106- ●
13 02.525 HARNESS; ENG
FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97218-750-0 01 1 0005- ●
329 02.480 CABLE; ENG TO FRAME 8-97213-192-0 01 1 9811-0105 ● ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 0106- ● ● ● ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97212-328-0 01 1 9901-9910 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. EURO2 SPECIFICATION<7AF> 		8-97212-328-0 01 1 9901-9910 ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 9911-0004 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97212-328-0 01 1 0005-0105 ● ● ●
575 02.525 HARNESS; GLOW PLUG
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-328-0 01 1 0005-0105 ●
575 02.525 HARNESS; GLOW PLUG
4JB1 ENG(RLF) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97212-328-0 01 1 0106- ●
575 02.525 HARNESS; GLOW PLUG
4JG2 ENG(RJC) 		8-97212-328-0 01 1 0106- ●

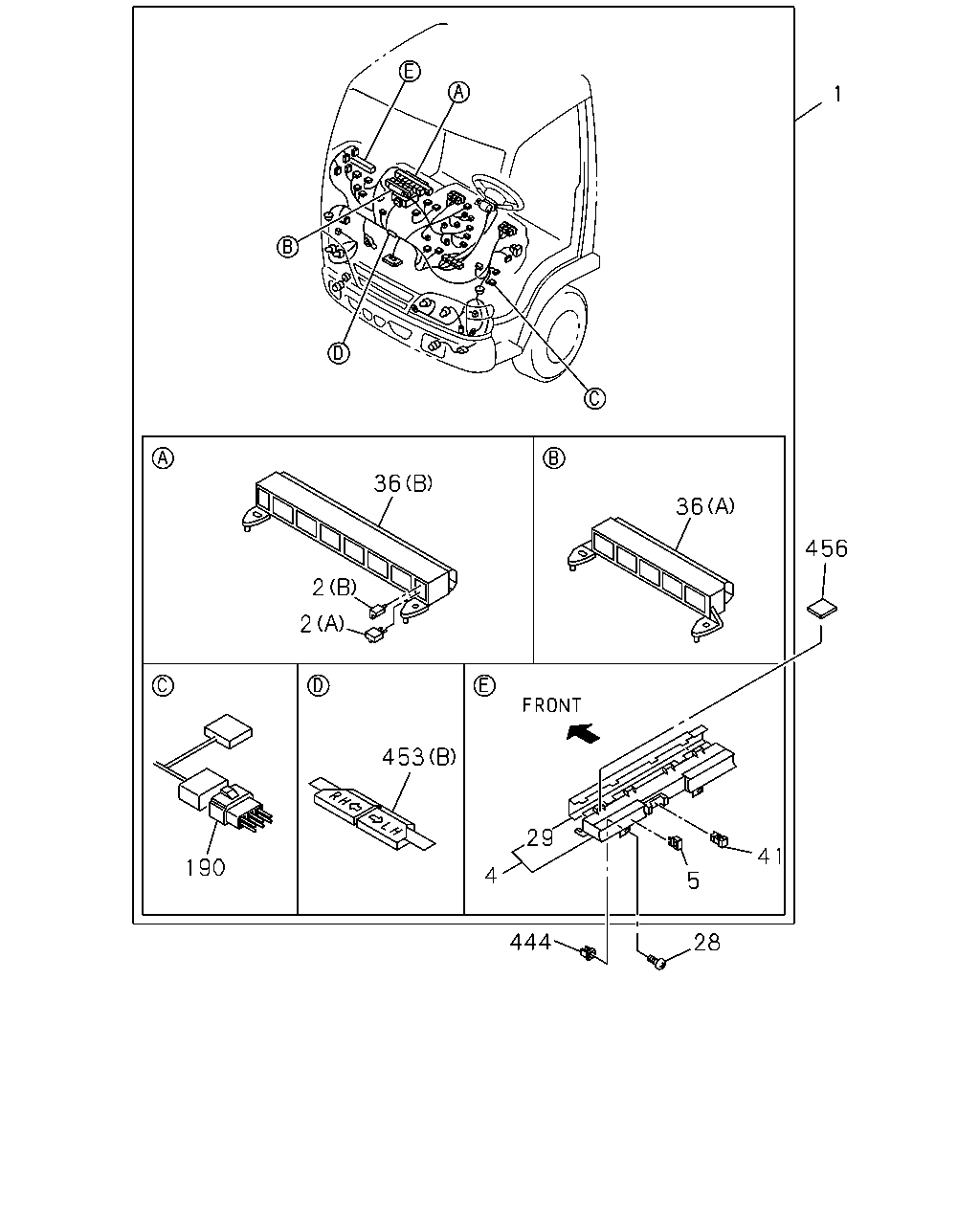

çizim 47050
1 36 36 456 2 2 453 29 41 190 4 5 28 444
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97217-158-1 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-1 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97217-159-1 01 1 9811-9910 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97217-159-1 01 1 9911-0105 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. EURO2 SPECIFICATION<7AF> 		8-97217-159-1 01 1 9911-0105 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-084-1 01 1 0106- ●
1 02.480 HARNESS; CAB
CHARGE AIR COOLER<6PL> 		8-97230-668-2 01 1 0005- ●
1 02.480 HARNESS; CAB 8-97185-292-0 01 1 9811-0004 ● ● ●
1 02.480 HARNESS; CAB
EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-2 01 1 0005- ●
1 02.480 HARNESS; CAB 8-97185-292-2 01 1 0005- ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97245-265-0 01 1 9911-0105 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-083-1 01 1 0106- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9811- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 9811-0004 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0005-0105 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0005-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0106-0111 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0106-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97214-415-0 01 1 0106-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 0106-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0112- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97214-415-0 01 1 0112- ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 0112- ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9811-0004 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 0005-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 0005-0111 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9811- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9811- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9811- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
EXC. CHARGE AIR COOLER<6PL> 		8-97074-955-0 01 1 0010-0111 ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0010-0111 ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0109-0111 ● ●
36 02.530 BOX; RELAY
CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-640-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-640-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-640-1 01 1 0112- ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-640-1 01 1 0112- ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-638-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-638-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 0106-0108 ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-638-1 01 1 0106-0108 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-638-1 01 1 0106-0108 ●
36 02.530 BOX; RELAY
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 0109-0111 ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97087-639-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0106- ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 0106- ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (B) 		8-97087-639-1 01 1 0106- ●
41 08.821 PULLER; FUSE
4JB1 ENG(RLF) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ● ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ● ● ● ● ●
41 08.821 PULLER; FUSE
4JB1 ENG(RLF) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JB1 ENG(RLF) 		5-82690-411-0 01 1 9811-9901 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		5-82690-411-0 01 1 9811-9901 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9811-9901 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9902-0004 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 0005-0009 ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 0005-0009 ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-97259-730-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (E) 		8-97259-730-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (D) 		8-97259-731-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (D) 		8-97259-731-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (C) 		8-97262-956-3 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (C) 		8-97262-956-3 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (A) 		8-97120-589-0 01 1 9811-9910 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 9911-0004 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0005-0007 ● ● ●
453 02.483 PROTECTOR; HARNESS
CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0005-0007 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0106- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> (F) 		8-97093-668-1 01 1 9911-0105 ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0106- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> (F) 		8-97093-668-1 01 1 0106- ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9811- ● ● ● ● ● ●

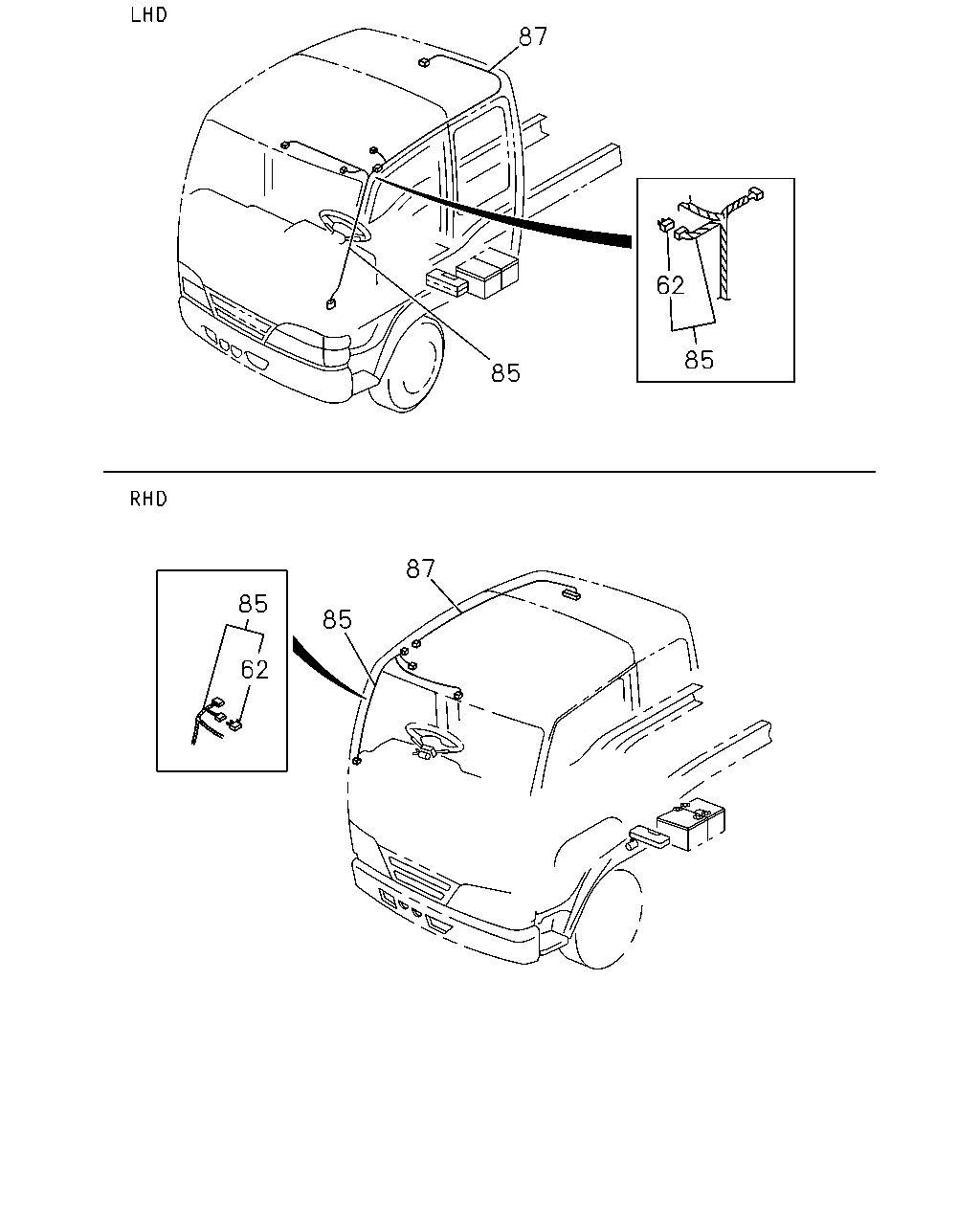

çizim 47528
87 62 85 85 87 85 85 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 9811- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 9811- ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. CAB-LOW ROOF<6XQ> 		8-97164-610-2 01 1 9811- ●
85 06.495 HARNESS; ROOM LAMP 8-97162-624-3 01 1 9811- ● ●
85 06.495 HARNESS; ROOM LAMP
CAB-LOW ROOF<6XQ> 		8-97164-609-2 01 1 9811- ●
87 02.480 HARNESS; EXT,ROOM LAMP 8-97075-747-0 01 1 9811- ● ●

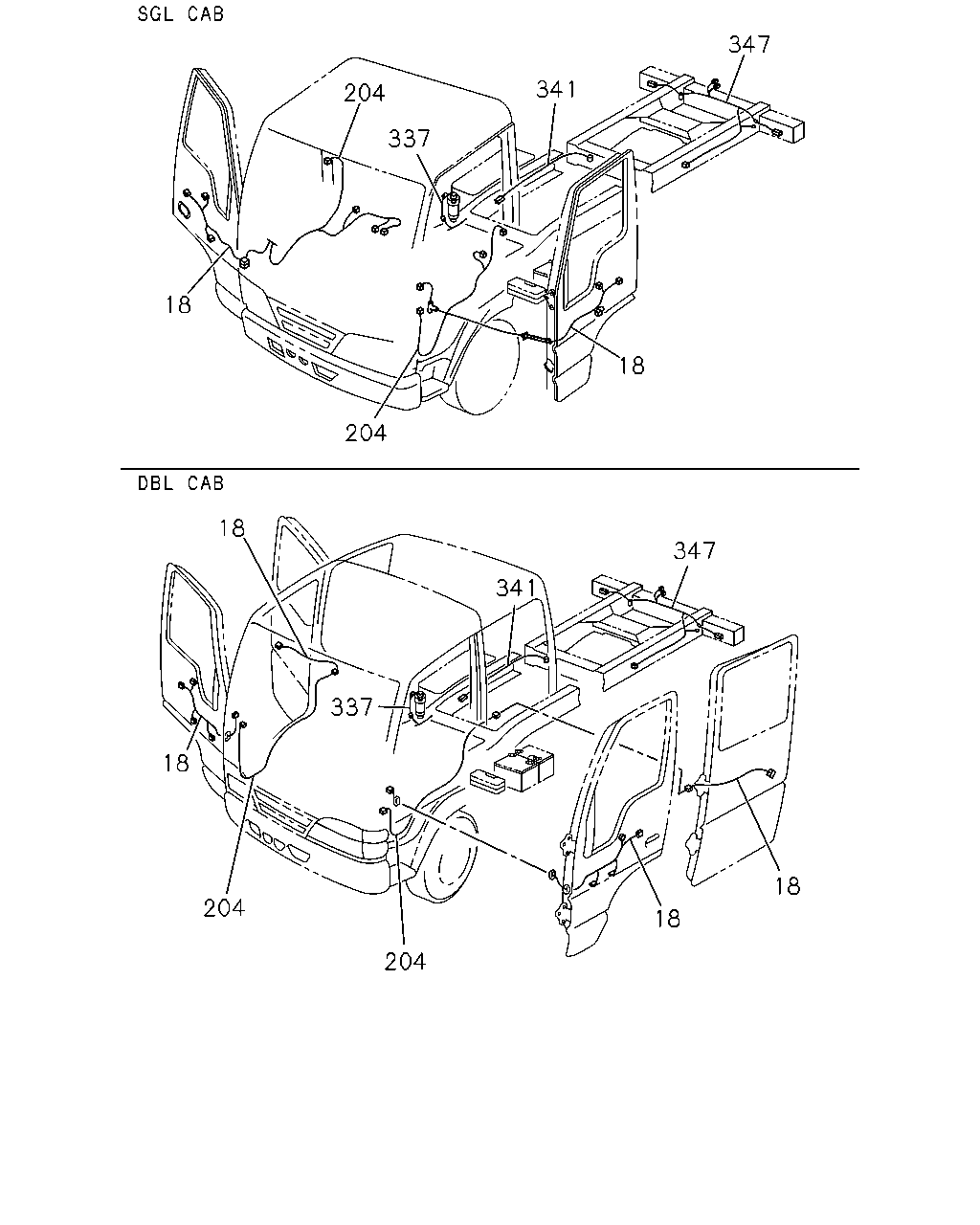

çizim 47590
347 341 204 337 18 18 204 18 347 341 337 18 18 204 18 204
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR DRIVER SIDE 		8-97105-571-0 01 1 9811- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR DRIVER SIDE 		8-97105-571-0 01 1 9811- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR DRIVER SIDE 		8-97105-571-0 01 1 9811- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR PASSENGER SIDE 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97105-572-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97226-671-0 01 1 9905- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) FRONT DOOR PASSENGER SIDE 		8-97226-671-0 01 1 9905- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97226-671-0 01 1 9905- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR DRIVER SIDE 		8-97185-142-1 01 1 9811- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97185-144-1 01 1 9811-9904 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT DOOR PASSENGER SIDE 		8-97226-669-0 01 1 9905- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> REAR DOOR 		8-97075-738-2 02 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 9811- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
DRIVER SIDE 		8-97162-626-4 01 1 9811- ● ●
204 02.559 HARNESS; CABLE,FLOOR
PASSENGER SIDE 		8-97162-632-2 01 1 9811- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94470-823-0 01 1 9811-0105 ● ● ● ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0106- ● ● ● ● ● ●
341 02.530 HARNESS; CABLE,MAG VLV
EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 9811- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. RR BODY NON FLAT BED(RS5),RR BODY FLAT BED<RS6> 		8-97213-566-0 01 1 9811- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-563-0 01 1 9811- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY NON FLAT BED(RS5) 		8-97213-564-0 01 1 9811- ● ●
347 02.480 HARNESS; CABLE,RR BODY
RR BODY FLAT BED<RS6> 		8-97213-564-0 01 1 9811- ● ●

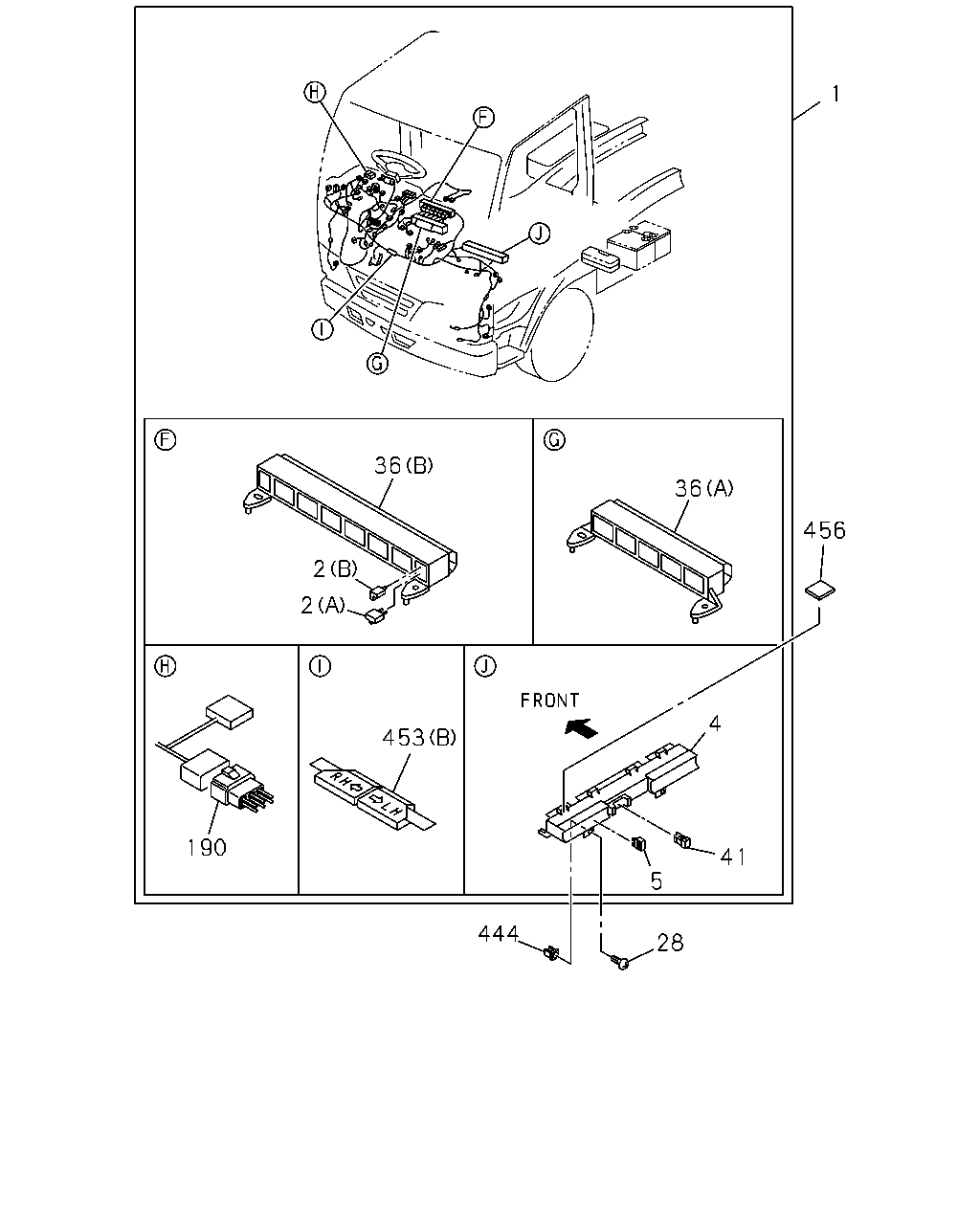

çizim 47594
1 36 36 456 2 2 4 453 190 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97217-158-1 01 1 9811-0105 ● ● ●
1 02.480 HARNESS; CAB
4JB1 ENG(RLF) 		8-97309-082-1 01 1 0106- ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97217-159-1 01 1 9811-9910 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97217-159-1 01 1 9911-0105 ● ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. EURO2 SPECIFICATION<7AF> 		8-97217-159-1 01 1 9911-0105 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-084-1 01 1 0106- ●
1 02.480 HARNESS; CAB
CHARGE AIR COOLER<6PL> 		8-97230-668-2 01 1 0005- ●
1 02.480 HARNESS; CAB 8-97185-292-0 01 1 9811-0004 ● ● ●
1 02.480 HARNESS; CAB
EXC. CHARGE AIR COOLER<6PL> 		8-97185-292-2 01 1 0005- ●
1 02.480 HARNESS; CAB 8-97185-292-2 01 1 0005- ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97245-265-0 01 1 9911-0105 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97309-083-1 01 1 0106- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9811- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9811- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 9811-0004 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0005-0105 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0005-0105 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0106-0111 ● ●
4 02.483 BOX ASM; FUSE,HARNESS
CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0106-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97214-415-0 01 1 0106-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 0106-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0112- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1 ENG(RLF) 		8-97214-415-0 01 1 0112- ●
4 02.483 BOX ASM; FUSE,HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97214-415-0 01 1 0112- ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 9811-0004 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
EXC. CHARGE AIR COOLER<6PL> 		8-97077-664-0 01 1 0005-0111 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97077-664-0 01 1 0005-0111 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 9811- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 9811- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 9811- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0109-0111 ● ●
36 02.530 BOX; RELAY
CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-640-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-640-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0112- ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-640-1 01 1 0112- ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-640-1 01 1 0112- ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-638-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-638-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 0106-0108 ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (A) 		8-97087-638-1 01 1 0106-0108 ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97087-638-1 01 1 0106-0108 ●
36 02.530 BOX; RELAY
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97087-638-1 01 1 0109-0111 ●
36 02.530 BOX; RELAY
(A) 		8-97087-638-1 01 1 0109-0111 ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97087-639-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 9811-0105 ● ● ●
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0106- ● ● ● ● ●
36 02.530 BOX; RELAY
4JB1 ENG(RLF) (B) 		8-97087-639-1 01 1 0106- ●
36 02.530 BOX; RELAY
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (B) 		8-97087-639-1 01 1 0106- ●
41 08.821 PULLER; FUSE
4JB1 ENG(RLF) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ● ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9811-0105 ● ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ● ● ● ● ●
41 08.821 PULLER; FUSE
4JB1 ENG(RLF) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0106- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JB1 ENG(RLF) 		5-82690-411-0 01 1 9811-9901 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		5-82690-411-0 01 1 9811-9901 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9811-9901 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 9902-0004 ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. CHARGE AIR COOLER<6PL> 		5-82690-411-0 01 1 0005-0009 ●
190 02.559 CONNECTOR; SHORT CIRCUIT 5-82690-411-0 01 1 0005-0009 ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-97259-730-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (E) 		8-97259-730-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (D) 		8-97259-731-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (D) 		8-97259-731-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (C) 		8-97262-956-3 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (C) 		8-97262-956-3 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (A) 		8-97120-589-0 01 1 9811-9910 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 9911-0004 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0005-0007 ● ● ●
453 02.483 PROTECTOR; HARNESS
CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0005-0007 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0106- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> (F) 		8-97093-668-1 01 1 9911-0105 ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0106- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> (F) 		8-97093-668-1 01 1 0106- ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 9811- ● ● ● ● ● ●

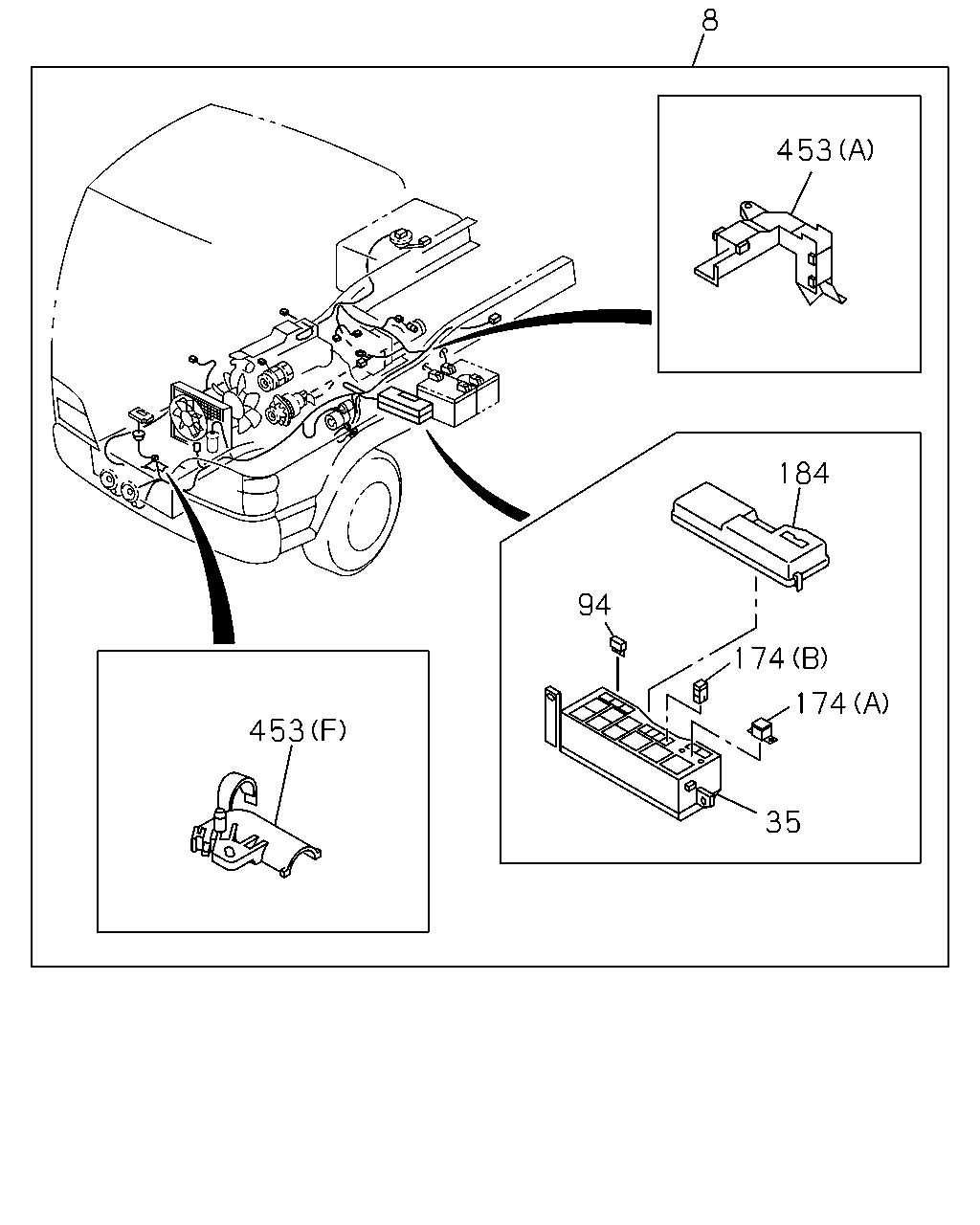

çizim 47625
8 453 184 94 174 174 453 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97188-697-2 01 1 9811-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1 ENG(RLF) 		8-97260-492-1 01 1 0106- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) 		8-97212-321-0 01 1 9811-9910 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) 		8-97212-321-1 01 1 9911-0105 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. EURO2 SPECIFICATION<7AF> 		8-97212-321-1 01 1 9911-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97212-321-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97245-266-1 01 1 9911-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97245-266-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
CHARGE AIR COOLER<6PL> 		8-97225-916-1 01 1 0005-0105 ●
8 02.480 HARNESS; FRAME,FRT
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97260-390-2 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-1 01 1 9811-0004 ● ● ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97188-699-2 01 1 0005-0105 ●
8 02.480 HARNESS; FRAME,FRT 8-97188-699-2 01 1 0005-0105 ● ●
8 02.480 HARNESS; FRAME,FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97260-495-1 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT 8-97260-495-1 01 1 0106- ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9811-9910 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4JB1 ENG(RLF) 		8-97063-150-1 01 1 9911-0105 ● ● ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97063-150-1 01 1 9911-0105 ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 9911-0105 ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0106- ● ● ● ●
35 02.530 BOX; RELAY & FUSE
EXC. CHARGE AIR COOLER<6PL> 		8-97063-150-1 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97063-150-1 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JB1 ENG(RLF) 		8-97063-150-1 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97063-150-1 01 1 0106- ●
94 02.483 DIODE; FRAME HARNESS
CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 0005-0105 ●
94 02.483 DIODE; FRAME HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> BLACK 3P-1.5A 		8-94422-640-1 01 1 0106- ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9811- ● ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 9811- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9811-9910 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) 		8-97063-152-1 01 1 9911-0105 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) 		8-97063-152-1 01 1 9911-0105 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 9911-0105 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0106- ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
EXC. CHARGE AIR COOLER<6PL> 		8-97063-152-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> 		8-97063-152-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1 ENG(RLF) 		8-97063-152-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) 		8-97063-152-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-97259-730-2 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (E) 		8-97259-730-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (E) 		8-97259-730-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97259-731-2 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (D) 		8-97259-731-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (D) 		8-97259-731-2 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97262-956-3 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (C) 		8-97262-956-3 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (C) 		8-97262-956-3 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 9811-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) (A) 		8-97120-589-0 01 1 9811-9910 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 9911-0004 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0005-0007 ● ● ●
453 02.483 PROTECTOR; HARNESS
CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0005-0007 ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0008-0105 ● ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-589-0 01 1 0106- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) (A) 		8-97120-589-0 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> (F) 		8-97093-668-1 01 1 9911-0105 ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-97093-668-1 01 1 0106- ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
COLOMBIA EQUIPMENT(X74) CHARGE AIR COOLER<6PL> (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JB1 ENG(RLF) (F) 		8-97093-668-1 01 1 0106- ●
453 02.483 PROTECTOR; HARNESS
4JG2 ENG(RJC) SINGAPORE EQUIPMENT(S9Y) LOW EMISSION VEHICLE PACKAGE<7VP> (F) 		8-97093-668-1 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
