◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#42738) — 163 parça

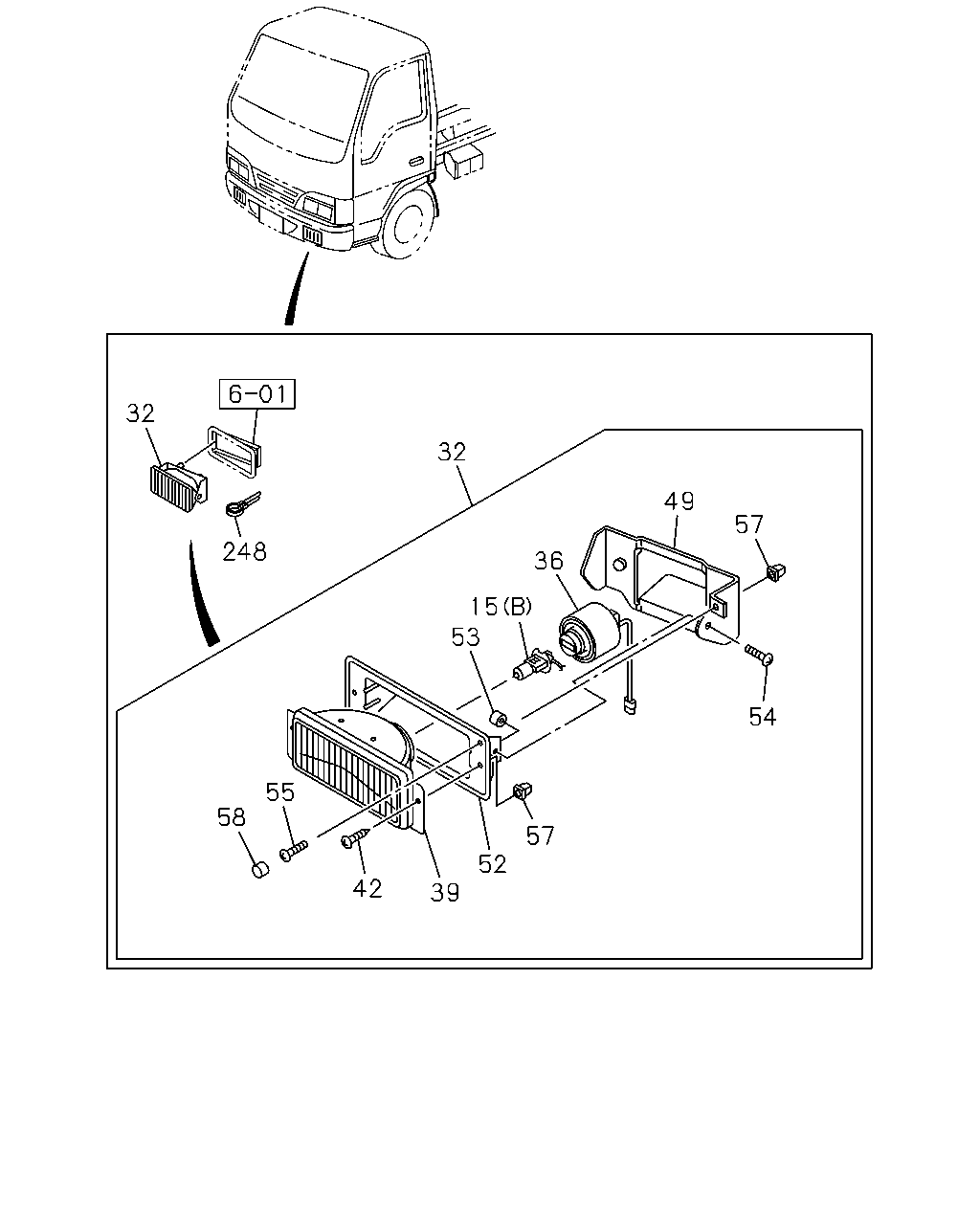

çizim 43412
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 08.991 BULB; FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) (B) 12V 55W 		8-97093-859-0 02 1 9811- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 21W 		8-97218-933-0 02 1 9811-0105 ● ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 21W 		8-97218-933-0 02 1 0106- ●
32 02.725 LAMP ASM; FOG
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97070-959-1 01 1 9811-0003 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97248-540-0 01 1 0004- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97070-958-1 01 1 9811-0003 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97248-539-0 01 1 0004- ● ● ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97095-518-0 02 1 9811- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97119-300-0 01 1 9811- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-060-0 01 1 9811- ● ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-089-0 04 1 9811- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-091-0 01 1 9811- ● ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-090-0 01 1 9811- ● ● ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-062-0 02 1 9811- ● ● ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-94379-802-0 04 1 9811- ● ● ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) M5X12 		8-94379-803-0 04 1 9811- ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-087-0 02 1 9811- ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-94379-806-0 06 1 9811- ● ● ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97104-088-0 02 1 9811- ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 02.559 ID=20 		5-09700-321-0 02 1 9811- ● ● ● ● ● ●

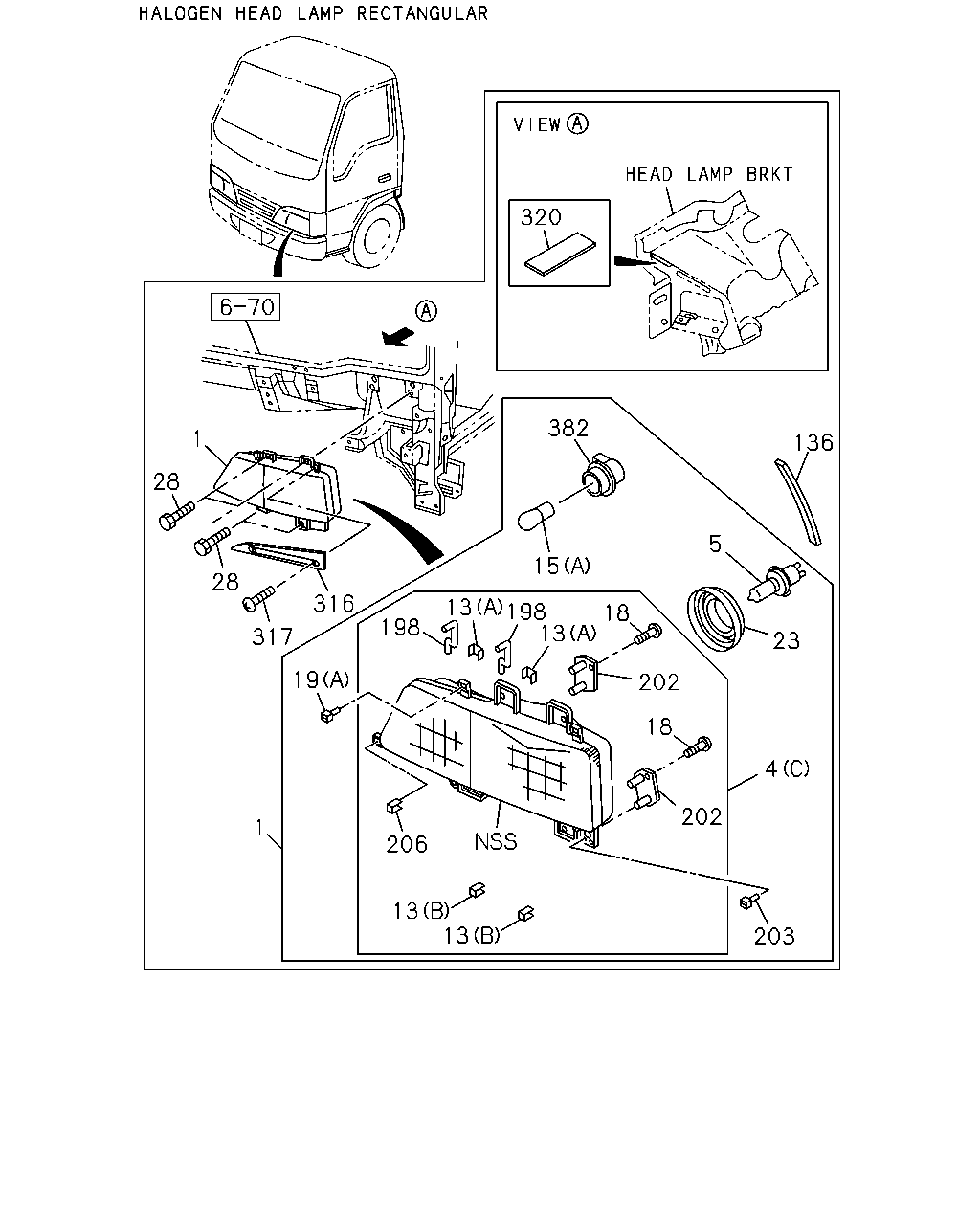

çizim 46519
320 382 1 136 28 5 15 28 316 13 198 13 18 198 317 23 19 202 18 4 202 1 206 13 13 203
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97207-126-1 01 1 9811-0105 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97207-126-1 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97207-125-1 01 1 9811-0105 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97207-125-1 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W 		8-97855-107-4 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W 		8-97855-106-4 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-558-0 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-557-0 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-048-4 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-047-4 01 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-398-0 01 1 9811-0105 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-398-0 01 1 0106- ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-397-0 01 1 9811-0105 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-397-0 01 1 0106- ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 45/50W 		8-94101-731-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 45W 		8-94101-739-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. YELLOW HEAD LAMP<T75> (B) 12V 45W 		8-94101-739-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (A) 12V 60/55W 		8-97191-271-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (B) 12V 55W 		8-97191-272-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-94101-733-0 02 1 9811- ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97106-708-0 02 1 9811-0105 ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97106-708-0 02 1 0106- ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 08.991 12V 45/50W 		5-82193-001-0 04 1 9811- ● ● ●
5 02.727 BULB; HEADLAMP
EXC. YELLOW HEAD LAMP<T75> 08.991 12V 45/50W 		5-82193-001-0 04 1 9811- ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 12V 55W 		5-82195-001-0 02 1 9811- ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 12V 60/55W YELLOW 		8-94252-140-0 02 1 9811- ● ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A) 		1-82119-084-0 04 1 9811-0105 ● ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A) 		1-82119-084-0 04 1 0106- ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (B) 		8-94381-588-0 12 1 9811-0105 ● ● ●
13 02.736 CLIP; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (B) 		8-94381-588-0 12 1 0106- ●
15 08.991 BULB; FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) (B) 12V 55W 		8-97093-859-0 02 1 9811- ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 21W 		8-97218-933-0 02 1 9811-0105 ● ● ●
15 08.991 BULB; FOG LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 21W 		8-97218-933-0 02 1 0106- ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> M4X16 TAPPING 		1-82119-067-0 16 1 9811-9912 ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		1-82119-086-0 16 1 0001-0105 ● ● ●
18 02.726 SCREW; GEAR CASE
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		1-82119-086-0 16 1 0106- ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 08 1 9811- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-623-0 08 1 9811- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-618-0 04 1 9811-0105 ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-618-0 04 1 0106- ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97855-080-0 02 1 9811-0105 ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97855-080-0 02 1 0106- ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9811- ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 9811- ● ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 9811- ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97855-079-0 01 1 9811-9912 ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97253-897-0 01 1 0001-0105 ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97253-897-0 01 1 0106- ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97855-078-0 01 1 9811-9912 ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97253-896-0 01 1 0001-0105 ● ● ●
198 02.722 TUBE; COVER,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97253-896-0 01 1 0106- ●
202 02.726 GEAR UNIT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94345-040-0 04 1 9811-0105 ● ● ●
202 02.726 GEAR UNIT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94345-040-0 04 1 0106- ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 9811- ● ● ● ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 9811- ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 9811- ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE SYSTEM FRONT<6PC> 		8-97855-010-5 01 1 9811- ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-010-5 01 1 9811- ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-622-0 01 1 9811- ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-623-0 01 1 9811- ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-009-4 01 1 9811- ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 9811-0202 ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9811- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97172-959-0 02 1 9811-0105 ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97172-959-0 02 1 0106- ●

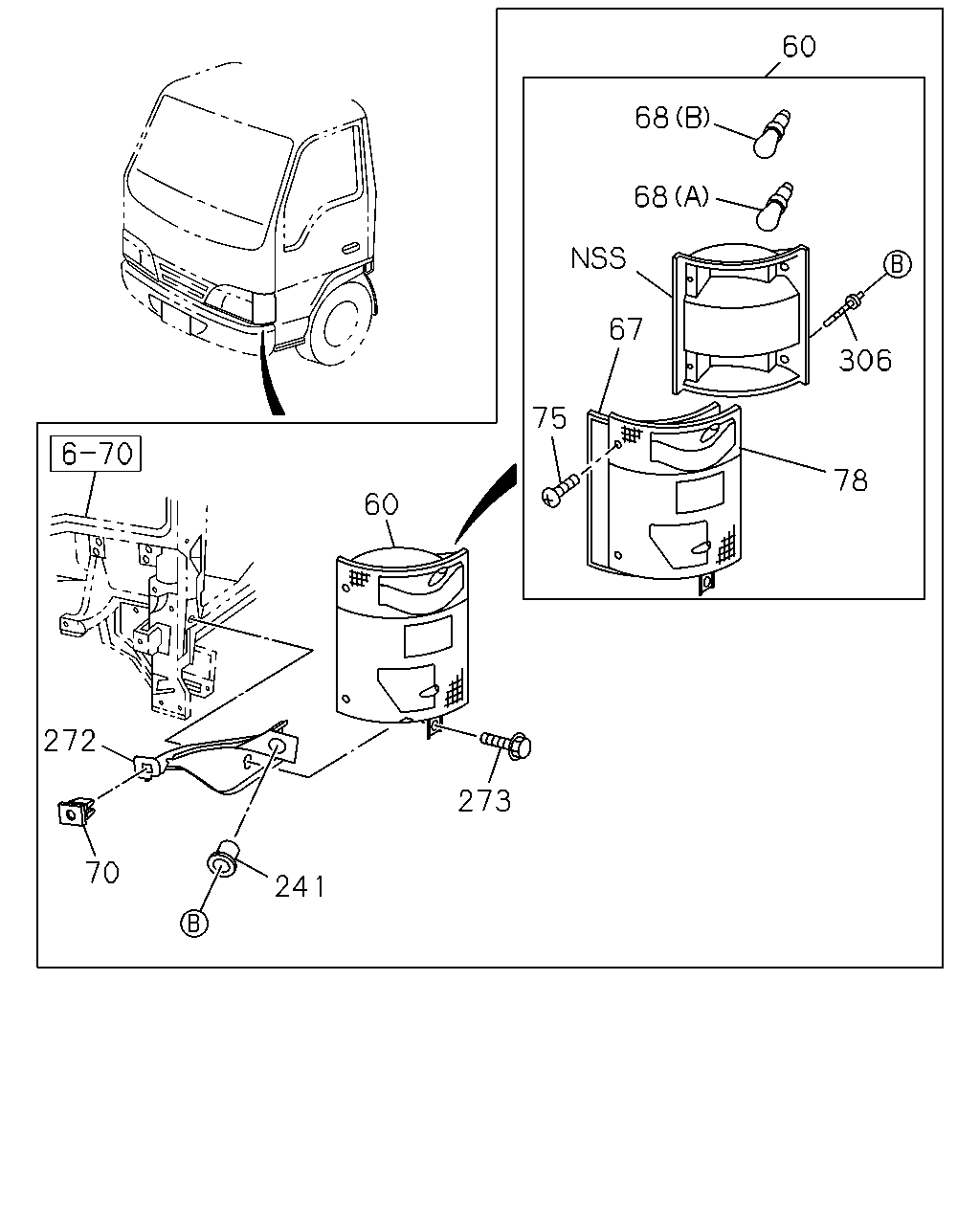

çizim 46753
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
60 02.585 LAMP ASM; FRT COMB 8-97855-006-2 01 1 9811- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-005-2 01 1 9811- ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9811- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-94124-074-0 02 1 9811- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 12V 27/8W 		8-97094-889-0 02 1 9811- ● ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9811- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9811- ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-131-0 01 1 9811- ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-128-0 01 1 9811- ● ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 9811- ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 9811- ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 9811- ● ● ● ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811- ● ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 9811- ● ● ● ● ● ●

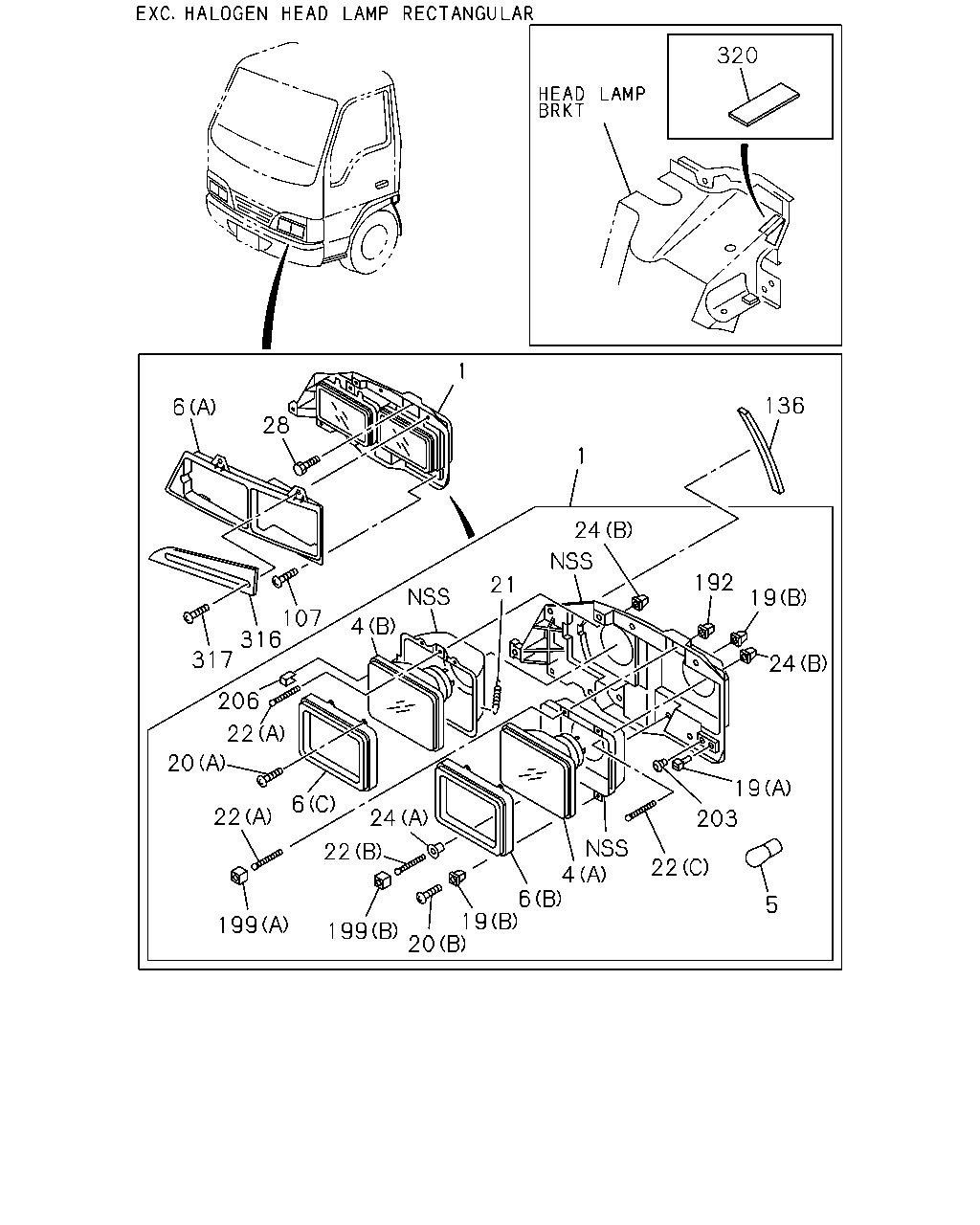

çizim 47104
320 1 136 6 28 1 24 192 21 19 107 316 317 4 24 206 22 20 19 6 24 22 203 4 6 19 199 20 22 22 5 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97207-126-1 01 1 9811-0105 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97207-126-1 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97207-125-1 01 1 9811-0105 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97207-125-1 01 1 0106- ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W 		8-97855-107-4 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 45/40W 		8-97855-106-4 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-558-0 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-557-0 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-048-4 01 1 9811- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-047-4 01 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-398-0 01 1 9811-0105 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-398-0 01 1 0106- ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-397-0 01 1 9811-0105 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97182-397-0 01 1 0106- ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 12V 45/50W 		8-94101-731-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 45W 		8-94101-739-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. YELLOW HEAD LAMP<T75> (B) 12V 45W 		8-94101-739-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (A) 12V 60/55W 		8-97191-271-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (B) 12V 55W 		8-97191-272-0 02 1 9811- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-94101-733-0 02 1 9811- ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97106-708-0 02 1 9811-0105 ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 12V 60/55W 		8-97106-708-0 02 1 0106- ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 08.991 12V 45/50W 		5-82193-001-0 04 1 9811- ● ● ●
5 02.727 BULB; HEADLAMP
EXC. YELLOW HEAD LAMP<T75> 08.991 12V 45/50W 		5-82193-001-0 04 1 9811- ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 12V 55W 		5-82195-001-0 02 1 9811- ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 12V 60/55W YELLOW 		8-94252-140-0 02 1 9811- ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		1-82114-016-0 02 1 9811- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-211-0 02 1 9811- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> (A) 		8-97890-801-0 01 1 9811-0211 ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> (A) 		8-97581-089-0 01 1 0212- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> (A) 		8-97890-800-0 01 1 9811-0211 ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> (A) 		8-97581-088-0 01 1 0212- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97044-618-0 08 1 9811- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-623-0 08 1 9811- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-618-0 04 1 9811-0105 ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97044-618-0 04 1 0106- ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) M4X8 		8-94165-886-0 08 1 9811- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97228-675-0 08 1 9811- ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		1-82119-021-0 02 1 9811- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97855-205-0 04 1 9811- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-206-0 02 1 9811- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97855-207-0 02 1 9811- ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-94387-097-0 06 1 9811- ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97855-208-0 02 1 9811- ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9811- ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> M4X20 TAPPING 		8-94279-391-0 04 1 9811-0202 ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
EXC. SINGAPORE EQUIPMENT(S9Y), HALOGENHEAD LAMP RECTANGULAR<TR4> M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 9811- ● ●
136 02.726 SEAL; HEADLAMP
170X15 		8-97853-541-0 01 1 9811- ● ● ● ●
192 02.765 PIVOT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94381-595-0 02 1 9811- ● ● ● ● ● ●
199 02.737 BUSHING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-94381-605-0 04 1 9811- ● ● ● ● ● ●
199 02.737 BUSHING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97855-212-0 02 1 9811- ● ● ● ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 9811- ● ● ● ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 9811- ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-500-0 01 1 9811- ●
316 02.726 ORNAMENT; HEAD LAMP
AIR INTAKE SYSTEM FRONT<6PC> 		8-97855-010-5 01 1 9811- ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-010-5 01 1 9811- ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-622-0 01 1 9811- ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-623-0 01 1 9811- ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-009-4 01 1 9811- ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 9811-0202 ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
