7-43 — SUN VISOR AND ASSIST GRIP (#42734) — 70 parça

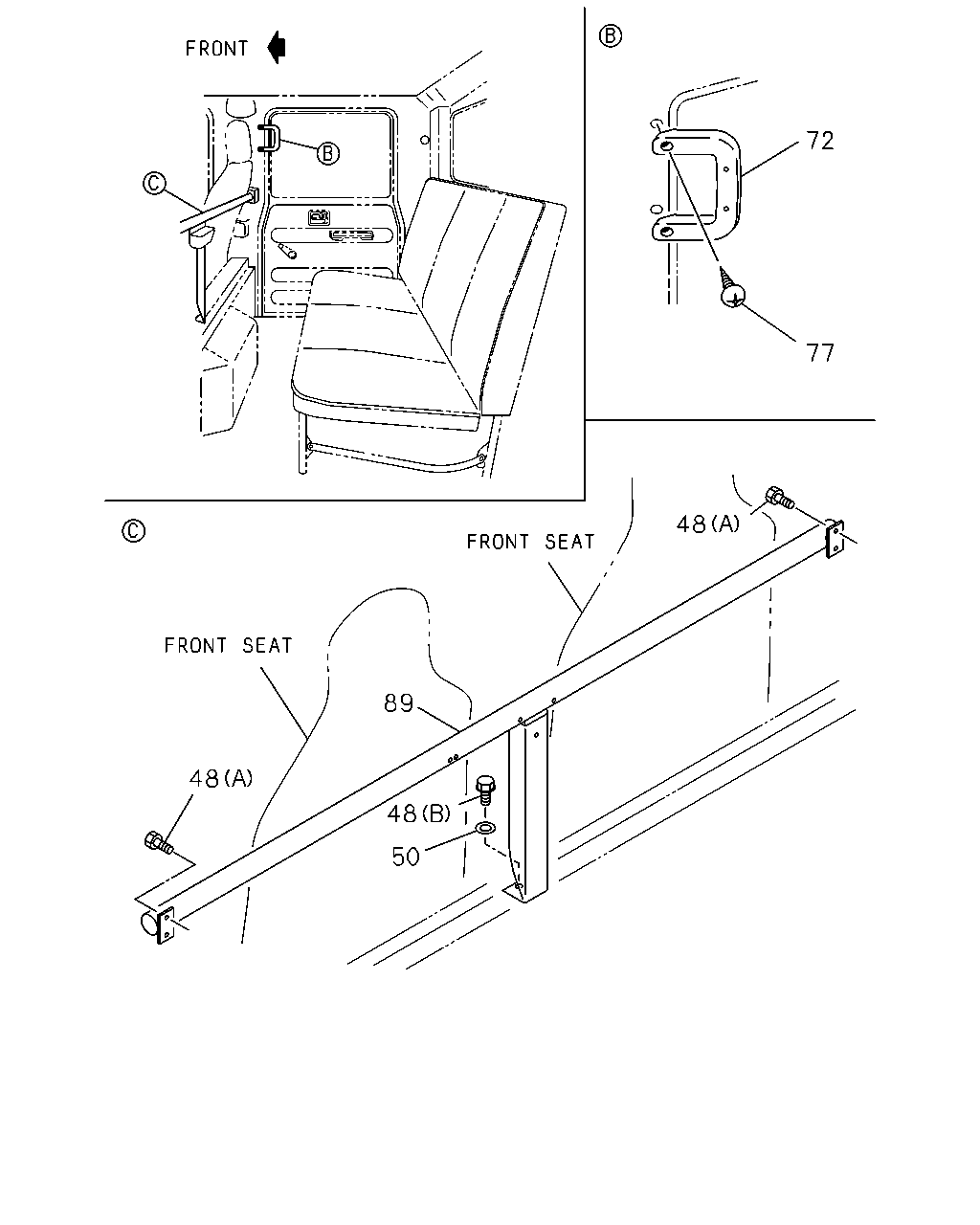

72 77 48 89 48 48 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	16.450 BOLT; ASSIST GRIP 16.350 (A) M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9811-	●	●
48	16.450 BOLT; ASSIST GRIP 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9811-9911	●	●
48	16.450 BOLT; ASSIST GRIP 08.857 (B) M6X20 W/LK&PL WASHER	8-94279-202-0	01	1	9912-	●	●
50	16.450 WASHER; PL,ASSIST GRIP 16.674 ID=8.4	9-09160-508-0	01	1	9912-	●	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK GRAY	8-97867-209-0	02	1	9811-	●	●
77	16.450 SCREW; ASSIST GRIP M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9811-	●	●
89	16.560 HANDLE; ASSIST	8-97853-446-5	01	1	9811-	●	●

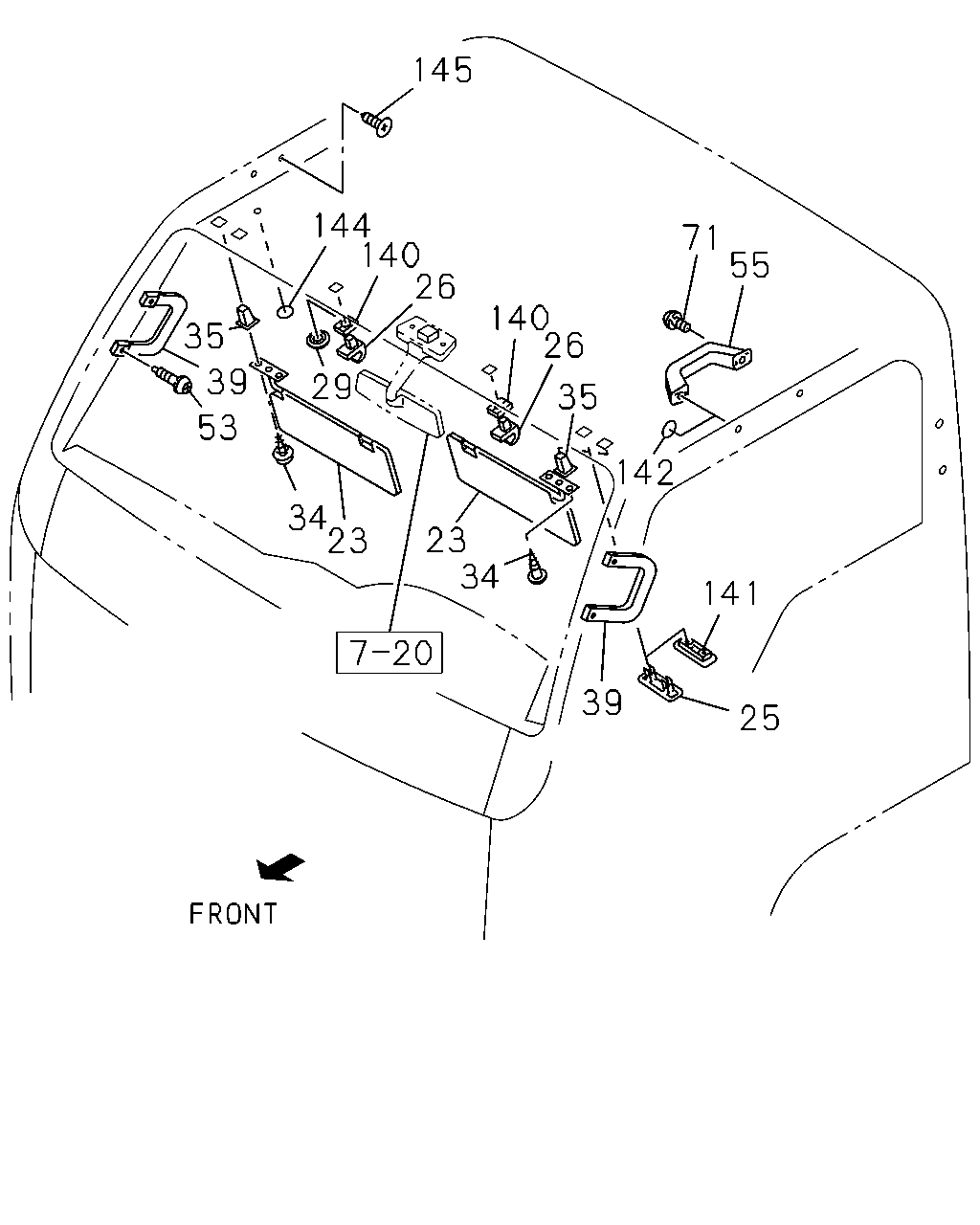

145 144 140 26 71 55 140 26 35 39 29 35 142 53 34 23 23 34 141 39 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	16.070 SUN VISOR EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-820-3	01	1	9811-	●		●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-820-3	01	1	9811-		●			●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-630-3	01	1	9811-	●		●	●
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-630-3	01	1	9811-		●			●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-841-3	01	1	9811-	●		●	●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-841-3	01	1	9811-		●			●	●
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-631-2	01	1	9811-	●		●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-631-2	01	1	9811-		●			●	●
23	16.070 SUN VISOR CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-842-1	01	1	9811-				●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97859-843-1	01	1	9811-				●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	9811-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	9811-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-184-2	02	1	9811-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	9811-				●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	9811-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20>, CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97867-184-2	01	1	9811-	●	●	●	●	●	●
26	16.070 HOLDER; SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	01	1	9811-				●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	9811-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9811-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9811-	●	●	●	●	●	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	9811-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9811-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9811-	●	●	●	●	●	●
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	9811-	●	●	●	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97867-209-0	02	1	9811-	●	●	●	●	●	●
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9811-	●	●	●	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> 16.346 DARK GRAY	8-97098-476-2	01	1	9811-	●	●	●	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	9811-	●	●	●	●	●	●
140	16.742 SPACER; HOLDER,SUN VISOR CAB-LOW ROOF<6XQ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.070 LIGHT GRAY	8-97867-152-1	01	1	9811-				●
140	16.742 SPACER; HOLDER,SUN VISOR SUNVISOR PASSENGER SIDE<D20> CAB-LOW ROOF<6XQ> 16.070 LIGHT GRAY	8-97867-152-1	02	1	9811-				●
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	9811-	●	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9811-0208	●	●	●	●	●	●
142	16.742 SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9811-0208	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9811-0008	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9811-0008	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0009-0103	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0009-0103	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0104-0206	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890) EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0104-0206	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890) EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0207-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE B LUE(890) EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0207-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9811-0103	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9811-0103	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	0104-0206	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	0104-0206	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	0207-	●	●	●	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	0207-	●	●	●	●	●	●
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	9811-	●	●	●	●	●	●

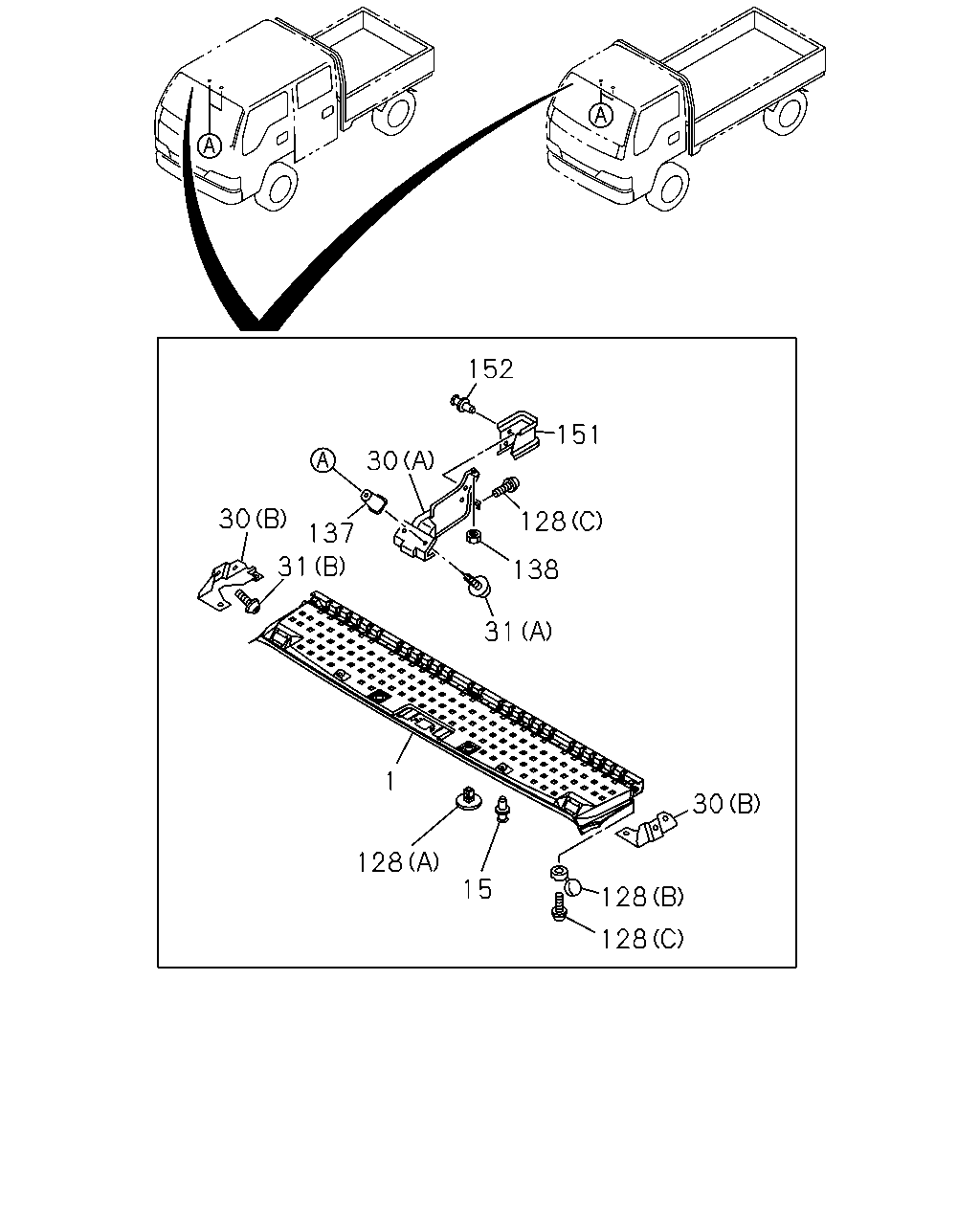

152 151 30 30 128 137 31 138 31 1 30 128 15 128 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97892-371-5	01	1	9811-0105	●	●	●	●	●	●
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-818-0	01	1	0106-	●	●	●	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	9811-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9811-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-2	01	1	9811-	●	●	●	●	●	●
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-2	01	1	9811-	●	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9811-	●	●	●	●	●	●
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9811-	●	●	●	●	●	●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY	8-97892-153-2	02	1	9811-	●	●	●	●	●	●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	9811-	●	●	●	●	●	●
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY	8-97892-151-0	01	1	9811-	●	●	●	●	●	●
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	9811-	●	●	●	●	●	●
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-250-0	01	1	9811-	●	●	●	●	●	●
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	9811-	●	●	●	●	●	●
