Sayfa 2-61 - Isuzu EPC

2-61 — TRANSFER CASE AND GEAR SHIFTER (#42729) — 95 parça

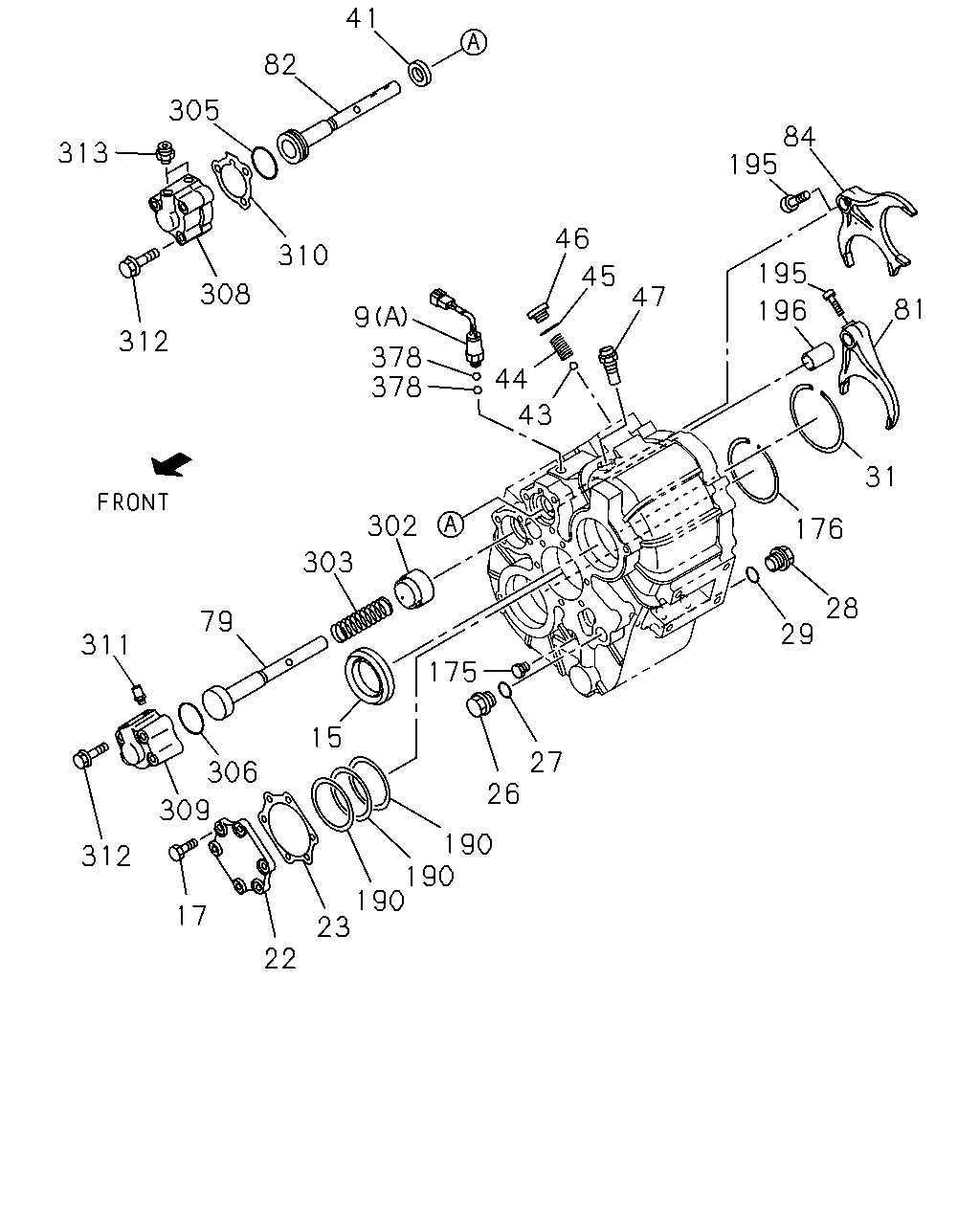

41 82 305 84 195 313 46 310 195 45 308 47 81 196 9 312 378 378 44 43 31 302 176 303 28 29 79 311 175 15 27 26 306 309 190 190 190 23 312 17 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	SWITCH; TRANSFER (A)	1-82340-534-0	01	1	0008-
9	SWITCH; TRANSFER (B)	1-82440-082-0	02	1	0008-
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-202-1	02	1	0008-
17	BOLT; BRG COVER M10X28	0-50051-028-0	06	1	0008-0906
17	BOLT; BRG COVER M10X28	0-50551-028-0	06	1	0907-
22	COVER; BRG,IDLE SHAFT	1-36151-006-1	01	1	0008-
23	GASKET; BRG COVER ALSO INCLUDED IN REPAIR KIT(T/F).	9-36152-003-0	01	1	0008-
26	PLUG; FILLER,TRANSFER CASE M24X17 FLANGE	1-09604-064-1	01	1	0008-0201
26	PLUG; FILLER,TRANSFER CASE M24X17 FLANGE	1-09604-022-0	01	1	0202-
27	GASKET; FILLER PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8	1-09623-058-0	01	1	0008-
28	PLUG; DRAIN,TRANSFER CASE M24X17 FLANGE	1-09604-023-0	01	1	0008-
29	GASKET; DRAIN PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8	1-09623-058-0	01	1	0008-
31	RING; SNAP,INPUT	9-09950-184-0	01	1	0008-
41	SEAL; OIL,SHIFT ROD ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-377-0	02	1	0008-
43	BALL; LK,SHIFT ROD	9-00097-013-0	01	1	0008-
44	SPRING; COIL,LK	9-09940-323-0	01	1	0008-
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F).	9-09571-520-0	01	1	0008-0201
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0	9-09571-420-0	01	1	0202-
46	SEAT; SPR	9-09862-175-0	01	1	0008-
47	BREATHER; TRANSFER CASE	9-36122-015-1	01	1	0008-
79	ROD; SHIFT,NEUTRAL & FRT DRIVE	1-36564-027-0	01	1	0008-
81	FORK; SHIFT,NEUTRAL & FRT DRIVE	1-36561-020-0	01	1	0008-
82	ROD; SHIFT,LOW & HIGH	1-36564-026-0	01	1	0008-
84	FORK; SHIFT,LOW & HIGH	1-36561-019-1	01	1	0008-
175	PLUG; LEVEL,TRANSFER CASE	9-09864-007-1	01	1	0008-
176	RING; SNAP,FRT OUTPUT	9-09950-089-0	01	1	0008-
190	SHIM; BRG ADJ,IDLE SHAFT T=0.10	9-36153-020-0	AR	1	0008-
190	SHIM; BRG ADJ,IDLE SHAFT T=0.12	9-36153-021-0	AR	1	0008-
190	SHIM; BRG ADJ,IDLE SHAFT T=0.14	9-36153-022-0	AR	1	0008-
190	SHIM; BRG ADJ,IDLE SHAFT T=0.16	9-36153-023-0	AR	1	0008-
190	SHIM; BRG ADJ,IDLE SHAFT T=0.18	9-36153-024-0	AR	1	0008-
190	SHIM; BRG ADJ,IDLE SHAFT T=0.20	9-36153-025-0	AR	1	0008-
190	SHIM; BRG ADJ,IDLE SHAFT T=0.50	9-36153-026-0	AR	1	0008-
190	SHIM; BRG ADJ,IDLE SHAFT T=1.00	9-36153-027-0	AR	1	0008-
195	BOLT; SHIFT FORK M12X20	1-09052-039-0	02	1	0008-
196	COLLAR; DIST,SHIFT ROD	1-36577-004-0	01	1	0008-
302	SEAT; SPRING	1-36572-002-1	01	1	0008-
303	SPRING; NEUTRAL-FRONT	1-09580-489-0	01	1	0008-
305	GASKET; PISTON,LOW-HIGH ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7	9-09561-344-0	01	1	0008-
306	GASKET; PISTON,NEUTRAL-FRONT ID=43.7	9-09561-344-0	01	1	0008-
308	CYLINDER; AIR SHIFT,LOW-HIGH	1-36569-010-0	01	1	0008-
309	CYLINDER; AIR SHIFT,NEUTRAL-FRONT	1-36569-009-0	01	1	0008-
310	GASKET; AIR CYL	1-36579-001-0	01	1	0008-
311	BREATHER; AIR CYL	9-36122-013-0	01	1	0008-
312	BOLT; AIR CYL M10X65 FLANGE	8-94344-540-1	07	1	0008-
313	CONNECTOR; AIR CYL M20 & PT1/4	9-09902-386-0	03	1	0008-0204
313	CONNECTOR; AIR CYL M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0205-
378	BALL; CONT SWITCH	9-00097-013-0	02	1	0008-

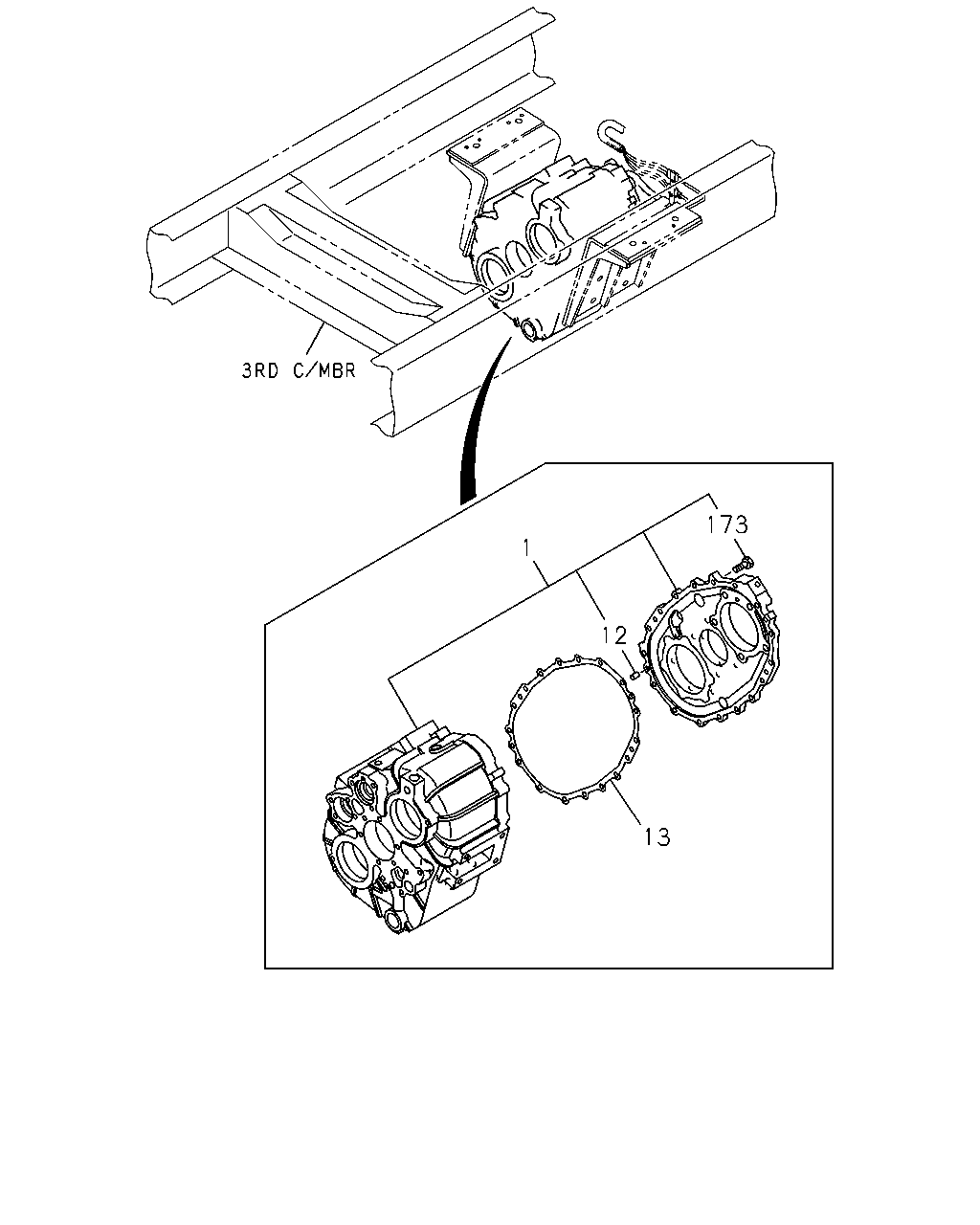

173 1 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE; TRANSFER	1-36110-039-0	01	1	0008-0205
1	CASE; TRANSFER	1-36110-049-0	01	1	0206-
12	PIN; STRAIGHT,TRANSFER CASE	9-08161-016-0	02	1	0008-
13	GASKET; COVER TO TRANSFER CASE ALSO INCLUDED IN REPAIR KIT(T/F).	1-36132-003-0	01	1	0008-
173	BOLT; COVER M10X30 W/LK WASHER	0-50051-030-0	04	1	0008-0906
173	BOLT; COVER M10X30 W/LK WASHER	0-50551-030-0	04	1	0907-

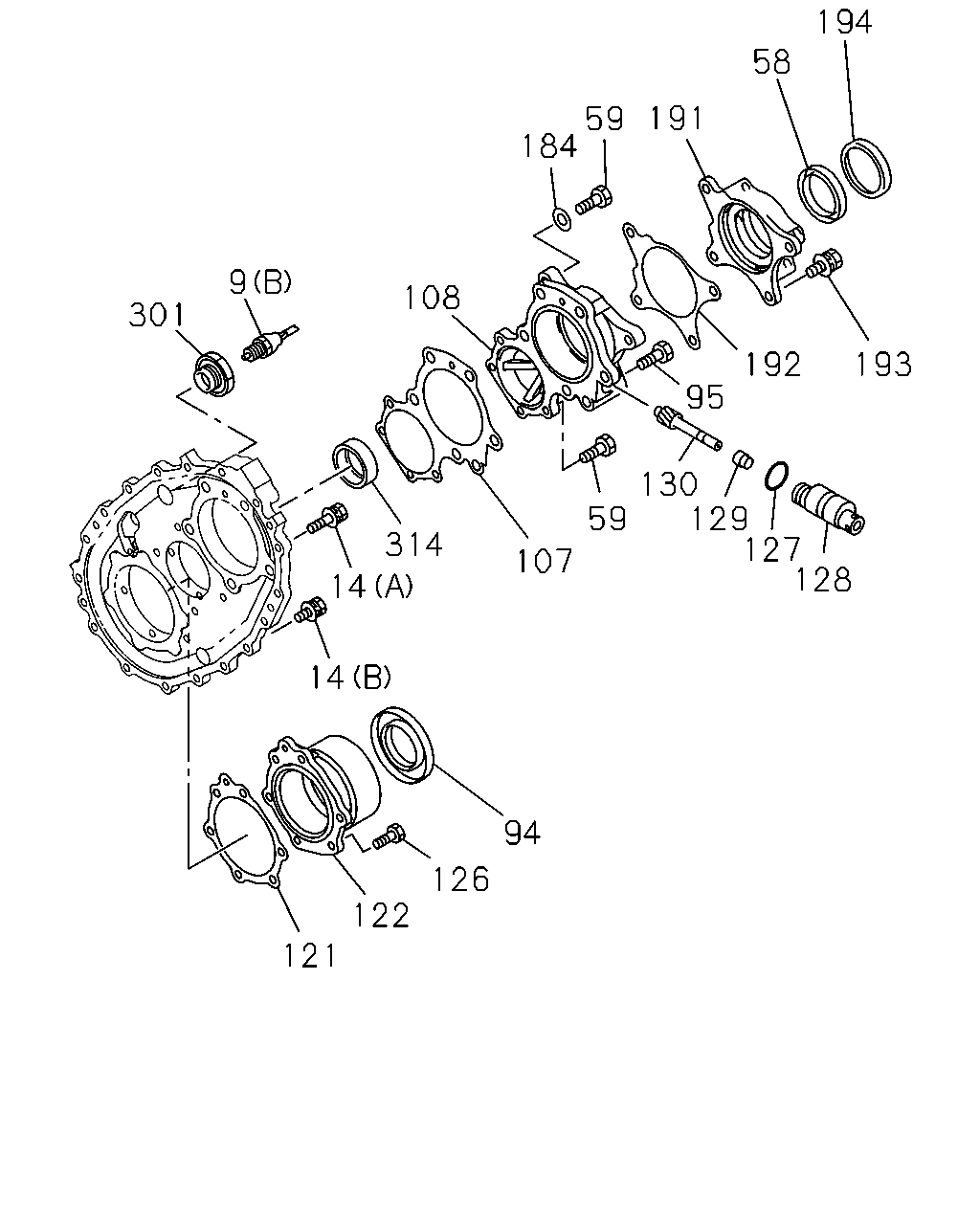

194 58 191 59 184 9 108 301 192 193 95 130 129 127 128 59 314 107 14 14 94 126 122 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	SWITCH; TRANSFER (A)	1-82340-534-0	01	1	0008-
9	SWITCH; TRANSFER (B)	1-82440-082-0	02	1	0008-
14	BOLT; COVER TO TRANSFER CASE (A) M10X30 W/LK WASHER	0-50051-030-0	11	1	0008-0906
14	BOLT; COVER TO TRANSFER CASE (A) M10X30 W/LK WASHER	0-50551-030-0	11	1	0907-
14	BOLT; COVER TO TRANSFER CASE (B) M10X45 W/LK WASHER	0-50051-045-0	02	1	0008-0906
14	BOLT; COVER TO TRANSFER CASE (B) M10X45 W/LK WASHER	0-50551-045-0	02	1	0907-
58	SEAL; OIL,RR UPR NOK	1-09625-173-0	01	1	0008-
59	BOLT; UPR COVER M14X65	0-16806-465-0	01	1	0008-
59	BOLT; UPR COVER M14X40	0-23801-440-0	04	1	0008-0512
59	BOLT; UPR COVER M14X40	0-23851-440-0	04	1	0601-
59	BOLT; UPR COVER M10X30 W/LK WASHER	0-50051-030-0	04	1	0008-0906
59	BOLT; UPR COVER M10X30 W/LK WASHER	0-50551-030-0	04	1	0907-
94	SEAL; OIL,RR COVER,OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). NOK	1-09625-484-1	01	1	0008-
95	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0008-0805
95	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-
107	GASKET; COVER TO CASE ALSO INCLUDED IN REPAIR KIT(T/F).	9-36123-009-0	01	1	0008-
108	COVER; UPR,TRANSFER	1-36121-006-2	01	1	0008-
121	GASKET; RR COVER,LWR ALSO INCLUDED IN REPAIR KIT(T/F).	1-36156-006-0	01	1	0008-
122	COVER; RR,OUTPUT	1-36121-005-0	01	1	0008-
126	BOLT; RR COVER M10X25 W/LK WASHER	0-50051-025-0	06	1	0008-0906
126	BOLT; RR COVER M10X25 W/LK WASHER	0-50551-025-0	06	1	0907-
127	GASKET; BUSHING,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F).	1-09623-370-0	01	1	0008-
128	BUSHING; DRIVEN GEAR	1-33373-039-1	01	1	0008-
129	SEAL; OIL,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F). NOK	1-09625-510-0	01	1	0008-
130	GEAR; DRIVEN,SPD,TRANSFER Z=12	1-33372-074-5	01	1	0008-
184	WASHER; LK,UPR COVER ID=14.2	9-09150-514-0	05	1	0008-0603
184	WASHER; LK,UPR COVER ID=14.2	0-91510-514-0	05	1	0604-
191	RETAINER; OIL SEAL,RR UPR	1-36155-007-0	01	1	0008-
192	GASKET; RET,RR UPR ALSO INCLUDED IN REPAIR KIT(T/F).	1-36156-005-0	01	1	0008-
193	BOLT; RET M12X28	0-50051-228-0	04	1	0008-
194	COVER; OIL SEAL,RR UPR	1-33139-001-1	01	1	0008-
301	ADAPTER; SWITCH,TRANSFER	1-09669-101-0	01	1	0008-0205
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.5	1-36355-022-0	01	1	0008-
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.7	1-36355-023-0	01	1	0008-
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.9	1-36355-024-0	01	1	0008-
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.1	1-36355-025-0	01	1	0008-
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.3	1-36355-026-0	01	1	0008-
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.5	1-36355-027-0	01	1	0008-
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.7	1-36355-028-0	01	1	0008-
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.9	1-36355-029-0	01	1	0008-
314	PIECE; DISTANCE,OUTPUT SHAFT T=21.1	1-36355-030-0	01	1	0008-
