Isuzu WW
▶
TRUCKS
▶
FSS
▶
11433 - FSS(BANGLADESH)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶
2-60 — TRANSFER
(#42728) — 22 parça
◀

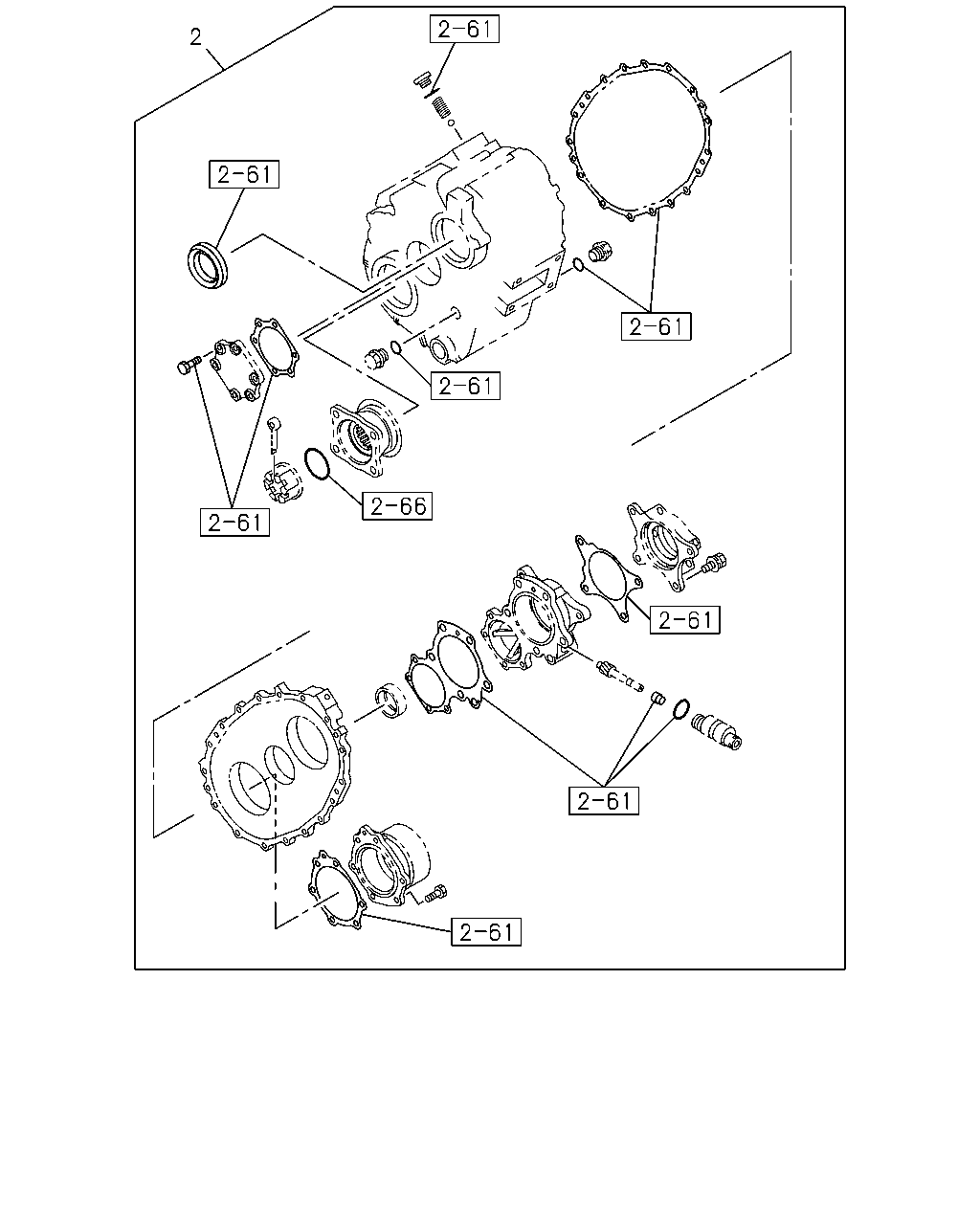

[260A] REPAIR KIT (1 parça)

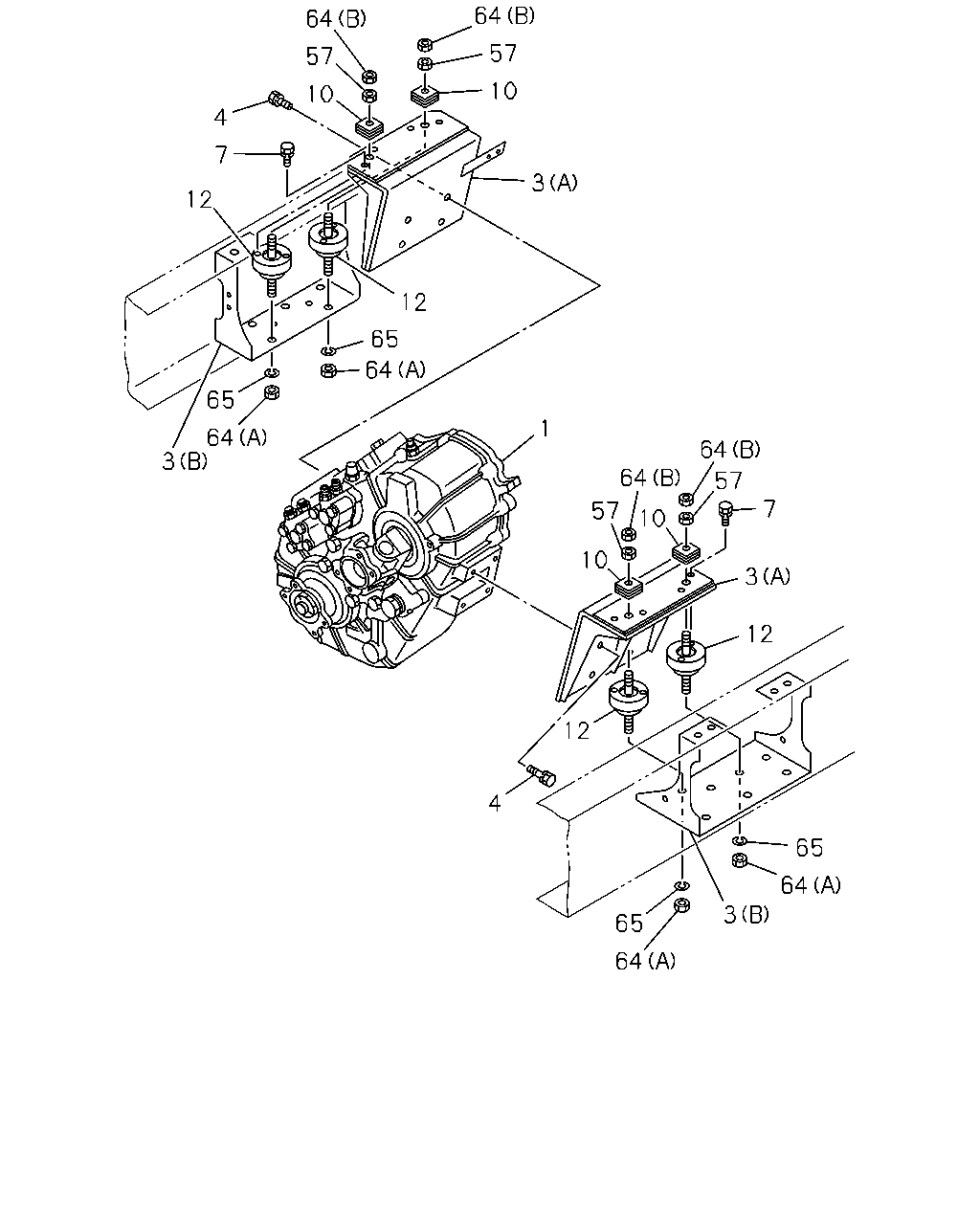

[260A] FIXING (21 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; TRANSFER OVERHAUL
1-87830-218-6
01
1
0008-
64
64
57
57
10
10
4
7
3
12
12
65
64
65
1
64
3
64
64
57
7
57
10
10
3
12
12
4
65
64
3
65
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSFER ASM
1-36000-614-0
01
1
0008-
3
BRACKET; TRANSFER
(A)
1-36183-163-0
01
1
0008-
3
BRACKET; TRANSFER
(A)
1-36183-164-0
01
1
0008-
3
BRACKET; TRANSFER
(B)
1-53291-064-6
01
1
0008-
3
BRACKET; TRANSFER
(B)
1-53291-065-4
01
1
0008-
4
BOLT; BRKT TO TRANSFER
M12X30 FLANGE
0-28681-230-0
AR
1
0008-0512
4
BOLT; BRKT TO TRANSFER
M12X30 FLANGE
0-28651-230-0
AR
1
0601-
4
BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER
0-50051-230-0
08
1
0008-0706
4
BOLT; BRKT TO TRANSFER
M12X25 FLANGE
0-28151-225-0
08
1
0707-
7
BOLT; CUSHION RUBBER
M10X25 FLANGE
0-28081-025-0
08
1
0008-0512
7
BOLT; CUSHION RUBBER
M10X25 FLANGE
0-28051-025-0
08
1
0601-
10
RUBBER; CUSHION,UPR,TRANSFER
1-36189-027-0
04
1
0008-
12
RUBBER; CUSHION,LWR,TRANSFER
1-36189-026-2
04
1
0008-
57
NUT; CUSHION RUBBER,UPR
M12
9-99110-512-0
04
1
0008-0512
57
NUT; CUSHION RUBBER,UPR
M12
0-91110-512-0
04
1
0601-
64
NUT; CUSHION RUBBER,LWR
(A) M14
9-99110-414-0
04
1
0008-0512
64
NUT; CUSHION RUBBER,LWR
(A) M14
0-91110-514-0
04
1
0601-
64
NUT; CUSHION RUBBER,LWR
(B) M12
9-99111-412-0
04
1
0008-0512
64
NUT; CUSHION RUBBER,LWR
(B) M12
0-91111-512-0
04
1
0601-
65
WASHER; LK,CUSHION RUBBER,LWR
ID=14.2
9-09150-514-0
04
1
0008-0603
65
WASHER; LK,CUSHION RUBBER,LWR
ID=14.2
0-91510-514-0
04
1
0604-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
