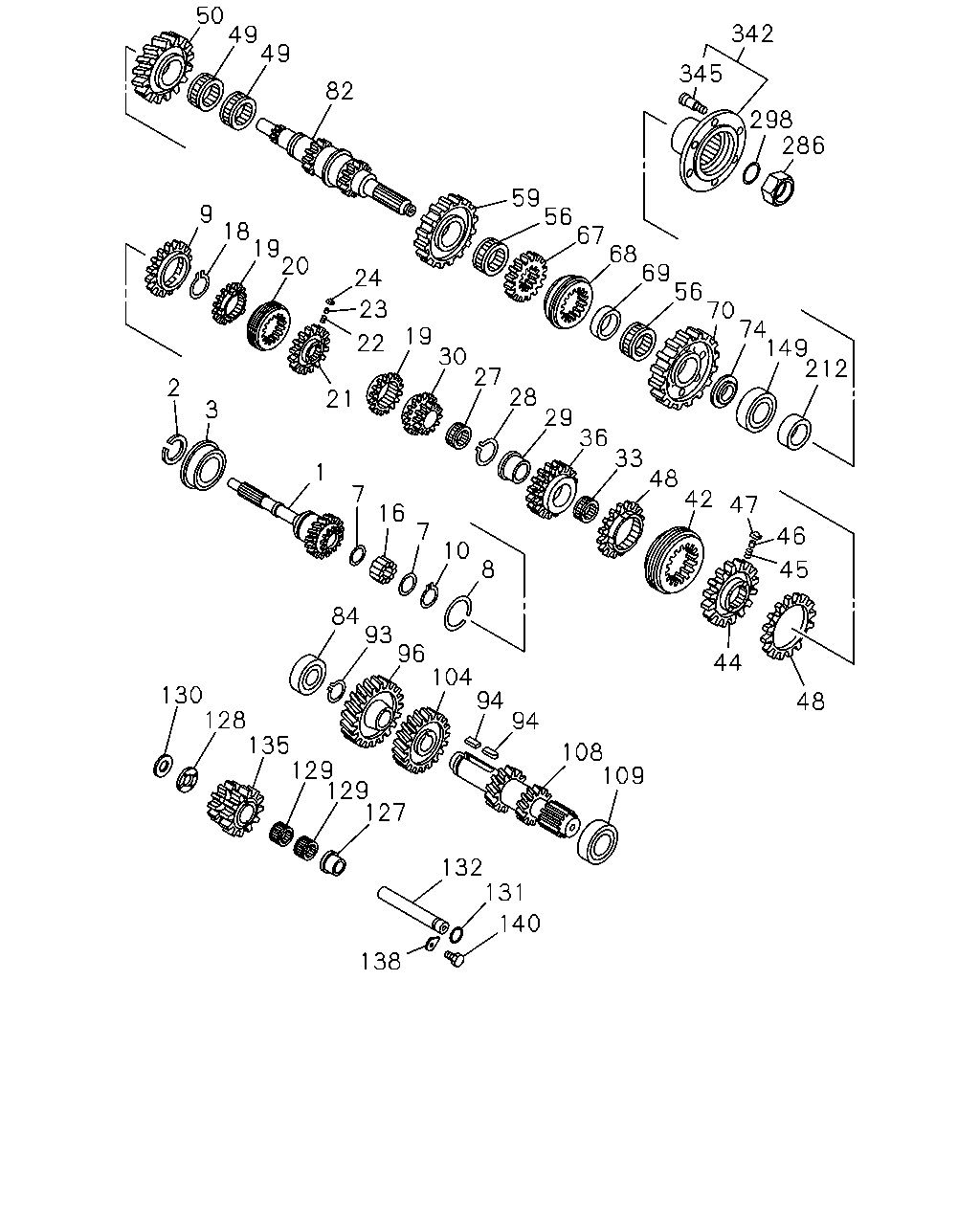

1 |
SHAFT; TOP GEAR,TRANS
Z=20
|
1-33211-827-0 |
01 |
1 |
0008- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE
|
1-09588-160-1 |
AR |
1 |
0008- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW
|
1-09588-161-1 |
AR |
1 |
0008- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE
|
1-09588-162-1 |
AR |
1 |
0008- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN
|
1-09588-163-1 |
AR |
1 |
0008- |
| |
3 |
BEARING; TOP GEAR SHAFT
NSK
|
1-09810-275-0 |
01 |
1 |
0008-0502 |
| |
3 |
BEARING; TOP GEAR SHAFT
NSK
|
1-09810-282-0 |
01 |
1 |
0503- |
| |
7 |
WASHER; THRUST,MAINSHAFT
|
1-33239-059-0 |
02 |
1 |
0008- |
| |
8 |
CLIP; DOG CLU
|
1-33219-020-0 |
01 |
1 |
0008- |
| |
9 |
CLUTCH; DOG,TOP GEAR
Z=45
|
1-33265-413-1 |
01 |
1 |
0008- |
| |
10 |
RING; SNAP,PILOT BRG
OD=50.5
|
9-09180-147-0 |
01 |
1 |
0008- |
| |
16 |
BEARING; PILOT,MAINSHAFT
NSK
|
1-09844-021-0 |
14 |
1 |
0008- |
| |
16 |
BEARING; PILOT,MAINSHAFT
NTN
|
1-09844-022-0 |
14 |
1 |
0008- |
| |
16 |
BEARING; PILOT,MAINSHAFT
JTEKT
|
1-09844-023-0 |
14 |
1 |
0008- |
| |
18 |
RING; SNAP,CLU HUB
T=1.75
|
1-09588-196-0 |
01 |
1 |
0008- |
| |
19 |
RING; BLOCK,4TH & 5TH
Z=45
|
1-33265-414-0 |
02 |
1 |
0008- |
| |
20 |
SLEEVE
|
1-33262-167-0 |
01 |
1 |
0008- |
| |
21 |
HUB; CLU,4TH & 5TH
|
1-33261-258-0 |
01 |
1 |
0008- |
| |
22 |
SPRING; BLOCK,INSERT
D=3.8
|
1-09580-395-0 |
03 |
1 |
0008- |
| |
23 |
PLUNGER; DETENT,SYN
|
1-33269-037-1 |
03 |
1 |
0008- |
| |
24 |
BLOCK; INDEX,SYN
|
1-33269-035-1 |
03 |
1 |
0008- |
| |
27 |
BEARING; 4TH GEAR
NSK
|
1-09811-372-0 |
01 |
1 |
0008- |
| |
27 |
BEARING; 4TH GEAR
NTN
|
1-09811-386-0 |
01 |
1 |
0008- |
| |
28 |
RING; SNAP,3RD GEAR
|
1-09588-195-0 |
01 |
1 |
0008- |
| |
29 |
COLLAR; 3RD GEAR
|
1-33234-076-0 |
01 |
1 |
0008- |
| |
30 |
GEAR; 4TH,MAINSHAFT
Z=26
|
1-33253-555-0 |
01 |
1 |
0008- |
| |
33 |
BEARING; NEEDLE,3RD GEAR
NSK
|
1-09811-370-0 |
01 |
1 |
0008- |
| |
33 |
BEARING; NEEDLE,3RD GEAR
JTEKT
|
1-09811-387-1 |
01 |
1 |
0008- |
| |
33 |
BEARING; NEEDLE,3RD GEAR
NTN
|
1-09811-414-0 |
01 |
1 |
0008- |
| |
36 |
GEAR; 3RD,MAINSHAFT
Z=34
|
1-33252-414-0 |
01 |
1 |
0008- |
| |
42 |
SLEEVE
Z=45
|
1-33262-162-0 |
01 |
1 |
0008- |
| |
44 |
HUB; CLU,2ND & 3RD,MAIN
|
1-33261-193-0 |
01 |
1 |
0008- |
| |
45 |
SPRING; BLOCK INSERT
D=3.8
|
1-09580-395-0 |
03 |
1 |
0008- |
| |
46 |
PLUNGER; DETENT,SYN
|
1-33269-037-1 |
03 |
1 |
0008- |
| |
47 |
BLOCK; INDEX,SYN
|
1-33269-035-1 |
03 |
1 |
0008- |
| |
48 |
SYNCHRONIZER ASM; 2ND & 3RD
|
1-33265-409-0 |
02 |
1 |
0008- |
| |
49 |
BEARING; NEEDLE,2ND GEAR
NSK
|
1-09811-371-0 |
02 |
1 |
0008- |
| |
49 |
BEARING; NEEDLE,2ND GEAR
JTEKT
|
1-09811-373-0 |
02 |
1 |
0008- |
| |
50 |
GEAR; 2ND,MAINSHAFT
Z=42
|
1-33251-345-0 |
01 |
1 |
0008- |
| |
56 |
BEARING; NEEDLE,1ST,REV
NSK
|
1-09811-370-0 |
02 |
1 |
0008- |
| |
56 |
BEARING; NEEDLE,1ST,REV
JTEKT
|
1-09811-387-1 |
02 |
1 |
0008- |
| |
56 |
BEARING; NEEDLE,1ST,REV
NTN
|
1-09811-414-0 |
02 |
1 |
0008- |
| |
59 |
GEAR; REV MAINSHAFT
Z=45
|
1-33257-072-0 |
01 |
1 |
0008- |
| |
67 |
HUB; CLU,1ST TO REV
|
1-33261-192-0 |
01 |
1 |
0008- |
| |
68 |
SLEEVE; 1ST TO REV
|
1-33262-175-1 |
01 |
1 |
0008- |
| |
69 |
COLLAR; 1ST GEAR MAIN
|
1-33234-073-0 |
01 |
1 |
0008- |
| |
70 |
GEAR; 1ST,MAINSHAFT
Z=47
|
1-33255-069-0 |
01 |
1 |
0008- |
| |
74 |
WASHER; THRUST,REV GEAR
|
1-33239-147-0 |
01 |
1 |
0008- |
| |
82 |
SHAFT; MAIN,TRANS
Z=25-24-24-16
|
1-33231-311-0 |
01 |
1 |
0008- |
| |
84 |
BEARING; COUNTER SHAFT,FRT
NSK
|
1-09810-209-0 |
01 |
1 |
0008- |
| |
84 |
BEARING; COUNTER SHAFT,FRT
JTEKT
|
1-09810-210-0 |
01 |
1 |
0008- |
| |
93 |
RING; SNAP,COUNTER FRT BRG
|
1-09588-091-0 |
01 |
1 |
0008- |
| |
94 |
KEY; FEATHER,COUNTER SHAFT
L=41
|
1-09735-021-0 |
01 |
1 |
0008- |
| |
94 |
KEY; FEATHER,COUNTER SHAFT
L=47
|
1-09735-022-1 |
01 |
1 |
0008- |
| |
96 |
GEAR; COUNTER DRIVE
Z=38
|
1-33331-222-0 |
01 |
1 |
0008- |
| |
104 |
GEAR; 4TH,COUNTER
Z=34
|
1-33332-110-0 |
01 |
1 |
0008- |
| |
108 |
SHAFT; COUNTER
Z=28-22-14
|
1-33311-288-0 |
01 |
1 |
0008- |
| |
109 |
BEARING; COUNTER SHAFT,RR
NSK
|
1-09810-211-0 |
01 |
1 |
0008- |
| |
109 |
BEARING; COUNTER SHAFT,RR
JTEKT
|
1-09810-212-0 |
01 |
1 |
0008- |
| |
127 |
COLLAR; THRUST,REV SHAFT
|
1-33363-029-0 |
01 |
1 |
0008- |
| |
128 |
WASHER; THRUST,REV SHAFT
D=62 T=6.0
|
1-33363-028-0 |
01 |
1 |
0008- |
| |
129 |
BEARING; NEEDLE,IDLER
NSK
|
1-09811-016-0 |
02 |
1 |
0008- |
| |
129 |
BEARING; NEEDLE,IDLER
JTEKT
|
1-09811-017-0 |
02 |
1 |
0008- |
| |
130 |
COLLAR; DIST,NEEDLE BRG
|
1-33363-031-0 |
01 |
1 |
0008- |
| |
131 |
GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T).
ID=24.4
|
1-09623-057-0 |
01 |
1 |
0008- |
| |
132 |
SHAFT; REV
L=158
|
1-33351-022-1 |
01 |
1 |
0008- |
| |
135 |
GEAR; REV IDLER
Z=27
|
1-33361-073-0 |
01 |
1 |
0008- |
| |
138 |
PIECE; LK,REV SHAFT
|
9-33354-007-0 |
01 |
1 |
0008- |
| |
140 |
BOLT; LK PIECE
M10X15 FLANGE
|
1-09049-019-0 |
01 |
1 |
0008- |
| |
149 |
BEARING; NEEDLE,MAINSHAFT,RR
NSK
|
1-09810-215-0 |
01 |
1 |
0008- |
| |
149 |
BEARING; NEEDLE,MAINSHAFT,RR
JTEKT
|
1-09810-216-0 |
01 |
1 |
0008- |
| |
212 |
COLLAR; DIST,MAINSHAFT
|
1-33235-015-0 |
01 |
1 |
0008- |
| |
286 |
NUT; LK,MAINSHAFT
M33 FLANGE
|
1-09449-077-0 |
01 |
1 |
0008- |
| |
298 |
GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T).
ID=35.7 T=5
|
1-09623-379-0 |
01 |
1 |
0008- |
| |
342 |
FLANGE; OUTPUT
|
1-37243-355-0 |
01 |
1 |
0008- |
| |
345 |
BOLT; FLANGE TO YOKE
M14X43 KNURL
|
1-09046-003-0 |
04 |
1 |
0008-0707 |
| |
345 |
BOLT; FLANGE TO YOKE
M14X43 KNURL
|
8-98014-003-0 |
04 |
1 |
0708- |
