Sayfa 0-81A - Isuzu EPC

0-81A — GOVERNOR; INJECTION PUMP (#4272) — 392 parça

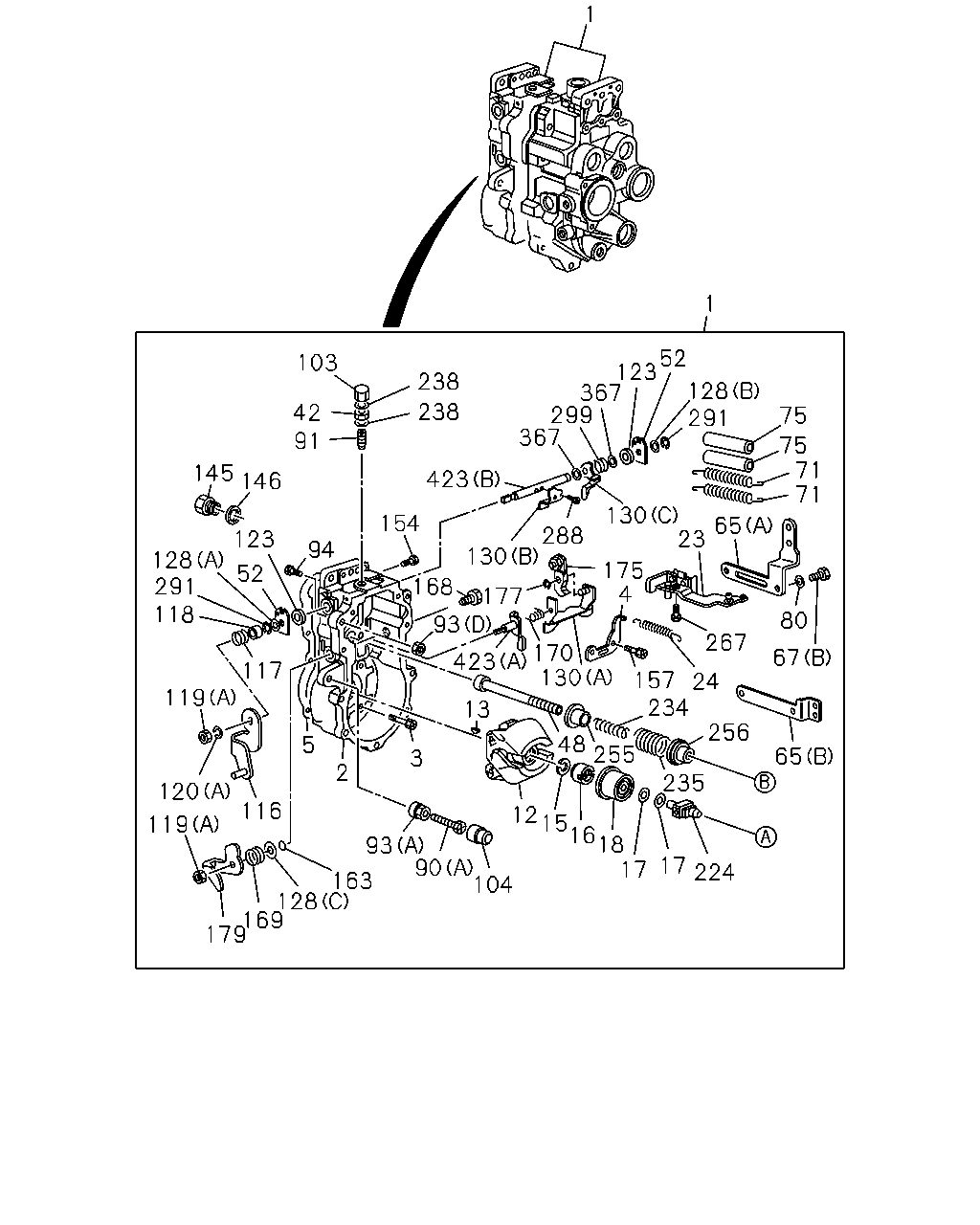

1 1 52 123 367 299 367 103 238 128 291 238 42 91 75 75 71 71 145 146 423 123 130 23 154 65 288 130 94 128 291 118 175 4 52 168 177 93 423 80 267 170 130 67 117 234 119 13 48 255 256 5 65 3 2 235 120 116 12 15 16 18 17 119 93 90 17 224 104 163 128 169 179 157 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-068-5	1-15770-867-4	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-115-2	1-15770-903-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-121-2	1-15770-908-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: F = 1-15603-122-1	1-15770-909-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15721-307-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-309-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-345-0	01	1	9909-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-358-0	01	1	-9908
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-846-0	10	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: J = 1-15603-290-5	1-15779-226-0	08	1	-
4	PLATE; START SPRING,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-294-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-266-1	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: J = 1-15603-290-5	1-15779-529-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15722-018-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-372-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15725-795-0	01	1	-9702
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 1-15603-114-4	1-15725-795-0	01	1	-9610
23	LINK; LEVER TO CONT RACK,GOV ASM PART: B = 1-15603-068-5	1-15725-795-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: J = 1-15603-290-5	1-15725-795-0	01	1	9909-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 1-15603-114-4	1-15725-936-0	01	1	9611-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15725-936-0	01	1	9703-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: J = 1-15603-290-5	1-15725-936-0	01	1	-9908
23	LINK; LEVER TO CONT RACK,GOV ASM PART: D = 1-15603-115-2	1-15725-936-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-450-0	01	1	-
42	NUT; SPRING CAPSULE,IDLE CONT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81393-204-0	01	1	-
42	NUT; SPRING CAPSULE,IDLE CONT,GOV ASM PART: J = 1-15603-290-5	9-81393-204-0	01	1	-9908
48	SHAFT; GOV,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-240-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-269-0	02	1	-
65	BRACKET; RETURN SPRING,GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15779-332-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (B) ASM PART: J = 1-15603-290-5	1-15779-535-0	01	1	-
67	BOLT; SPRING BRKT,GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15729-818-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: J = 1-15603-290-5	1-15723-482-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15723-521-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-013-0	02	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15779-199-0	02	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-248-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15723-522-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV ASM PART: J = 1-15603-290-5	1-15723-522-0	01	1	-9908
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-233-0	01	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (C) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15779-249-0	01	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (C) ASM PART: J = 1-15603-290-5	1-15779-249-0	01	1	-9908
104	CAP; LOCK NUT,ADJ SCREW ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-871-1	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-443-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-389-0	01	1	-
119	NUT; ENG STOP LEVER,GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-83579-492-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV (A) ASM PART: I = 1-15603-265-3	1-83579-492-0	01	1	0203-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-282-0	02	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.60 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.80 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.90 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.50 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.30 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.40 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.25 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.35 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.20 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (A) ASM PART: B = 1-15603-068-5, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-774-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-114-4	1-15725-774-0	01	1	-9610
130	LEVER; CONT,GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (C) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15725-801-0	01	1	-
130	LEVER; CONT,GOV (C) ASM PART: J = 1-15603-290-5	1-15725-801-0	01	1	-9908
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-114-4	1-15725-877-0	01	1	9611-
130	LEVER; CONT,GOV (A) ASM PART: D = 1-15603-115-2	1-15725-877-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81325-525-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-81325-528-0	01	1	-
154	BOLT; GOV HSG ASM PART: J = 1-15603-290-5	1-15779-621-0	01	1	-9908
157	BOLT; START SPRING PLATE,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-226-0	02	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-227-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-458-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-132-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15725-793-0	01	1	-9610
175	LEVER; GOV,INJ PUMP ASM PART: B = 1-15603-068-5, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-793-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: D = 1-15603-115-2	1-15725-854-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15725-854-0	01	1	9611-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: B = 1-15603-068-5, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-773-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: C = 1-15603-114-4	1-15725-773-0	01	1	-9610
179	LEVER; SPD ADJ,GOV ASM PART: C = 1-15603-114-4	1-15725-876-0	01	1	9611-
179	LEVER; SPD ADJ,GOV ASM PART: D = 1-15603-115-2	1-15725-876-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-334-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-500-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15723-527-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, J = 1-15603-290-5	1-15723-520-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15723-523-0	01	1	-
238	GASKET; SPRING CAPSULE CAP,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	8-94144-588-0	02	1	-
238	GASKET; SPRING CAPSULE CAP,GOV ASM PART: J = 1-15603-290-5	8-94144-588-0	02	1	-9908
255	SEAT; GOV SPRING,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15749-747-0	01	1	-
288	BOLT; LEVER ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-196-0	02	1	-
299	SPRING; LEVER ASM PART: J = 1-15603-290-5	1-15723-463-1	01	1	-9908
299	SPRING; LEVER ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15723-463-1	01	1	-
367	SHIM; SHAFT T=0.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	9-88410-122-0	02	1	-
367	SHIM; SHAFT T=0.5 ASM PART: J = 1-15603-290-5	9-88410-122-0	02	1	-9908
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15779-387-0	01	1	-9702
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-387-0	01	1	-9610
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: B = 1-15603-068-5	1-15779-387-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-607-0	01	1	9611-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: D = 1-15603-115-2, J = 1-15603-290-5	1-15779-607-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15779-607-0	01	1	9703-

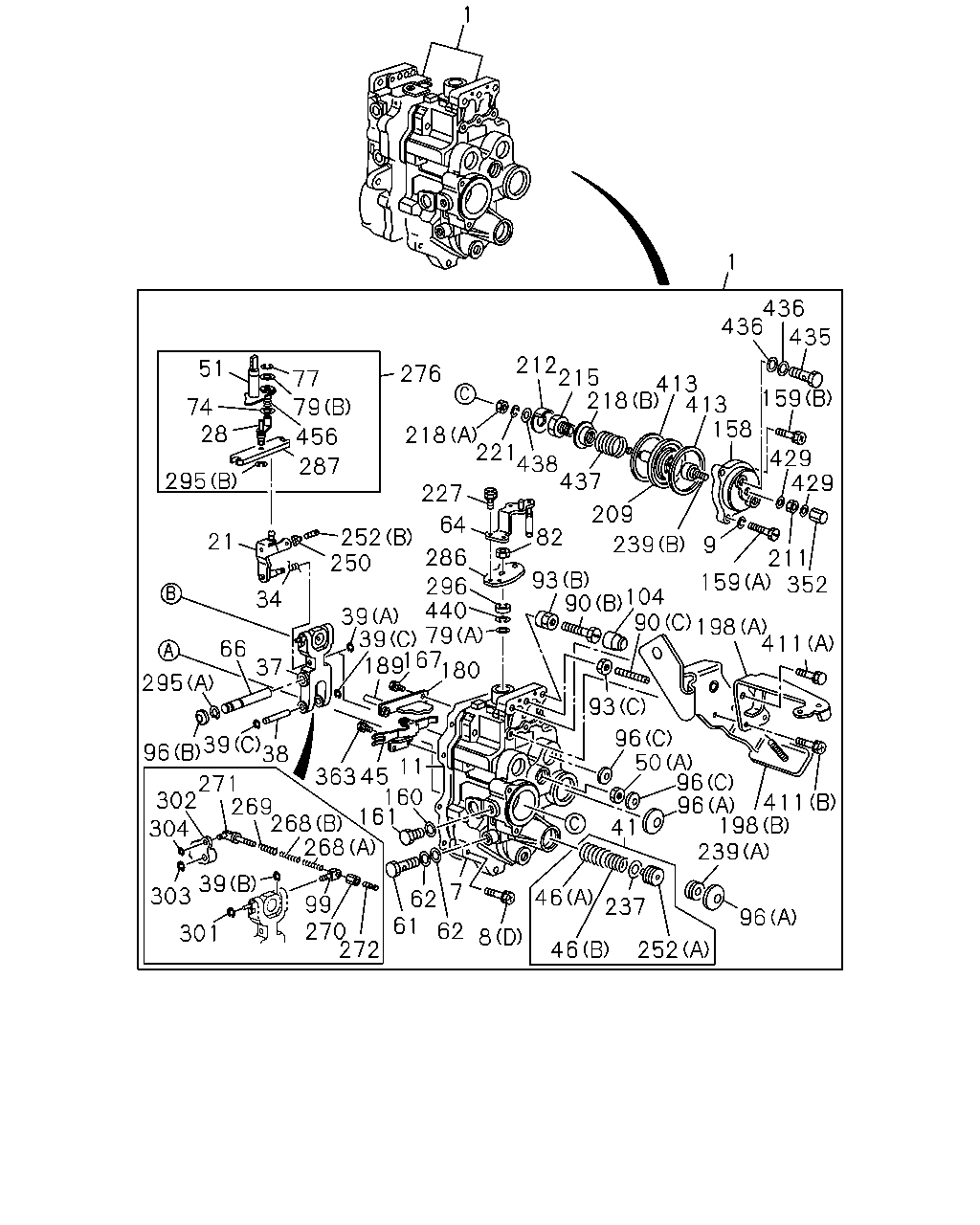

1 1 436 436 435 212 215 413 218 413 158 51 276 77 159 74 28 79 218 221 438 437 429 429 456 287 295 227 209 64 82 252 250 21 239 9 286 211 352 93 104 90 90 198 159 296 440 39 39 79 167 189 180 34 411 66 37 295 93 96 50 96 96 411 198 239 39 96 38 11 160 161 271 302 269 268 268 41 304 39 303 7 46 62 61 99 270 272 237 96 62 301 8 46 252 363 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-068-5	1-15770-867-4	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-115-2	1-15770-903-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-121-2	1-15770-908-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: F = 1-15603-122-1	1-15770-909-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-191-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15721-325-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15729-251-0	02	1	-0202
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	1-15729-251-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15729-312-0	04	1	-0202
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	1-15729-312-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-683-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (D) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-033-0	09	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	9-09150-506-0	08	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	08	1	-0202
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	02	1	0203-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-146-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-251-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-779-1	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-798-1	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-444-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: B = 1-15603-068-5	1-15725-778-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 1-15603-114-4	1-15725-778-0	01	1	-9610
37	LEVER ASM; TENSION,GOV ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15725-778-0	01	1	-9702
37	LEVER ASM; TENSION,GOV ASM PART: C = 1-15603-114-4	1-15725-874-0	01	1	9611-
37	LEVER ASM; TENSION,GOV ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15725-874-0	01	1	9703-
37	LEVER ASM; TENSION,GOV ASM PART: D = 1-15603-115-2, J = 1-15603-290-5	1-15725-874-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (A), ID=4 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: E = 1-15603-121-2	1-15723-502-0	01	1	-9702
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	1-15723-502-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: C = 1-15603-114-4	1-15723-537-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: D = 1-15603-115-2, J = 1-15603-290-5	1-15723-574-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: E = 1-15603-121-2	1-15723-574-0	01	1	9703-
45	LEVER ASM; GOV,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-860-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-461-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: B = 1-15603-068-5, F = 1-15603-122-1	1-15723-501-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: E = 1-15603-121-2	1-15723-501-0	01	1	-9702
46	SPRING; GOV,INJ PUMP (B) ASM PART: C = 1-15603-114-4, D = 1-15603-115-2, J = 1-15603-290-5	1-15723-506-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: E = 1-15603-121-2	1-15723-506-0	01	1	9703-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15723-513-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-295-0	01	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15619-091-0	01	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-066-0	02	1	-
64	LEVER; LOAD CONT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-872-1	01	1	-
66	SHAFT; LEVER ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-234-0	01	1	-
74	WASHER; LEVER SPR ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-232-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-248-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, J = 1-15603-290-5	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: F = 1-15603-122-1	1-15779-293-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-97085-022-0	02	1	-
158	COVER; GOV HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15619-283-0	01	1	-
159	BOLT; COVER (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-202-0	02	1	-
159	BOLT; COVER (B), M6X20 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-187-0	01	1	-
160	GASKET; PLUG TO HSG L=96 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-066-0	01	1	-
161	PLUG; HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-97037-288-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-071-0	02	1	-
180	PLATE; GOV COVER ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15779-257-0	01	1	-
180	PLATE; GOV COVER ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-488-0	01	1	-
189	ROD; PUSH,GOV L=72.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-336-0	01	1	-
189	ROD; PUSH,GOV L=73.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-337-0	01	1	-
189	ROD; PUSH,GOV L=73.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-338-0	01	1	-
189	ROD; PUSH,GOV L=74.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-339-0	01	1	-
189	ROD; PUSH,GOV L=74.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-340-0	01	1	-
189	ROD; PUSH,GOV L=75.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-341-0	01	1	-
189	ROD; PUSH,GOV L=75.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-342-0	01	1	-
189	ROD; PUSH,GOV L=76.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-343-0	01	1	-
189	ROD; PUSH,GOV L=76.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-344-0	01	1	-
189	ROD; PUSH,GOV L=77.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-345-0	01	1	-
189	ROD; PUSH,GOV L=77.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-346-0	01	1	-
189	ROD; PUSH,GOV L=78.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-347-0	01	1	-
189	ROD; PUSH,GOV L=78.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-348-0	01	1	-
189	ROD; PUSH,GOV L=79.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-349-0	01	1	-
189	ROD; PUSH,GOV L=79.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-350-0	01	1	-
189	ROD; PUSH,GOV L=80.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-351-0	01	1	-
189	ROD; PUSH,GOV L=80.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-352-0	01	1	-
189	ROD; PUSH,GOV L=81.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-353-0	01	1	-
189	ROD; PUSH,GOV L=81.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-354-0	01	1	-
189	ROD; PUSH,GOV L=82.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-355-0	01	1	-
189	ROD; PUSH,GOV L=82.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-356-0	01	1	-
189	ROD; PUSH,GOV L=83.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-426-0	01	1	-
189	ROD; PUSH,GOV L=83.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-427-0	01	1	-
189	ROD; PUSH,GOV L=84.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-428-0	01	1	-
189	ROD; PUSH,GOV L=84.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-429-0	01	1	-
189	ROD; PUSH,GOV L=85.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-430-0	01	1	-
189	ROD; PUSH,GOV L=85.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-431-0	01	1	-
189	ROD; PUSH,GOV L=86.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-432-0	01	1	-
189	ROD; PUSH,GOV L=86.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-433-0	01	1	-
189	ROD; PUSH,GOV L=87.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-434-0	01	1	-
189	ROD; PUSH,GOV L=87.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-435-0	01	1	-
189	ROD; PUSH,GOV L=88.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-436-0	01	1	-
189	ROD; PUSH,GOV L=88.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-437-0	01	1	-
189	ROD; PUSH,GOV L=89.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-438-0	01	1	-
189	ROD; PUSH,GOV L=89.5 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-439-0	01	1	-
189	ROD; PUSH,GOV L=90.0 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-440-0	01	1	-
198	BRACKET; COVER (B) ASM PART: C = 1-15603-114-4	1-15779-444-0	01	1	-9610
198	BRACKET; COVER (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-445-0	01	1	-
198	BRACKET; COVER (B) ASM PART: B = 1-15603-068-5, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-89963-688-3	01	1	-
198	BRACKET; COVER (B) ASM PART: C = 1-15603-114-4	1-89963-688-3	01	1	9611-
209	DIAPHRAGM; GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, J = 1-15603-290-5	1-15713-005-0	01	1	-
209	DIAPHRAGM; GOV ASM PART: F = 1-15603-122-1	1-15713-005-0	01	1	-9702
209	DIAPHRAGM; GOV ASM PART: F = 1-15603-122-1	1-15713-006-0	01	1	9703-
211	NUT; LOCK,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
212	PLATE; GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-94122-719-0	01	1	-
215	BOLT; DIAPH ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-97037-284-0	01	1	-
218	NUT; DIAPH (A) ASM PART: B = 1-15603-068-5	1-15729-249-0	01	1	-
218	NUT; DIAPH (A) ASM PART: J = 1-15603-290-5	1-15729-249-0	01	1	-9908
218	NUT; DIAPH (A) ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15729-249-0	01	1	-9702
218	NUT; DIAPH (A) ASM PART: C = 1-15603-114-4	1-15729-249-0	01	1	-9610
218	NUT; DIAPH (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-94122-726-0	01	1	-
218	NUT; DIAPH (A) ASM PART: C = 1-15603-114-4	9-88410-525-0	01	1	9611-
218	NUT; DIAPH (A) ASM PART: J = 1-15603-290-5	9-88410-525-0	01	1	9909-
218	NUT; DIAPH (A) ASM PART: D = 1-15603-115-2	9-88410-525-0	01	1	-
218	NUT; DIAPH (A) ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	9-88410-525-0	01	1	9703-
221	WASHER; LK,DIAPH ID=6.1 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-09150-506-0	01	1	-
227	BOLT; GOV LEVER ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15719-005-0	02	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-81325-553-0	AR	1	-
239	SCREW; GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-115-2	1-15729-386-0	01	1	-
239	SCREW; GOV (B) ASM PART: E = 1-15603-121-2	1-15729-386-0	01	1	9703-
239	SCREW; GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-239-0	01	1	-
239	SCREW; GOV (B) ASM PART: E = 1-15603-121-2	8-97037-287-0	01	1	-9702
239	SCREW; GOV (B) ASM PART: B = 1-15603-068-5, F = 1-15603-122-1, J = 1-15603-290-5	8-97037-287-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-288-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-797-0	01	1	-
286	LEVER; GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15725-781-0	01	1	-
295	RING; SNAP (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: B = 1-15603-068-5	1-15779-483-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 1-15603-114-4	1-15779-489-0	01	1	-9610
302	PLATE; CAM,GOV ASM PART: F = 1-15603-122-1	1-15779-499-0	01	1	-9702
302	PLATE; CAM,GOV ASM PART: E = 1-15603-121-2	1-15779-500-0	01	1	-9702
302	PLATE; CAM,GOV ASM PART: D = 1-15603-115-2	1-15779-540-0	01	1	-
302	PLATE; CAM,GOV ASM PART: F = 1-15603-122-1	1-15779-556-0	01	1	9703-
302	PLATE; CAM,GOV ASM PART: J = 1-15603-290-5	1-15779-622-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 1-15603-114-4	1-15779-767-0	01	1	9611-
302	PLATE; CAM,GOV ASM PART: E = 1-15603-121-2	1-15779-799-0	01	1	9703-
303	RING; SNAP,CAM PLATE,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
352	NUT; CAP CAP NUT ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-093-0	01	1	-
363	BOLT; LEVER FIX ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	8-94247-029-0	02	1	-
411	BOLT; BRKT (A) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-415-0	01	1	-
411	BOLT; BRKT (B), M6X16 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-071-0	02	1	-
413	GASKET; GOV COVER ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-129-0	02	1	-
429	GASKET; CAP NUT ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-868-0	02	1	-
435	BOLT; EYE,GOV COVER ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-325-0	01	1	-
436	GASKET; EYE BOLT ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-849-0	02	1	-
437	SPRING; DIAPHRAGM ASM PART: C = 1-15603-114-4	1-15723-367-0	01	1	-
437	SPRING; DIAPHRAGM ASM PART: F = 1-15603-122-1	1-15723-375-0	01	1	9703-
437	SPRING; DIAPHRAGM ASM PART: E = 1-15603-121-2, F = 1-15603-122-1	1-15723-526-0	01	1	-9702
437	SPRING; DIAPHRAGM ASM PART: B = 1-15603-068-5, D = 1-15603-115-2	1-15723-526-0	01	1	-
437	SPRING; DIAPHRAGM ASM PART: J = 1-15603-290-5	1-15723-573-0	01	1	-
437	SPRING; DIAPHRAGM ASM PART: E = 1-15603-121-2	1-15723-618-0	01	1	9703-
438	DISK; DIAPHRAGM ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-333-0	01	1	-
440	RING; SNAP,LEVER ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15729-989-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15723-462-0	01	1	-

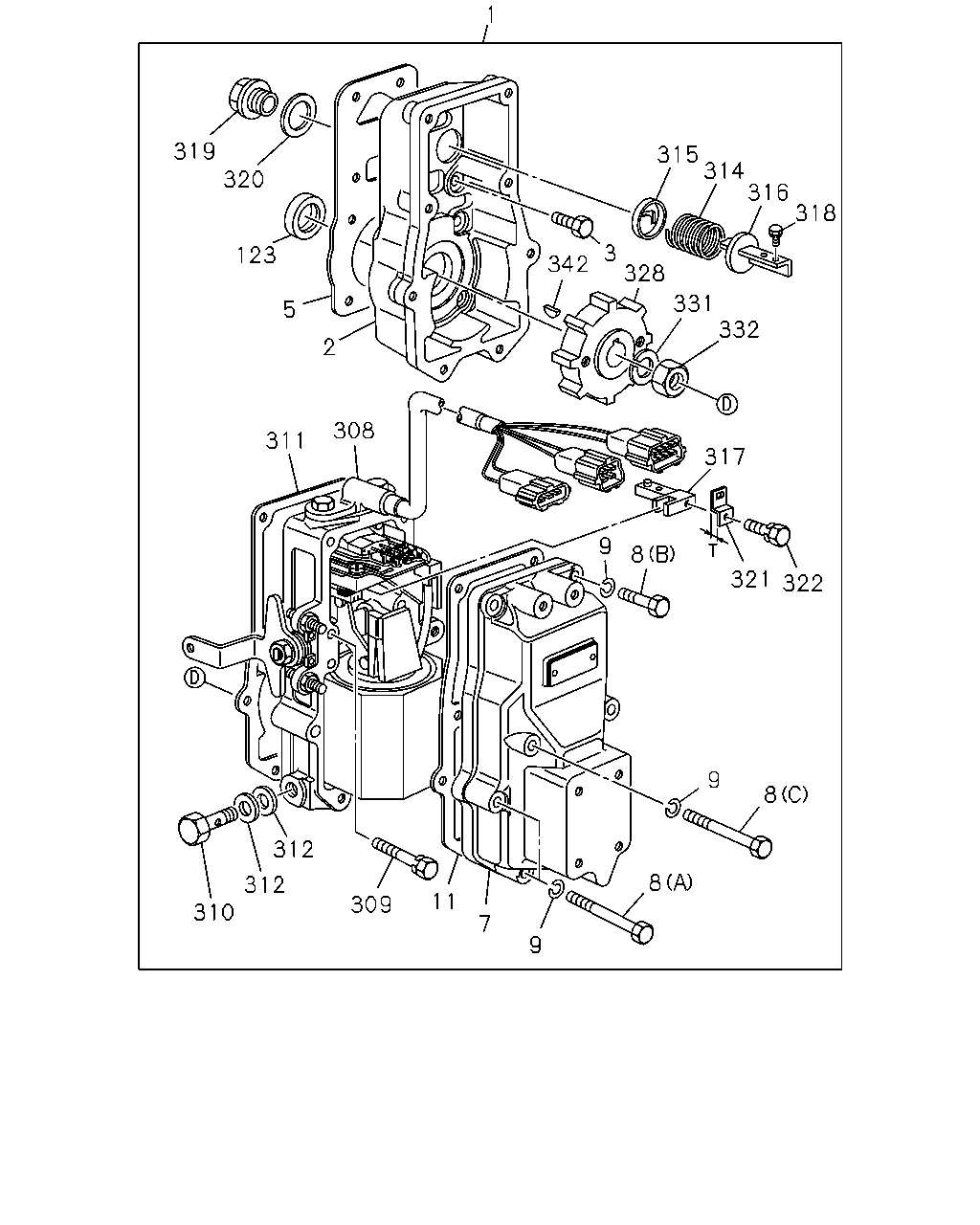

1 319 320 315 314 316 318 3 328 123 342 331 332 5 2 308 311 317 9 8 321 322 9 8 312 8 312 310 11 309 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-068-5	1-15770-867-4	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-115-2	1-15770-903-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-121-2	1-15770-908-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: F = 1-15603-122-1	1-15770-909-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15721-307-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-309-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-345-0	01	1	9909-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-358-0	01	1	-9908
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-846-0	10	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: J = 1-15603-290-5	1-15779-226-0	08	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-266-1	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: J = 1-15603-290-5	1-15779-529-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-191-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15721-325-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15729-251-0	02	1	-0202
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	1-15729-251-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15729-312-0	04	1	-0202
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	1-15729-312-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-683-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (D) ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	5-15729-033-0	09	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	9-09150-506-0	08	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	08	1	-0202
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	02	1	0203-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-146-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-251-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: B = 1-15603-068-5, C = 1-15603-114-4, D = 1-15603-115-2, E = 1-15603-121-2, F = 1-15603-122-1, J = 1-15603-290-5	1-15779-282-0	02	1	-
308	ACTUATOR; GOV,ELEC ASM PART: G = 1-15603-156-1, I = 1-15603-265-3	1-15779-447-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15779-554-0	01	1	-
309	BOLT; ACTUATOR FIX,ELEC GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-535-0	02	1	-
310	BOLT; EYE,ACTUATOR,ELEC GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-538-0	01	1	-
311	GASKET; ACTUATOR,ELEC GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-147-0	01	1	-
312	GASKET; EYE BOLT,ACTUATOR,GOV ID=14.2 OD=19.2 ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-09630-085-0	02	1	-
314	SPRING; CONT RACK,GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-306-0	01	1	-
315	SEAT; SPRING,CONT RACK,HSG SIDE ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-307-0	01	1	-
316	SEAT; SPRING,CONT RACK,CONNECTOR SIDE ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-308-0	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC ASM PART: I = 1-15603-265-3	1-15779-291-0	01	1	-0202
317	CONNECTOR; CONT RACK,GOV,ELEC ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	1-15779-291-0	01	1	-
318	BOLT; CONT RACK,GOV,ELEC ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-83569-079-0	01	1	-
319	CAP; CONT RACK,GOV,ELEC ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-152-0	01	1	-
320	GASKET; CAP,CONT RACK,GOV ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15629-056-0	01	1	-
321	PLATE; CONNECTOR,CONT RACK,GOV T=4.0 ASM PART: I = 1-15603-265-3	1-15729-742-0	01	1	-0202
321	PLATE; CONNECTOR,CONT RACK,GOV T=4.0 ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	1-15729-742-0	01	1	-
321	PLATE; CONNECTOR,CONT RACK,GOV T=4.5 ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15779-148-0	01	1	-
321	PLATE; CONNECTOR,CONT RACK,GOV T=3.5 ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15779-549-0	01	1	-
322	BOLT; CONNECTOR PLATE,GOV,ELEC ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3	1-83569-079-0	01	1	-
322	BOLT; CONNECTOR PLATE,GOV,ELEC ASM PART: I = 1-15603-265-3	1-83569-079-0	01	1	-0202
328	GEAR; HSG TO MAGNET ASM PART: I = 1-15603-265-3	1-15779-153-0	01	1	-0202
328	GEAR; HSG TO MAGNET ASM PART: G = 1-15603-156-1	1-15779-153-0	01	1	-
328	GEAR; HSG TO MAGNET ASM PART: A = 1-15603-065-3, H = 1-15603-240-3	1-15779-550-0	01	1	-
331	WASHER; LK,GEAR ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15749-007-0	01	1	-
332	NUT; GEAR ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-012-0	01	1	-
342	KEY; WOODRUFF,SHAFT 16MM ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	5-19619-049-0	01	1	-
342	KEY; WOODRUFF,SHAFT 13MM ASM PART: A = 1-15603-065-3, G = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81325-030-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
